SWi2025TE 24 Ton 250 cm³ Hydraulic Flange Spreader
-
Model:SWi2025TE
Maximum Operating Pressure: 700bar/10000PSI
Maximum Spreading Force: 24 ton | 235.4 kN
Weight: 15 kg | 33.1 lbs
Maximum Spread (mm): 103.5
Tip Clearance (mm): 6
Power Source: Split Hydraulic Power
Jaw Width(mm): 60
Oil Capacity (cm³): 250
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1 Piece
Brand Name:Replacement Enerpac's SWi2025TE
- SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader SWi5TI-S 8.7 Ton 4 in Integral Hydraulic Flange Spreader Set SWi5TE-S 8.7 Ton External Hydraulic Flange Spreader SWi12/14TM 14 Ton Mechanical Flange Spreader SWi2025TE 24 Ton 250 cm³ Hydraulic Flange Spreader SWI20/25TI 24 Ton Integral Hydraulic Flange Spreader SWi2025TEMAXSPB 24 Ton 250 cm³ External Hydraulic Flange Spreader Maxi Set
Description
Model:SWi2025TE
Product Line: Industrial Tools
Customizable with special requirement
Practical, portable, and lightweight
Revolving handle to aid horizontal or vertical spreading
Removable handle for improved access
No finger pinch-point
Increased step-depth on upper steps
Safety lanyard – 10 m length
Forged key components for strength and reliability
Rapid disassembly and assembly
Narrow jaw teeth – improved tool wear

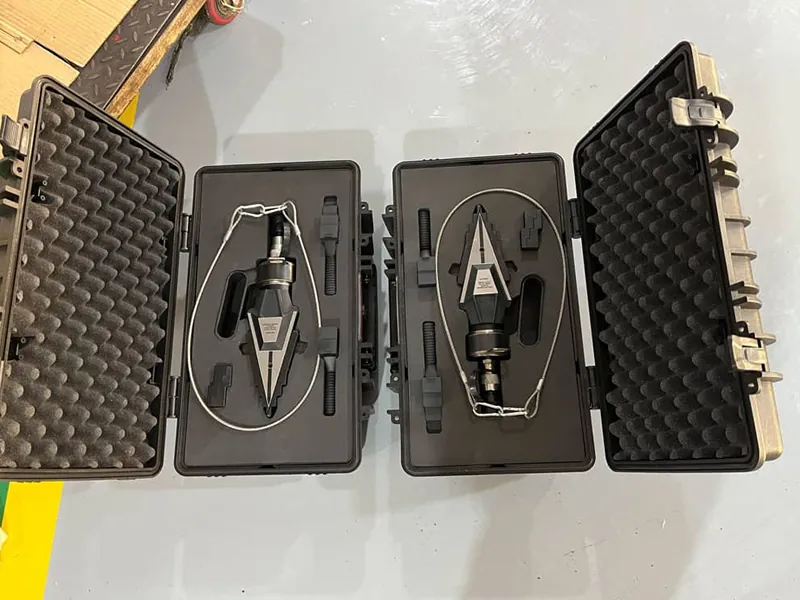

Image Gallery

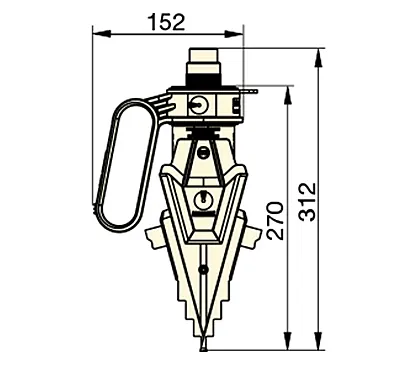

Dimensions
| Maximum Operating Pressure (bar) | 700 |
| Maximum Spreading Force (ton) | 24 |
| Maximum Spread (mm) | 103.5 |
| Tip Clearance (mm) | 6 |
| Jaw Width(mm) | 60 |
| Power Source | Split Hydraulic Power |
| Oil Capacity (cm3) | 250 |
| Weight (kg) | 15 |
Series Comparison
| Model | Capacity/Ton | Maximum Spread/mm | Tip Clearance/mm | Jaw Width/mm | Oil Capacity/cm³ | Power | Weight/Kg |
| SWi2025TE | 24 | 235.4 kN | 103.5 | 6 | 60 | 250 | Split Hydraulic Power | 15 | 33.1 lbs |
| SWI20/25TI | 24 | 235.4 kN | 103.5 | 6 | 60 | * | Integral Hydraulic Type | 18.1 | 39.9 lbs |
| SWi2025TEMAXSPB | 24 | 235.4 kN | 103.5 | 6 | 60 | 250 | Split Hydraulic Power | 33 | 72.8 lbs |
| SWi12/14TM | 14 | 137.3 kN | 103.5 | 6 | * | * | Mechanical | 13 | 28.7 lbs |
| SWi5TI-S | 8.7 | 85.3 kN | 101 | 4 | 50 | * | Integral Hydraulic Type | 10.5 | 23.1 lbs |
| SWi5TE-S | 8.7 | 85.3 kN | 101 | 4 | 50 | * | Split Hydraulic Power | 8.7 | 19.2 lbs |
| SW14.5TE | 14.5 | 142.2 kN | 81 | 6 | * | * | Integral Hydraulic Type | 10 | 22 lbs |
