SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader
-
Model:SW14.5TI
Maximum Operating Pressure: 700bar/10000PSI
Maximum Spreading Force: 14.5 ton | 142.2 kN
Model Type: Single Wedge Set
Power Source: Integral Hydraulic Type
Weight: 10 kg | 22 lbs
Maximum Spread (mm): 81
Tip Clearance(mm): 6
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1 Piece
Brand Name:Replacement Enerpac's SW14.5TI
- SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader SWi5TI-S 8.7 Ton 4 in Integral Hydraulic Flange Spreader Set SWi5TE-S 8.7 Ton External Hydraulic Flange Spreader SWi12/14TM 15.7 Ton Mechanical Flange Spreader SWi2025TE 26.9 Ton 250 cm³ Hydraulic Flange Spreader SWI20/25TI 26.9 Ton Integral Hydraulic Flange Spreader SWi2025TEMAXSPB 26.9 Ton 250 cm³ External Hydraulic Flange Spreader Maxi Set
Description
Model:SW14.5TI
Product Line: Industrial Tools
Customizable with special requirement

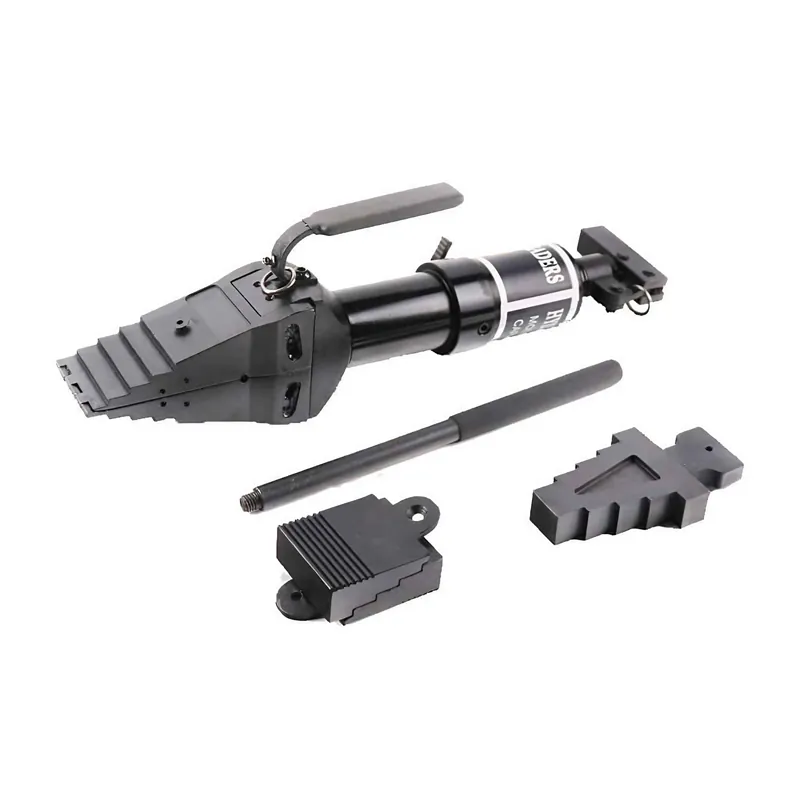

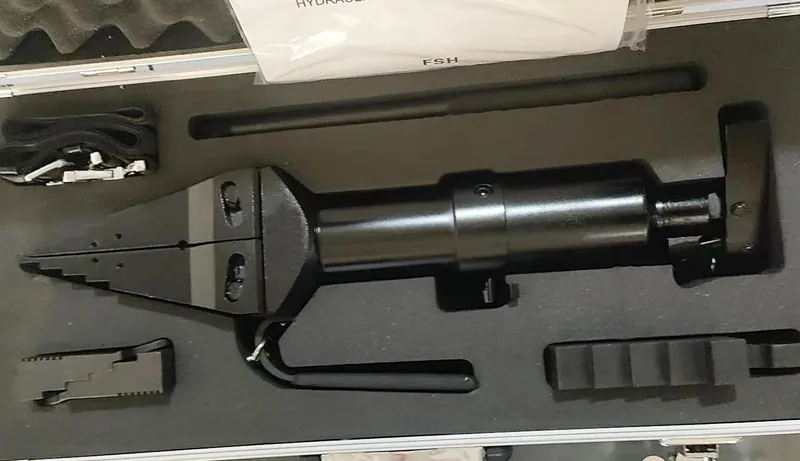

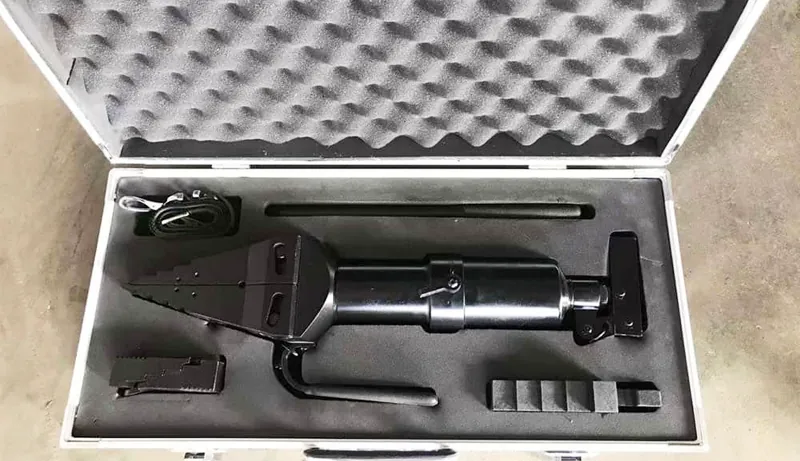

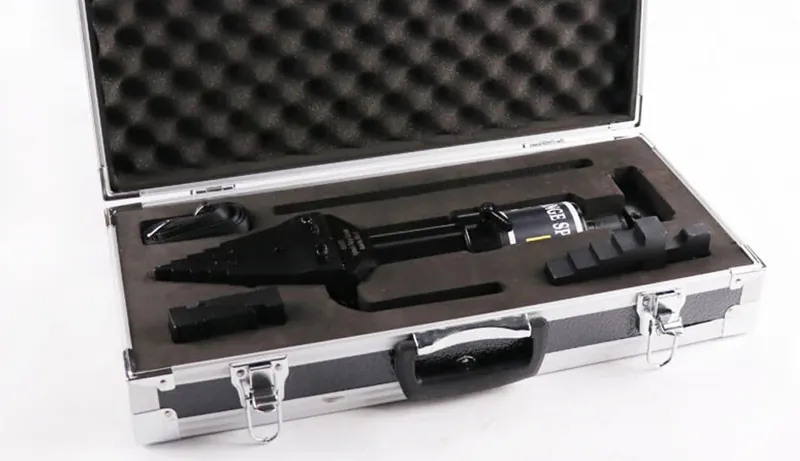

1 X SW14.5TI Wedgehead
1 X 700bar Integral hydraulic pump/Jack
1 X Safety Block;1 X Pair of Stepped Blocks
1 X Carry Strap; 1 X Carry Case.
Image Gallery

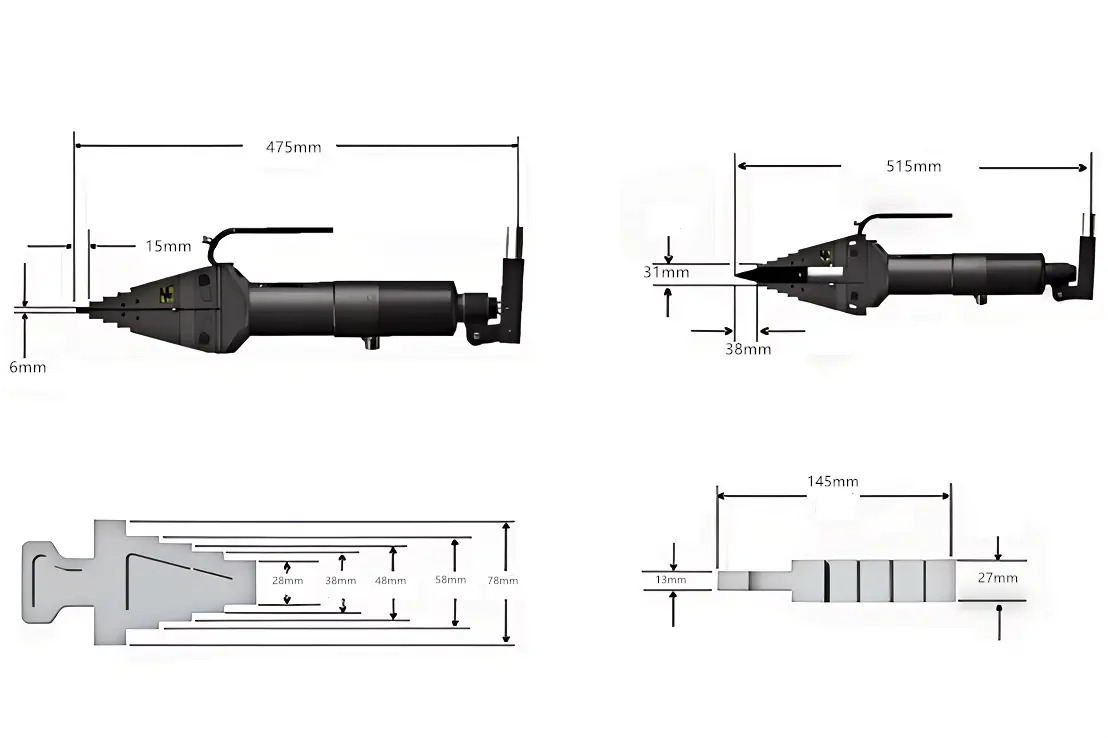

Dimensions
| Maximum Operating Pressure (bar) | 700 |
| Maximum Spreading Force (ton) | 14.5 |
| Maximum Spread (mm) | 81 |
| Tip Clearance (mm) | 6 |
| Power Source | Integral Hydraulic Type |
| Weight (kg) | 10 |
Series Comparison
| Model | Capacity/Ton | Maximum Spread/mm | Tip Clearance/mm | Jaw Width/mm | Oil Capacity/cm³ | Power | Weight/Kg |
| SWi2025TE | 26.9 Ton| 263.6 kN | 103.5 | 6 | 60 | 250 | Split Hydraulic Power | 15 | 33.1 lbs |
| SWI20/25TI | 26.9 Ton| 263.6 kN | 103.5 | 6 | 60 | * | Integral Hydraulic Type | 18.1 | 39.9 lbs |
| SWi2025TEMAXSPB | 26.9 Ton| 263.6 kN | 103.5 | 6 | 60 | 250 | Split Hydraulic Power | 33 | 72.8 lbs |
| SWi12/14TM | 15.7 Ton| 153.8kN | 103.5 | 6 | * | * | Mechanical | 13 | 28.7 lbs |
| SWi5TI-S | 8.7 Ton| 85.3 kN | 101 | 4 | 50 | * | Integral Hydraulic Type | 10.5 | 23.1 lbs |
| SWi5TE-S | 8.7 Ton| 85.3 kN | 101 | 4 | 50 | * | Split Hydraulic Power | 8.7 | 19.2 lbs |
| SW14.5TE | 14.5 Ton| 142.2 kN | 81 | 6 | * | * | Integral Hydraulic Type | 10 | 22 lbs |
Certificate of Compliance
Literature
PROVIDING EXCELLENT SOLUTIONS BY SAIVS™
if you are looking for factory manufacturers and suppliers of SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader,
choose SAIVS TOOL because of the high quality, variety of choices, low price and fast delivery.
you can easily find the best SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader solution here!
Speak to one of our experts today to learn more about our SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader products solutions.
