STF14HB 14 Ton Hydraulic Flange Spreader-Kit
-
Maximum Operating Pressure: 700bar/1000PSI
Maximum Spreading Force: 14 ton | 137.3 kN
Weight: 7.1 kg | 15.7 lbs
Maximum Spread (mm): 80
Tip Clearance (mm): 6
Power Source: Hydraulic
Oil Capacity (cm³): 78

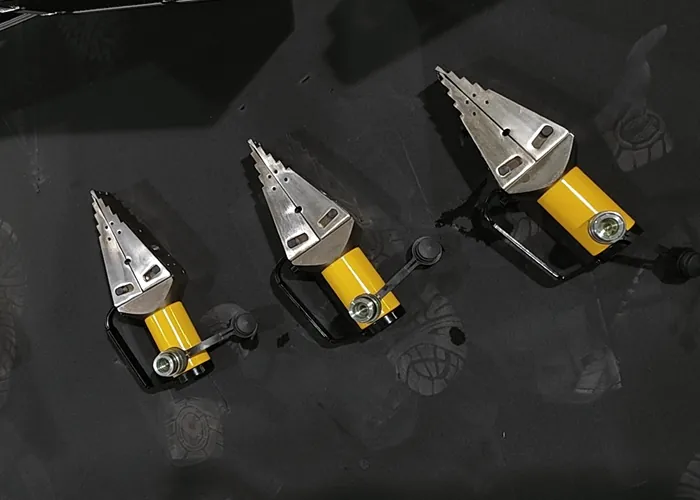

Flange Spreader: FSH14
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1 Piece
- STF14H 14 Ton 3.16 in Hydraulic Flange Spreader Set STF14HB 14 Ton Hydraulic Flange Spreader-Kit
Description
Product Line: Industrial Tools
Customizable with special requirement
The Hydraulic Flange Spreader set includes a pump, tool, gauge, gauge adapter, couplers, and hose, making it convenient for ordering. It is suitable for maintenance, overhaul, testing, and valve replacement applications.
Integrated Wedge Design:
Friction-free, smooth, and parallel wedge movement.
Prevents flange damage and spreading arm failure.
Unique Interlocking Wedge Design:
No first step bending.
Eliminates the risk of slipping out of the joint.
Minimal Access Requirement:
Requires only a 6mm gap.
Stepped Spreader Arm Design:
Each step can spread under full load.
Image Gallery
Dimensions
| Maximum Operating Pressure (bar) | 700 |
| Maximum Spreading Force (ton) | 14 |
| Maximum Spread (mm) | 80 |
| Tip Clearance (mm) | 6 |
| Power Source | Hydraulic |
| Oil Capacity (cm3) | 78 |
| Flange Spreader | FSH14 |

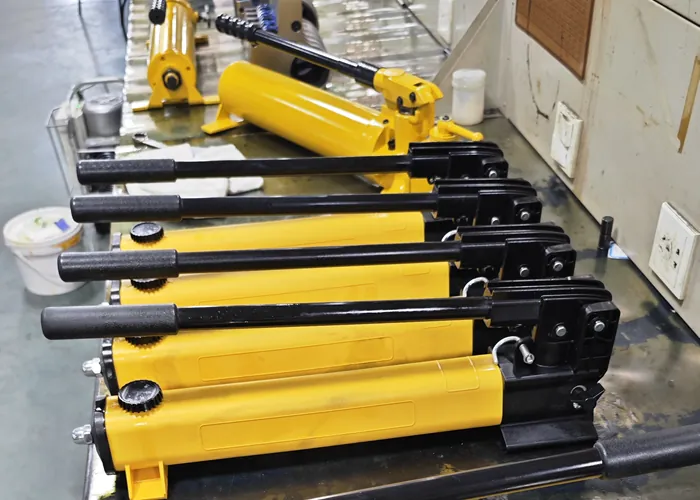

| Hand Pump | P202 |
| Pressure Gauge And Adapter | GP10S & GA3 |

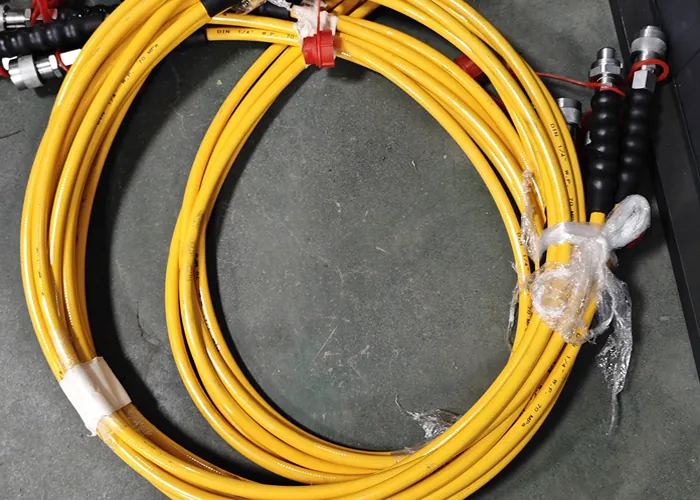

| Hydraulic Hose | HC7206 |
| Weight (kg) | 7.1 |
Series Comparison
| Model Number | Max Spreading Force/Ton | Tip Clearance/mm | Max Spread/mm | Spreader Type | Oil Capacity/cm³ | Weight/Kg |
|---|---|---|---|---|---|---|
| FSH14 | 14 | 137.3 kN | 6 | 81 | Hydraulic | 78 | 7.1 | 15.7 lbs |
| FSM8 | 8 | 78.5 kN | 6 | 81 | Mechanical | * | 6.5 | 14.3 lbs |
Video
Certificate of Compliance
Literature
