SST, 1500 bar Subsea stud Bolt Tensioners
-
Model: SST1-SST8
Piston stroke: 30mm (1.2") except for SST1 - 20mm (0.8")
Bolt coverage: 3/4"-4"
Max tool pressure: 1500 bar (21750 psi)
Ton: 15.7-388
Tool Load: 140-3447 kN
Bolt Metric: M20 - M100
Hydraulic Area: 934-22997 mm²
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
Replacement SPX's SST Bolt Tensioners
- SRT, 1500 bar Spring Return Bolt Tensioners MRT, 1500 bar Manual Return Bolt Tensioners Bolt Tensioners for Wind Turbines - TW Series Hydraulic Bolt Tensioners -TS Series Hydraulic Bolt Tensioners - TG Series
Description
Product Line: Industrial Tools
Customizable with special requirement
Our Subsea stud tensioner incorporates the quick reaction nut feature reduces diver fatigue, improving diver safety and productivity.
Visible piston stroke indication
Positive ‘over-stroke’ stop to prevent piston expulsion/seal damage.
Piston/cylinder misalignment compensation
Anti-slip cylinder surface for improved handling
Low friction seals
Anti-corrosion coating
Designed to fit BS1560/ANSI B16.5/API flanges, as well as most compact flange designs
Series Comparison

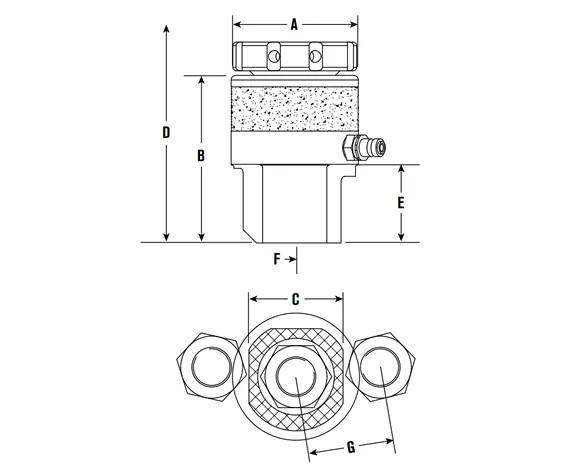

| (Tool Reference) Load Cell Order No. | Metric | Quick Reaction Nut Order No. | 3/4" to 4" Imperial | Quick Reaction Nut Order No. | Ton | Tool Load (kN) | Tool Load (Lbf) | Hydraulic Area(mm²) | Hydraulic Area(in²) | Approx Wt. (kg) | Approx Wt. (Ib) | Imp bolts (mm) | lmp bolts(in) | met bolts(mm) | met bolts(in) | A (mm) | A(in) | B (mm) | B(in) | C (mm） | C(in) | D Imp bolts (mm) | D Imp bolts (in) | D met bolts (mm) | D met bolts (in) | E (mm) | E(in) | F(mm) | F (in) | G Imp bolts (mm) | G Imp bolts (in) in | G met bolts (mm) | G met bolts (in) | Stud Diameter Metric | Stud Diameter Imperial | (Tool Reference) Load Cell Order No. |
| (SST1) SSTAS010001 | M20 | QRNAS010004 | 3/4" | QRNAS010001 | 15.7 | 140 | 31.500 | 934 | 1.45 | 1.50 | 3.30 | 104 | 4.09 | 107 | 4.21 | 66 | 2.6 | 97 | 3.8 | 48 | 1.9 | 228 | 9 | 228 | 9 | 40 | 1.6 | 19 | 0.7 | 44 | 1.7 | 44 | 1.7 | M20 | 3/4" | (SST1) SSTAS010001 |
| M22 | QRNAS010005 | 7/8" | QRNAS010003 | 101 | 3.98 | 105 | 4.13 | 46 | 1.8 | 45 | 1.8 | M22 | 7/8" | |||||||||||||||||||||||
| (SST2) SSTAS020001 | M24 | QRNAS020004 | 1" | QRNAS020001 | 27 | 240 | 53,900 | 1,600 | 2.48 | 2.80 | 6.16 | 133 | 5.24 | 139 | 5.47 | 82 | 3.2 | 127.5 | 5 | 60 | 2.4 | 296 | 11.7 | 296 | 11.7 | 56.5 | 2.2 | 24.5 | 1 | 55 | 2.2 | 54 | 2.1 | M24 | 1" | (SST2) SSTAS020001 |
| M27 | QRNAS020005 | 1-1/8" | QRNAS020003 | 130 | 5.12 | 136 | 5.35 | 58 | 2.3 | 56 | 2.2 | M27 | 1-1/8" | |||||||||||||||||||||||
| M30 | QRNAS020006 | 134 | 5.28 | 58 | 2.3 | M30 | ||||||||||||||||||||||||||||||
| (SST3) SSTAS030001 | M33 | QRNAS030005 | 1-1/4" | QRNAS030003 | 43 | 380 | 85,400 | 2,534 | 3.928 | 4 | 8.80 | 136 | 5.35 | 142 | 5.59 | 97 | 3.8 | 137 | 5.4 | 77 | 3 | 309 | 12.2 | 309 | 12.2 | 63 | 2.5 | 28 | 1.1 | 69 | 2.7 | 68 | 2.7 | M33 | 1-1/4" | (SST3) SSTAS030001 |
| M36 | QRNAS030006 | 1-3/8" | QRNAS030004 | 133 | 5.24 | 139 | 5.47 | 72 | 2.8 | 71 | 2.8 | M36 | 1-3/8" | |||||||||||||||||||||||
| (SST4) SSTAS040001 | M39 | QRNAS040005 | 1-1/2" | QRNAS040003 | 62 | 550 | 123,700 | 3,668 | 5.685 | 6 | 13.20 | 140 | 5.51 | 147 | 5.79 | 111 | 4.4 | 146 | 5.7 | 90 | 3.5 | 322 | 12.7 | 322 | 12.7 | 68 | 2.7 | 33.5 | 1.3 | 81 | 3.2 | 81 | 3.2 | M39 | 1-1/2" | (SST4) SSTAS040001 |
| M42 | 0RNAS040006 | 1-5/8" | QRNAS040004 | 136 | 5.35 | 144 | 5.67 | 84 | 3.3 | 84 | 3.3 | M42 | 1-5/8" | |||||||||||||||||||||||
| (SST5) SSTAS050001 | M45 | QRNAS050005 | 1-3/4" | QRNAS050001 | 99 | 880 | 197,800 | 5,868 | 9.095 | 9 | 19.80 | 151 | 5.94 | 160 | 6.3 | 136 | 5.4 | 158 | 6.2 | 114 | 4.5 | 342 | 13.5 | 342 | 13.5 | 77.5 | 3.1 | 40 | 1.6 | 98 | 3.9 | 98 | 3.9 | M45 | 1-3/4" | (SST5) SSTAS050001 |
| M48 | QRNAS050006 | 1-7/8" | QRNAS050003 | 148 | 5.83 | 158 | 6.22 | 101 | 4 | 101 | 4 | M48 | 1-7/8" | |||||||||||||||||||||||
| M52 | QRNAS050007 | 2" | QRNAS050004 | 145 | 5.71 | 154 | 6.06 | 104 | 4.1 | 104 | 4.1 | M52 | 2" | |||||||||||||||||||||||
| (SST6) SSTAS060001 | M56 | QRNAS060005 | 2-1/4 | QRNAS060001 | 175 | 1,560 | 351,000 | 10,411 | 16.137 | 14.7 | 32.34 | 166 | 6.54 | 178 | 7.01 | 177 | 7 | 180.5 | 7.1 | 140 | 5.5 | 374 | 14.7 | 374 | 14.7 | 97 | 3.8 | 53 | 2.1 | 122 | 4.8 | 120 | 4.7 | M56 | 2-1/4" | (SST6) SSTAS060001 |
| M60 | QRNAS060006 | 2-1/2" | QRNAS060003 | 160 | 6.30 | 175 | 6.89 | 128 | 5 | 123 | 4.8 | M60 | 2-1/2" | |||||||||||||||||||||||
| M64 | QRNAS060007 | 2-3/4" | QRNAS060004 | 154 | 6.06 | 172 | 6.77 | 133 | 5.2 | 126 | 5 | M64 | 2-3/4" | |||||||||||||||||||||||
| M68 | QRNAS060008 | 169 | 6.65 | 129 | 5.1 | M68 | ||||||||||||||||||||||||||||||
| M70 | QRNAS060009 | 165 | 6.5 | 132 | 5.2 | M70 | ||||||||||||||||||||||||||||||
| (SST7) SSTAS070001 | M76 | 0RNAS070005 | 3" | QRNAS070001 | 289 | 2,575 | 579,000 | 17,176 | 26.623 | 25 | 55 | 181 | 7.13 | 195 | 7.68 | 217 | 8.5 | 202 | 8 | 180 | 7.1 | 409 | 16.1 | 409 | 16.1 | 117.5 | 4.6 | 88 | 3.5 | 159 | 6.3 | 155 | 6.1 | M76 | 3" | (SST7) SSTAS070001 |
| M80 | QRNAS070006 | 3-1/4" | QRNAS070003 | 175 | 6.89 | 192 | 7.56 | 164 | 6.5 | 157 | 6.2 | M80 | 3-1/4" | |||||||||||||||||||||||
| M85 | QRNAS070007 | 3-1/2" | QRNAS070004 | 169 | 6.65 | 188 | 7.40 | 170 | 6.7 | 160 | 6.3 | M85 | 3-1/2" | |||||||||||||||||||||||
| M90 | QRNAS070008 | 184 | 7.24 | 166 | 6.5 | M90 | ||||||||||||||||||||||||||||||
| (SST8) SSTAS080001 | M95 | QRNAS080004 | 3-3/4" | QRNAS080001 | 388 | 3,447 | 775,300 | 22,997 | 35.645 | 39.1 | 86.02 | 205 | 8.07 | 224 | 8.82 | 248 | 9.8 | 230 | 9.1 | 210 | 8.3 | 480 | 18.9 | 480 | 18.9 | 128 | 5 | 85 | 3.3 | 190 | 7.5 | 184 | 7.2 | M95 | 3-3/4" | (SST8) SSTAS080001 |
| M100 | QRNAS080005 | 4" | QRNAS080003 | 199 | 7.83 | 220 | 8.66 | 196 | 7.7 | 190 | 7.5 | M100 | 4” |
