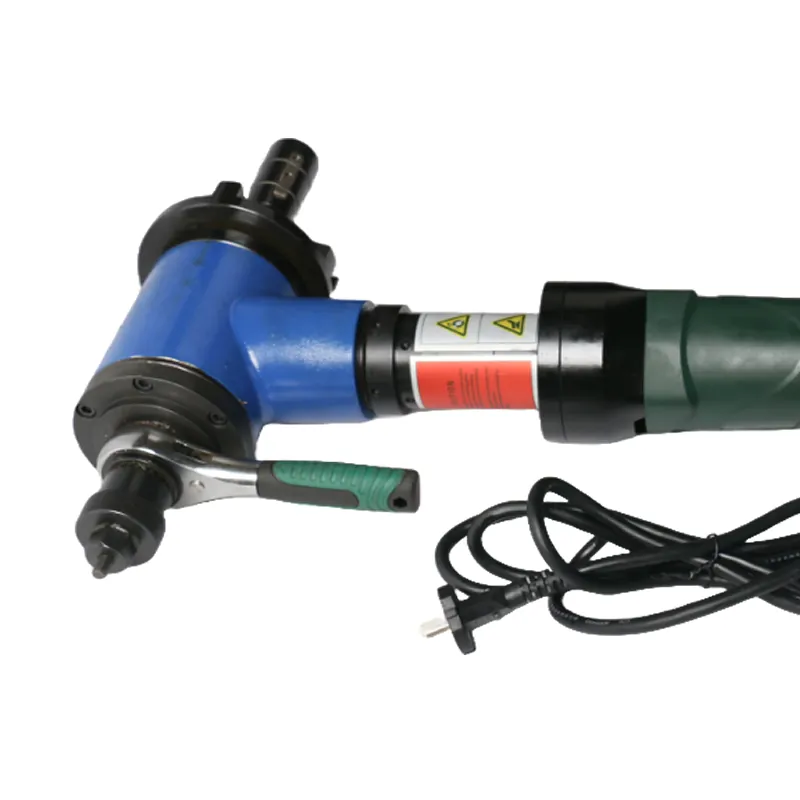

SSE-80 for 28-76 mm Electric Pneumatic Tube End Beveling Machine
-
Model: SSE-80/SSP-80/SSM-80
Drive: Electric/Pneumatic/METABO Motor
Motor Power: 1500W/1HP/1300W
Working Range (I.D): 28-76mm（1.1-3 inches）
Wall Thickness: Less than 15mm
Rotation Speed: 55r/min
Net Weight: 10KG
Gross Weight: 13KG
Packing Dimension: 57*43*17cm
Machine Type: Semiautomatic
Manufacturer: SAIVS
Country of Origin: China
Description
Product Line: Industrial Tools
Customizable with special requirement
Schematic View
Features
Cold Beveling, doesn't affect pipe material
Easy set-up & operation
Self-centering, high precision
Work direction not limited, small work radius
Ratchet handle makes tool feed/back easy
Lightweight and compact design, easy to carry
Electric or pneumatic driven options available

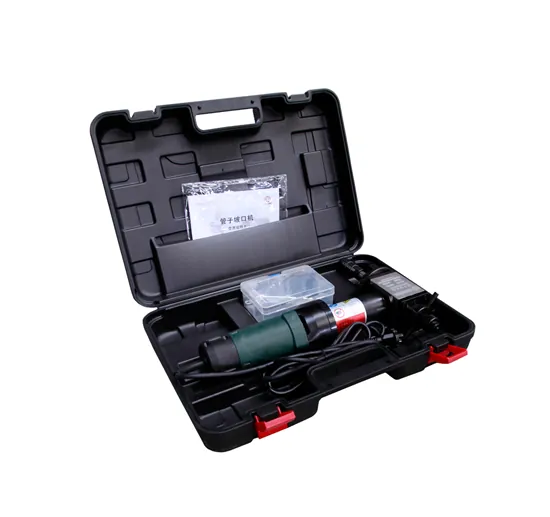

Machine Packing List
| Name | Unit | Qty |
| Machine | Set | 1 |
| Expanding Block | Set | 5 |

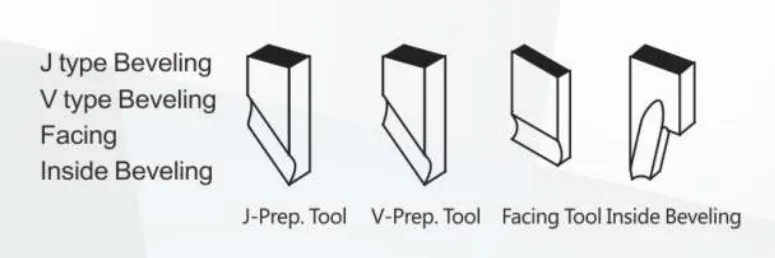

| O° Facing Tool | Pcs | 1 |
| 30° Beveling Tool | Pcs | 1 |
| 37.5° Beveling Tool | Pcs | 1 |
| Allen wrench | Pcs | 2 |
| Hexagon wrench | Pcs | 1 |
| Instruction manual | Pcs | 1 |

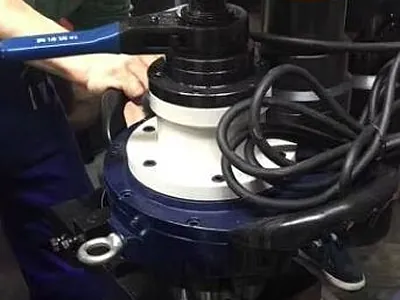

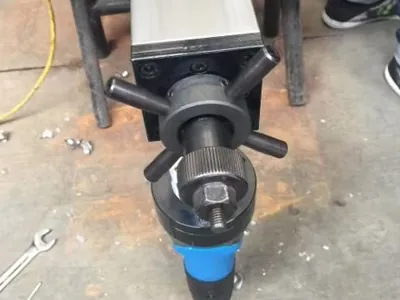

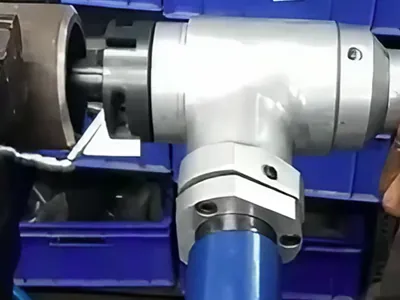

Image Gallery

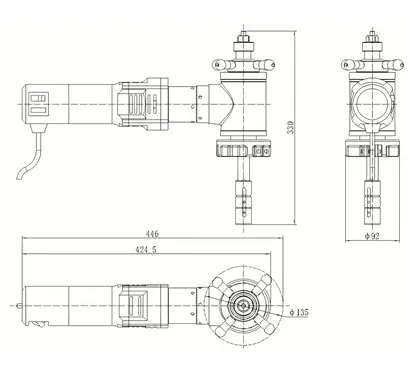

Dimensions
| Model | SSE-80 | SSP-80 | SSM-80 |
|---|---|---|---|
| Driven | Electric | Pneumatic | Electric (METABO Motor) |
| Power Supply | 220-240V 1PH 50/60Hz | 2000L/Min@1.0MPa | 220-240V 1PH 50/60Hz |
| Motor Power | 1500W | 1 HP | 1300W |
| Working Range (I.D) | 28-76mm | 28-76mm | 28-76mm |
| Wall Thickness | Less than 15mm | Less than 15mm | Less than 15mm |
| Rotation Speed | 55r/min | 55r/min | 55r/min |
| Net Weight | 10KG | 10KG | 10KG |
| Gross Weight | 13KG | 13KG | 13KG |
| Packing Dimension | 57*43*17cm | 57*43*17cm | 57*43*17cm |
Series Comparison
| Pipe Beveling Machine I Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-30 | 18-28mm | ≤15mm | 50r/min |
| SSE-80 | 28-76mm | ≤15mm | 55r/min |
| SSE-120 | 40-120mm | ≤15mm | 30r/min |
| SSE-159 | 65-159mm | ≤20mm | 35r/min |
| SSE-252-1 | 80-240mm | ≤20mm | 16r/min |
| SSE-352-1 | 150-330mm | ≤20mm | 14r/min |
| SSE-426-1 | 250-426mm | ≤20mm | 12r/min |
| SSE-630-1 | 300-600mm | ≤20mm | 10r/min |
| SSE-850-1 | 600-820mm | ≤20mm | 9r/min |
| Pipe Beveling Machine II Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-252-2 | 80-240mm | ≤75mm | 16r/min |
| SSE-352-2 | 150-330mm | ≤75mm | 14r/min |
| SSE-426-2 | 250-426mm | ≤75mm | 12r/min |
| SSE-630-2 | 300-600mm | ≤75mm | 10r/min |
| SSE-850-2 | 600-820mm | ≤75mm | 9r/min |
