SSE-630-1 for 300-600 mm Electric Pneumatic Tube End Beveling Machine
-
Model: SSE-630-1/SSP-630-1/SSM-630-1
Drive: Electric/Pneumatic/METABO Motor
Motor Power: 2000W/1HP/2400W
Working Range (I.D): 300-600mm（11.8-23.6 inches）
Wall Thickness: Less than 20mm
Rotation Speed: 10r/min
Net Weight: 98KG
Gross Weight: 155KG
Packing Dimension: 94*70*54cm
Fix Way: Inside Mounted
Layout: Vertical
Cutting Mode: Cold Beveling
Country of Origin: China
- SSE-850-2 for 600-820 mm Electric Pneumatic Tube End Beveling Machine SSE-630-2 for 300-600 mm Electric Pneumatic Tube End Beveling Machine SSE-426-2 for 250-426 mm Electric Pneumatic Tube End Beveling Machine SSE-352-2 for 150-330 mm Electric Pneumatic Tube End Beveling Machine SSE-252-2 for 80-240 mm Electric Pneumatic Tube End Beveling Machine SSE-850-1 for 600-820 mm Electric Pneumatic Tube End Beveling Machine SSE-630-1 for 300-600 mm Electric Pneumatic Tube End Beveling Machine SSE-426-1 for 250-426 mm Electric Pneumatic Tube End Beveling Machine SSE-352-1 for 150-330 mm Electric Pneumatic Tube End Beveling Machine SSE-252-1 for 80-240 mm Electric Pneumatic Tube End Beveling Machine SSE-159 for 65-159 mm Electric Pneumatic Tube End Beveling Machine SSE-120 for 40-114 mm Electric Pneumatic Tube End Beveling Machine SSE-80 for 28-76 mm Electric Pneumatic Tube End Beveling Machine SSE-30 for 18-28 mm Electric Pneumatic Tube End Beveling Machine
Description
Product Line: Industrial Tools
Customizable with special requirement
The SSE-630-1 series of Pipe Beveling Machines are widely used in boiler plants, heat exchangers, power plants, nuclear power, petroleum, pharmacy, pipe prefabrication plants, pipeline installation engineering, rush-repair work, etc.
Features
Cold Beveling, doesn't affect pipe material
Easy set-up & operation
Self-centering, high precision
Work direction not limited, small work radius
Ratchet handle makes tool feed/back easy
Lightweight and compact design, easy to carry
Electric or pneumatic driven options available

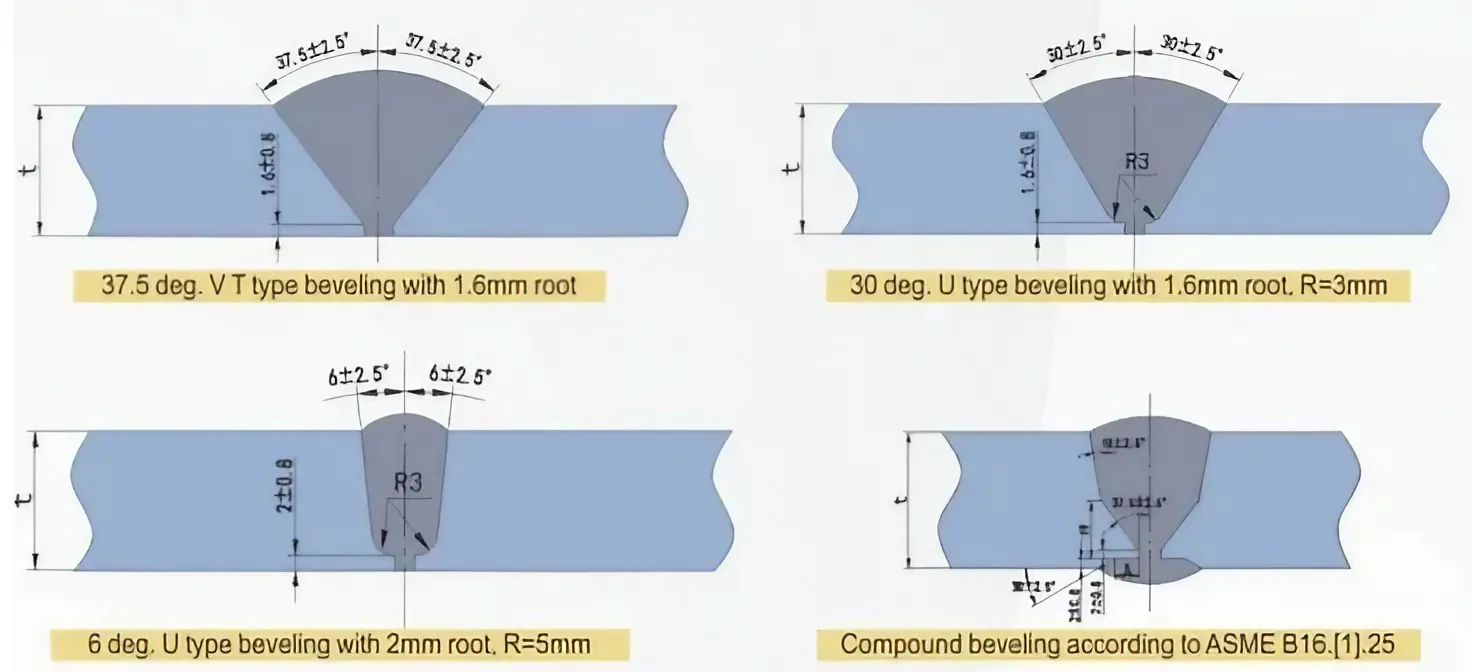

Typical Buttwelding

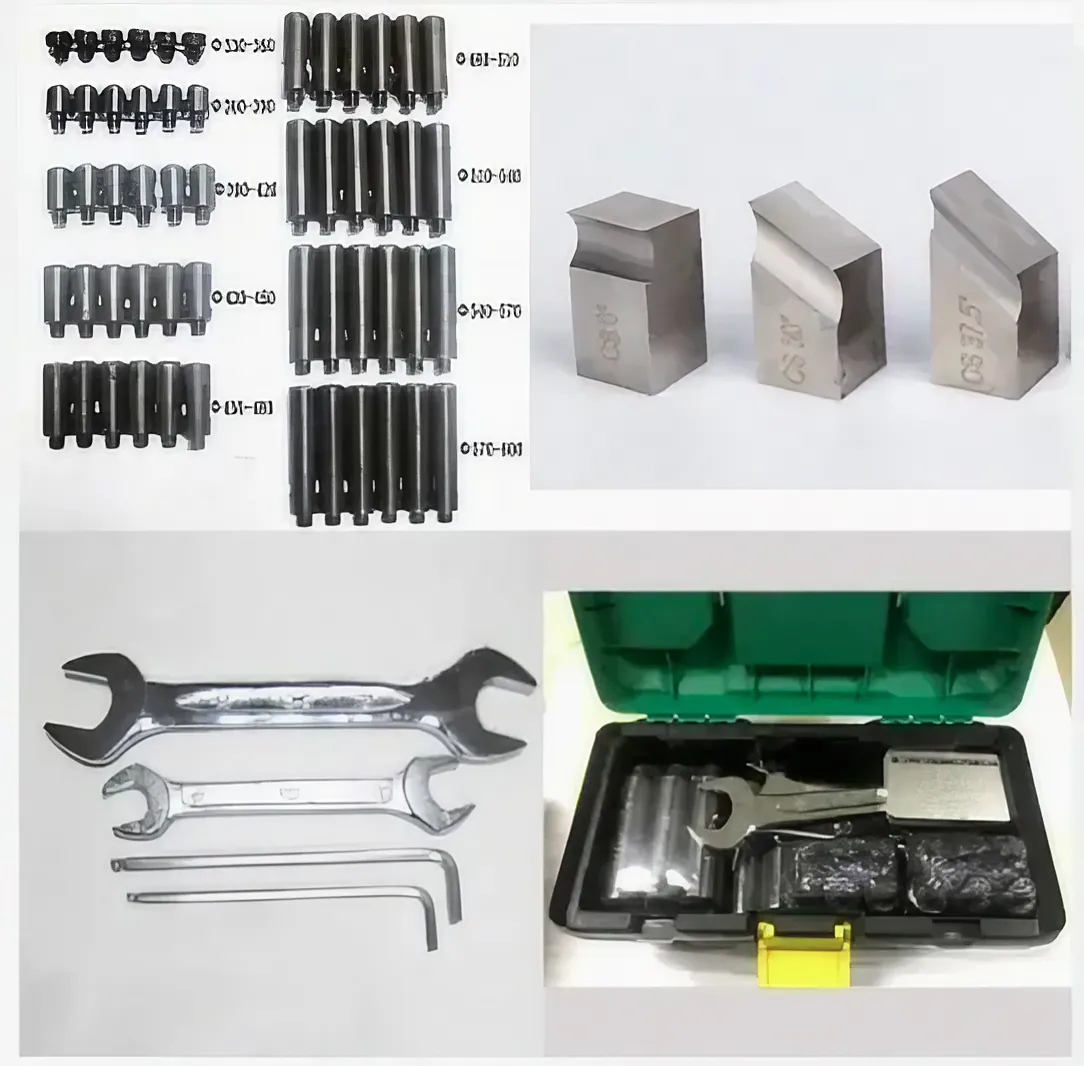

| Name | Unit | Qty |
| Machine | Set | 1 |
| Expanding Block | Set | 9 |
| O° Facing Tool | Pcs | 1 |
| 30° Beveling Tool | Pcs | 1 |
| 37.5° Beveling Tool | Pcs | 1 |
| Allen wrench | Pcs | 2 |
| Hexagon wrench | Pcs | 2 |
| Instruction manual | Pcs | 1 |
Image Gallery

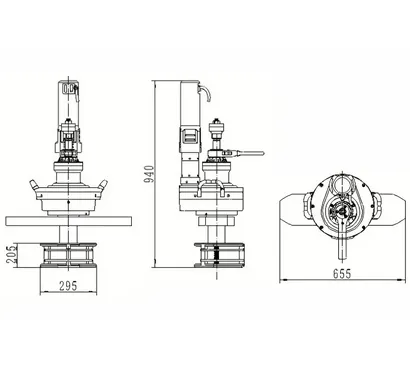

Dimensions
| Model | SSE-630-1 | SSP-630-1 | SSM-630-1 |
| Driven | Electric | Pneumatic | Electric (METABO Motor) |
| Power Supply | 220-240V 1PH 50/60Hz | 2000L/Min@1.0MPa | 220-240V 1PH 50/60Hz |
| Motor Power | 2000W | 1 HP | 2400W |
| Working Range (I.D) | 300-600mm | 300-600mm | 300-600mm |
| Wall Thickness | Less than 20mm | Less than 20mm | Less than 20mm |
| Rotation Speed | 10r/min | 10r/min | 10r/min |
| Net Weight | 98KG | 98KG | 98KG |
| Gross Weight | 155KG | 155KG | 155KG |
| Packing Dimension | 94*70*54cm | 94*70*54cm | 94*70*54cm |
Series Comparison
| Pipe Beveling Machine I Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-30 | 18-28mm | ≤15mm | 50r/min |
| SSE-80 | 28-76mm | ≤15mm | 55r/min |
| SSE-120 | 40-120mm | ≤15mm | 30r/min |
| SSE-159 | 65-159mm | ≤20mm | 35r/min |
| SSE-252-1 | 80-240mm | ≤20mm | 16r/min |
| SSE-352-1 | 150-330mm | ≤20mm | 14r/min |
| SSE-426-1 | 250-426mm | ≤20mm | 12r/min |
| SSE-630-1 | 300-600mm | ≤20mm | 10r/min |
| SSE-850-1 | 600-820mm | ≤20mm | 9r/min |
| Pipe Beveling Machine II Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-252-2 | 80-240mm | ≤75mm | 16r/min |
| SSE-352-2 | 150-330mm | ≤75mm | 14r/min |
| SSE-426-2 | 250-426mm | ≤75mm | 12r/min |
| SSE-630-2 | 300-600mm | ≤75mm | 10r/min |
| SSE-850-2 | 600-820mm | ≤75mm | 9r/min |
