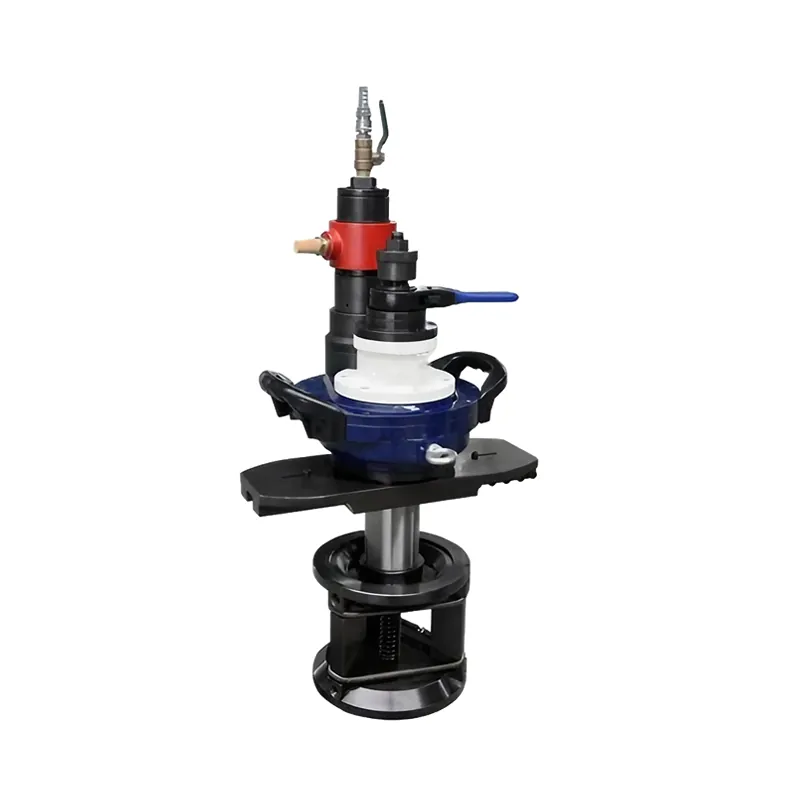

SSE-352-1 for 150-330 mm Electric Pneumatic Tube End Beveling Machine
-
Model: SSE-352-1/SSP-352-1/SSM-352-1
Drive: Electric/Pneumatic/METABO Motor
Motor Power: 1800W/1HP/2400W
Working Range (I.D): 150-330mm（5.9-13 inches）
Wall Thickness: Less than 20mm
Rotation Speed: 14r/min
Net Weight: 52KG
Gross Weight: 75KG
Packing Dimension: 80*45*42cm
Cutting Mode: Wire Cutting
Country of Origin: China
- SSE-850-2 for 600-820 mm Electric Pneumatic Tube End Beveling Machine SSE-630-2 for 300-600 mm Electric Pneumatic Tube End Beveling Machine SSE-426-2 for 250-426 mm Electric Pneumatic Tube End Beveling Machine SSE-352-2 for 150-330 mm Electric Pneumatic Tube End Beveling Machine SSE-252-2 for 80-240 mm Electric Pneumatic Tube End Beveling Machine SSE-850-1 for 600-820 mm Electric Pneumatic Tube End Beveling Machine SSE-630-1 for 300-600 mm Electric Pneumatic Tube End Beveling Machine SSE-426-1 for 250-426 mm Electric Pneumatic Tube End Beveling Machine SSE-352-1 for 150-330 mm Electric Pneumatic Tube End Beveling Machine SSE-252-1 for 80-240 mm Electric Pneumatic Tube End Beveling Machine SSE-159 for 65-159 mm Electric Pneumatic Tube End Beveling Machine SSE-120 for 40-114 mm Electric Pneumatic Tube End Beveling Machine SSE-80 for 28-76 mm Electric Pneumatic Tube End Beveling Machine SSE-30 for 18-28 mm Electric Pneumatic Tube End Beveling Machine
Description
Product Line: Industrial Tools
Customizable with special requirement
The ID-mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe.
A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self-centered, and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom-made for any form of tooling operation.
Features
Cold Beveling, doesn't affect pipe material
Easy set-up & operation
Self-centering, high precision
Work direction not limited, small work radius
Ratchet handle makes tool feed/back easy
Lightweight and compact design, easy to carry
Electric or pneumatic driven options available
| Name | Unit | Qty |
| Machine | Set | 1 |
| Expanding Block | Set | 5 |
| O° Facing Tool | Pcs | 1 |
| 30° Beveling Tool | Pcs | 1 |
| 37.5° Beveling Tool | Pcs | 1 |
| Allen wrench | Pcs | 1 |
| Hexagon wrench | Pcs | 2 |
| Instruction manual | Pcs | 1 |

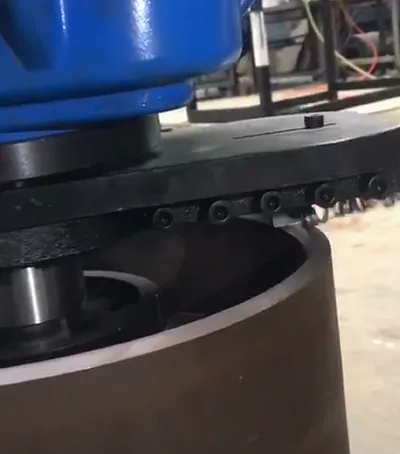

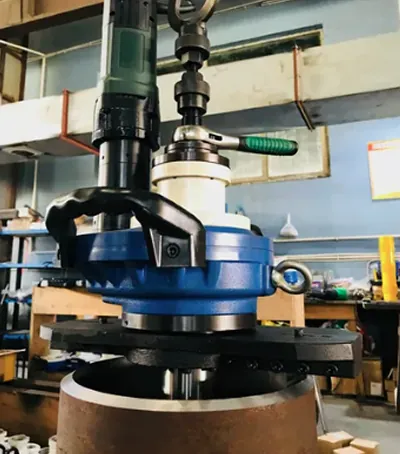

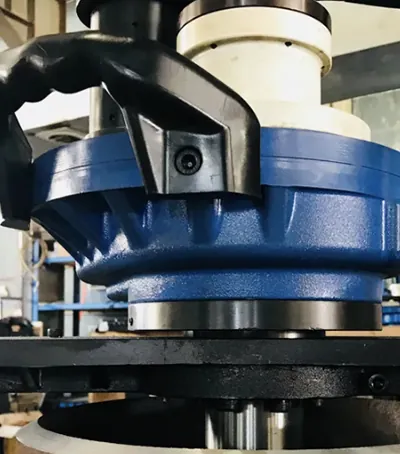

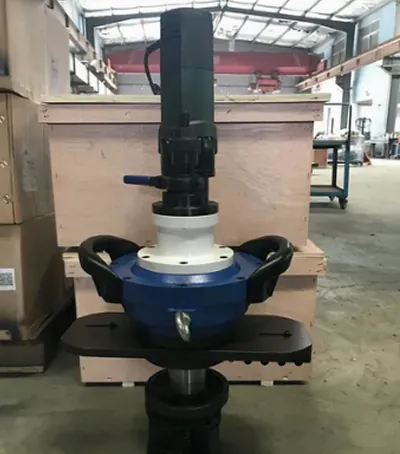

Image Gallery

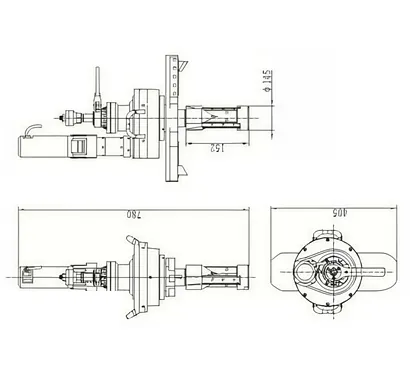

Dimensions
| Model | SSE-352-1 | SSP-352-1 | SSM-352-1 |
|---|---|---|---|
| Driven | Electric | Pneumatic | Electric (METABO Motor) |
| Power Supply | 220-240V 1PH 50/60Hz | 2000L/Min@1.0MPa | 220-240V 1PH 50/60Hz |
| Motor Power | 1800W | 1 HP | 2400W |
| Working Range (I.D) | 150-330mm | 150-330mm | 150-330mm |
| Wall Thickness | Less than 20mm | Less than 20mm | Less than 20mm |
| Rotation Speed | 14r/min | 14r/min | 14r/min |
| Net Weight | 52KG | 52KG | 52KG |
| Gross Weight | 75KG | 75KG | 75KG |
| Packing Dimension | 80*45*42cm | 80*45*42cm | 80*45*42cm |
Series Comparison
| Pipe Beveling Machine I Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-30 | 18-28mm | ≤15mm | 50r/min |
| SSE-80 | 28-76mm | ≤15mm | 55r/min |
| SSE-120 | 40-120mm | ≤15mm | 30r/min |
| SSE-159 | 65-159mm | ≤20mm | 35r/min |
| SSE-252-1 | 80-240mm | ≤20mm | 16r/min |
| SSE-352-1 | 150-330mm | ≤20mm | 14r/min |
| SSE-426-1 | 250-426mm | ≤20mm | 12r/min |
| SSE-630-1 | 300-600mm | ≤20mm | 10r/min |
| SSE-850-1 | 600-820mm | ≤20mm | 9r/min |
| Pipe Beveling Machine II Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-252-2 | 80-240mm | ≤75mm | 16r/min |
| SSE-352-2 | 150-330mm | ≤75mm | 14r/min |
| SSE-426-2 | 250-426mm | ≤75mm | 12r/min |
| SSE-630-2 | 300-600mm | ≤75mm | 10r/min |
| SSE-850-2 | 600-820mm | ≤75mm | 9r/min |
