SSE-252-2 for 80-240 mm Electric Pneumatic Tube End Beveling Machine
-
Model: SSE-252-2/SSP-252-2/SSM-252-2
Drive: Electric/Pneumatic/METABO Motor
Motor Power: 2000W/1HP/2400W
Working Range (I.D): 80-240mm（3-9.5 inches）
Wall Thickness: Less than 75mm
Rotation Speed: 16r/min
Net Weight: 45KG
Gross Weight: 65KG
Packing Dimension: 85*48*36cm
Motor: Electric Motor/Pneumatic Motor
Cutting Mode: Wire Cutting/Cold Beveling
Country of Origin: China
- SSE-850-2 for 600-820 mm Electric Pneumatic Tube End Beveling Machine SSE-630-2 for 300-600 mm Electric Pneumatic Tube End Beveling Machine SSE-426-2 for 250-426 mm Electric Pneumatic Tube End Beveling Machine SSE-352-2 for 150-330 mm Electric Pneumatic Tube End Beveling Machine SSE-252-2 for 80-240 mm Electric Pneumatic Tube End Beveling Machine SSE-850-1 for 600-820 mm Electric Pneumatic Tube End Beveling Machine SSE-630-1 for 300-600 mm Electric Pneumatic Tube End Beveling Machine SSE-426-1 for 250-426 mm Electric Pneumatic Tube End Beveling Machine SSE-352-1 for 150-330 mm Electric Pneumatic Tube End Beveling Machine SSE-252-1 for 80-240 mm Electric Pneumatic Tube End Beveling Machine SSE-159 for 65-159 mm Electric Pneumatic Tube End Beveling Machine SSE-120 for 40-114 mm Electric Pneumatic Tube End Beveling Machine SSE-80 for 28-76 mm Electric Pneumatic Tube End Beveling Machine SSE-30 for 18-28 mm Electric Pneumatic Tube End Beveling Machine
Description
Product Line: Industrial Tools
Customizable with special requirement
This series is an inner diameter installation type beveling machine, which has the characteristics of light weight and convenient carrying.
Easy to install, fast, and the expansion mechanism can be inserted into the inner diameter of the tube to automatically locate the center of the tube.
Features
Cold Beveling: Can't affect pipe material.

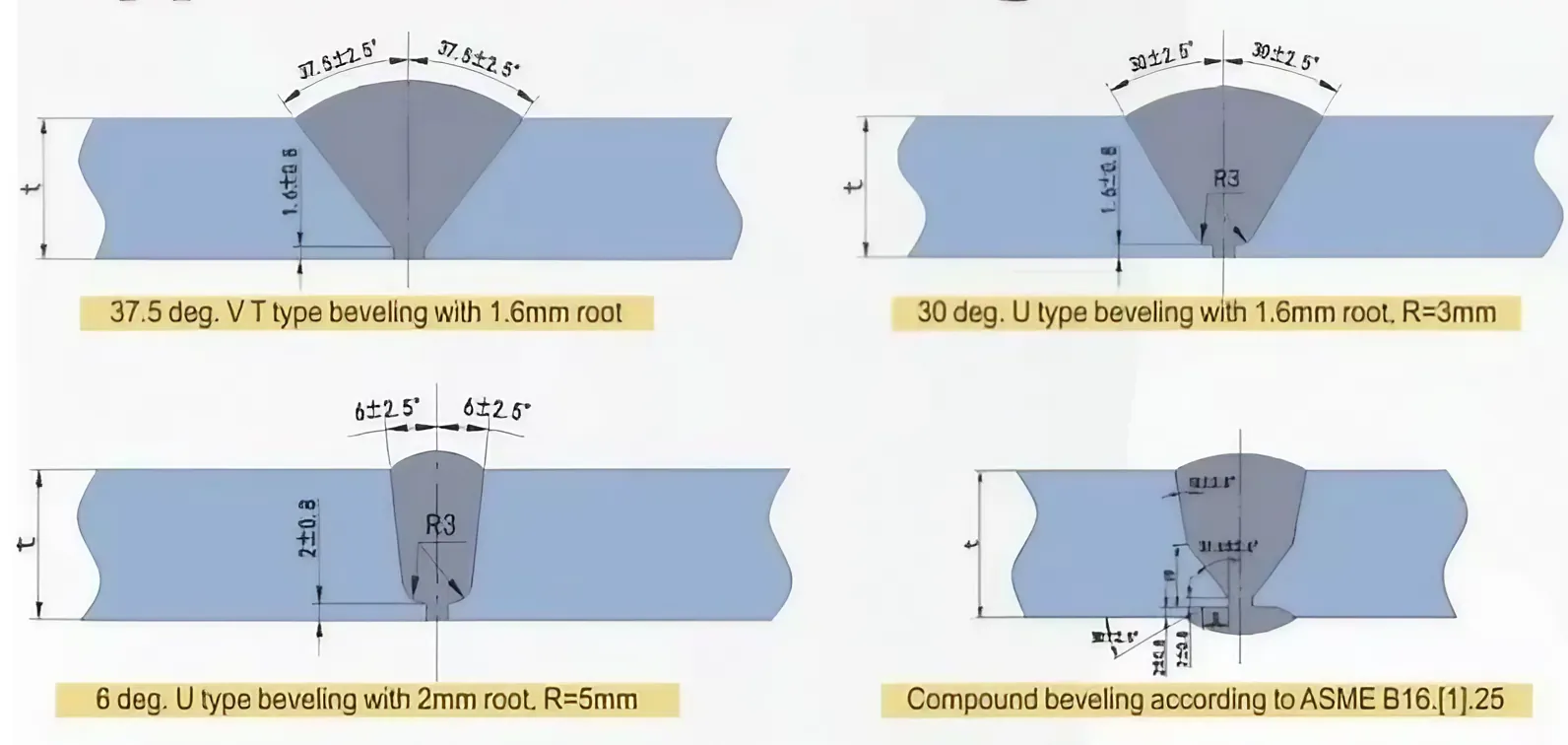

Easy Setup & Operation: Bevel angle adjustable (0-40 degrees).
Automatic Feed: High efficiency.
Self-Centering: Ensures high precision.
Special for Thick Wall Pipes: Suitable for pipe thicknesses less than 75 mm.
Work Direction Not Limited: Suitable for small work radius.
Ratchet Handle: Makes tool feed and retraction easy.
Lightweight and Compact Design: Easy to carry.
Drive Options: Available in electric or pneumatic.
|
|
|
| Name | Unit | Qty |
| Machine | Set | 1 |

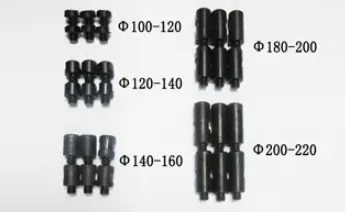

| Expanding Block | Set | 7 |
| Il Type Tool | Pcs | 3 |

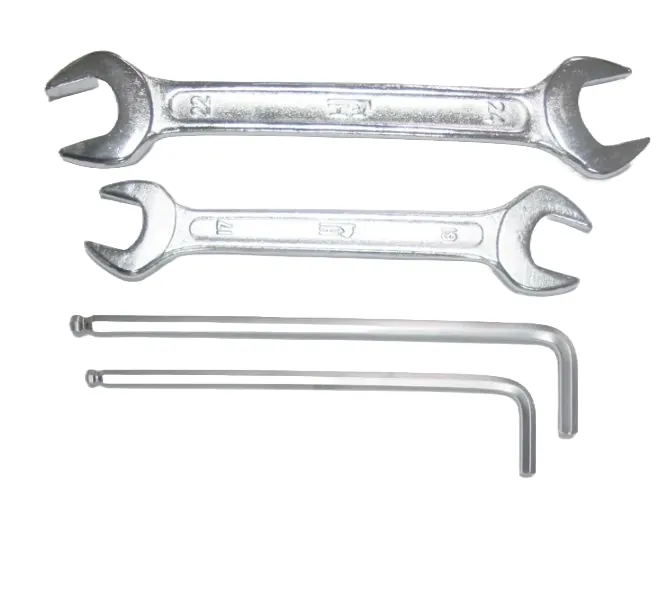

| Allen wrench | Pcs | 2 |
| Hexagon wrench | Pcs | 2 |
| Instruction manual | Pcs | 1 |
Image Gallery

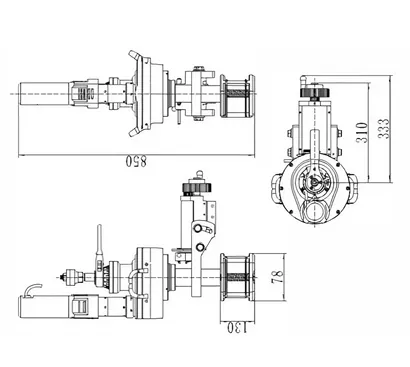

Dimensions
| Model | SSE-252-2 | SSP-252-2 | SSM-252-2 |
| Driven | Electric | Pneumatic | Electric (METABO Motor) |
| Power Supply | 220-240V 1PH 50/60Hz | 2000L/Min@1.0MPa | 220-240V 1PH 50/60Hz |
| Motor Power | 2000W | 1 HP | 2400W |
| Working Range (I.D) | 80-240mm | 80-240mm | 80-240mm |
| Wall Thickness | Less than 75mm | Less than 75mm | Less than 75mm |
| Rotation Speed | 16r/min | 16r/min | 16r/min |
| Net Weight | 45KG | 45KG | 45KG |
| Gross Weight | 65KG | 65KG | 65KG |
| Packing Dimension | 85*48*36cm | 85*48*36cm | 85*48*36cm |
Series Comparison
| Pipe Beveling Machine I Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-30 | 18-28mm | ≤15mm | 50r/min |
| SSE-80 | 28-76mm | ≤15mm | 55r/min |
| SSE-120 | 40-120mm | ≤15mm | 30r/min |
| SSE-159 | 65-159mm | ≤20mm | 35r/min |
| SSE-252-1 | 80-240mm | ≤20mm | 16r/min |
| SSE-352-1 | 150-330mm | ≤20mm | 14r/min |
| SSE-426-1 | 250-426mm | ≤20mm | 12r/min |
| SSE-630-1 | 300-600mm | ≤20mm | 10r/min |
| SSE-850-1 | 600-820mm | ≤20mm | 9r/min |
| Pipe Beveling Machine II Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-252-2 | 80-240mm | ≤75mm | 16r/min |
| SSE-352-2 | 150-330mm | ≤75mm | 14r/min |
| SSE-426-2 | 250-426mm | ≤75mm | 12r/min |
| SSE-630-2 | 300-600mm | ≤75mm | 10r/min |
| SSE-850-2 | 600-820mm | ≤75mm | 9r/min |
