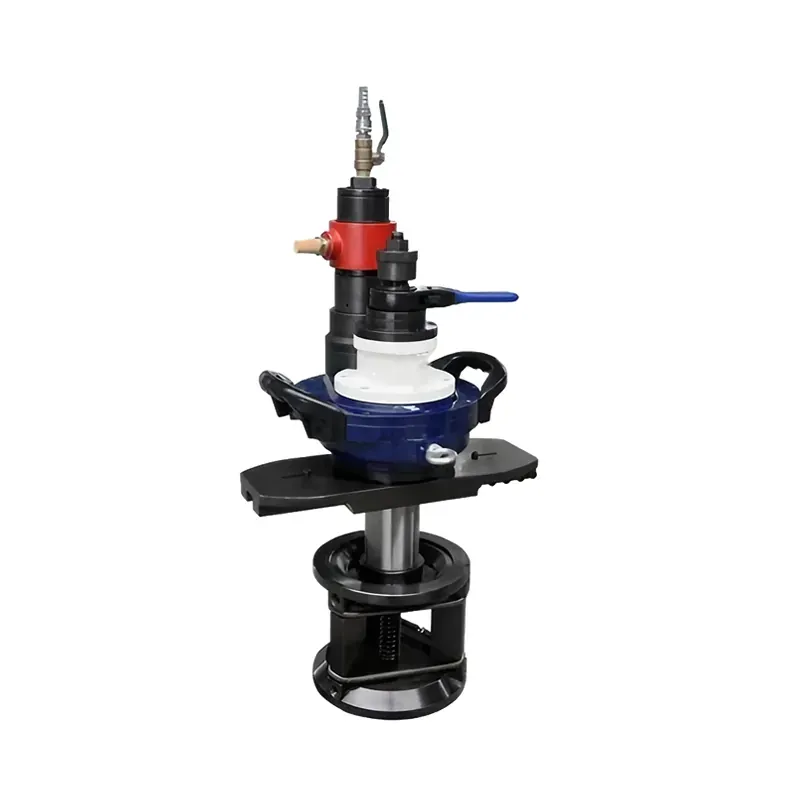

SSE-252-1 for 80-240 mm Electric Pneumatic Tube End Beveling Machine
-
Model: SSE-252-1/SSP-252-1/SSM-252-1
Drive: Electric/Pneumatic/METABO Motor
Power Supply: 220-240V 1PH 50/60HZ
/2000L/min@1.0MPa/220-240V 1PH 50/60Hz
Motor Power: 1800W/1HP/1800W
Working Range (I.D): 80-240mm（3-9.5 inches）
Wall Thickness: Less than 20mm
Rotation Speed: 16r/min
Net Weight: 35KG
Gross Weight: 50KG
Packing Dimension: 76*38*36cm
Bevel Meaterial: Metal,Stainless Steel,Carbon Steel
Country of Origin: China
- SSE-850-2 for 600-820 mm Electric Pneumatic Tube End Beveling Machine SSE-630-2 for 300-600 mm Electric Pneumatic Tube End Beveling Machine SSE-426-2 for 250-426 mm Electric Pneumatic Tube End Beveling Machine SSE-352-2 for 150-330 mm Electric Pneumatic Tube End Beveling Machine SSE-252-2 for 80-240 mm Electric Pneumatic Tube End Beveling Machine SSE-850-1 for 600-820 mm Electric Pneumatic Tube End Beveling Machine SSE-630-1 for 300-600 mm Electric Pneumatic Tube End Beveling Machine SSE-426-1 for 250-426 mm Electric Pneumatic Tube End Beveling Machine SSE-352-1 for 150-330 mm Electric Pneumatic Tube End Beveling Machine SSE-252-1 for 80-240 mm Electric Pneumatic Tube End Beveling Machine SSE-159 for 65-159 mm Electric Pneumatic Tube End Beveling Machine SSE-120 for 40-114 mm Electric Pneumatic Tube End Beveling Machine SSE-80 for 28-76 mm Electric Pneumatic Tube End Beveling Machine SSE-30 for 18-28 mm Electric Pneumatic Tube End Beveling Machine
Description
Product Line: Industrial Tools
Customizable with special requirement
Features
Cold Beveling, doesn't affect pipe material
Easy set-up & operation
Self-centering, high precision
Work direction not limited, small work radius
Ratchet handle makes tool feed/back easy
Lightweight and compact design, easy to carry
Electric or pneumatic driven options available
| Name | Unit | Qty |
| Machine | Set | 1 |
| Expanding Block | Set | 7 |
| O° Facing Tool | Pcs | 1 |
| 30° Beveling Tool | Pcs | 1 |
| 37.5° Beveling Tool | Pcs | 1 |

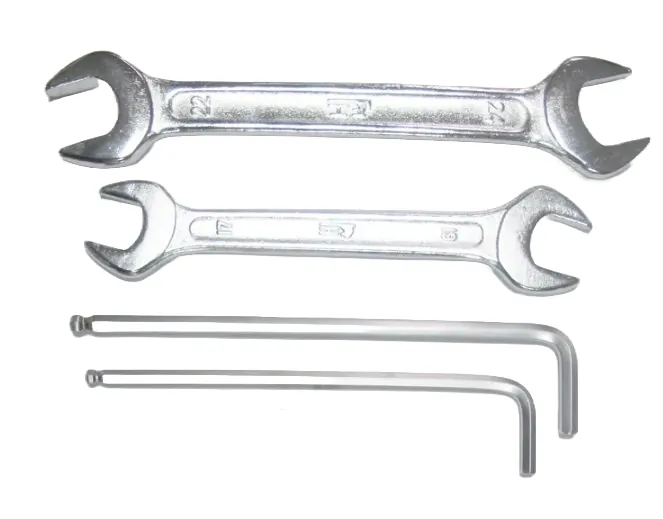

| Allen wrench | Pcs | 1 |
| Hexagon wrench | Pcs | 1 |
| Instruction manual | Pcs | 1 |
Image Gallery

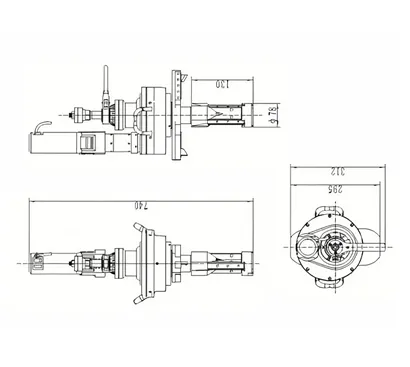

Dimensions
| Model | SSE-252-1 | SSP-252-1 | SSM-252-1 |
|---|---|---|---|
| Driven | Electric | Pneumatic | Electric (METABO Motor) |
| Power Supply | 220-240V 1PH 50/60Hz | 2000L/Min@1.0MPa | 220-240V 1PH 50/60Hz |
| Motor Power | 1800W | 1 HP | 1800W |
| Working Range (I.D) | 80-240mm | 80-240mm | 80-240mm |
| Wall Thickness | Less than 20mm | Less than 20mm | Less than 20mm |
| Rotation Speed | 16r/min | 16r/min | 16r/min |
| Net Weight | 35KG | 35KG | 35KG |
| Gross Weight | 50KG | 50KG | 50KG |
| Packing Dimension | 76*38*36cm | 76*38*36cm | 76*38*36cm |
Series Comparison
| Pipe Beveling Machine I Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-30 | 18-28mm | ≤15mm | 50r/min |
| SSE-80 | 28-76mm | ≤15mm | 55r/min |
| SSE-120 | 40-120mm | ≤15mm | 30r/min |
| SSE-159 | 65-159mm | ≤20mm | 35r/min |
| SSE-252-1 | 80-240mm | ≤20mm | 16r/min |
| SSE-352-1 | 150-330mm | ≤20mm | 14r/min |
| SSE-426-1 | 250-426mm | ≤20mm | 12r/min |
| SSE-630-1 | 300-600mm | ≤20mm | 10r/min |
| SSE-850-1 | 600-820mm | ≤20mm | 9r/min |
| Pipe Beveling Machine II Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-252-2 | 80-240mm | ≤75mm | 16r/min |
| SSE-352-2 | 150-330mm | ≤75mm | 14r/min |
| SSE-426-2 | 250-426mm | ≤75mm | 12r/min |
| SSE-630-2 | 300-600mm | ≤75mm | 10r/min |
| SSE-850-2 | 600-820mm | ≤75mm | 9r/min |
