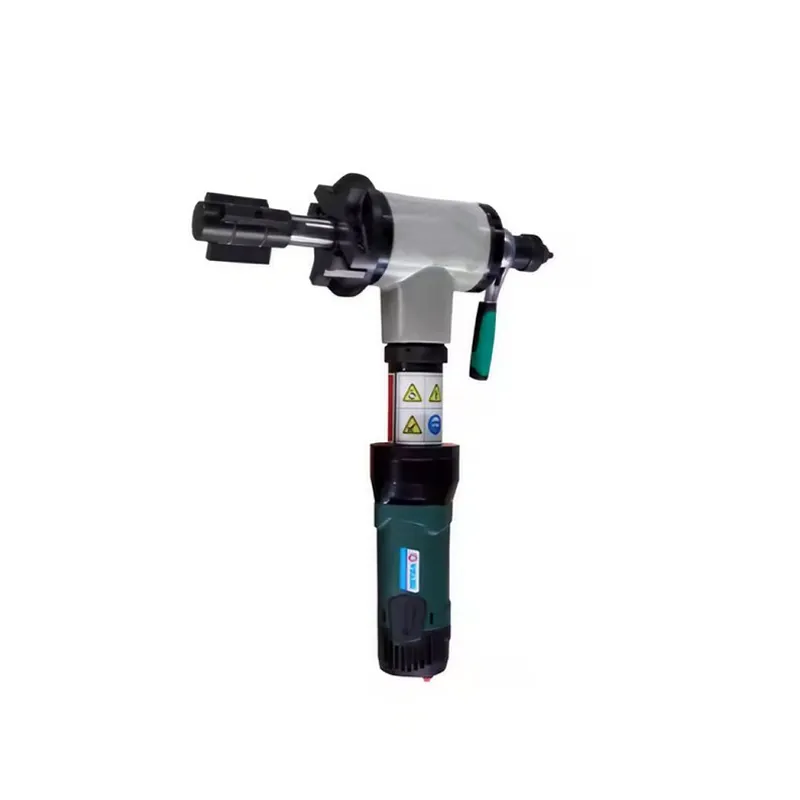

SSE-120 for 40-114 mm Electric Pneumatic Tube End Beveling Machine
-
Model: SSE-120/SSP-120/SSM-120
Bevel Angle: 0-45°
Drive: Electric/Pneumatic/METABO Motor
Motor Power: 1500W/1HP/1300W
Working Range (I.D): 40-114mm（2-4.5 inches）
Wall Thickness: Less than 15mm
Rotation Speed: 30r/min
Net Weight: 18KG
Gross Weight: 28KG
Packing Dimension: 60*50*20cm
Machine Type: Semiautomatic
Country of Origin: China
- SSE-850-2 for 600-820 mm Electric Pneumatic Tube End Beveling Machine SSE-630-2 for 300-600 mm Electric Pneumatic Tube End Beveling Machine SSE-426-2 for 250-426 mm Electric Pneumatic Tube End Beveling Machine SSE-352-2 for 150-330 mm Electric Pneumatic Tube End Beveling Machine SSE-252-2 for 80-240 mm Electric Pneumatic Tube End Beveling Machine SSE-850-1 for 600-820 mm Electric Pneumatic Tube End Beveling Machine SSE-630-1 for 300-600 mm Electric Pneumatic Tube End Beveling Machine SSE-426-1 for 250-426 mm Electric Pneumatic Tube End Beveling Machine SSE-352-1 for 150-330 mm Electric Pneumatic Tube End Beveling Machine SSE-252-1 for 80-240 mm Electric Pneumatic Tube End Beveling Machine SSE-159 for 65-159 mm Electric Pneumatic Tube End Beveling Machine SSE-120 for 40-114 mm Electric Pneumatic Tube End Beveling Machine SSE-80 for 28-76 mm Electric Pneumatic Tube End Beveling Machine SSE-30 for 18-28 mm Electric Pneumatic Tube End Beveling Machine
Description
Product Line: Industrial Tools
Customizable with special requirement
This series of machines is ideal for all types of pipe beveling and pipe end preparation. The compact design makes the machine suitable for any narrow working conditions. The machine is self-centering, easy to install and disassemble, highly accurate and efficient. It not only can process carbon steel, stainless steel, alloy pipe with U, V welding seams, but also can process convex flanges. Ranging from 2 to 4.5 inches I.D. (40-114mm).
Features
Cold Beveling, doesn't affect pipe material
Easy set-up & operation
Self-centering, high precision
Work direction not limited, small work radius
Ratchet handle makes tool feed/back easy
Lightweight and compact design, easy to carry
Electric or pneumatic driven options available
| Name | Unit | Qty |
| Machine | Set | 1 |

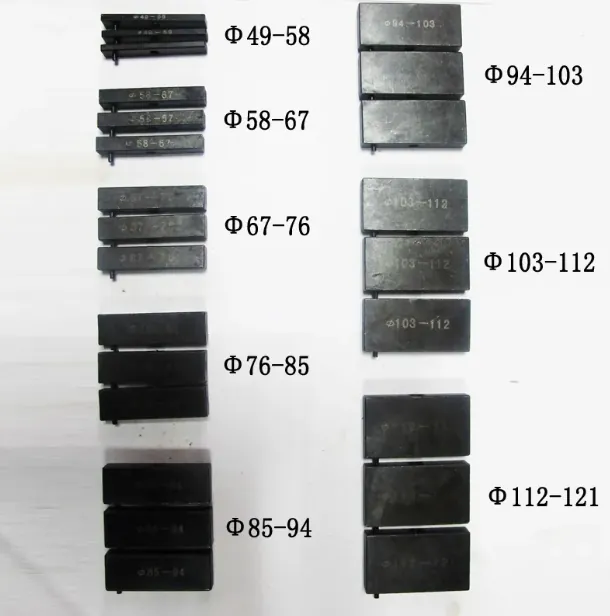

| Expanding Block | Set | 8 |
| O° Facing Tool | Pcs | 1 |
| 30° Beveling Tool | Pcs | 1 |
| 37.5° Beveling Tool | Pcs | 1 |
| Allen wrench | Pcs | 1 |
| Hexagon wrench | Pcs | 1 |
| Instruction manual | Pcs | 1 |
Image Gallery

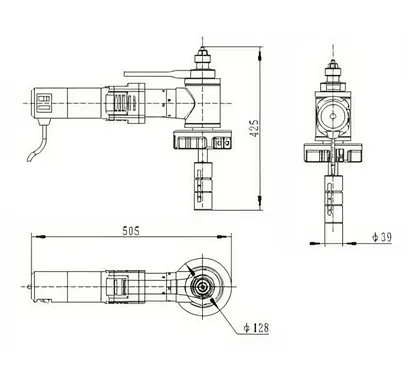

Dimensions
| Model | SSE-120 | SSP-120 | SSM-120 |
|---|---|---|---|

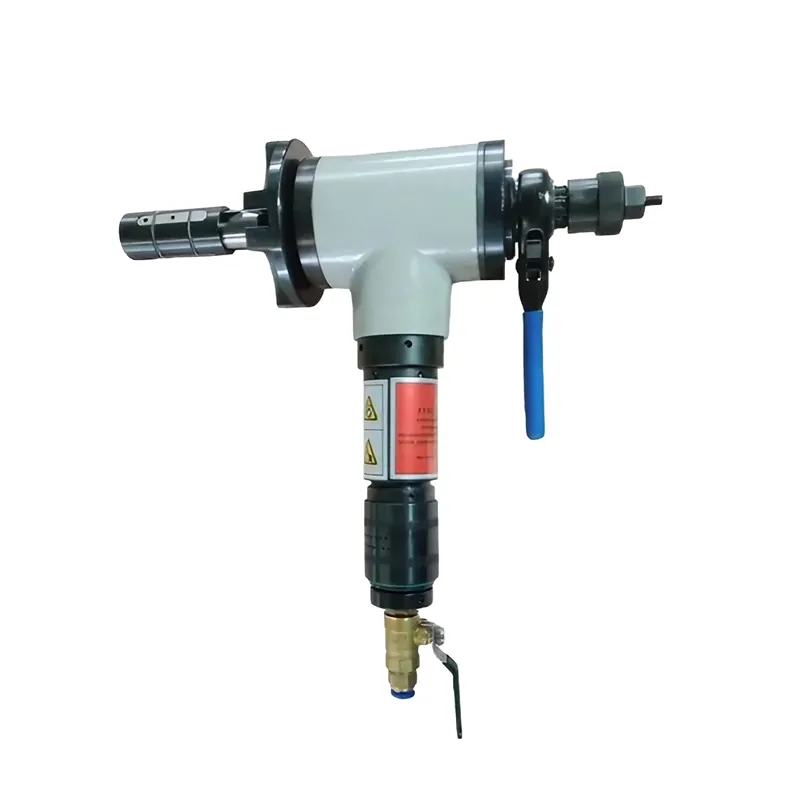

| Driven | Electric | Pneumatic | Electric (METABO Motor) |
| Power Supply | 220-240V 1PH 50/60Hz | 2000L/Min@1.0MPa | 220-240V 1PH 50/60Hz |
| Motor Power | 1500W | 1 HP | 1300W |
| Working Range (I.D) | 40-114mm | 40-114mm | 40-114mm |
| Wall Thickness | Less than 15mm | Less than 15mm | Less than 15mm |
| Rotation Speed | 30r/min | 30r/min | 30r/min |
| Net Weight | 18KG | 18KG | 18KG |
| Gross Weight | 28KG | 28KG | 28KG |
| Packing Dimension | 60*50*20cm | 60*50*20cm | 60*50*20cm |
Series Comparison
| Pipe Beveling Machine I Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-30 | 18-28mm | ≤15mm | 50r/min |
| SSE-80 | 28-76mm | ≤15mm | 55r/min |
| SSE-120 | 40-120mm | ≤15mm | 30r/min |
| SSE-159 | 65-159mm | ≤20mm | 35r/min |
| SSE-252-1 | 80-240mm | ≤20mm | 16r/min |
| SSE-352-1 | 150-330mm | ≤20mm | 14r/min |
| SSE-426-1 | 250-426mm | ≤20mm | 12r/min |
| SSE-630-1 | 300-600mm | ≤20mm | 10r/min |
| SSE-850-1 | 600-820mm | ≤20mm | 9r/min |
| Pipe Beveling Machine II Type | |||
|---|---|---|---|
| Model | Working Range (I.D) | Wall Thickness | Rotation Speed |
| SSE-252-2 | 80-240mm | ≤75mm | 16r/min |
| SSE-352-2 | 150-330mm | ≤75mm | 14r/min |
| SSE-426-2 | 250-426mm | ≤75mm | 12r/min |
| SSE-630-2 | 300-600mm | ≤75mm | 10r/min |
| SSE-850-2 | 600-820mm | ≤75mm | 9r/min |
