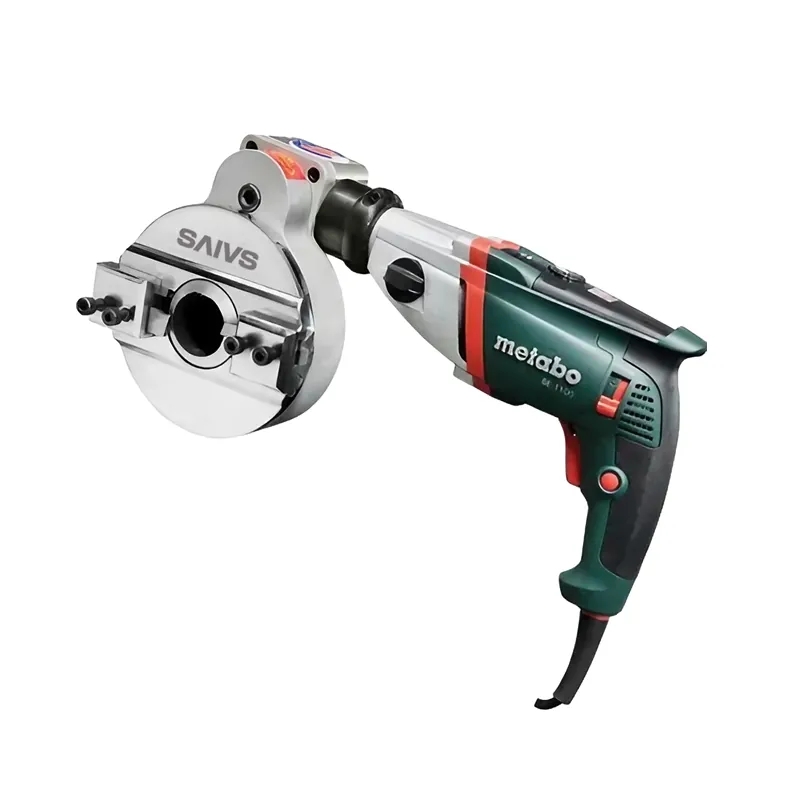

SSCB Series 63-114mm Metabo Cam-type Metal Manual Plate Chamfer

Product Line: Industrial Tools

Customizable with special requirement

Cam-type self-centering cutting and beveling machine used for pipe high speed cutting and beveling suit to small size pipes.This series machine adopts METABO motor, main applied in the field of power plant pipeline installation, chemical industry,shipbuilding, especially pipeline prefabrication and low clearance on site working, such as maintain thermal power auxiliary equipment, boiler pipe valve.

High Strength precision ring structure, suitable for all kinds of pipe cutting and groove processing, especially for large quantities of thin wall pipe cutting, groove processing.Using imported top quality as electric motor, low noise, long life, light weight, reliable Performance, a wide range of speed regulation, with CE certification.Its speed control mode has two kinds: gear speed and electronic infinitely adjustable-speed, rated voltage 200 v, 50 hz frequency.

Features

• 1.Automatic positioning center pipe, concentricity and vertical degree without manual adjustment;

• 2.Compact structure and beautiful, high strength aluminum fuselage, cabinet and delicate;

• 3.Using new synchronization into the organization, uniform feeding, cutting tool of longer life;

• 4.Easy installation fast, simple operation, convenient maintenance;

• 5.Cutting groove and a one-time, processing efficiency is very high;

• 6.Cold work completely, no spark, will not affect the material;

• 7.High machining accuracy, good surface quality, no burr;

• 8.Strong adaptability, can according to the need of the machine's speed.

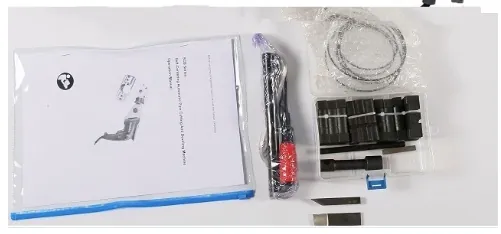

Machine standard configuration

• 1.Calibration clamping system

• 2.Customized storage box

• 3.Operating tools

• 4.Product specification

• 5.Qualified inspection report
