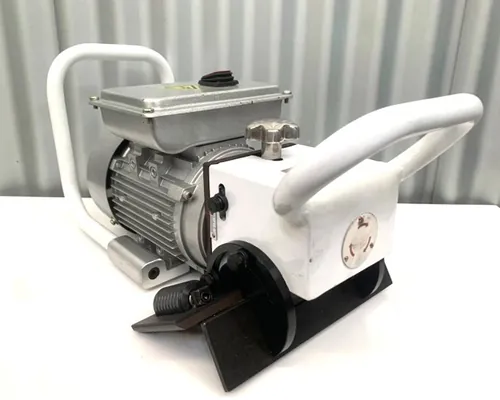

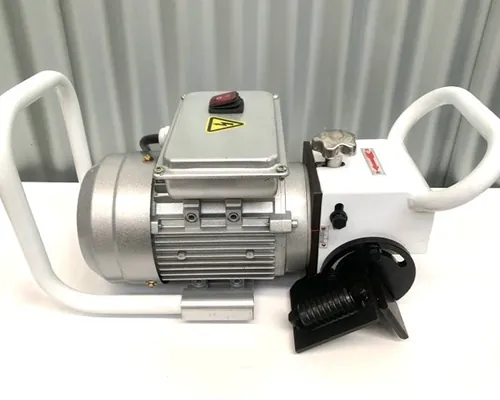

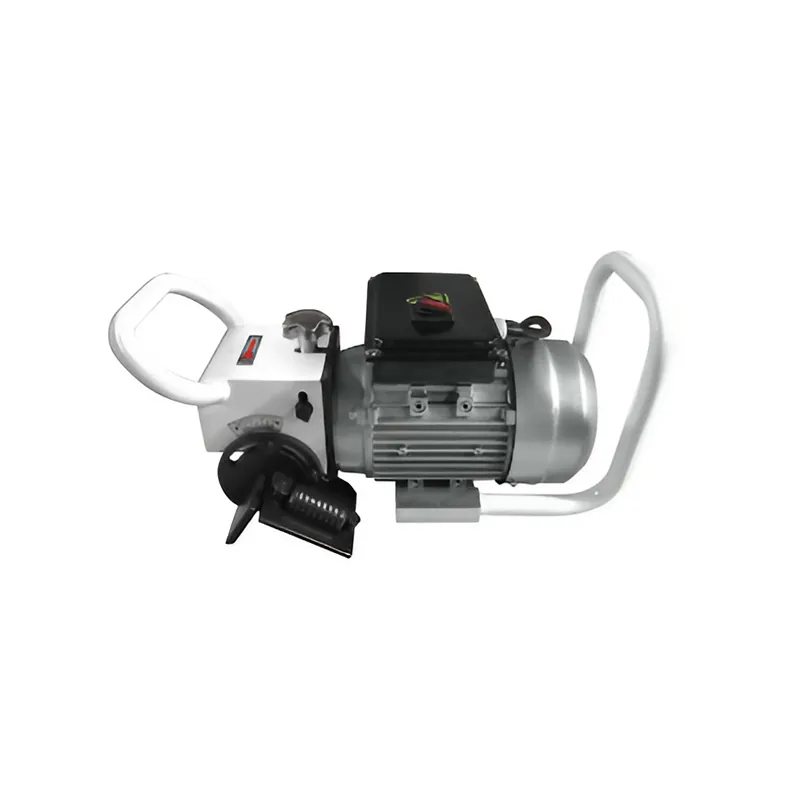

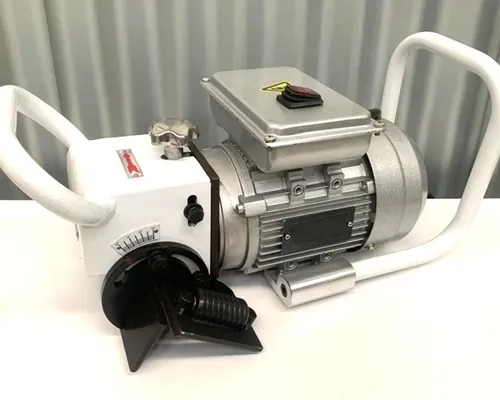

SPBM-15 1-15mm Manual Feed Plate Chamfer
-
Model: SPBM-15
Voltage: AC 1PH 220V 50HZ AC 3PH 380V 50HZ
Frequency: 50Hz
Total Power: 1100W
Clamp Thickness: No Limited
Bevel Angle: 30° - 60°
Rotation Speed: 2870r/min
Bevel Width: 1-15mm
Tool Bit Qty: 12Pcs
Net Weight: 18kgs
Gross Weight: 28kgs
Process Material: CS, SS, Aluminum Alloy, Bronze etc.
Brand: SAIVS
Country of Origin: China
- SPB-100B 0-80mm Double Cutter Head Automatic Feed Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-60L 1-55mm Automatic Feed Plate Chamfer SPB-10D 1-18mm Stationary Small Feed Plate Chamfer SPB-80 1-60mm Automatic Feed Plate Chamfer SPB-60 1-45mm Automatic Feed Plate Chamfer SPBM-15 1-15mm Manual Feed Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
Main Features
1.Cold Processed,No spark,Will not affect the material of plate.
2.Compact Structure,Light weight,Easy to carry
3.Voltage can be choose(220v/380V)
4.Smooth slope,Surface finish can be as high as Ra3.2-Ra6.3.
5.Bevel angle and bevel depthcan be adjustable,High precision
6.Small working radius,Suitable for any working space,fast beveling and deburring,Highefficiency.

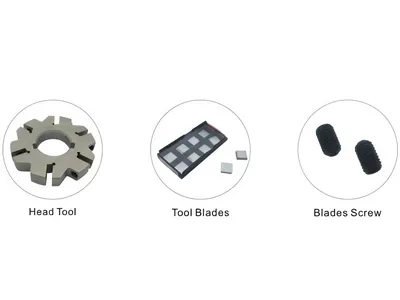

7.Equipped with CNC blades,low consumables.
8.Bevel type:V,Y,X,K etc.
Bevel Type

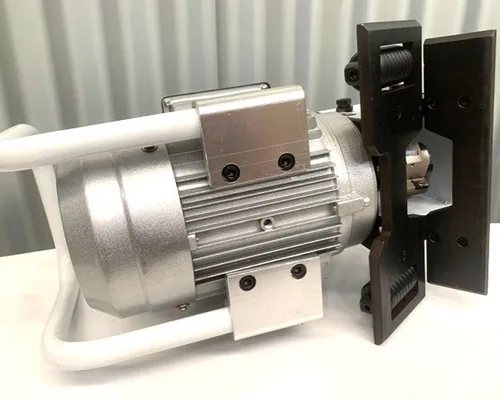

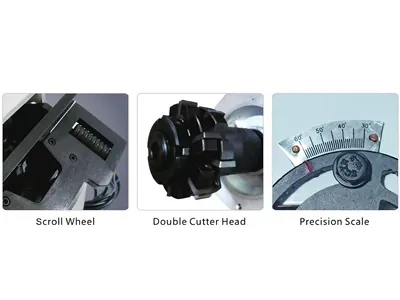

Machine Details

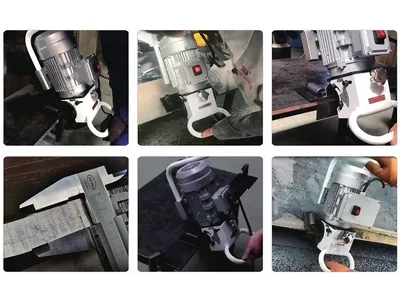

Engineer Case
Image Gallery
Dimensions
| Voltage | AC 1PH 220V 50HZ AC 3PH 380V 50HZ |
|---|---|
| Frequency | 50Hz |
| Total Power | 1100W |
| Clamp Thickness | No Limited |
| Bevel Angle | 30° - 60° |
| Rotation Speed | 2870r/min |
| Bevel Width | 1-15mm |
| Tool Bit Qty | 12Pcs |
| Net Weight | 18kgs |
| Gross Weight | 28kgs |
| Process Material | CS, SS, Aluminum Alloy, Bronze etc. |
| * Non-standard machines are available according to customer’s requirement. | |
