SPB-80 1-60mm Automatic Feed Plate Chamfer
-
Model: SPB80
Voltage: AC380V 50HZ
Total Power: 6400W
Clamp Thickness: 6-60mm
Feed Speed: 0-1500r/min
Bevel Angle: 0° - 60°
Spindle Speed: 750-1440r/min
Bevel Width: 1-60mm
Plate Width: >100mm
Plate Length: >300mm
Worktable Height: 820-860mm
Process Material: CS, SS, Aluminum, Bronze, Compound Plate
Country of Origin: China
- SPB-100B 0-80mm Double Cutter Head Automatic Feed Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-60L 1-55mm Automatic Feed Plate Chamfer SPB-10D 1-18mm Stationary Small Feed Plate Chamfer SPB-80 1-60mm Automatic Feed Plate Chamfer SPB-60 1-45mm Automatic Feed Plate Chamfer SPBM-15 1-15mm Manual Feed Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
Main Features
1.Cold processed,No sparks,Will not affect the material of plate.
2.Double motors,Stronger power
3.Double frequency conversion speed regulation,both spindle and feed speed are adjustable
4.Automatic feed,Automatic marching.high efficiency.onepersoncanoperate multiple devices at the same time
5.Smooth slope,surface finish can be ashigh as Ra3.2-Ra6.3
6.Numerical control display screen,simple operation,Bevel speed can be adjustable,high precision
7.Equipped with CNC blades, Low consumables
8.Bevel Type:V,Y,K,X etc.
9.Can process carbon steel,stainless steel,alloy steel,titanium,and composite plates etc

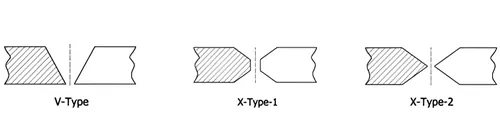

Bevel Type

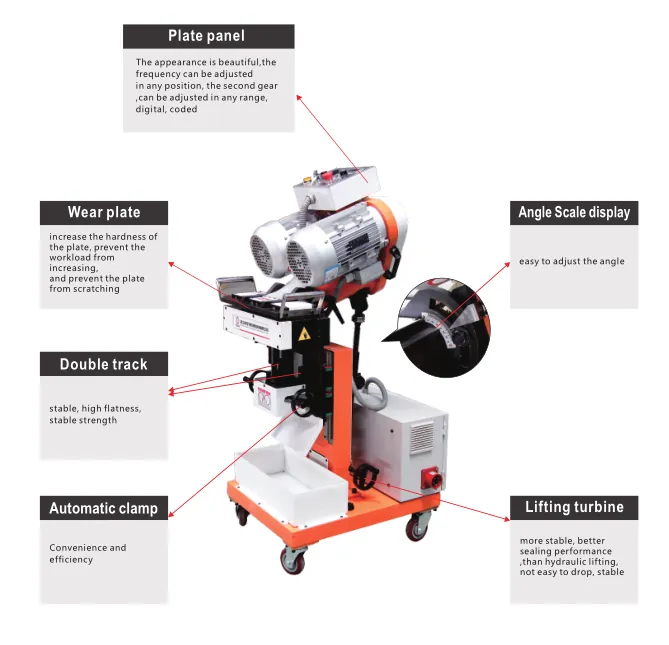

Machine Advantage
Image Gallery
Dimensions
| Voltage | AC380V 50HZ |
|---|---|
| Total Power | 6400W |
| Spindle Speed | 750-1440r/min |
| Feed Speed | 0-1500r/min |
| Bevel Width | 1-60mm |
| Single Bevel Width | 1-20mm |
| Bevel Angle | 0°- 60° |
| Clamp Thickness | 6-60mm |
| Plate Width | >100mm |
| Plate Length | >300mm |
| Worktable Height | 820-860mm |
| N.W | 270KGS |
| Process Material | CS, SS, Aluminum, Bronze, Compound Plate |
*Non-standard machines are aviable according to customer's requirement.
