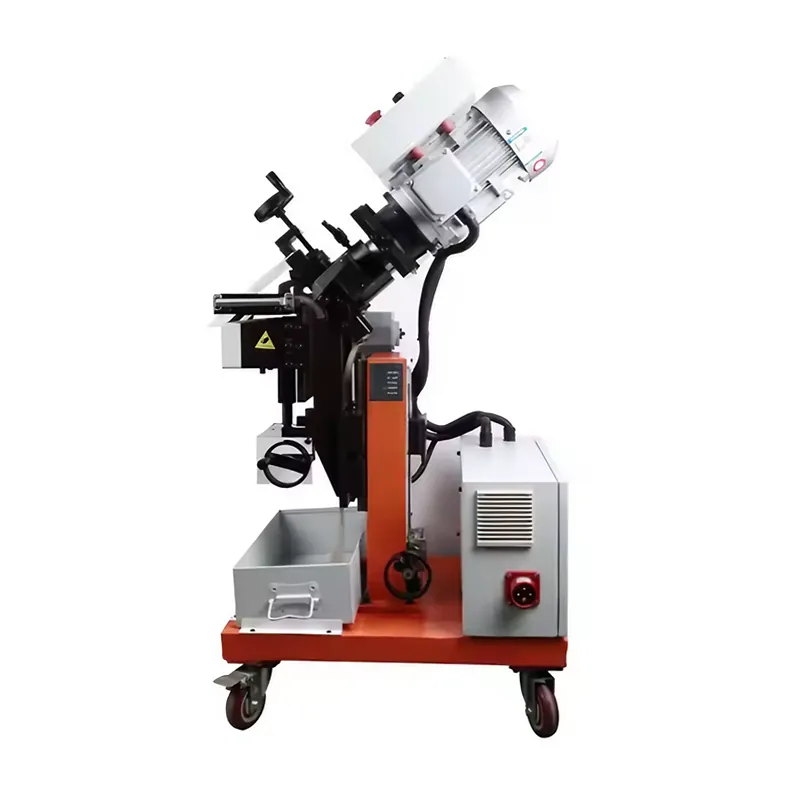

SPB-60 1-45mm Automatic Feed Plate Chamfer
-
Model: SPB60
Voltage: AC 3PH 380V 50HZ
Total Power: 3400W
Clamp Thickness: 6-40mm
Bevel Angle: 10° - 60°
Spindle Speed: 1050r/min
Bevel Width: 1-45mm
Plate Width: >100mm
Plate Length: >300mm
Worktable Height: 820-860mm
Process Material: CS, SS, Aluminum, Bronze, Compound Plate
Brand: SAIVS
Country of Origin: China
- SPB-100B 0-80mm Double Cutter Head Automatic Feed Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-60L 1-55mm Automatic Feed Plate Chamfer SPB-10D 1-18mm Stationary Small Feed Plate Chamfer SPB-80 1-60mm Automatic Feed Plate Chamfer SPB-60 1-45mm Automatic Feed Plate Chamfer SPBM-15 1-15mm Manual Feed Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
Main Features
1.Cold processed,No sparks,Will not affect the material of plate.
2.Automatic feed,Automatic Marching.Highe fficiency,One person can operate multiple devices at the same time.
3.Smooth slope,Surface finish can be as high as Ra3.2-Ra6.3.
4.Numerical control display screen,Simple operation,Bevel speed can be adjustable,High precision
5.Equipped with CNC blades,Low consumables.
7.Can process carbon steel stainless steel,alloy steel,titanium,and composite plates etc.

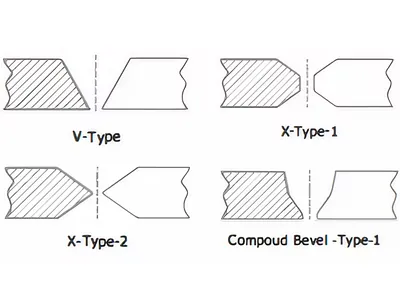

Bevel Type

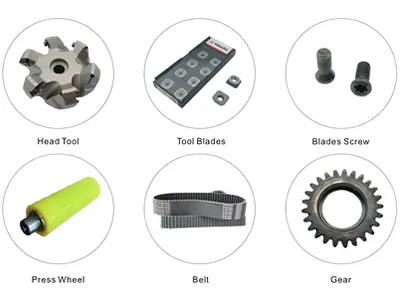

Tool Parts

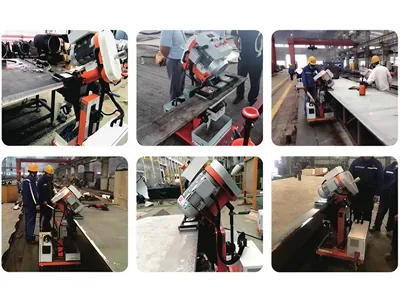

Engineering Cases

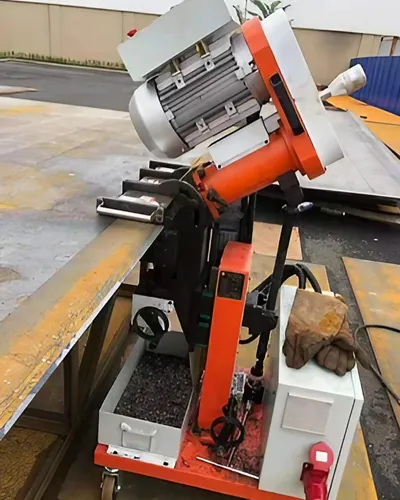

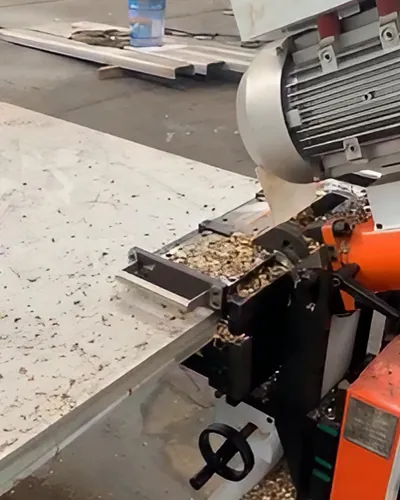

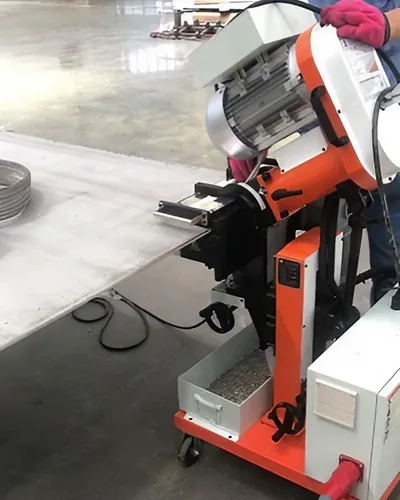

Image Gallery

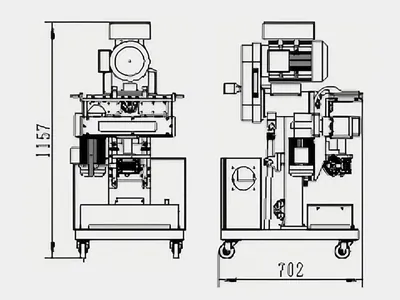

Dimensions
| Voltage | AC 3PH 380V 50HZ |
|---|---|
| Total Power | 3400W |
| Spindle Speed | 1050r/min |
| Feed Speed | 0-1500r/min |
| Bevel Width | 1-45mm |
| Single Bevel Width | 1-15mm |
| Bevel Angle | 10°- 60° |
| Clamp Thickness | 6-40mm |
| Plate Width | >100mm |
| Plate Length | >300mm |
| Worktable Height | 820-860mm |
| N.W | 250KGS |
| Process Material | CS, SS, Aluminum, Bronze, Compound Plate |
| * Non-standard machines are available according to customer’s requirement. | |
