SPB-10D 1-18mm Stationary Small Feed Plate Chamfer
-
Model: SPB-10D
Voltage: AC 3PH 380V 50HZ
Total power: 2000W
Spindle speed: 1400r/min
Feed speed: 0-1500r/min
Bevel width: 1-18mm
Single bevel width: 1-10mm
Bevel angle: 30°-60°
Clamp thickness: 2-40mm
Plate width: >20mm
Function: board bevel
N.W: 80KGS
Country of Origin: China
- SPB-100B 0-80mm Double Cutter Head Automatic Feed Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-60L 1-55mm Automatic Feed Plate Chamfer SPB-10D 1-18mm Stationary Small Feed Plate Chamfer SPB-80 1-60mm Automatic Feed Plate Chamfer SPB-60 1-45mm Automatic Feed Plate Chamfer SPBM-15 1-15mm Manual Feed Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
Main Features
1.Cold Processed,No spark,Will not affect the material of plate.
2.Automatic feed，High efficiency.
3.Suitable for strip plate and small thin plate
4.Smooth slope,Surface finish can be as high as Ra3.2-Ra6.3.
5.Numerical control display screen,Simple operation,Bevel speed can be adjustable,high precision.
6.Equipped with CNC blades,low consumables.
7.Bevel type:V,Y,K,X etc.
8.Can process carbon steel stainless steel,alloy steel,titanium,composite plate etc.

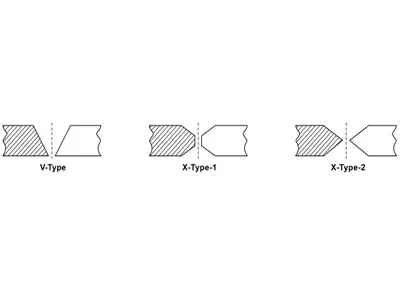

Bevel Type

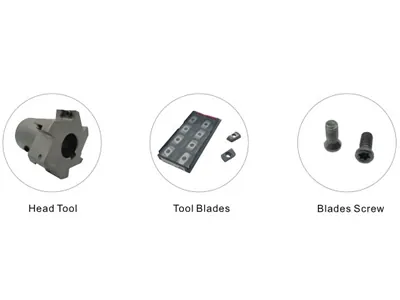

Tool Parts

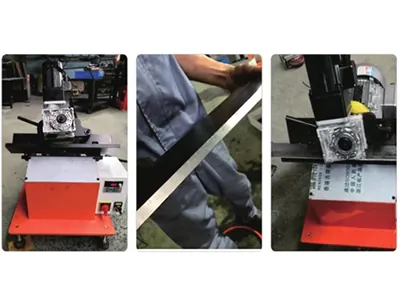

Engineer Case

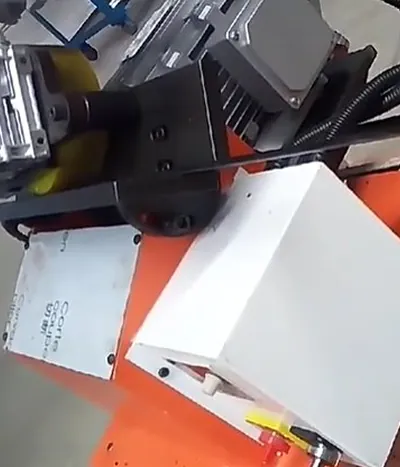

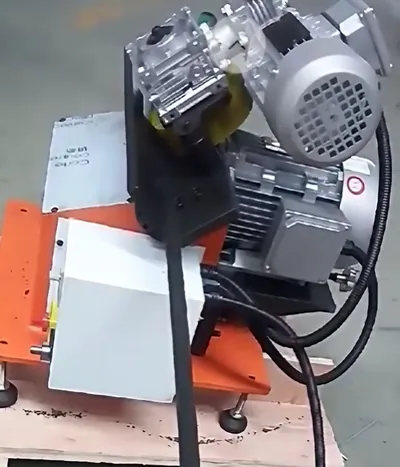

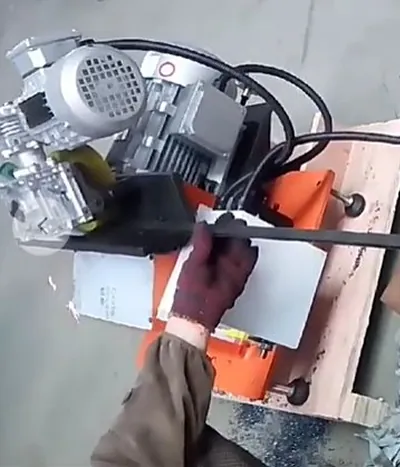

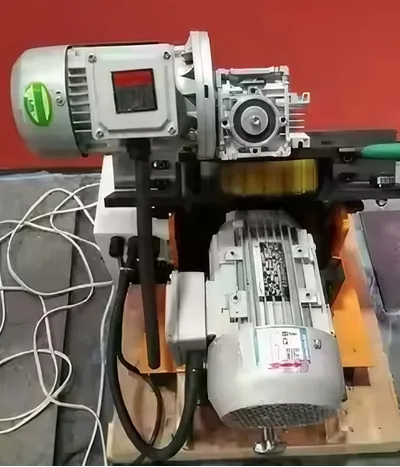

Image Gallery

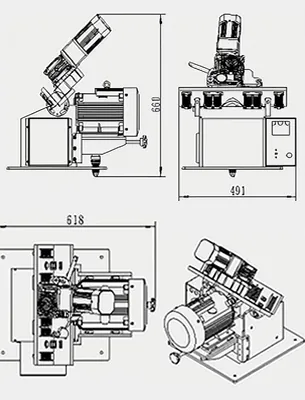

Dimensions
| Voltage | AC 3PH 380V 50HZ |
| Total power | 2000W |
| Spindle speed | 1400r/min |
| Feed speed | 0-1500r/min |
| Bevel width | 1-18mm |
| Single bevel width | 1-10mm |
| Bevel angle | 30°-60° |
| Clamp thickness | 2-40mm |
| Plate width | >20mm |
| Plate length | / |
| Worktable height | / |
| N.W | 80KGS |
| Process material | CS, SS, Aluminum, bronze, compound plate |
*Non-standard machines are aviable according to customer's requirement.
