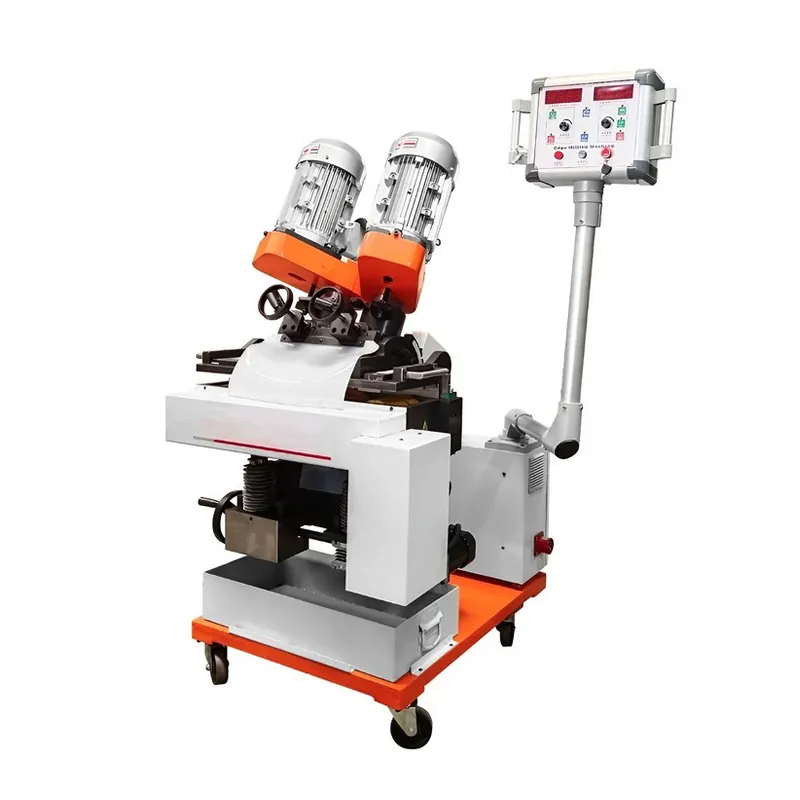

SPB-100B 0-80mm Double Cutter Head Automatic Feed Plate Chamfer
-
Model: SPB-100B
Power supply voltage: AC 380V 50Hz
Total power: 6520W
Spindle speed: 750-1440r/min
Feed speed: 0-1500r/min
Bevel width: 0-80mm
Single bevel width: 0-20mm
Bevel angle: 0°-90°
Clamping plate thickness: 6-100mm
Clamping board width: >100mm
Clamping plate length: >300mm
weight: 430kg
Power Source: Electric
Country of Origin: China
- SPB-100B 0-80mm Double Cutter Head Automatic Feed Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-60L 1-55mm Automatic Feed Plate Chamfer SPB-10D 1-18mm Stationary Small Feed Plate Chamfer SPB-80 1-60mm Automatic Feed Plate Chamfer SPB-60 1-45mm Automatic Feed Plate Chamfer SPBM-15 1-15mm Manual Feed Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement

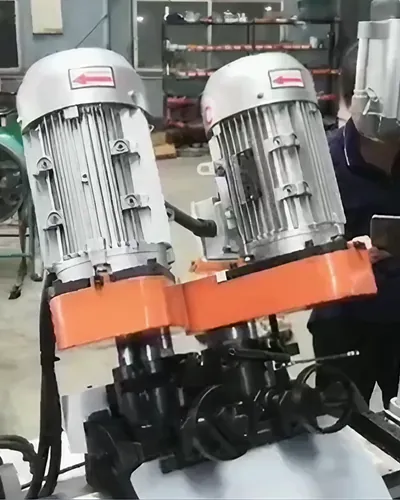

The pb-100b milling machine adopts Double Cutter Heads, which cuts more lightly and saves time and effort. Double frequency conversion speed regulation, both spindle and feed speed are adjustable, with high precision. Bevel form: V, Y, K, X, etc., bevel angle can be adjusted from 0 to 90 degrees, easy to operate.

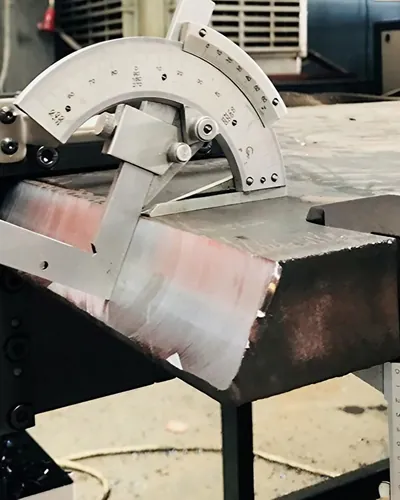

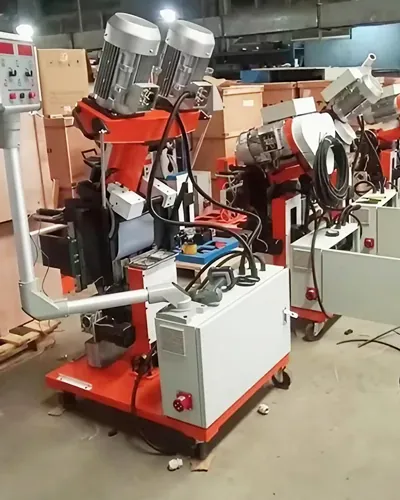

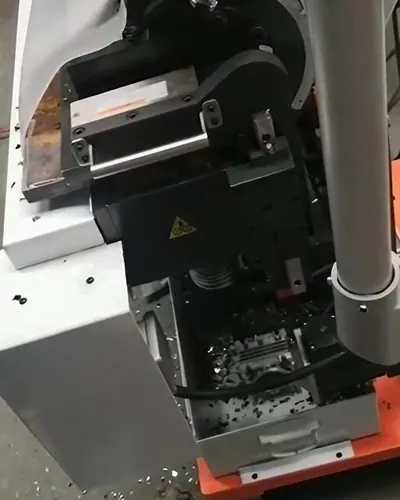

Engineer Case

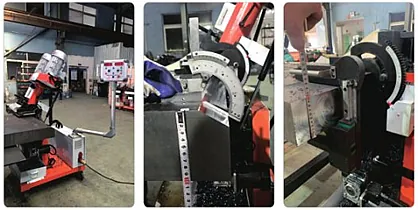

Image Gallery
Dimensions
| Power supply voltage | AC 380V 50Hz |
| Total power | 6520W |
| Spindle speed | 750-1440r/min |
| Feed speed | 0-1500r/min |
| Bevel width | 0-80mm |
| Single bevel width | 0-20mm |
| Bevel angle | 0°-90° |
| Clamping plate thickness | 6-100mm |
| Clamping board width | >100mm |
| Clamping plate length | >300mm |
| Working heightWorking height | 820-860mm |
| weight | 430kg |
| Processing material | Carbon steel, stainless steel, aluminum alloy, copper, composite board |
| a | w |
| 0° | 75mm |
| 15° | 70mm |
| 30° | 80mm |
| 37.5° | 80mm |
| 90° | 40mm |
PROVIDING EXCELLENT SOLUTIONS BY SAIVS™
if you are looking for factory manufacturers and suppliers of SPB-100B 0-80mm Double Cutter Head Automatic Feed Plate Chamfer,
choose SAIVS TOOL because of the high quality, variety of choices, low price and fast delivery.
you can easily find the best SPB-100B 0-80mm Double Cutter Head Automatic Feed Plate Chamfer solution here!
Speak to one of our experts today to learn more about our SPB-100B 0-80mm Double Cutter Head Automatic Feed Plate Chamfer products solutions.
