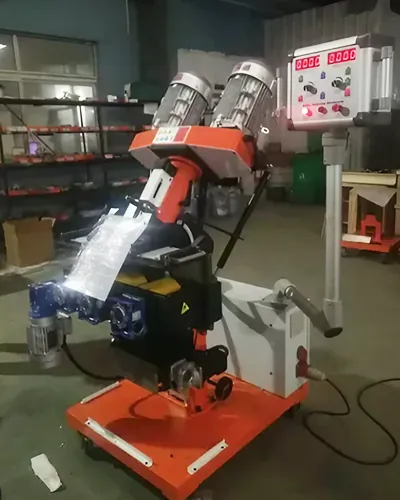

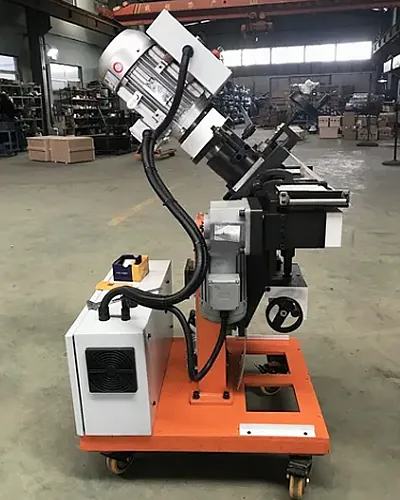

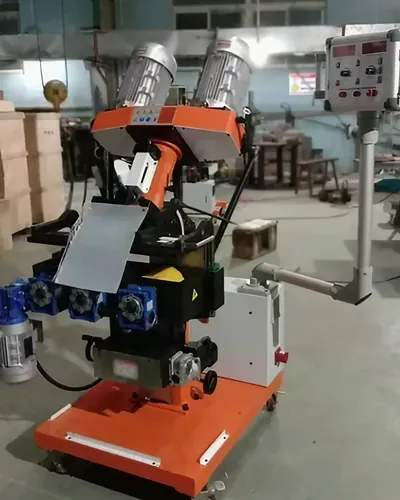

SPB-100 1-100mm Automatic Feed Plate Chamfer
-
Model: SPB-100
Voltage: AC 3PH 380V 50HZ
Total Power: 6400W
Clamp Thickness: 8-100mm
Feed Speed: 0-1500r/min
Bevel Angle: 0° - 90°
Spindle Speed: 750-1440r/min
Bevel Width: 1-100mm
Plate Width: >200mm
Plate Length: >300mm
Worktable Height: 850-900mm
Power Source: Electric
Layout: Vertical
Country of Origin: China
- SPB-100B 0-80mm Double Cutter Head Automatic Feed Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-60L 1-55mm Automatic Feed Plate Chamfer SPB-10D 1-18mm Stationary Small Feed Plate Chamfer SPB-80 1-60mm Automatic Feed Plate Chamfer SPB-60 1-45mm Automatic Feed Plate Chamfer SPBM-15 1-15mm Manual Feed Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
The PB-100 edge milling machine is characterized by its small size, lightweight, ease of movement, and simple operation, making it suitable for small factories. The processing speed is not inferior to that of a milling machine.
Main Features
1.Cold processed,No sparks Will not affect the material of plate.
2.Double motors,Stronger power
3.Double frequency conversion speed regulation,both spindle and feed speed are adjustable
4.Automatic feed，Automatic marching,high efficiency,one person can operate multiple devicesat the same time
5.Smooth slope, surface finish can be as high as Ra3.2-Ra6.3
6.Numerical control display screen,simple operation,Bevel speed can be adjustable,high precision
7.Equipped with CNC blades,Low consumables
9.Can process carbon steel,stainless steel,alloy steel,titanium,and composite plates etc

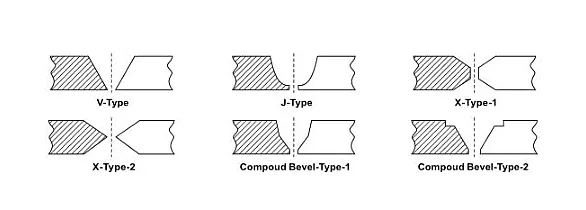

Bevel Type

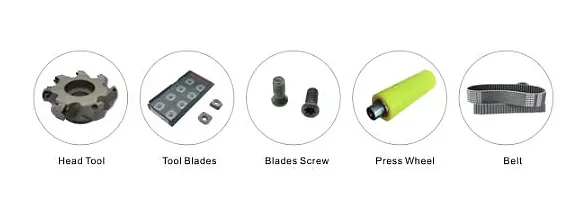

Tool Parts

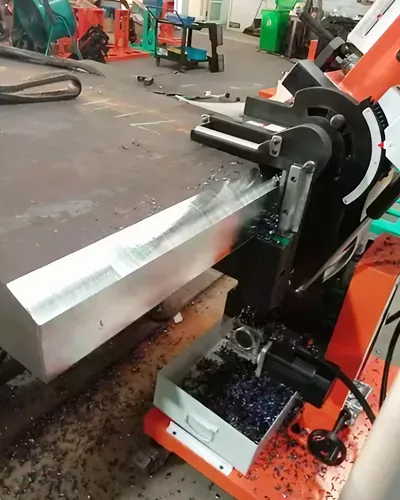

Engineer Case
Image Gallery
Dimensions
| Voltage | AC 3PH 380V 50HZ |
| Total power | 6400W |
| Spindle speed | 750-1440r/min |
| Feed speed | 0-1500r/min |
| Bevel width | 1-100mm |
| Single bevel width | 1-30mm |
| Bevel angle | 0°-90° |
| Clamp thickness | 8-100mm |
| Plate width | >200mm |
| Plate length | >300mm |
| Worktable height | 850-900mm |
| N.W | 440KGS |
| Process material | CS, SS, Aluminum, bronze, compound plate |
*Non-standard machines are aviable according to customer's requirement.
