SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer
-
Model: SPB-10
Voltage: 220-240V
Working Frequency: 50/60HZ
Motor Power: 1400W
Rotation: 500-1500mm/min
Beveling Width: 1-10mm
Weight: 6.5Kg
Tool Bit Qty: 4/5 pieces
Processing Materials: Carbon Steel,Stainless Steel,
Aluminum alloy,Composite Plate
Suitable: K, V, X, Y type groove
Country of Origin: China
- SPB-R3 Pneumatic Chamfering Machine SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer SISO Series OD Mounted Portable Automatic Plate Chamfer SSCB Series 63-114mm Metabo Cam-type Metal Manual Plate Chamfer SPB-15 1-15mm Multi-function Metal Manual Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
SPB-10 multi-function beveling machine is a kind of hand-operated electric tool. It is suitable for beveling the pre-welding beveling (can be machined into V, x, y beveling). It can beveling the sheet and de-burring the metal material. Its versatility and flexibility can greatly improve the efficiency of the machine and make it an attractive device. The machine is very compact can be operated in complex environments and is difficult to process.

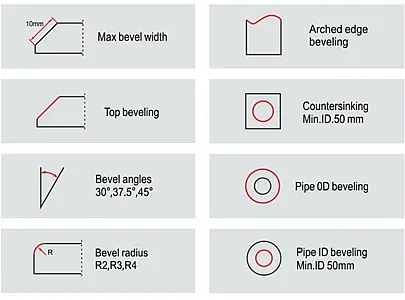

Bevel Type

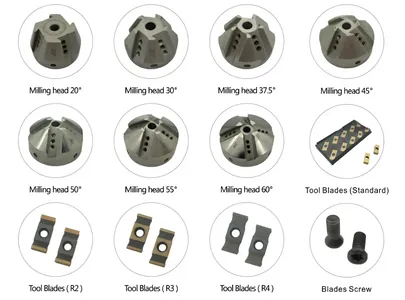

Tool Parts
Multi-function groove machine configuration
1.Calibration clamping system
2.Customized storage box
3.Operating tools
4.Product specification
5.Qualified inspection report
Image Gallery
Dimensions
| Model | SPB-10 |
| Voltage | 220-240V |
| Working Frequency | 50/60HZ |
| Motor Power | 1400W |
| Rotation | 500-1000mm/min |
| Beveling Angle | 30°（Standard） 37.5°45° |
| Beveling Width | 1-10mm |
| Weight | 6.5Kg |
| Tool Bit Qty | 4/5pcs |
Series Comparison
| Model | SPB-15 | SPB-10 |
| Voltage | 220-240V | 220-240V |
| Working Frequency | 50/60HZ | 50/60HZ |
| Motor Power | 2450W | 1400W |
| Rotation | 500-1500mm/min | 500-1000mm/min |
| Beveling Angle | 30°（The standard）20°37.5°45°55°60°（optional） | 30°（Standard） 37.5°45° |
| Beveling Width | 1-15mm(Q235) | 1-10mm |
| Weight | 8.5Kg | 6.5Kg |
| Tool Bit Qty | 4/5pcs | 4/5pcs |
