SOW Series Low Profile Hydraulic Torque Wrenches Black

5out of5 based on8 reviews | Write a review

Precise and repeatable: Achieve consistent results with +/- 3% repeatability.
Powerful: Handle up to 700 bar (10,000 psi) of operating pressure.
Versatile: Choose from 5 models with torque ranges from 230 Nm to 45,000 Nm to suit your specific needs.

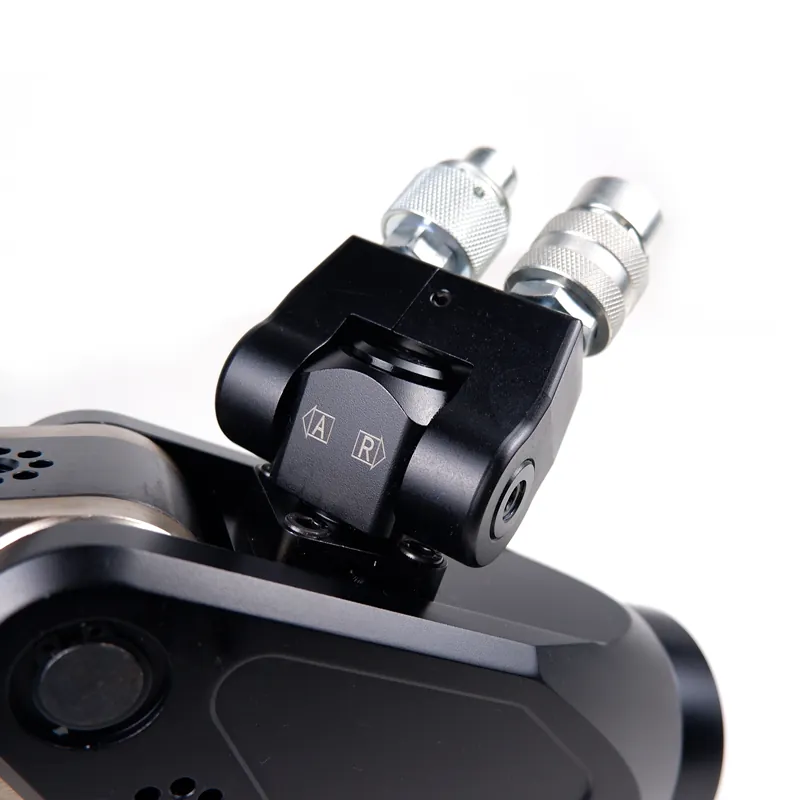

Flexible: Maneuver easily in any workspace with 360° x 180° swivel quick release couplings.
Compact and lightweight: The durable aluminum-titanium alloy construction minimizes weight without sacrificing strength, making them easy to handle.
Built to last: Suitable for continuous operation at maximum pressure, ensuring reliable performance even in demanding applications.
Safe: The integrated pressure rel
SOW Series Low Profile Hydraulic Torque Wrenches Silver SOW Series,230-44500 Nm,Hydraulic Torque Wrench

VIEW CATALOGUE

Description

Product Line: Industrial Tools

Customizable with special requirement

SAIVS's SOW series Low Profile Hydraulic Torque Wrench are almost the same as Enerpac’s W series,HYTORC’s XLCT series, TORCUP’s TX series, HI FORCE’s TWH-N series,SPX's TWSL SERIESand other wrenches in terms of function, quality, and applicable working conditions.

At the same time, SAIVS provides a one-year warranty, more favorable prices, and Customized services for special working conditions.

Welcome to Get Latest Price now

SOW Series Color:

Black | Silver

Collaborative hydraulic tools:

The SOW Series Low Profile Hydraulic torque wrenches,stand out as exceptional hydraulic tools, excelling in independent and collaborative operations with various hydraulic counterparts.

It boasts a standout feature: the Multi-Tool Collaborative Control. This functionality seamlessly integrates with a hydraulic torque wrench pump, offering centralized control over multiple Torque Wrenches.

This collaboration innovatively enhances work efficiency, enabling easy simultaneous management of various torque applications.

The wide applicability of the SOW Series, particularly when paired with a hydraulic cylinder, ensures a diverse hydraulic power range.

This versatility makes it suitable for accommodating different specifications of bolts and nuts, providing users with flexible options for various fastening requirements.

In conjunction with hydraulic bolt tensioners, these torque wrenches contribute to a complete fastening solution.

This feature is especially beneficial in industrial settings where additional pre-tension is required for specific applications,

making the SOW Series an ideal choice for such demanding environments.

To enhance both durability and aesthetics, this series come with a robust and long-lasting black coating.

This not only extends the product's lifespan but also adds a touch of professionalism and modernity to any work environment where attention to detail matters.

TYPE	Torque	Torque	Nut Sizes	Power Head Weight	Cassette Weight	Sizes
2 SOW	232 ~ 2328 241 ~ 2414	171 ~ 1713 177 ~ 1782	19 ~ 55 60	1 1	1.6 1.7	195.4 195.4	186 186	125.9 128.5	102.3 105	32 32	51 51
4 SOW	585 ~ 2510 585 ~ 5021 585 ~ 5858 647 ~ 6474	431 ~ 1851 431 ~ 3705 431 ~ 4317 476 ~ 4771	34 ~ 36 41 46 ~ 65 70 ~ 80	2 2	4.4 4.6	261.6 261.6	245 245	177 187	135.7 145.7	42 42	66 66
8 SOW	1094 ~ 10941 1177 ~ 11774	806 ~ 8078 868 ~ 8672	41 ~ 95 100 ~ 105	3.3 3.3	8 8.4	304 304	300 300	207 216	169 178	53 53	83 83
14 SOW	1852 ~ 18521	1365 ~ 13665	50 ~ 117	5.5	11.6	361	361	239	204	64	99
30 SOW	4188 ~ 41882 4459 ~ 44593	3082 ~ 30892 3280 ~ 32892	110 ~ 155 160 ~ 175	11.4 11.4	29 30	441 441	430 430	303 315	272 285	85 85	131 131

TYPE

Torque

Nut Sizes

Power Head

Weight

Cassette

Weight

Sizes

N.m

Ft.lbs

2 SOW

232 ~ 2328

241 ~ 2414

171 ~ 1713

177 ~ 1782

19 ~ 55

1.6

1.7

195.4

186

125.9

128.5

102.3

105

4 SOW

585 ~ 2510

585 ~ 5021

585 ~ 5858

647 ~ 6474

431 ~ 1851

431 ~ 3705

431 ~ 4317

476 ~ 4771

34 ~ 36

46 ~ 65

70 ~ 80

4.4

4.6

261.6

245

177

187

135.7

145.7

8 SOW

1094 ~ 10941

1177 ~ 11774

806 ~ 8078

868 ~ 8672

41 ~ 95

100 ~ 105

3.3

8.4

304

300

207

216

169

178

14 SOW

1852 ~ 18521

1365 ~ 13665

50 ~ 117

5.5

11.6

361

239

204

30 SOW

4188 ~ 41882

4459 ~ 44593

3082 ~ 30892

3280 ~ 32892

110 ~ 155

160 ~ 175

11.4

441

430

303

315

272

285

131

Dimensions

2SOW				4SOW				8SOW				14SOW				30SOW
Type	R	A	MaxTorque	Type	R	A	MaxTorque	Type	R	A	MaxTorque	Type	R	A	MaxTorque	Type	R	A	MaxTorque
2SOW-19	27	16	2328	4SOW-34	36	16	2510	8SOW-41	46	22	10941	14SOW-50	60	31	18521	30SOW-85	78	28	41882
2SOW-22	27	14	2328	4SOW-36	36	15	2510	8SOW-46	46	19	10941	14SOW-55	60	28	18521	30SOW-90	78	27	41882
2SOW-27	27	11	2328	4SOW-41	39	15	5021	8SOW-50	46	17	10941	14SOW-60	60	25	18521	30SOW-95	83	28	41882
2SOW-30	29	12	2328	4SOW-46	42	15	5858	8SOW-55	50	18	10941	14SOW-65	60	22	18521	30SOW-100	83	25	41882
2SOW-32	29	11	2328	4SOW-50	44	15	5858	8SOW-60	52	17	10941	14SOW-70	60	19	18521	30SOW-105	89	28	41882
2SOW-34	31	11	2328	4SOW-55	46	14	5858	8SOW-65	55	17	10941	14SOW-75	63	19	18521	30SOW-110	89	25	41882
2SOW-36	31	10	2328	4SOW-60	50	15	5858	8SOW-70	58	17	10941	14SOW-80	66	19	18521	30SOW-115	95	28	41882
2SOW-41	34	10	2328	4SOW-65	53	15	5858	8SOW-75	60	17	10941	14SOW-85	69	19	18521	30SOW-117	95	27	41882
2SOW-46	37	10	2328	4SOW-70	56	15	6474	8SOW-80	63	16	10941	14SOW-90	72	20	18521	30SOW-120	95	25	41882
2SOW-50	40	11	2328	4SOW-75	59	15	6474	8SOW-85	66	16	10941	14SOW-95	74	19	18521	30SOW-125	101	29	41882
2SOW-55	43	11	2328	4SOW-80	61	15	6474	8SOW-90	69	17	10941	14SOW-100	77	19	18521	30SOW-130	101	26	41882
2SOW-60	46	11	2414					8SOW-95	71	16	10941	14SOW-105	80	19	18521	30SOW-135	104	26	41882
								8SOW-100	75	17	11774	14SOW-110	83	19	18521	30SOW-140	110	29	41882
								8SOW-105	78	17	11774	14SOW-115	87	20	18521	30SOW-145	110	26	41882
												14SOW-117	87	19	18521	30SOW-150	116	29	41882
																30SOW-155	116	26	41882
																30SOW-160	128	36	44593
																30SOW-165	128	33	44593
																30SOW-170	128	30	44593
																30SOW-175	128	27	44593

Impact Socket Specification

Standard reducer inserts selection chart
Wrench Model	Cassette	Nut Size	Reducer Insert						Locking
Wrench Model	Cassette	(S)	Type	A/B(mm)	Type	A/B(mm)	Type	A/B(mm)	ring
2SOW	2SOW-50	50	2G5041	50/41	2G5036	50/36	2G5032	50/32	H-50
	2SOW-46	46	2G4636	46/36	2G4632	46/32	2G4630	46/30	H-46
	2SOW-41	41	2G4132	41/32	2G4130	41/30	2G4127	41/27	H-41
	2SOW-36	36	2G3630	36/30	2G3627	36/27			H-36
	2SOW-32	32	2G3227	32/27					H-32
	2SOW-30	30
	2SOW-27	27
4SOW	4SOW-65	65	4G6555	65/55	4G6550	65/50	4G6546	65/46	H-56
	4SOW-60	60	4G6050	60/50	4G6046	60/46	4G6041	60/41	H-60
	4SOW-55	55	4G5546	55/46	4G5541	55/41	4G5536	55/36	H-55
	4SOW-50	50	4G5041	50/41	4G5036	50/36	4G5032	50/32	H-50
	4SOW-46	46	4G4636	46/36	4G4632	46/32	4G4630	46/30	H-46
	4SOW-41	41	4G4132	41/32	4G4130	41/30	4G4127	41/27	H-41
	4SOW-36	36	4G3630	36/30	4G3627	36/27			H-36
	4SOW-32	32	4G3227	32/27					H-32
	4SOW-30	30
	4SOW-27	27
8SOW	8SOW-90	90	8G9080	90/80	8G9075	90/75	8G9070	90/70	H-90
	8SOW-85	85	8G8575	85/75	8G8570	85/70	8G8565	85/65	H-85
	8SOW-80	80	8G8070	80/70	8G8065	80/65	8G8060	80/60	H-80
	8SOW-75	75	8G7565	75/65	8G7560	75/60	8G7555	75/55	H-75
	8SOW-70	70	8G7060	70/60	8G7055	70/55	8G7050	70/50	H-70
	8SOW-65	65	8G6555	65/55	8G6550	65/50	8G6545	65/45	H-65
	8SOW-60	60	8G6050	60/50	8G6046	60/46			H-60
	8SOW-55	55	8G5546	55/46	8G5541	55/41			H-55
	8SOW-50	50
14SOW	14SOW-115	115	14G115105	115/105	14G115100	115/100	14G11595	115/95	H-115
	14SOW-110	110	14G110100	110/100	14G11095	110/95	14G11090	110/90	H-110
	14SOW-105	105	14G10595	105/95	14G10590	105/90	14G10585	105/85	H-105
	14SOW-100	100	14G10090	100/90	14G10085	100/85	14G10080	100/80	H-100
	14SOW-95	95	14G9585	95/85	14G9580	95/80	14G9575	95/75	H-95
	14SOW-90	90	14G9080	90/80	14G9075	90/75	14G9070	90/70	H-90
	14SOW-85	85	14G8575	85/75	14G8570	85/70	14G8565	85/65	H-85
	14SOW-80	80	14G8070	80/70	14G8065	80/65			H-80
	14SOW-75	75	14G7565	75/65					H-75
	14SOW-70	70
	14SOW-65	65
30SOW	30SOW-155	155	30G155145	155/145	30G155130	155/130	30G155120	155/120	H-155
	30SOW-145	145	30G145130	145/130	30G145120	145/120	30G145115	145/115	H-145
	30SOW-130	130	30G130120	130/120	30G130115	130/115	30G130110	130/110	H-130
	30SOW-120	120	30G120110	120/110	30G120105	120/105	30G120100	120/100	H-120
	30SOW-115	115	30G115105	115/105	30G115100	115/100	30G115595	115/95	H-115
	30SOW-110	110	30G110100	110/100	30G11095	110/95	30G11090	110/90	H-110
	30SOW-105	105	30G10595	105/95	30G10590	105/90	30G10080	100/80	H-100
	30SOW-100	100	30G10090	100/90	30G10085	100/85	30G10080	100/80	H-100
	30SOW-95	95	30G9585	95/85	30G9580	95/80			H-95
	30SOW-90	90	30G9080	90/80					H-90
	30SOW-85	85
	30SOW-80	80

Video

FAQs

Question 1: How can the safety and stability of operations be ensured when using the SOW Series Hydraulic Torque Wrench?

Answer: Safety and stability during the use of the SOW Series Hydraulic Torque Wrench can be ensured through adherence to proper operating procedures, thorough training of operators, and the use of safety features integrated into the tool. Additionally, regular inspections and maintenance checks are essential to identify and address potential safety concerns.

Question 2: Does this hydraulic torque wrench feature automated control functions?

Answer: Yes, the SOW Series Hydraulic Torque Wrench is equipped with advanced automated control functions. These functions contribute to precise torque application,

enhance operational efficiency, and often include safety features such as torque limiting to prevent over-tightening.
