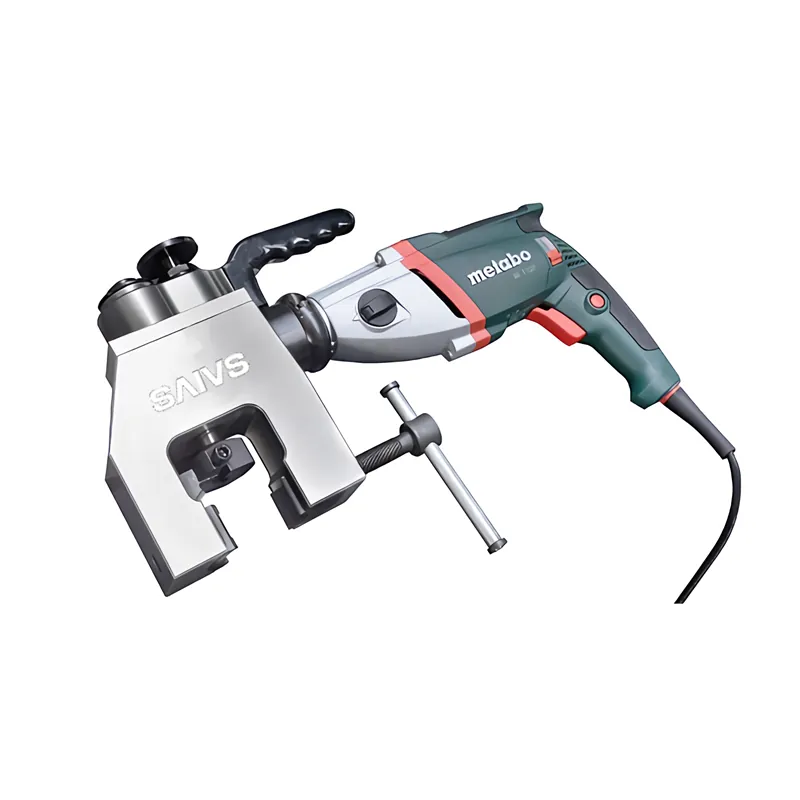

SISO Series OD Mounted Portable Automatic Plate Chamfer
-
Model: SISO Series
Working range(OD): 63-114mm
Wall thickness: ≤12mm
Clamp size(OD): 28-114
Processing Materials: PVC/plastic/copper/stainless steel/carbon steel,etc
Core components: engines/gears
Driven Type: Metabo Electric Motor
Body: Aluminum
Mounting Method: Split OD Mount
Brand: SAIVS
Country of Origin: China
- SPB-R3 Pneumatic Chamfering Machine SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer SISO Series OD Mounted Portable Automatic Plate Chamfer SSCB Series 63-114mm Metabo Cam-type Metal Manual Plate Chamfer SPB-15 1-15mm Multi-function Metal Manual Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
Suitable for power generation,Pipe installation, chemical industry, shipbuilding, etc use pressure pipeline model set, which is mainly used for the early stage of the groove tube type. Equipment manufacture and no workspace limits of pipeline maintenance work on site.
Features
OD-Mounted
Lightweight
Adjustable speed
Compact design, good rigidity
Tool feed/back automatically
Ingenious centering device, easy to process various pipe size
Elaborate the infinite gear centering device, simple operation can be convenient to deal with a variety of model pipe processing;
Using a transmission structure similar to that of the special machine and motor, the overall Performance and reliability;
The automatic cutting structure design and operation are flexible and simple.
SISO Machine configuration
1.Calibration clamping system

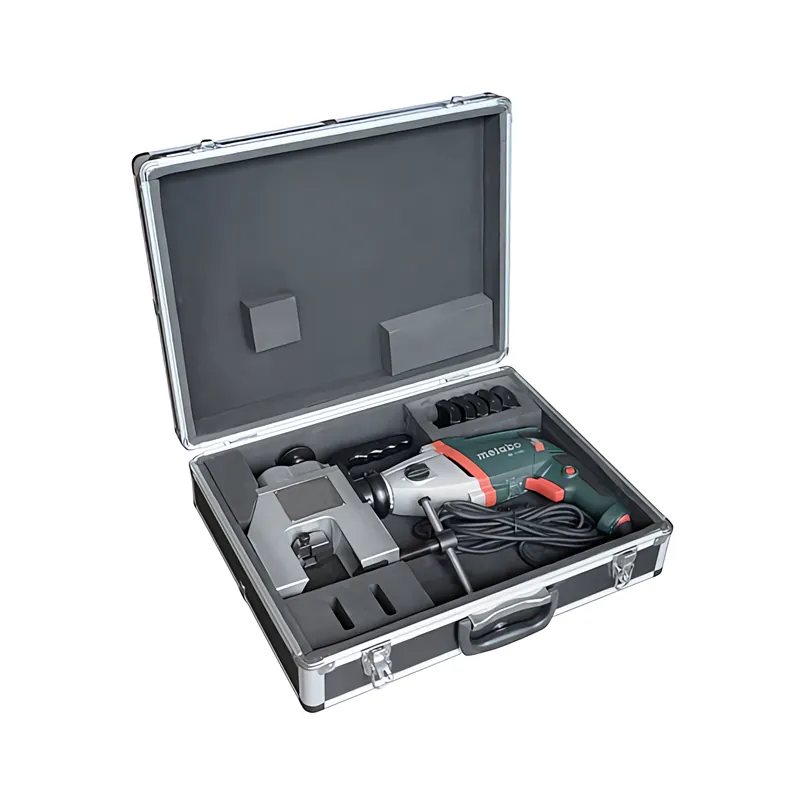

2.Customized storage box
3.Operating tools
4.Product specification
5.Qualified inspection report

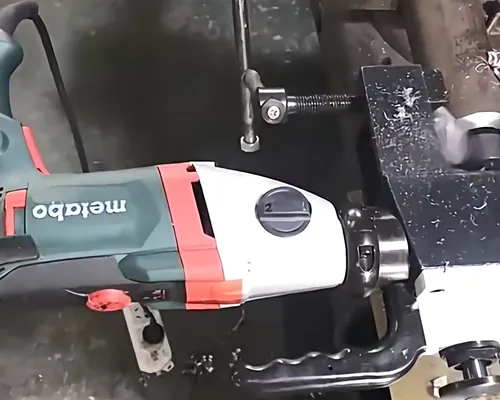

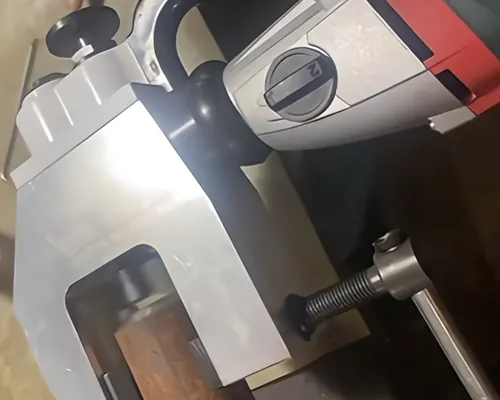

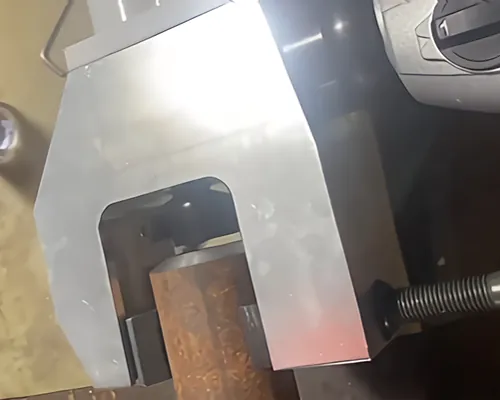

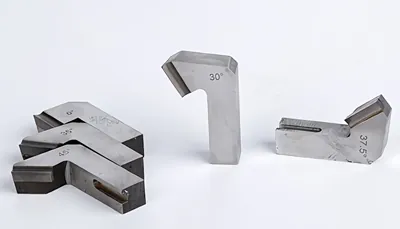

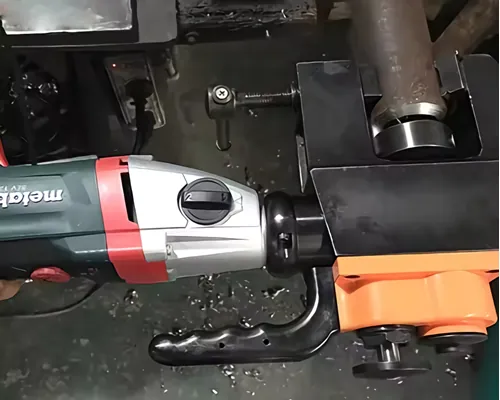

Image Gallery
Series Comparison
| Model | Working Range (OD mm) | Wall thickness | Clamp Size (OD mm) |
| SISO-63C | 28-63 | ≤12mm | 28, 32, 42, 45, 54, 57, 60, 63 |
| SISO-76C | 42-76 | 42, 45, 54, 57, 60, 63, 68, 76 | |
| SISO-89C | 63-89 | 63, 68, 76, 83, 89 | |
| SISO-114C | 76-114 | 76, 83, 89, 95, 102, 108, 114 |
Literature
PROVIDING EXCELLENT SOLUTIONS BY SAIVS™
if you are looking for factory manufacturers and suppliers of SISO Series OD Mounted Portable Automatic Plate Chamfer,
choose SAIVS TOOL because of the high quality, variety of choices, low price and fast delivery.
you can easily find the best SISO Series OD Mounted Portable Automatic Plate Chamfer solution here!
Speak to one of our experts today to learn more about our SISO Series OD Mounted Portable Automatic Plate Chamfer products solutions.
