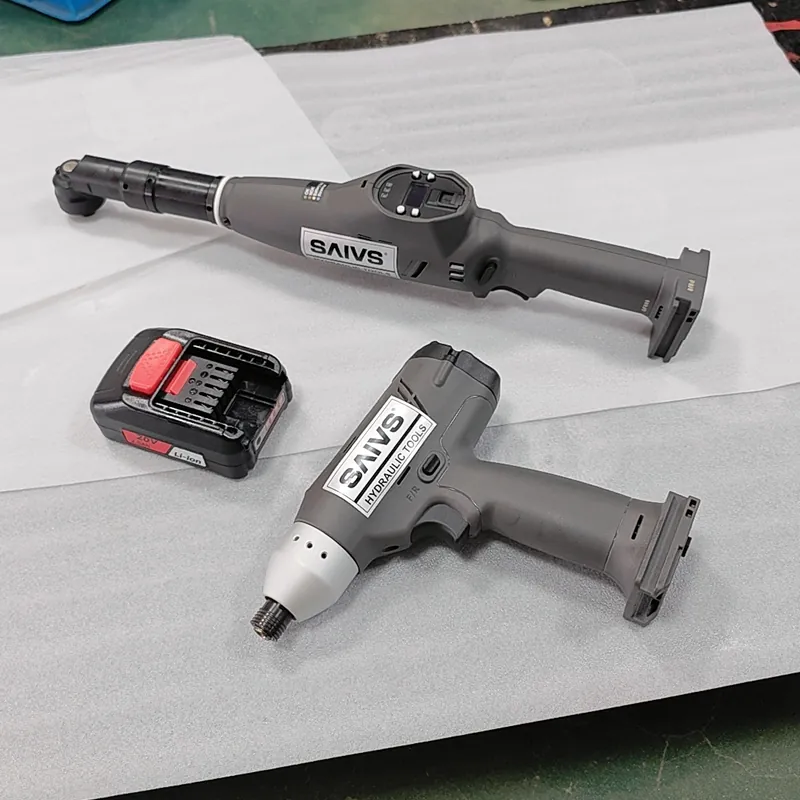

SCW-L016H 5-16 Nm 1/4"Hex, Battery Torque Wrench Right Angle Cordless
-
Model: SCW-L016S
Voltage(V): 20
Drive head(inch): 3/8"Sq
Applicable bolts(mm): M5-M6
Torque range(Nm): 5-16
Torque range(ft-lb): 3.7-11.8
No-load speed(rpm): 120-600
Noise level: <75 dB(A)
Weight: 1.68 kg | 3.7 lb
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
- SCW-L060S 25-60 Nm 3/8"Sq, Battery Torque Wrench Right Angle Cordless SCW-L060H 25-60 Nm 1/4"Hex, Battery Torque Wrench Right Angle Cordless SCW-L050S 20-48 Nm 3/8"Sq, Battery Torque Wrench Right Angle Cordless SCW-L050H 20-48 Nm 1/4"Hex, Battery Torque Wrench Right Angle Cordless SCW-L030S 10-30 Nm 3/8"Sq, Battery Torque Wrench Right Angle Cordless SCW-L016S 5-16 Nm 3/8"Sq, Battery Torque Wrench Right Angle Cordless SCW-L016H 5-16 Nm 1/4"Hex, Battery Torque Wrench Right Angle Cordless SCW-L010S 4-10 Nm 3/8"Sq, Battery Torque Wrench Right Angle Cordless SCW-L010H 4-10 Nm 1/4"Hex, Battery Torque Wrench Right Angle Cordless
Description
Product Line: Industrial Tools
Customizable with special requirement
This wrench reduces bolting time and costs while ensuring repeatable accuracy for all torque-critical joints, prioritizing worker safety. It delivers precision and quality through an affordable, easy-to-set-up tool.

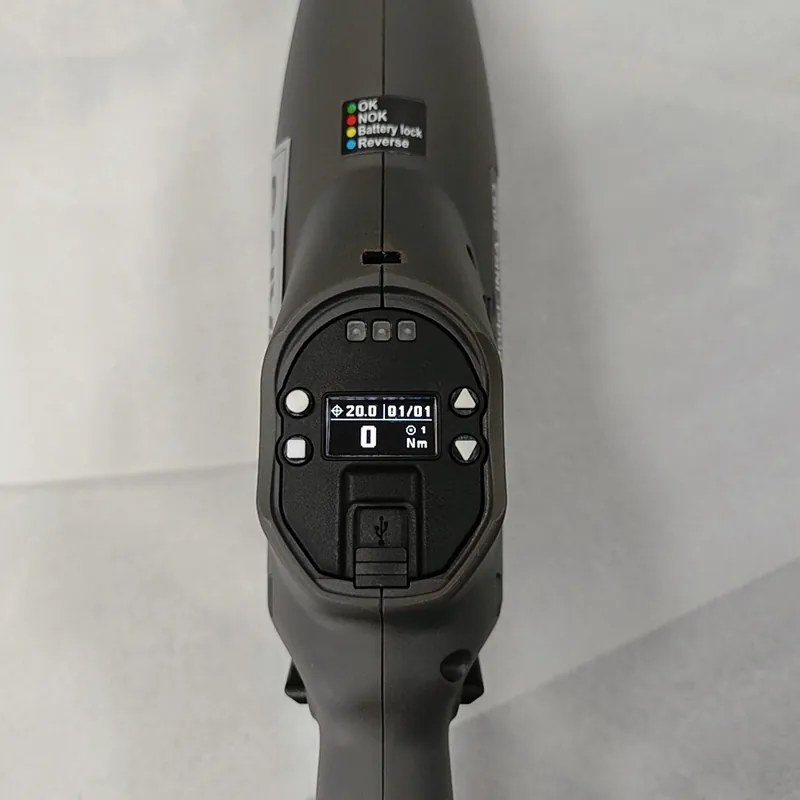

Users can program it using torque (Nm, ft-lbs, and in-lbs), angle, and sequence, reducing the need for multiple tools across various applications. An additional display screen helps to shorten setup time.
Features
Current torque settings in Nm, ft-lbs, and in-lbs
Configurable preventive maintenance alerts
Closed-loop sensor torque control
brushless motor
Image Gallery
Dimensions
| A(mm） | 439 |
| B(mm） | 150 |
| C(mm） | 16 |
| D(mm） | 20 |
| E(mm） | 38 |
| Øf(mm） | - |
| Øg(mm） | - |
Series Comparison
| Model | Voltage(V) | Drive head(inch) | Applicable bolts(mm) | Torque range(Nm) | Torque range(ft-lb) | No-load speed(rpm) | Noise level(dBA) | Weight(kg) | Weight(lb) | Dimensions(mm） | |||||||
| a | b | c | d | e | Øf | Øg | |||||||||||
| SCW-L010H | 20 | 1/4"Hex | M4-M5 | 4-10 | 3.0-7.4 | 150-750 | <75 | 1.68 | 3.7 | 439 | 150 | 16 | 20 | 38 | - | - | |
| SCW-L010S | 20 | 3/8"Sq | M4-M5 | 439 | 150 | 16 | 13.5 | 38 | - | - | |||||||
| SCW-L016H | 20 | 1/4"Hex | M5-M6 | 5-16 | 3.7-11.8 | 120-600 | <75 | 1.68 | 3.7 | 439 | 150 | 16 | 20 | 38 | - | - | |
| SCW-L016S | 20 | 3/8"Sq | M5-M6 | 439 | 150 | 16 | 13.5 | 38 | - | - | |||||||
| SCW-L030S | 20 | 3/8"Sq | M6-M8 | 10-30 | 7.4-22.1 | 70-350 | <75 | 1.68 | 3.7 | 439 | 150 | 16 | 13.5 | 38 | - | - | |
| SCW-L050H | 20 | 1/4"Hex | M6-M10 | 20-48 | 14.8-35.4 | 60-210 | <75 | 2.16 | 4.77 | 535 | 150 | 18.5 | 18.5 | 42.5 | 36.5 | 34 | |
| SCW-L050S | 20 | 3/8"Sq | M6-M10 | 535 | 150 | 18.5 | 18.5 | 42.5 | 36.5 | 34 | |||||||
| SCW-L060H | 20 | 1/4"Hex | M8-M12 | 25-60 | 18.4-44.3 | 50-170 | <75 | 2.16 | 4.77 | 535 | 150 | 18.5 | 18.5 | 42.5 | 36.5 | 34 | |
| SCW-L060S | 20 | 3/8"Sq | M8-M12 | 535 | 150 | 18.5 | 18.5 | 42.5 | 36.5 | 34 | |||||||
