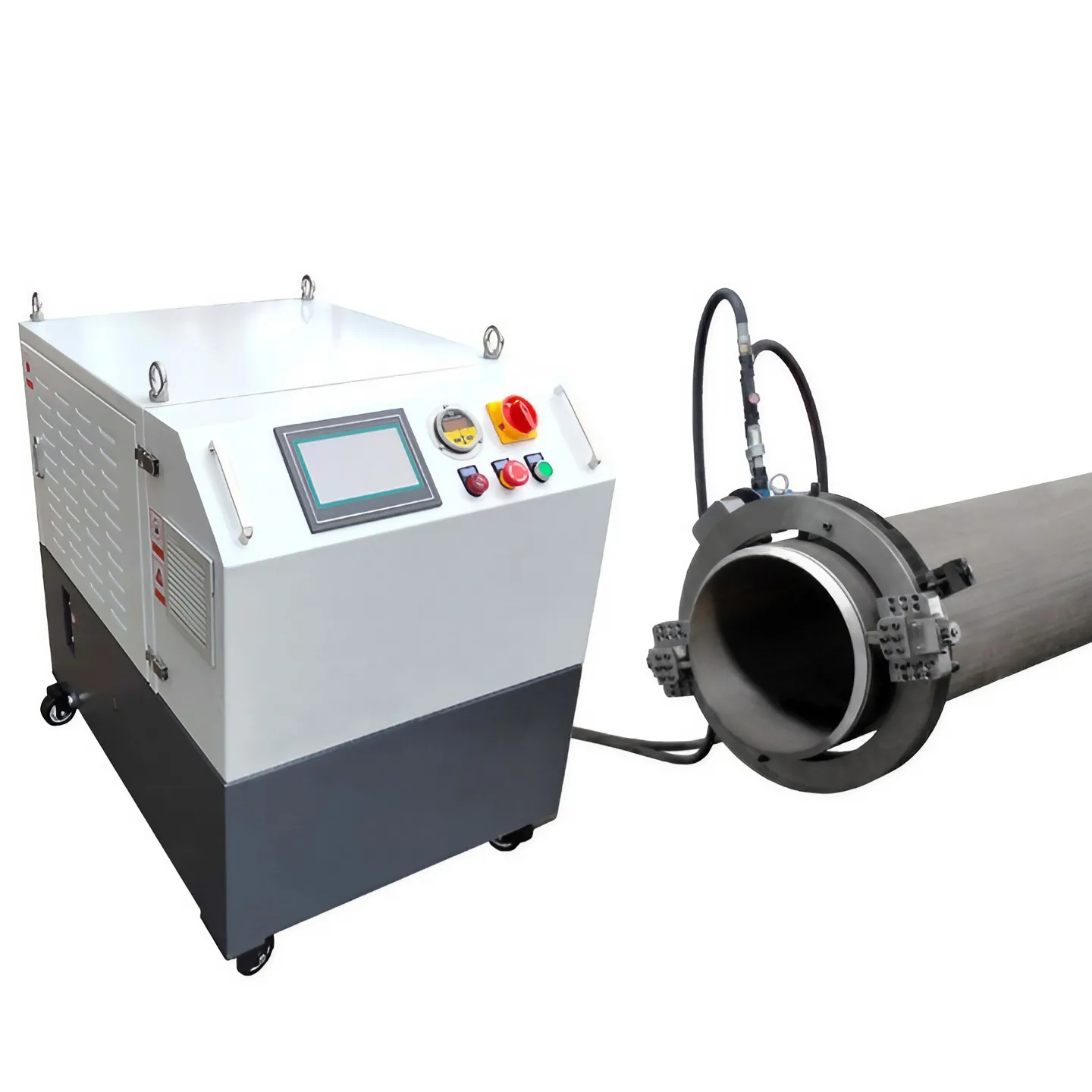

SCH Series 25-1630mm Hydraulic Pipe Cutting and Beveling Machine
-
Model: SCH89-SCH1630
Processing Range: 25-1630mm
Rotation Speed: 7-42r/min
Power Supply: 380-440V 3PH 50/60Hz 5-30L/min @ 10Mpa
Working Range: 3/4"-3"-56"-64"inches
Wall Thickness: ≤35/40
Power Source: Hydraulic
Automatic Grade: Automatic
Bevel Type: V, U, J Compound bevel, Counter boring
FUNCTIONS: Pipe cold cutting, bevelling, facing
Body: Steel/Aluminum
Country of Origin: China
- SCM Series Electro Metabo Type Pipe Cutting and Beveling Machine 25-1430mm SCH Series 25-1630mm Hydraulic Pipe Cutting and Beveling Machine SCP Series 25-1230mm Pneumatic Pipe Cutting and Beveling Machine SCE Series 25-1230mm Electric Pipe Cutting and Beveling Machine
Description
Product Line: Industrial Tools
Customizable with special requirement

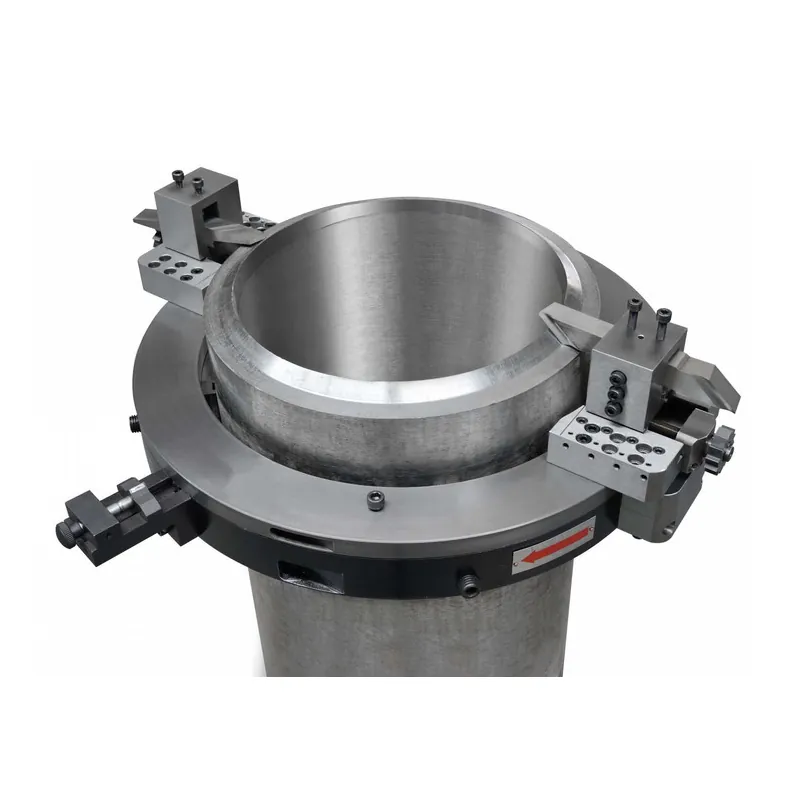

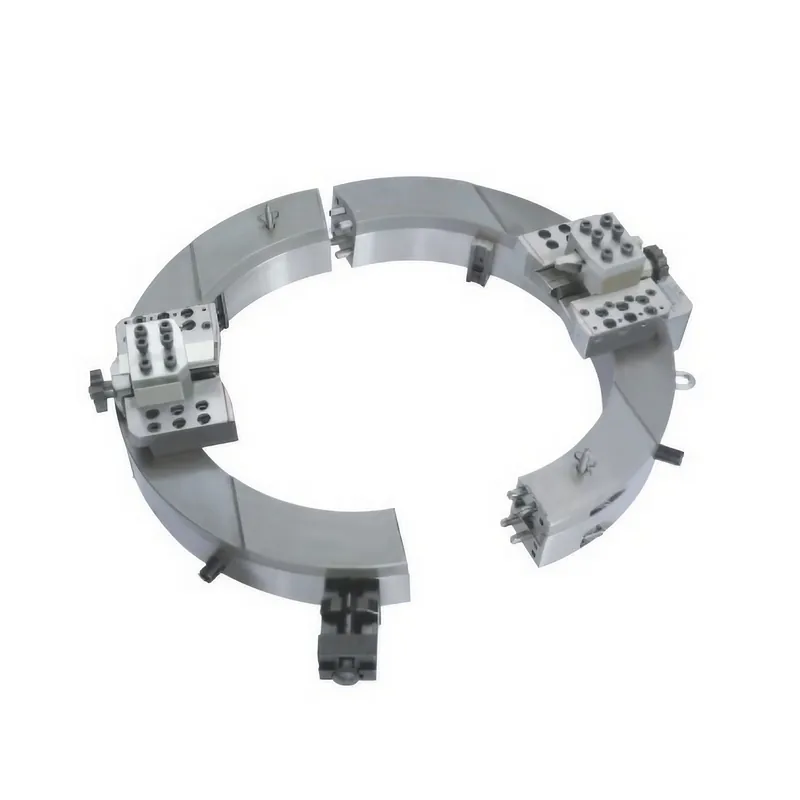

The OCH series is a clamshell pipe cold-cutting and beveling machine for 2 to 64 inch pipes. This machine is an external clamp pipe cold-cutting and beveling machine. It can open in two halves and be installed on the pipe spindle for processing. It is suitable for pipe cutting, beveling, boring inner holes, flange end face processing, outer circle processing, etc.
Advantage
powerful drive, High efficiency
Stable Performance
Low noise
PLC control
Electronic Display
Remote control, Adjustable speed
Ideal for heavy wall thickness & large size pipe
| Ordinary Type Hydraulic Station | |
|---|---|
| Power Supply | 5.5KW |
| Working Voltage | 380V, 3PH, 5 Lines |
| Working Frequency | 50HZ |
| Rated Working Pressure | 10Mpa |
| Rated Flowing | 25L/min |
| Open Way | Manual / Remote Control |
| Oil Line Length | 6m (Standard) |
| Net Weight (KG) | 220KGS |
| PLC Type Hydraulic Station | |
|---|---|
| Power Supply | 5.5KW |
| Working Voltage | 380V, 3PH, 5 Lines |
| Working Frequency | 50HZ |
| Rated Working Pressure | 10Mpa |
| Rated Flowing | 5-30L/min |
| Control System | PLC Control |
| Working Speed | Remote Control |
| Control Panel | Electronic Display |
| Open Way | Manual / Remote Control |
| Oil Line Length | 6m (Standard) |
| Net Weight (KG) | 239KGS |
| Explosion-proof Hydraulic Station | |
| Power Supply | 5.5KW |
| Working Voltage | 380V, 3PH, 5 Lines |
| Working Frequency | 50HZ |
| Explosion-Proof Grade | BT4/CT4 |
| Rated Working Pressure | 10Mpa |
| Rated Flowing | 25L/min |
| Open Way | Manual/Remote Control |
| Oil line Length | 6m(Standard) |

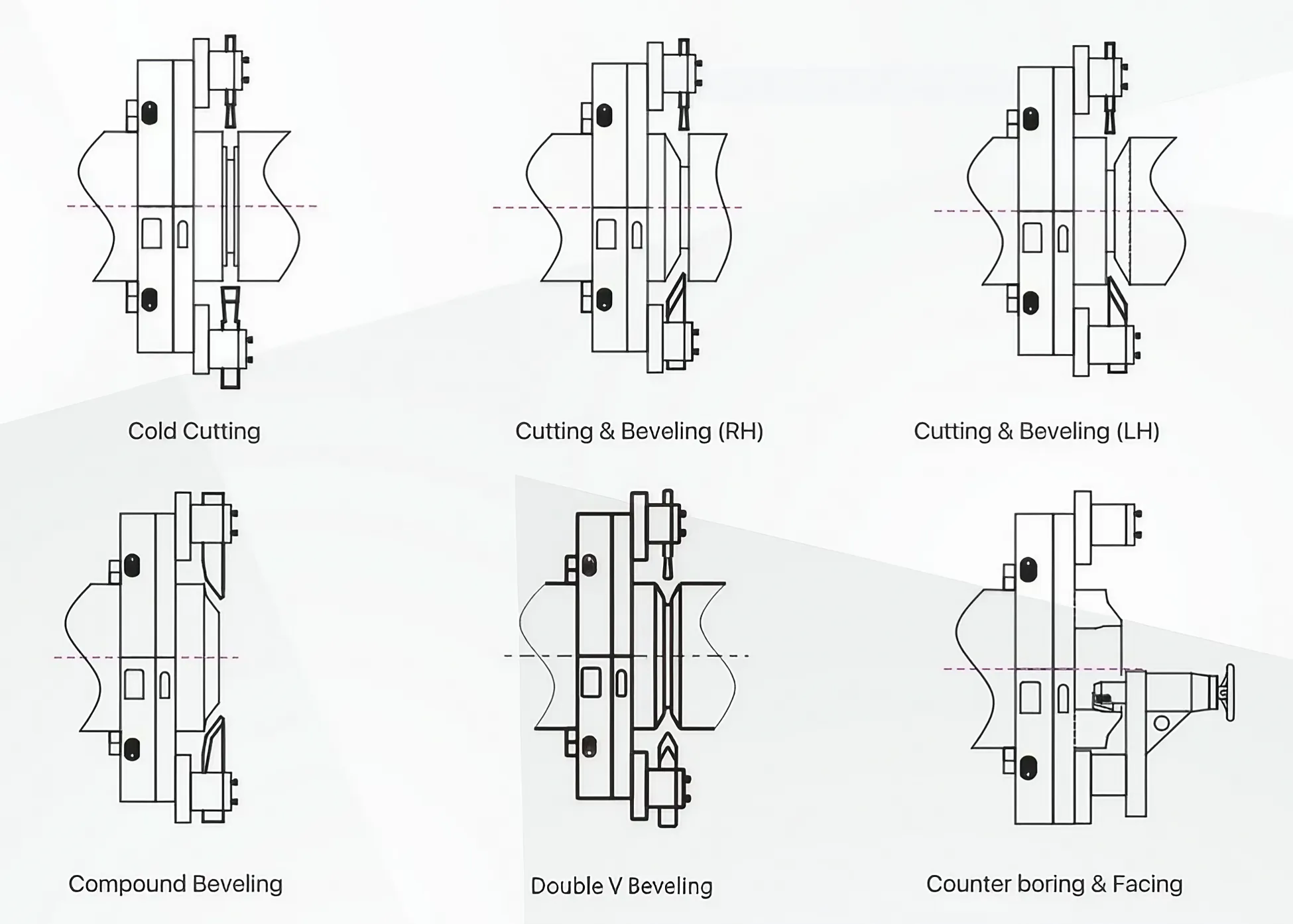

Schematic View

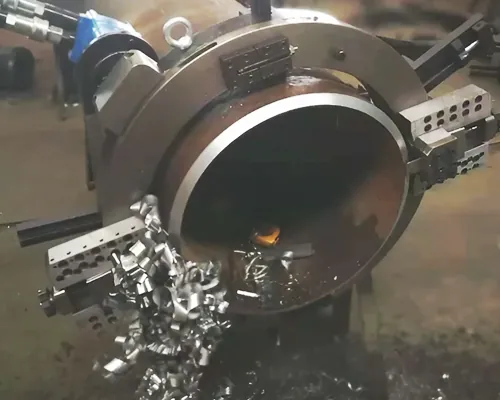

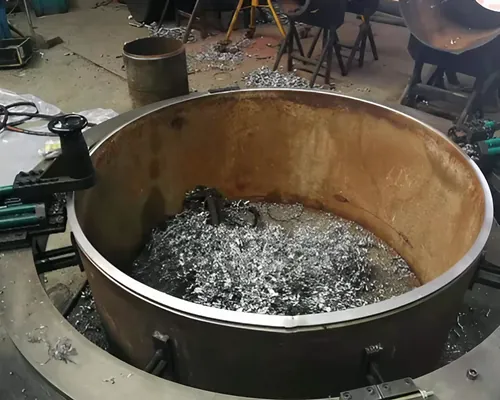

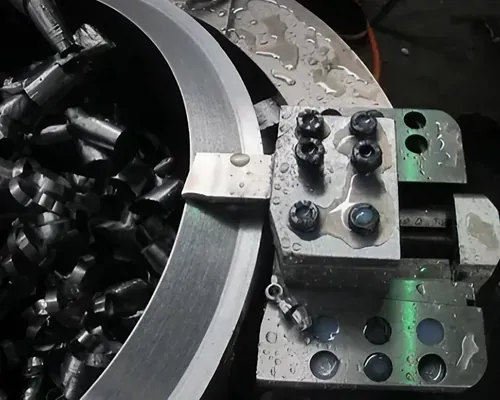

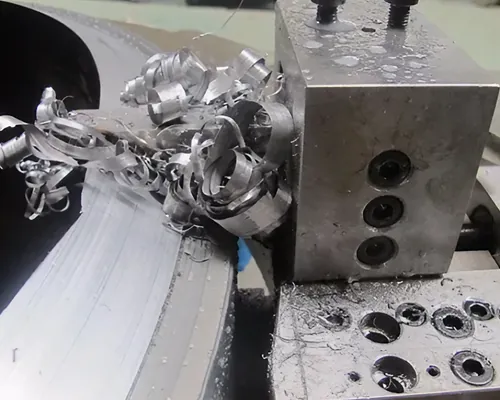

Image Gallery
Series Comparison
| Model | Processing Range (mm) | Processing Range (inch) | Cutting Groove Wall Thickness | Rotation Speed |
| SCH-89 | 25-89 | 3/4"-3" | ≤35mm | 42r/min |
| SCH-168 | 50-168 | 2"-6" | ≤70mm | 20r/min |
| SCH-230 | 80-230 | 3"-8" | ≤70mm | 15r/min |
| SCH-275 | 125-275 | 5"-10" | ≤70mm | 15r/min |
| SCH-305 | 150-305 | 6"-10" | ≤70mm | 13r/min |
| SCH-325 | 168-325 | 6"-12" | ≤70mm | 13r/min |
| SCH-377 | 219-377 | 8"-14" | ≤70mm | 13r/min |
| SCH-426 | 273-426 | 10"-16" | ≤70mm | 12r/min |
| SCH-457 | 300-457 | 12"-18" | ≤70mm | 12r/min |
| SCH-508 | 355-508 | 14"-20" | ≤70mm | 11r/min |
| SCH-560 | 400-560 | 16"-22" | ≤70mm | 11r/min |
| SCH-610 | 457-610 | 18"-24" | ≤70mm | 11r/min |
| SCH-630 | 480-630 | 20"-24" | ≤70mm | 11r/min |
| SCH-660 | 508-660 | 20"-26" | ≤70mm | 11r/min |
| SCH-710 | 550-710 | 22"-28" | ≤70mm | 10r/min |
| SCH-762 | 600-762 | 24"-30" | ≤70mm | 10r/min |
| SCH-830 | 680-830 | 26"-32" | ≤70mm | 10r/min |
| SCH-914 | 762-914 | 30"-36" | ≤70mm | 10r/min |
| SCH-1066 | 914-1066 | 36"-42" | ≤70mm | 9r/min |
| SCH-1230 | 1066-1230 | 42"-48" | ≤70mm | 9r/min |
| SCH-1430 | 1219-1430 | 48"-56" | ≤70mm | 8r/min |
| SCH-1630 | 1422-1630 | 56"-64" | ≤70mm | 7r/min |
