SCE Series 25-1230mm Electric Pipe Cutting and Beveling Machine
-
Model: SCE89-SCE1230
Processing Range: 25-1230mm
Voltage: 220~240V
Working Range: 3/4"-3"-42"-48"
Wall Thickness: ≤35
Rotation Speed: 10-42 r/min
Power Source: Electric 1800/2000W
Power Factor: >0.9
Body: Steel/Aluminum
Control: Semi-automatic
Operation Mode: Electric/Pneumatic/Hydraulic Driven
Condition: New
Country of Origin: China
- SCM Series Electro Metabo Type Pipe Cutting and Beveling Machine 25-1430mm SCH Series 25-1630mm Hydraulic Pipe Cutting and Beveling Machine SCP Series 25-1230mm Pneumatic Pipe Cutting and Beveling Machine SCE Series 25-1230mm Electric Pipe Cutting and Beveling Machine
Description
Product Line: Industrial Tools
Customizable with special requirement

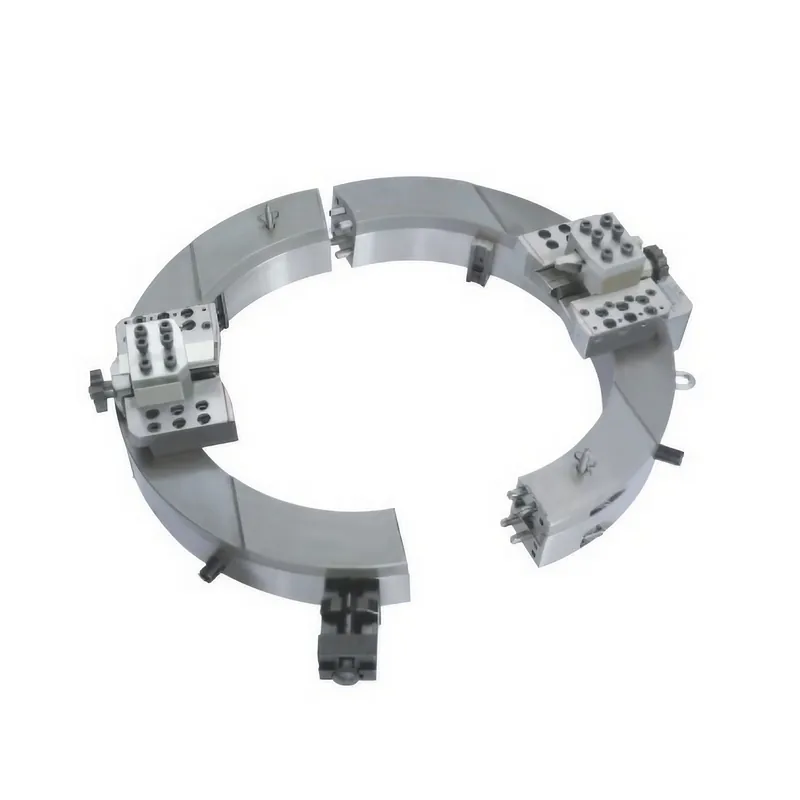

The series machines are ideal for all types of pipe cutting, beveling, and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cuts, simultaneous cut/bevel, single cut/bevel, single point, counterbore, and flange facing operations, as well as weld end preparation on open-ended pipe. Ranging from 1 to 48 inches O.D. (DN25-1230mm), on most wall thicknesses and materials.
Features
1. Can process carbon steel, stainless steel, alloy steel, and other tubes.
2. Completely cold processing, does not affect the processing of the pipe.

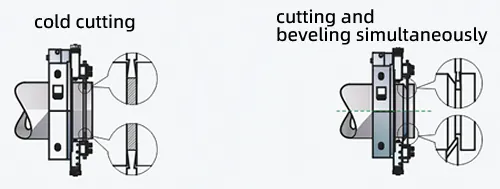

3. High processing efficiency, a clamping can be synchronized to complete the cutting, and beveling operations.
4. High precision, high-quality processing, precise size, high finish, processing end face perpendicular to the axis of the steel pipe.
5. Boring tool holders can be assembled for beveling or boring inside the pipe..

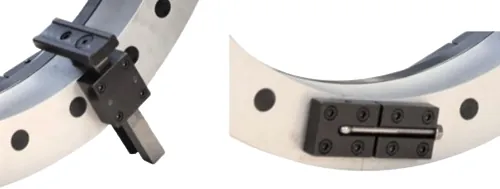

Reinforced Block Lock:
When locked, the machine is more firm and stable, and the cutting effect is better when in use.
Adjustable Expansion Block:
The use of non-expansion joint tight blocks can reduce machine installation time and verticality calibration time, improving machine efficiency.

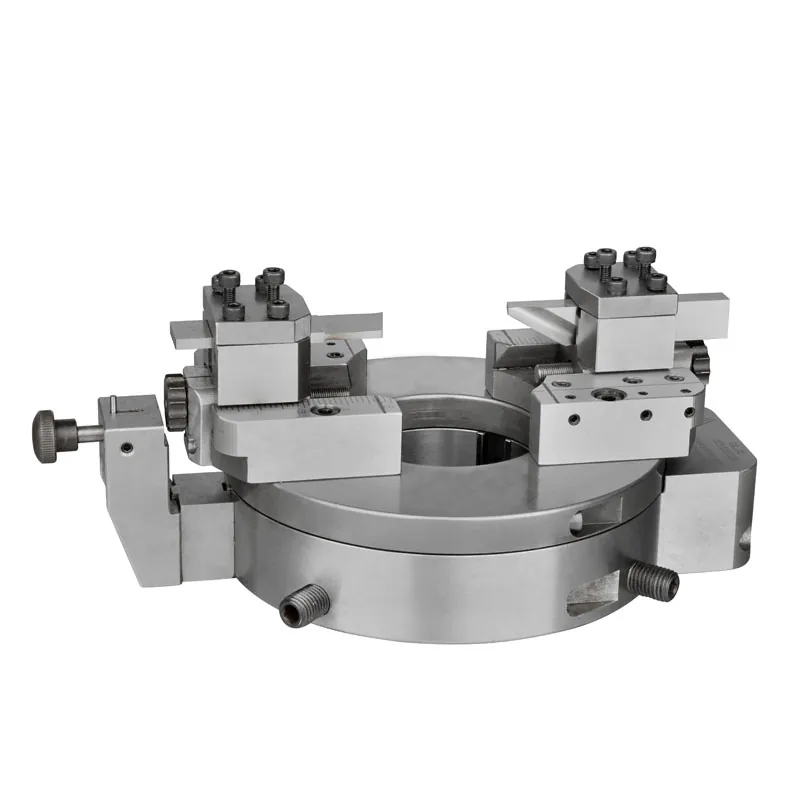

Steel Body Series

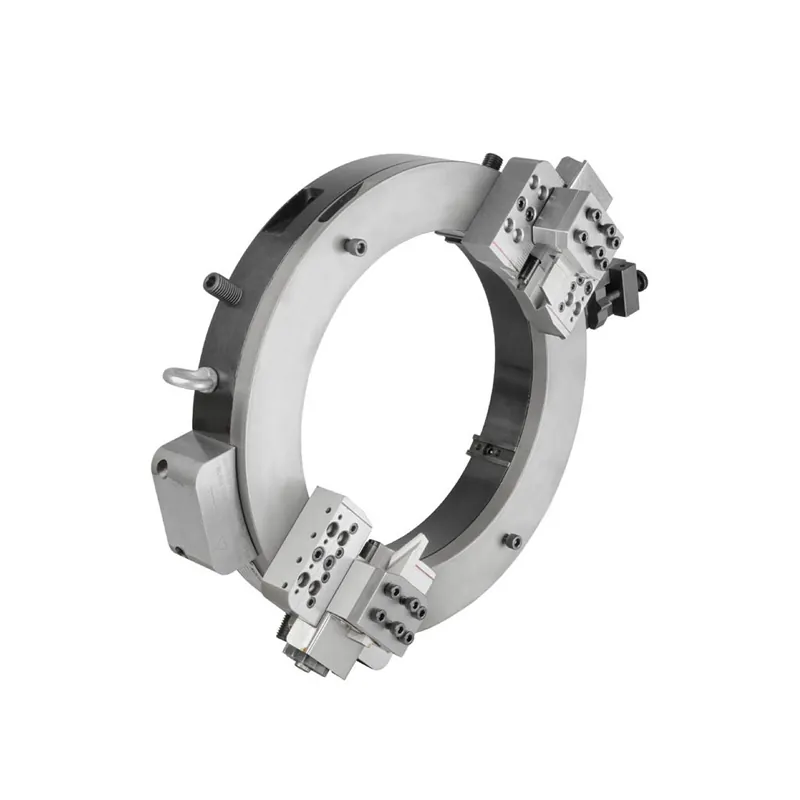

Aluminum Alloy Body Series
Schematic View

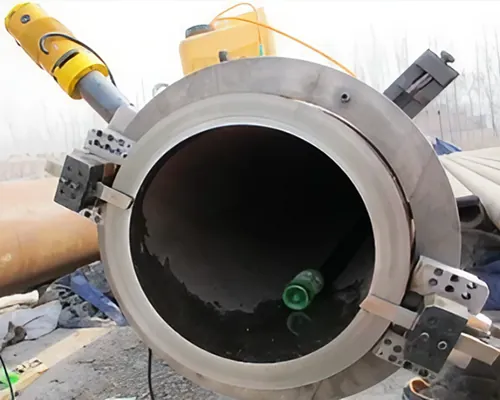

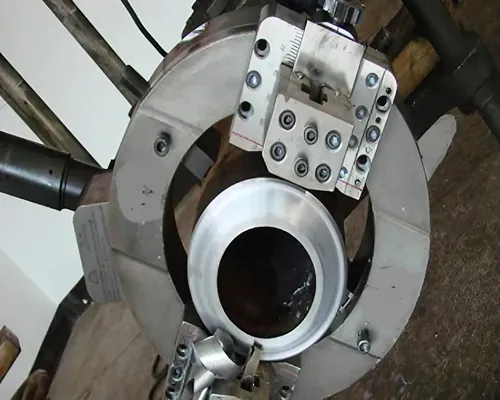

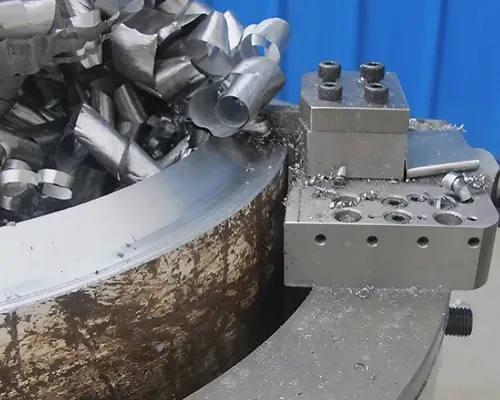

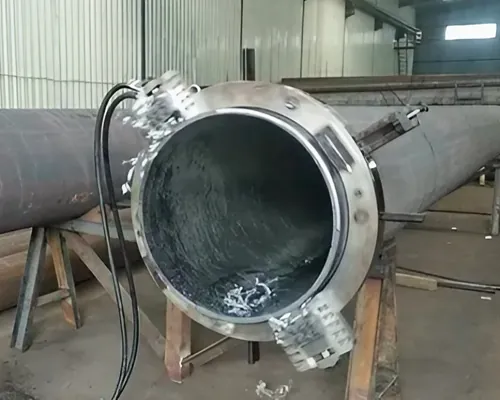

Image Gallery
Series Comparison
| Model | Processing Range (ID-OD) | Working Range (ID-OD) | Cutting Groove Wall Thickness | The Knife Dish Speed (Rotation Speed) |
|---|---|---|---|---|
| SCE-89 | 25-89 | 3/4"-3" | ≤35 | 42r/min |
| SCE-159 | 50-159 | 2"-5" | ≤35 | 20r/min |
| SCE-168 | 50-168 | 2"-6" | ≤35 | 18r/min |
| SCE-230 | 80-230 | 3"-8" | ≤35 | 15r/min |
| SCE-275 | 125-275 | 5"-10" | ≤35 | 14r/min |
| SCE-305 | 150-305 | 6"-10" | ≤35 | 13r/min |
| SCE-325 | 168-325 | 6"-12" | ≤35 | 13r/min |
| SCE-377 | 219-377 | 8"-14" | ≤35 | 12r/min |
| SCE-426 | 273-426 | 10"-16" | ≤35 | 12r/min |
| SCE-457 | 300-457 | 12"-18" | ≤35 | 12r/min |
| SCE-508 | 355-508 | 14"-20" | ≤35 | 12r/min |
| SCE-560 | 400-560 | 16"-22" | ≤35 | 12r/min |
| SCE-610 | 457-610 | 18"-24" | ≤35 | 11r/min |
| SCE-630 | 480-630 | 20"-24" | ≤35 | 11r/min |
| SCE-660 | 508-660 | 20"-26" | ≤35 | 11r/min |
| SCE-715 | 560-715 | 22"-28" | ≤35 | 10r/min |
| SCE-762 | 600-762 | 24"-30" | ≤35 | 10r/min |
| SCE-830 | 660-813 | 26"-32" | ≤35 | 10r/min |
| SCE-914 | 762-914 | 30"-36" | ≤35 | 10r/min |
| SCE-1066 | 914-1066 | 36"-42" | ≤35 | 10r/min |
| SCE-1230 | 1066-1230 | 42"-48" | ≤35 | 10r/min |
