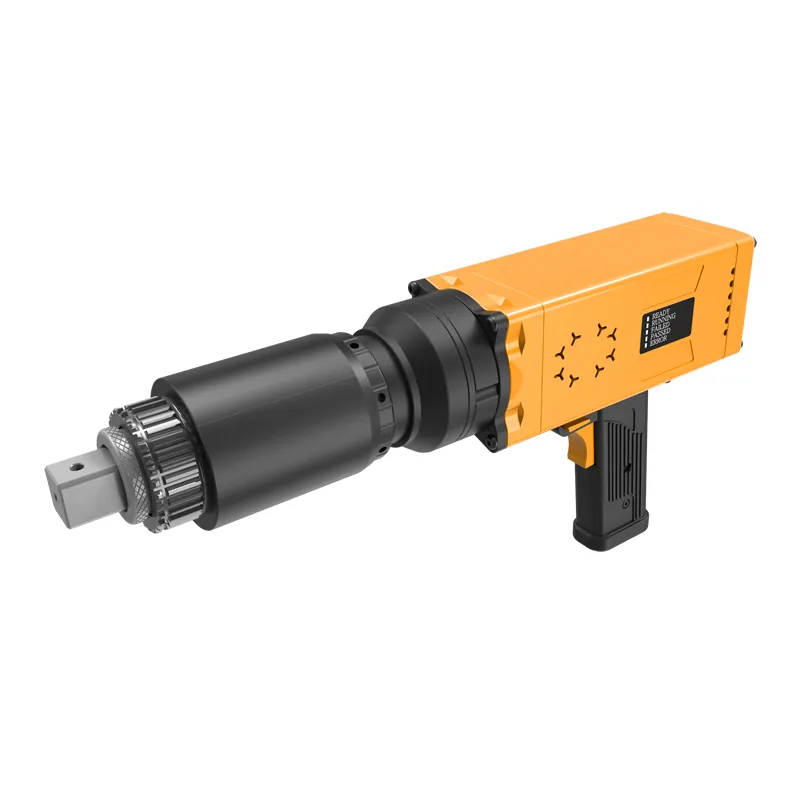

SAT-TC Series Servo Electric Torque Wrench
-
Model: SAT-TC Series
Torque Range: 80-10000 Nm
Driving Square: 0.75"/1"/1" / 1.5"/1.5"/1.5" / 2"
Speed: 2-47 RPM
Weight W1: 4.5-17.8 kg
Weight W2: 5.7-19 kg
Noise: 80/85 dB
Precision: ±3%
Manufacturer: SAIVS
Country of Origin: China
- SAT-A-TC Series Servo Electric Torque Wrench SAT-TC Series Servo Electric Torque Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
Tightening Function (Can Be Shared With User Controller Function)
External input data; Free Format function:
3% accuracy, 2% repeatability, TC version up to 2% accuracy, wider torque
Parameter setting with graphical menu function:
User needs, output data can be freely selected
Tighten Basic Functions
Tightening control methods: torque method, angle method, yield limit method (optional)
Monitoring: Torque Angle Sweep Torque Ratio Time Current
Tightening steps: multiple processes can be selected to support initial tightening and final tightening fast setting.
Tightening parameters: 10 or more sets
Maximum tightening: 20-10 000 Nm (smaller torque can be Customized)
Maximum Connection Nodes: 32 to 256, depending on the overall structure of the host computer and system
Basic Functions of Data
Data saving/reading/printing (optional)
Communication
Support Standard Modbus, Profibus, Etc.
Wireless Function
Supporting Wireless Transmission Function
Usb Storage Function
Supporting Usb Connection Storage Card Backup Data
|
|
|
Image Gallery

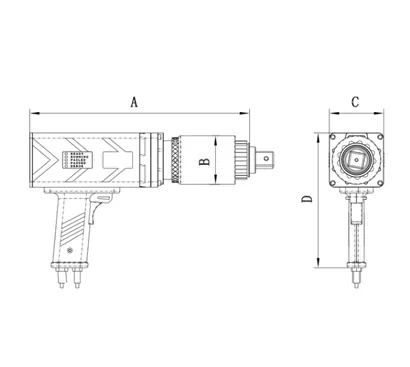

Dimensions
| A1 | 291mm | 291mm | 316mm | 323mm | 326mm | 341mm | 408mm | 431mm | 441mm | 527mm |
| A2 | 371mm | 371mm | 399mm | 404mm | 412mm | 424mm | 426mm | 469mm | 479mm | 561mm |
| B | 65mm | 65mm | 65mm | 69mm | 76mm | 78mm | 83mm | 93mm | 102mm | 114mm |
| C | 67mm | 67mm | 71mm | 72mm | 76mm | 78mm | 90mm | 101mm | 102mm | 114mm |
| D | 212mm | 212mm | 213mm | 213mm | 213mm | 214mm | 235mm | 241mm | 241mm | 246mm |
Series Comparison
| Material Code | Model | Torque Range (Nm) | Driving Square | Speed (RPM) | Weight W1 | Weight W2 | Noise |
|---|---|---|---|---|---|---|---|
| 341001 | SAT-4/TC | 80-400 | 0.75" | 47 | 4.5kg | 5.7kg | 80dB |
| 341002 | SAT-6/TC | 120-600 | 0.75" | 25 | 4.5kg | 5.7kg | 80dB |
| 341004 | SAT-10/TC | 200-1000 | 0.75" | 16.4 | 4.6kg | 5.8kg | 80dB |
| 341006 | SAT-16/TC | 320-1600 | 1" | 11.8 | 4.9kg | 6.1kg | 80dB |
| 341008 | SAT-20/TC | 400-2000 | 1" | 9.3 | 5.8kg | 7kg | 80dB |
| 341010 | SAT-30/TC | 600-3000 | 1" | 7.8 | 6.7kg | 7.9kg | 85dB |
| 341012 | SAT-40/TC | 800-4000 | 1" / 1.5" | 5.8 | 7.5kg | 8.7kg | 85dB |
| 341013 | SAT-60/TC | 1200-6000 | 1.5" | 3.7 | 10.2kg | 11.4kg | 85dB |
| 341014 | SAT-80/TC | 1600-8000 | 1.5" | 2.9 | 11.5kg | 12.7kg | 85dB |
| 341015 | SAT-100/TC | 2000-10000 | 1.5" / 2" | 2 | 17.8kg | 19kg | 85dB |
ps: SAT is W1, A1; SAT -TC is W2, A2. * stands for the torque and can be changed to bent-shaped. If there are minor adjustments for some models, please refer
to the factory. Parameters.
