RRH1001, 100 ton 947 KN, 38 mm 1.50 in Stroke, Double Acting Hollow Cylinders
-
Model:RRH1001
Capacity:100 ton | 981 KN
Stroke:38 mm | 1.50 inches
Weight:33 kg | 72.8 lbs
Cylinder Effective Area(Advance/Retract):135.3 m²/91.1 m²
Oil Capacity(Advance/Retract):514 cm³/346 cm³
Max.pressure:700 Bar/10000 Psi
Return Type:Double-Acting Hydraulic Return
Plunger Type:Hollow
Brand Name:Replacement Enerpac's RRH1001
- RRH1508, 150 ton 1445 KN, 203 mm 7.99 in Stroke, Double Acting Hollow CylindersRRH10010, 100 ton 947 KN, 257 mm 10.12 in Stroke, Double Acting Hollow CylindersRRH1006, 100 ton 947 KN, 153 mm 6.02 in Stroke, Double Acting Hollow CylindersRRH1003, 100 ton 947 KN, 76 mm 2.99 in Stroke, Double Acting Hollow CylindersRRH1001, 100 ton 947 KN, 38 mm 1.50 in Stroke, Double Acting Hollow CylindersRRH6010, 60 ton 589 KN, 257 mm 10.12 in Stroke, Double Acting Hollow CylindersRRH606, 60 ton 589 KN, 166 mm 6.54 in Stroke, Double Acting Hollow CylindersRRH603, 60 ton 589 KN, 89 mm 3.50 in Stroke, Double Acting Hollow CylindersRRH3010, 30 ton 336 KN, 258 mm 10.16 in Stroke, Double Acting Hollow CylindersRRH307, 30 ton 336 KN, 178 mm 7.01 in Stroke, Double Acting Hollow CylindersRRH Series Double-Acting Hollow Cylinders Jack
Description
- Model:RRH1001
- Product Line: Industrial Tools
- Type: Hydraulic Cylinder Ram, Hydraulic Jacks
- Double-Acting cylinder version for fast retraction.
- Hollow Plunger design allows for both, pull and push forces.
- Dual dust-proof ring structure remains cylinder internal cleaning.
- The exclusive guide ring is designed to absorb eccentric loading without galling cylinder parts, reduce wear, and extend life.
- Built-in safety valve prevents accidental over-pressurization.
- Special painted surface to increase corrosion resistance.
- Easy fixturing with collar threads, plunger threads, and base mounting holes.
- All models include quick couplings (NPT3/8"-18) and dust-proof caps.
- Floating center tube is designed to increase product life.
- Material:CR40
- Manufacturer:SAIVS
- Country of Origin:China
- Minimum Order:1 Piece
- Customizable with special requirement

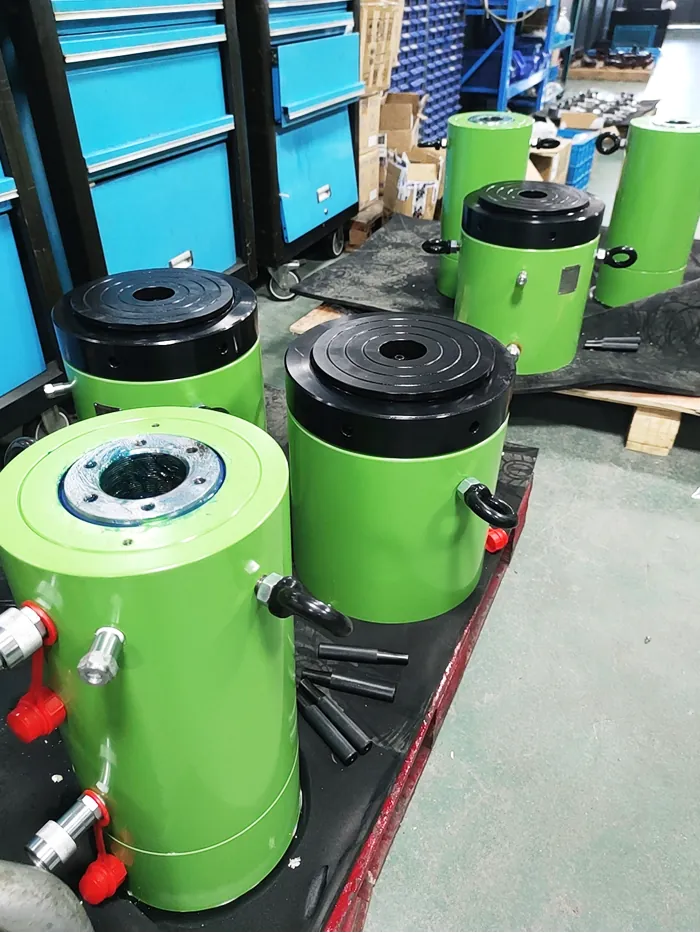

Image Gallery
Dimensions
| Collapsed Height | A | (mm) | 165 |
| Extended Height | B | (mm) | 203 |
| Outside Dia. | C | (mm) | 212 |
| Cylinder Bore Dia | D | (mm) | 165 |
| Plunger Dia. | E | (mm) | 125 |
| Base to Advance Port | F | (mm) | 34 |
| Top to Return Port | G | (mm) | 45 |
| Saddle Dia. | H | (mm) | 125 |
| Saddle Internal Thread | I | 21/2"-8 | |
| Saddle Protrusion from Plgr. | J | (mm) | 12 |
| Plunger Internal Thread | K | 4"-16UN | |
| Plunger Thread Length | L | (mm) | 25 |
| Center Hole Dia | Z | (mm) | 79 |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Max.Cylinder Capacity | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia | Plunger Dia. | Base to Advance Port | Top to Return Port | Saddle Dia. | Saddle Internal Thread | Saddle Protrusion from Plgr. | Plunger Internal Thread | Plunger Thread Length | Collar Thread | Collar Thread Length | Center Hole Dia | Weight | Mounting Hole Dimensions | ||||||
| Model Number | Bolt Circle | Thread | Thread Depth | |||||||||||||||||||||||||
| Advance | Retract | Advance | Retract | Advance | Retract | A | B | C | D | E | F | G | H | I | J | K | L | X | Y | Z | O | P | W | |||||
| ton | (mm) | (KN) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | |||||||||
| 30 | 178 | RRH-307 | 336 | 216 | 48 | 30.9 | 855 | 550 | 330 | 508 | 115 | 90 | 64.5 | 25 | 60 | 64 | 11/4"-7 | 9 | 113/16"-16UN | 22 | 41/2"-12 | 42 | 33.3 | 21 | RRH300-178 | 92.2 | 3/8"-16UNC | 15.7 |
| 258 | RRH-3010 | 336 | 216 | 48 | 30.9 | 1240 | 798 | 431 | 689 | 115 | 90 | 64.5 | 25 | 60 | 64 | 11/4"-7 | 9 | 113/16"-16UN | 22 | 41/2"-12 | 42 | 33.3 | 27 | RRH300-258 | 92.2 | 3/8"-16UNC | 15.7 | |
| 60 | 89 | RRH-603 | 589 | 368 | 84.2 | 52.6 | 749 | 468 | 247 | 336 | 159 | 125 | 94.5 | 31 | 66 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 28 | RRH600-89 | 130.3 | 1/2"-13UNC | 14 |
| 166 | RRH-606 | 589 | 368 | 84.2 | 52.6 | 1398 | 873 | 323 | 489 | 159 | 125 | 94.5 | 31 | 66 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 35 | RRH600-166 | 130.3 | 1/2"-13UNC | 14 | |
| 257 | RRH-6010 | 589 | 368 | 84.2 | 52.6 | 2164 | 1352 | 438 | 695 | 159 | 125 | 94.5 | 31 | 66 | 94 | 15/8"-51/2 | 12 | 23/4"-16UN | 19 | 61/4"-12 | 48 | 53.8 | 45 | RRH600-257 | 130.3 | 1/2"-13UNC | 14 | |
| 100 | 38 | RRH-1001 | 947 | 637 | 135.3 | 91.1 | 514 | 346 | 165 | 203 | 212 | 165 | 125 | 34 | 45 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | \ | \ | 79 | 33 | RRH1000-38 | 177.8 | 5/8"-11UNC | 19 |
| 76 | RRH-1003 | 947 | 637 | 135.3 | 91.1 | 1028 | 692 | 254 | 330 | 212 | 165 | 125 | 34 | 85 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | 83/8"-12 | 60 | 79 | 61 | RRH1000-76 | 177.8 | 5/8"-11UNC | 19 | |
| 153 | RRH-1006 | 947 | 637 | 135.3 | 91.1 | 2070 | 1394 | 342 | 495 | 212 | 165 | 125 | 34 | 85 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | 83/8"-12 | 60 | 79 | 79 | RRH1000-153 | 177.8 | 5/8"-11UNC | 19 | |
| 257 | RRH-10010 | 947 | 637 | 135.3 | 91.1 | 3477 | 2341 | 460 | 717 | 212 | 165 | 125 | 34 | 85 | 125 | 21/2"-8 | 12 | 4"-16UN | 25 | 83/8"-12 | 60 | 79 | 106 | RRH1000-257 | 177.8 | 5/8"-11UNC | 19 | |
| 150 | 203 | RRH-1508 | 1445 | 758 | 206.5 | 108.3 | 4191 | 2198 | 359 | 562 | 247 | 190 | 150 | 38 | 60 | 127 | \ | 13 | 41/4"-12UN | 25 | \ | \ | 79 | 111 | RRH1500-203 | \ | \ | \ |
