Rechargeable brushless torque wrench SCW-R series
-
Grade: Industrial
Customized support:OEM, ODM, OBM
Model Number: SCW-R
Type: Torque Wrench
Rated Voltage: 18V
Max. Torque: 4500 Nm
No-Load Speed: 13000rpm
Weight: 4-6 kg
Power Source: Battery
Motor Type: Brushless Motor
Minimum Torque: 338Nm - 1350Nm
Square Drive Size: 3/4" / 1" inch
LCD Display: Yes
Accuracy: ±4%
- Battery Powered Brushless Torque Wrench SCW-A Series
Description
Product Line: Industrial Tools
Customizable with special requirement
Clasp
18 volt rechargeable battery
Optional 5.2AH/8.0AH lithium battery
Charger
Operation Manual
Torque calibration certificate, optional national metrologyinstitute tools above the provincial level
All-weather high-grade suitcase with optionalhigh-strength toolbox
Customizable counteractive arm
Optional lifting system
Optional Bluetooth module*P
Optional WIFI module *P
Optional Torque Gateway *P
Optional corner + angle mode *P
Use a brushless motor to eliminate the need to replace the carbon brush
Digital adjustment and display of torque and wrench operating status parameters
Multi-mode adjustment, torque digital adjustment or 1 to 99 gear adjustment torque
Programmable preset 10 common output torques or gear positions
Torque of any value can be set within the torque range
Multi-pole gearbox for high reliability and high stability
Automatic two-speed clutch transmission gearbox, speed is 3-5 times the standard series
User (operator, administrator) hierarchical function management
Buzzer tips for factory environments
Tightening result simulation judge follow-up function
Background torque calibration function software compensation function
Anti-counteractive arm locks for unloading
Temperature monitoring function for wrench overheating
Battery monitoring, compensation
Torque overload limit function
High capacity air-cooled battery, fast charge charger
Precision ±4%, repeatability ±2%, optional national metrology institute metering optional
Support for larger capacity air-cooled lithium battery 5.2AH or Hi high Performance 8.0AH
Standard counteractive arm, optional custom counteractive arm
Support for installation of lifting system, safer operation at high altitude
Support native log, support USB read log
Optional Bluetooth module or WIFI module, torque gateway system, transparent connection
Optional corner + angle mode
High speed system - planetary gear system with automatic shifting clutch function

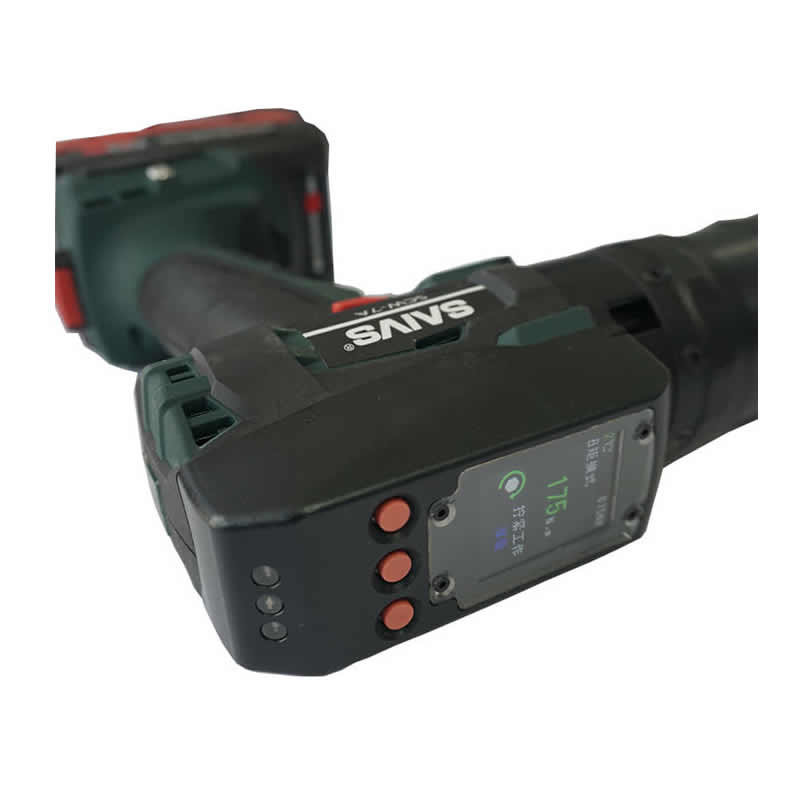

1. 0.96 inch IPS LCD display
2. The use of brushless motor eliminates the need to replace carbon brushes
3. Digitally adjust and display the working parameters of torque and wrench
4. Any value of torque can be set within the torque range, and 1nm adjustment is supported
5. Multi mode regulation, digital torque regulation or 1 to 99 gear torque regulation
6. Programmable preset 10 common output torques or gears
7. The use of multi polar planetary gearbox has high reliability and stability
8. Optional corner + angle mode
SCW-R series supports data functions, and wireless transmission (Bluetooth or WIFI), corner function (optional), and the turning function.
Combined with the high-precision planetary gear mechanism of the high-speed system, the rechargeable BM series is one of the world's lightest and fastest rechargeable torque products.
Here are 10 other application scenarios for the Rechargeable brushless torque wrench:
1 Marine maintenance and repair
2 power generation equipment installation and maintenance
3 Medical equipment assembly and maintenance
4 Telecommunications equipment installation and maintenance
5 Elevator installation and maintenance
6 Bridge and infrastructure construction
7 Agriculture machinery maintenance and repair
8 Renewable energy equipment installation and maintenance
9 Material handling equipment maintenance and repair
10 Furniture and cabinetry assembly
These industries all require precise and reliable torque control and often need to work while moving or without power. Cordless brushless torque wrenches can help operators complete tasks quickly and accurately in these applications, increasing efficiency and productivity.

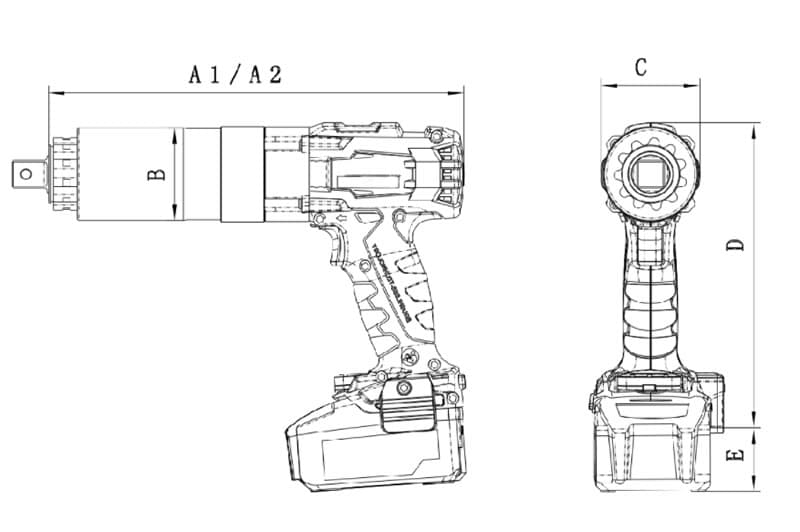

Dimensions
| Model | Drive square | Torque | Speed | Weight | Dimensions | Noise | |||
| (Nm) | (Rpm) | (Kg) | A | B | C | D | (db) | ||
| SCW-8R | 0.75” | 240-800 | 6.5 | 4 | 282 | 69 | 69 | 198 | 80 |
| SCW-12R | 0.75” | 360-1200 | 5.2 | 4 | 282 | 69 | 69 | 198 | 80 |
| SCW-21R | 1” | 630-2100 | 3 | 4.9 | 290 | 76 | 76 | 201 | 80 |
| SCW-40R | 1” / 1.5” | 1200-4000 | 2.2 | 5.9 | 306 | 82 | 82 | 204 | 80 |
| SCW-45R | 1” / 1.5” | 1350-4500 | 1.9 | 6 | 330 | 88 | 88 | 206 | 80 |
FAQs
How long does the battery last on a rechargeable brushless torque wrench?
The battery life of a rechargeable brushless torque wrench depends on the specific model and usage patterns. Some models can last several hours of continuous use, while others may provide shorter battery life. It's important to consult with the manufacturer or supplier for specific battery life estimates and tips for extending battery life.
How do I calibrate a rechargeable brushless torque wrench?
Calibration procedures can vary depending on the specific model and manufacturer, but it typically involves using a calibration standard or test fixture to ensure that the tool is measuring torque accurately. It's important to follow the manufacturer's instructions or seek the assistance of a professional calibration service to ensure that the tool is properly calibrated.
Can I use a rechargeable brushless torque wrench for both tightening and loosening bolts?
Yes. Most rechargeable brushless torque wrenches can be used for both tightening and loosening bolts. However, it's important to follow the manufacturer's instructions and guidelines for proper operation, as excessive force or misuse can damage the tool or the bolts being worked on.
What is the maximum torque range of a rechargeable brushless torque wrench?
The maximum torque range of a rechargeable brushless torque wrench depends on the specific model and size of the tool. It's important to consult with the manufacturer or supplier for specific torque range specifications and recommendations for use.
What kind of maintenance is required for a rechargeable brushless torque wrench?
Regular maintenance is important for ensuring optimal performance and longevity of your torque wrench. This typically includes cleaning the tool after use, inspecting for damage or wear, and performing regular calibration and accuracy checks. It's important to follow the manufacturer's recommended maintenance procedures and schedules to avoid equipment failure or inaccurate torque readings.
