RCS1502, 150 ton 1386 KN, 51mm 2.0 in Stroke, Single Acting Low Height Hydraulic Cylinders
-
Model:RCS1502
Capacity:150 ton | 1386 KN
Stroke:51 mm | 2.0 inches
Weight:42 kg | 92.6 lbs
Cylinder Effective Area:232.2 m²
Oil Capacity:1184 cm³
Max.pressure:700 Bar/10000 Psi
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RCS1502
- RCS1503, 150 ton 1386 KN, 80mm 3.1 in Stroke, Single Acting Low Height Hydraulic CylindersRCS1502, 150 ton 1386 KN, 51mm 2.0 in Stroke, Single Acting Low Height Hydraulic CylindersRCS1002, 100 ton 887 KN, 57mm 2.2 in Stroke, Single Acting Low Height Hydraulic CylindersRCS751, 75 ton 718 KN, 50mm 2.0 in Stroke, Single Acting Low Height Hydraulic CylindersRCS502, 50 ton 549 KN, 60mm 2.4 in Stroke, Single Acting Low Height Hydraulic CylindersRCS302, 30 ton 295 KN, 64mm 2.5 in Stroke, Single Acting Low Height Hydraulic CylindersRCS201, 20 ton 201 KN, 45mm 1.8 in Stroke, Single Acting Low Height Hydraulic CylindersRCS101, 10 ton 101 KN, 38mm 1.5 in Stroke, Single Acting Low Height Hydraulic CylindersRCS Series Single-acting Low Height Hydraulic Cylinders Jack
Description
- Model:RCS1502
- Product Line: Industrial Tools
- Type: Hydraulic Cylinder Ram, Hydraulic Jacks
- Single-Acting, Spring Return.
- Low profile design, fit in narrow application area.
- Special painted surface to increase corrosion resistance.
- Two plunger threads on grooved plunder end for particular needs.
- All model include quick couplings (NPT3/8"-18) and dust-proof cap.
- Easy carrying with handles on some models (Capacity over 50tons).
- No saddle required with grooved plunder end.
- Material:CR40
- Manufacturer:SAIVS
- Country of Origin:China
- Minimum Order:1 Piece
- Customizable with special requirement

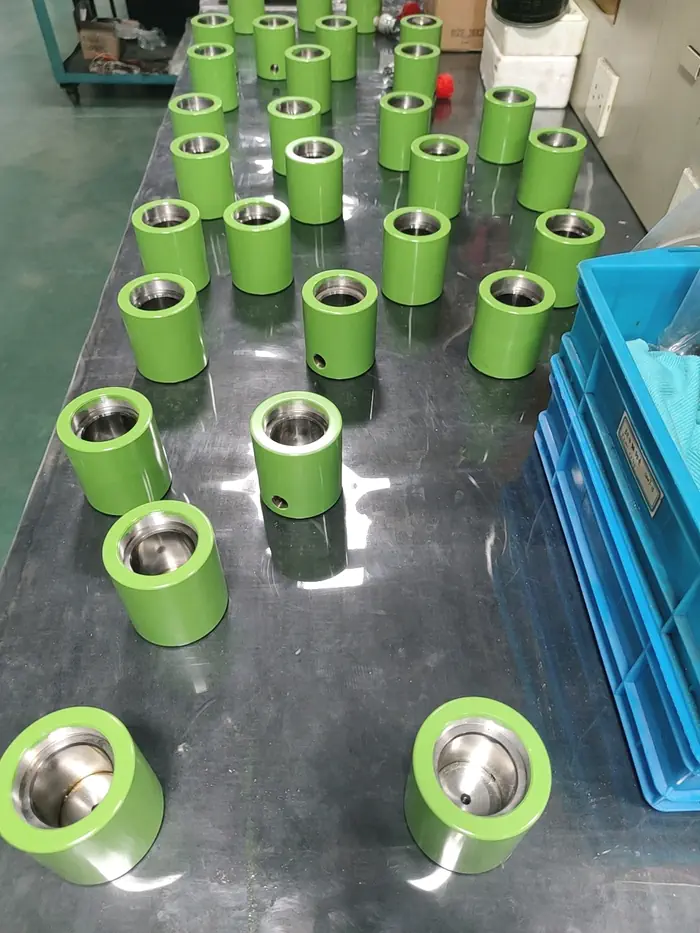

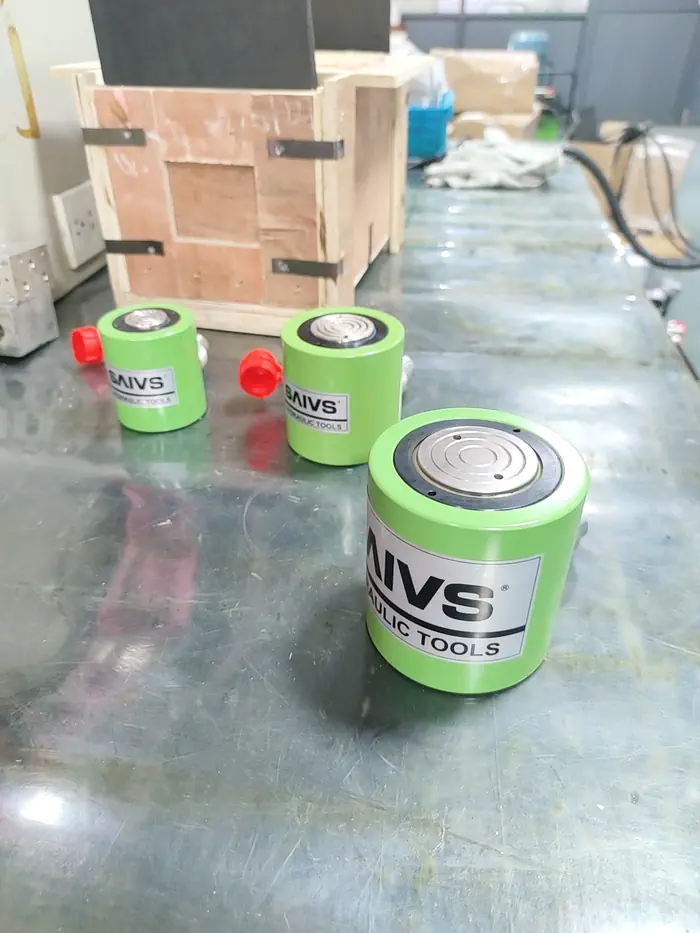

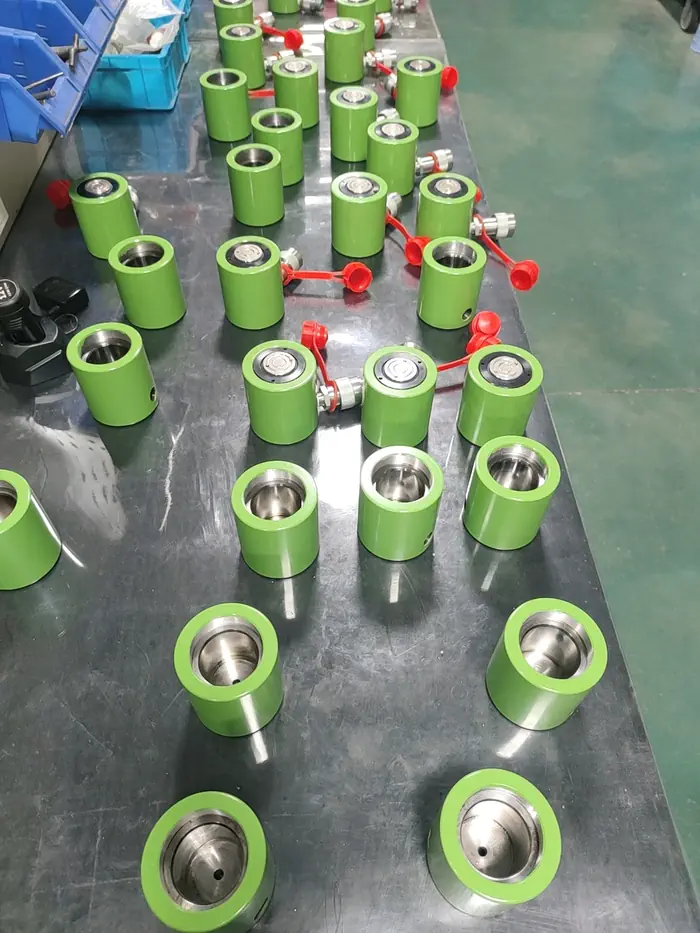

Image Gallery

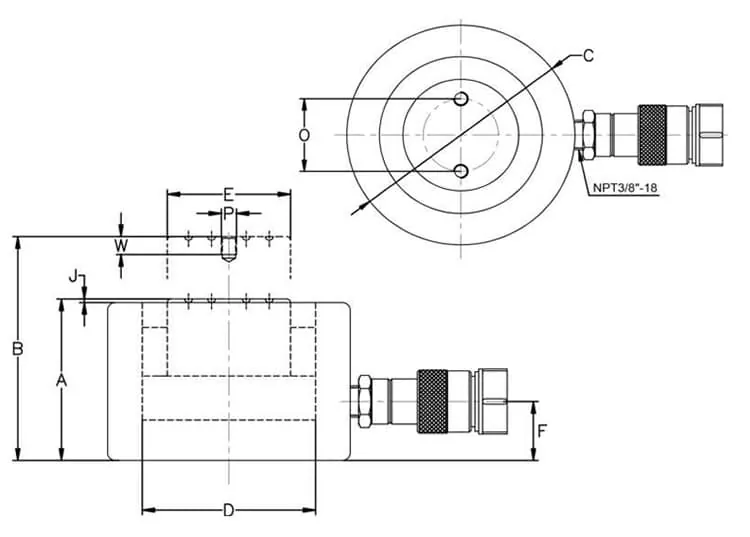

Dimensions
| Collapsed Height | A | (mm) | 141 | |
| Extended Height | B | (mm) | 192 | |
| Outside Dia. | C | (mm) | 215 | |
| Cylinder Bore Dia. | D | (mm) | 170 | |
| Plunger Dia. | E | (mm) | 145 | |
| Base to Advance Port | F | (mm) | 28 | |
| Saddle Protrusion from Plgr. | J | (mm) | 2 | |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia. | Plunger Dia. | Base to Advance Port | Saddle Protrusion from Plgr. | Weight | Mounting Hole Dimensions | ||||||
| Model Number | Bolt Circle | Thread | Thread Depth | ||||||||||||||||
| A | B | C | D | E | F | J | O | P | W | ||||||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | ||||||
| 10(101) | 38 | RCS-101 | 15.9 | 60 | 88 | 126 | 78 | 45 | 35 | 19 | 2 | 4 | RCS-101 | 26 | M4 | 8 | |||
| 20(201) | 45 | RCS-201 | 31.1 | 140 | 97 | 142 | 96 | 63 | 50 | 19 | 2 | 6.9 | RCS-201 | 39 | M5 | 8 | |||
| 30(295) | 64 | RCS-302 | 45.3 | 290 | 117 | 181 | 109 | 76 | 60 | 19 | 2 | 9.8 | RCS-302 | 39 | M5 | 8 | |||
| 50(549) | 60 | RCS-502 | 78.5 | 471 | 120 | 180 | 133 | 100 | 80 | 21 | 2 | 13.3 | RCS-502 | 39 | M5 | 8 | |||
| 75(718) | 50 | RCS-751 | 116.8 | 584 | 116 | 166 | 157 | 122 | 100 | 21 | 2 | 19 | RCS-751 | 55 | M8 | 10 | |||
| 100(887) | 57 | RCS-1002 | 153.9 | 877 | 141 | 198 | 178 | 140 | 112 | 31 | 2 | 24.5 | RCS-1002 | 55 | M8 | 10 | |||
| 150(1386) | 51 | RCS-1502 | 232.2 | 1184 | 141 | 192 | 215 | 170 | 145 | 28 | 2 | 42 | RCS-1502 | 55 | M8 | 10 | |||
| 150(1386) | 80 | RCS-1503 | 232.2 | 1860 | 170 | 250 | 215 | 170 | 145 | 28 | 2 | 50 | RCS-1503 | 55 | M8 | 10 | |||
