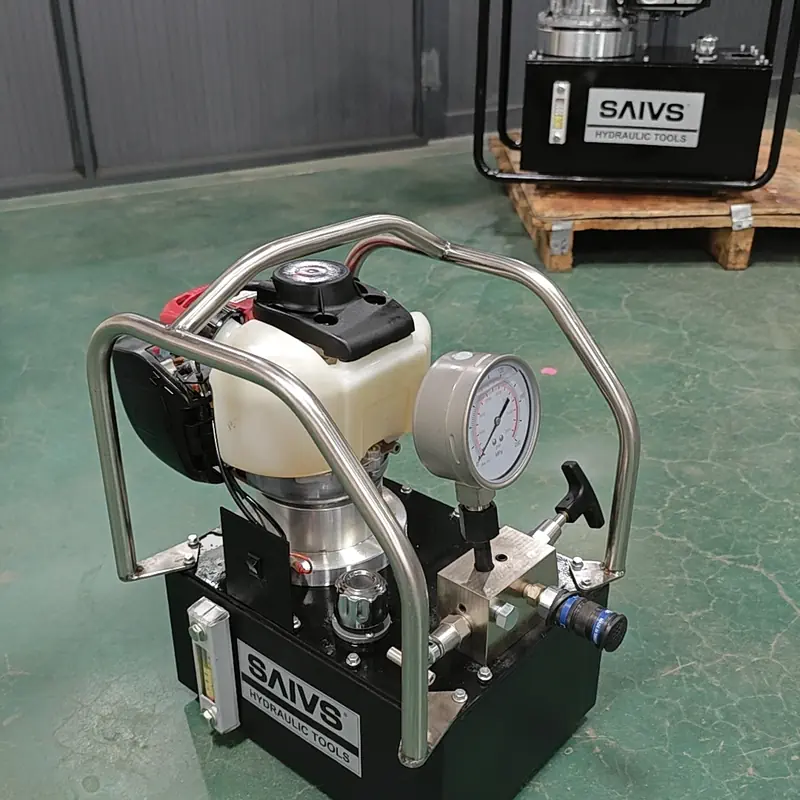

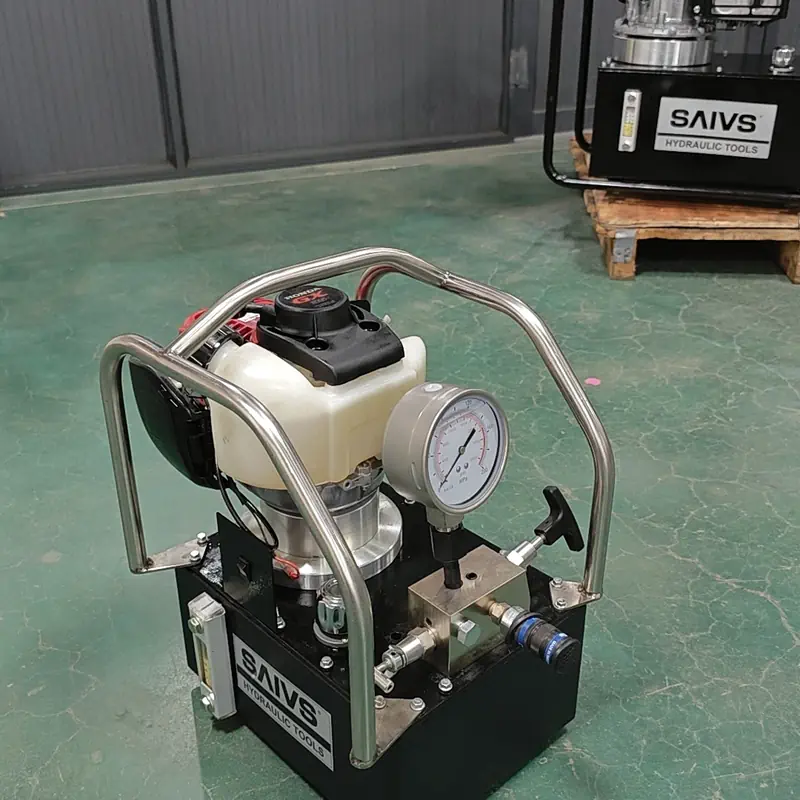

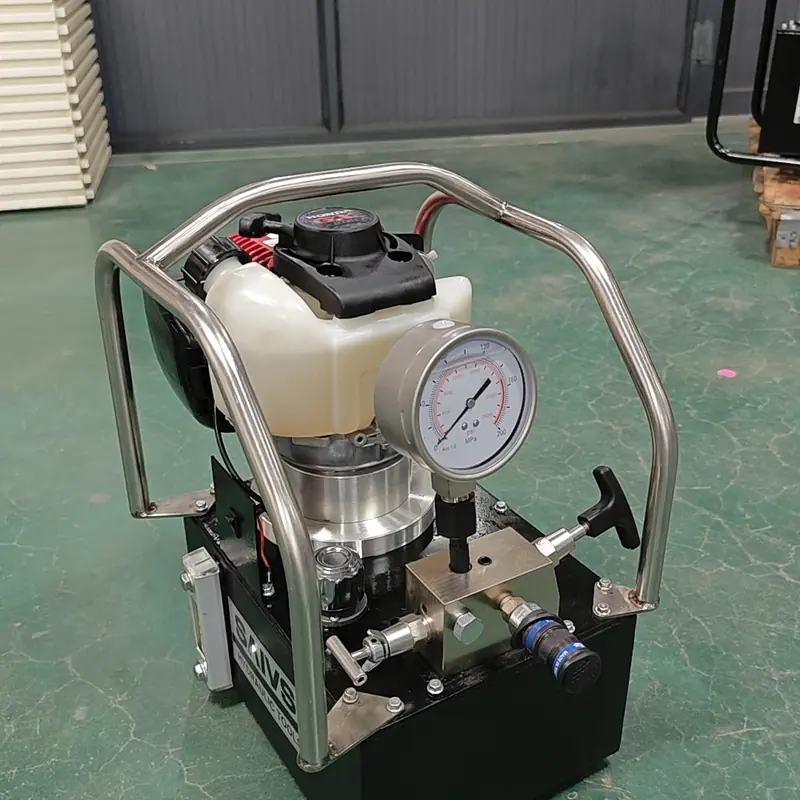

PTG Series, Gasoline Engine Ultra High Pressure Pump

Product Line: Industrial Tools

Customizable with special requirement

1,PTG series higher pressure gasoline pump is direct drive pump, with lowest cost and smoothly of pressure and flow, compare with the normal booster pump.

2,Pumps' structure is Radial piston pump type, with more higner working pressure and compact structure.

3,Pump with Combined seal structure,it can keep the leackage rate get down.

4,The pump head with radial loading type, can insure the bearing breakdown when it is operating with higher pressure. Also keep the smooth of operating of pump head better and keep noise of pump is more lower and pressure of pump is smoothly.

5,Higher pressure piston sets with indirect type oil input,the high pressure piston sets begin to work when the low piston sets working. it should be reduce the impact and prolong the working life of electronic motor.

6,Pump with flood valve and unloading valve,also the pressure should be set up by yourself.

Ordering Example

Model : PTE-150B

Represents PTE series of ultra-high pressure electric  pumps,150 means the pressure rated is 1500bar,B means the input power with 115V/60HZ

Model : PTE-150E

Represents PTE series of ultra-high pressure electric  pumps,150 means the pressure rated is 1500bar,E means the input power with 220V/50HZ

The PTG150 hydraulic pump is a high-Performance, compact hydraulic pump designed for a wide range of industrial applications.

With its robust construction and efficient operation, the PTG150 ensures reliable performance in demanding environments.

Key Features:

• High and Low Pressure Capabilities: The PTG150 operates at a high pressure of 1500 bar and a low pressure of 100 bar, making it versatile for various Hydraulic Systems.

• Efficient Oil Flow: It delivers an oil flow of 0.37 L/min at high pressure and 1.4 L/min at low pressure, ensuring optimal performance for different operational needs.

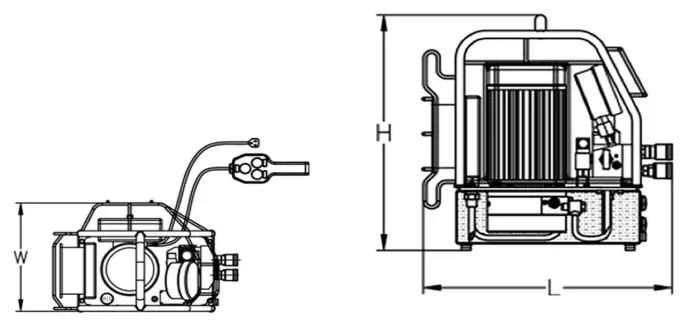

• Compact and Lightweight Design: With dimensions of 140×240×320 mm and a weight of only 20 kg (without oil), the PTG150 is easy to install and transport.

• Usable Oil Capacity: The pump has a usable oil capacity of 10 liters, providing extended operation without frequent refills.

Applications:

The PTG150 is ideal for use in industries such as construction, manufacturing, and automotive, where reliable hydraulic power is essential. Its compact size and high-pressure capabilities make it suitable for both stationary and mobile applications.

Why Choose PTG150?

• Reliability: Built to withstand high-pressure operations, ensuring long-term durability.

• Efficiency: Optimized oil flow rates for energy-efficient performance.

• Ease of Use: Lightweight and compact design for easy handling and installation.

For more information or to place an order, please contact us at Ningbo SAIVS Machinery Co., Ltd. Our team is ready to assist you with all your hydraulic pump needs.
