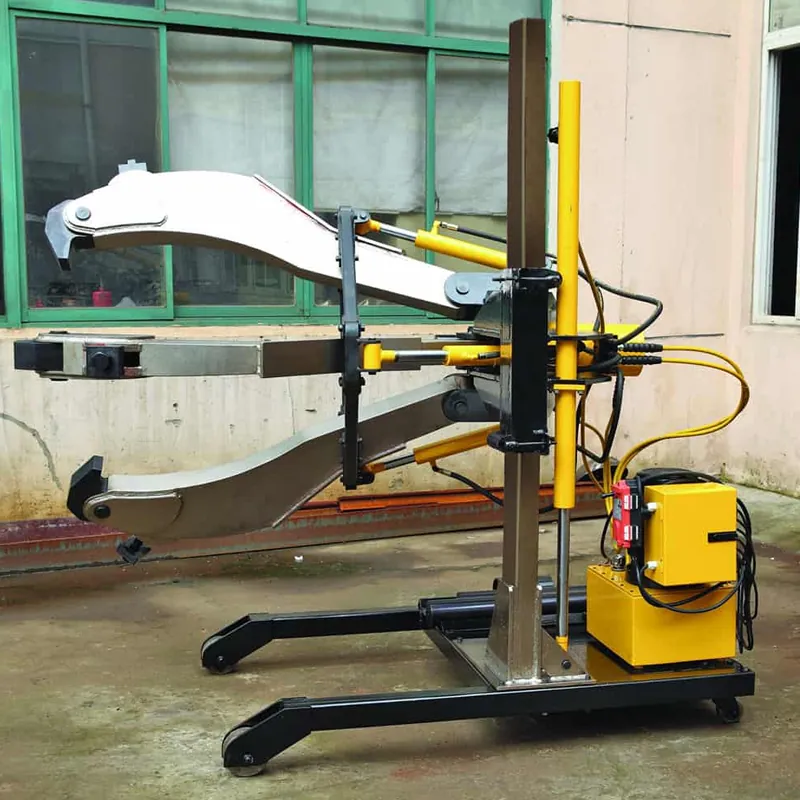

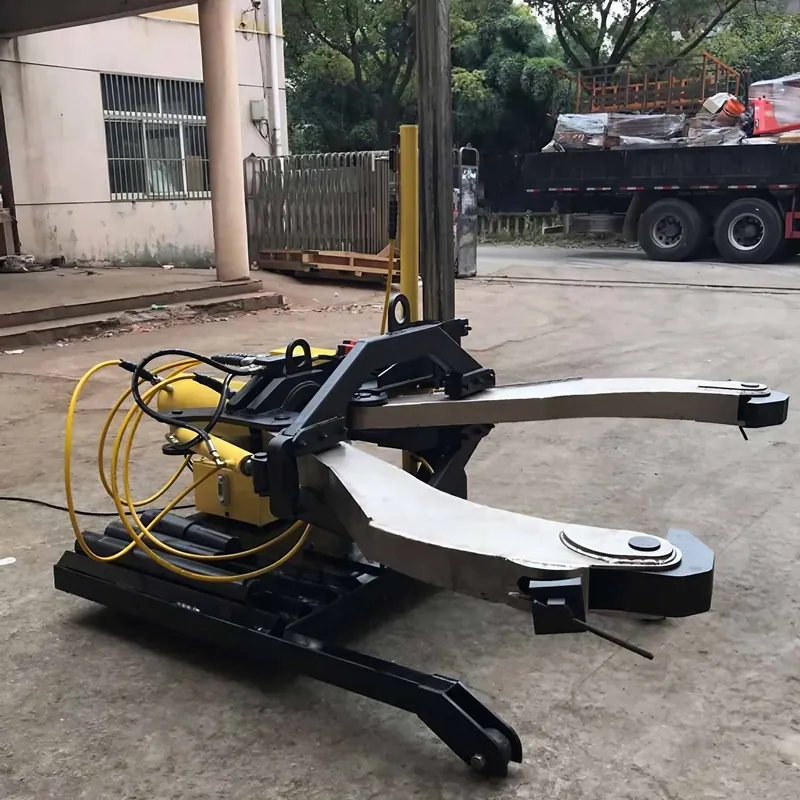

PH553B/PH553C,50 Ton 300 mm,2 Jaws 3 Jaws,Hydraulic Heavy Duty Puller
-
Model:PH553B/PH553C
Capacity: 55 T
Reach: 280-720 mm
Spread: 75-1250 mm
Voltage(V): AC 220
Frequency(Hz): 50
Power(KV): 1.5
Number of Jaws: 2/3
Maximum Operating Pressure: 700 bar/10000 PSI
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
Brand Name:Replacement Enerpac's PH553B/PH553C
Description
Model:PH553B/PH553C
Product Line: Industrial Tools
Customizable with special requirement
Practice has Proved
Due to the horizontal adjustment of 25mm and the vertical
adjustment of 5°, the Lamar can be well centered.
Fast
Use electric hydraulic pump, fast speed and save
operation time, locked by the locking system.
Strong and Durable
The claw is forged from High Strength alloy steel.
Double-Acting Hydraulic System for holding, opening & closing jaws;
provides safe and secure grip at all times.
Single-Acting, Spring Return, 50 ton capacity cylinder.
Self-centring design keeps puller jaws clamped evenly on the work pieceEasy jaw head adjusting system prevents puller jaws from sliding
Puller can be assembled in 2 or 3 jaw configuration.
Puller can be adjusted 5 degrees up or down of puller centreline for
precise positioning
Castors provide easy cart movement
Includes electric pump – 220VAC single phase or 380VAC three phase options & four extensions
Dimensions
| Model | Capacity Tonnes (T) | Stroke (mm) | Max Spread (mm) | Min Spread (mm) | Min Reach (mm) | Max Reach (mm) | Maximum Operating Pressure (Mpa) | Voltage (V) | Frequency (Hz) | Power(KV) |
|---|---|---|---|---|---|---|---|---|---|---|
| PH553B | 55 | 300 | 1250 | 75 | 665 | 720 | 70 | AC 220 | 50 | 1.5 |
| PH553C | 55 | 300 | 1155 | 75 | 430 | 280 | 70 | AC 220 | 50 | 1.5 |
