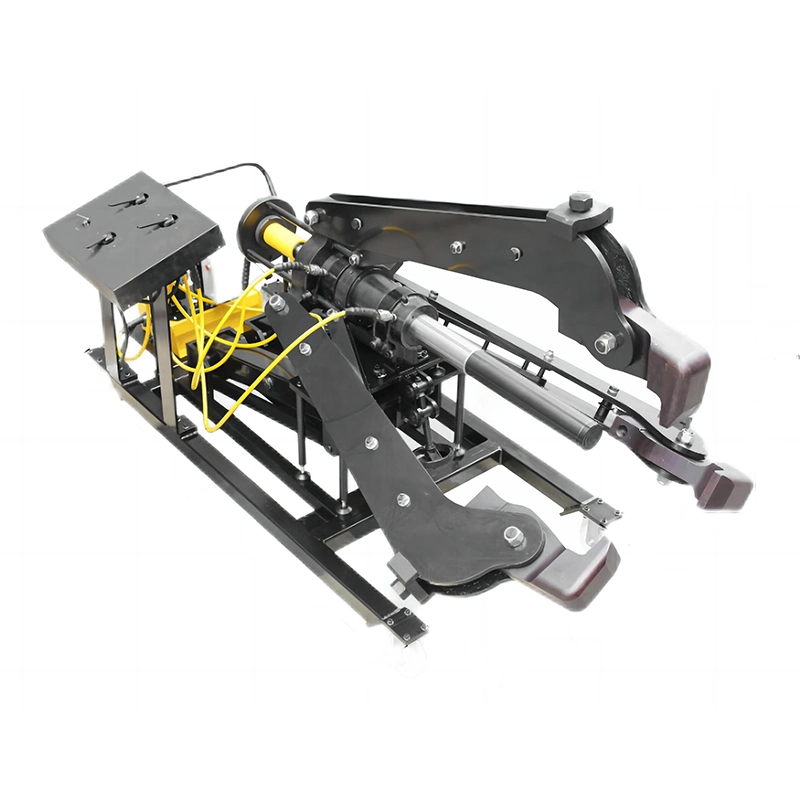

PH,2 Jaws 3 Jaws,100 200 Ton, Hydraulic Heavy Duty Puller
-
Model:PH
Capacity: 933-1861 kN
Stroke: 300 mm
Reach: 803-880 mm
Spread: 140-1580 mm
Maximum Operating Pressure: 700 bar/10000 PSI
Weight: 1.1-1.6 kg
Number of Jaws: 2/3
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
Brand Name:Replacement Enerpac's PH
Description
Model:PH
Product Line: Industrial Tools
Customizable with special requirement
Hydraulic lifting system.
Flow metering system provides constant lowering speed.
Double Acting Hydraulic System for holding, opening & closing jaws provides safe
and secure grip at all times.
Self Centring design keeps puller jaws clamped evenly on the work piece.
Easy jaw head adjusting system prevents puller jaws from sliding.
Puller can be assembled in 2 or 3 jaw configuration
Castors provide easy cart movement.
Includes 230V Electric Pump.
Special reminder: due to the design update, different batches of product panel layout is
different, mainly telescopic cylinder on the left and right side of the display of different actions,
as long as in accordance with the panel logo can be operated.
Image Gallery
Series Comparison
| Model | Model | Capacity Tonnes (KN) | Stroke (mm) | Max Spread (mm) | Min Reach (mm) | Min Spread (mm) | Max Reach (mm) | Min Central Height (mm) | Max Central Height (mm) | Weight (T) |
| Two-jaw | 100 T | 933 | 300 | 1535 | 880 | 150 | 1035 | 855 | 1490 | 1.1 |
| Two-jaw | 200 T | 1861 | 300 | 1580 | 803 | 140 | 955 | 855 | 1490 | 1.25 |
| Three-jaw | 100 T | 933 | 300 | 1535 | 880 | 150 | 1035 | 855 | 1490 | 1.4 |
| Three-jaw | 200 T | 1861 | 300 | 1580 | 803 | 140 | 955 | 855 | 1490 | 1.6 |
Certificate of Compliance
Literature
