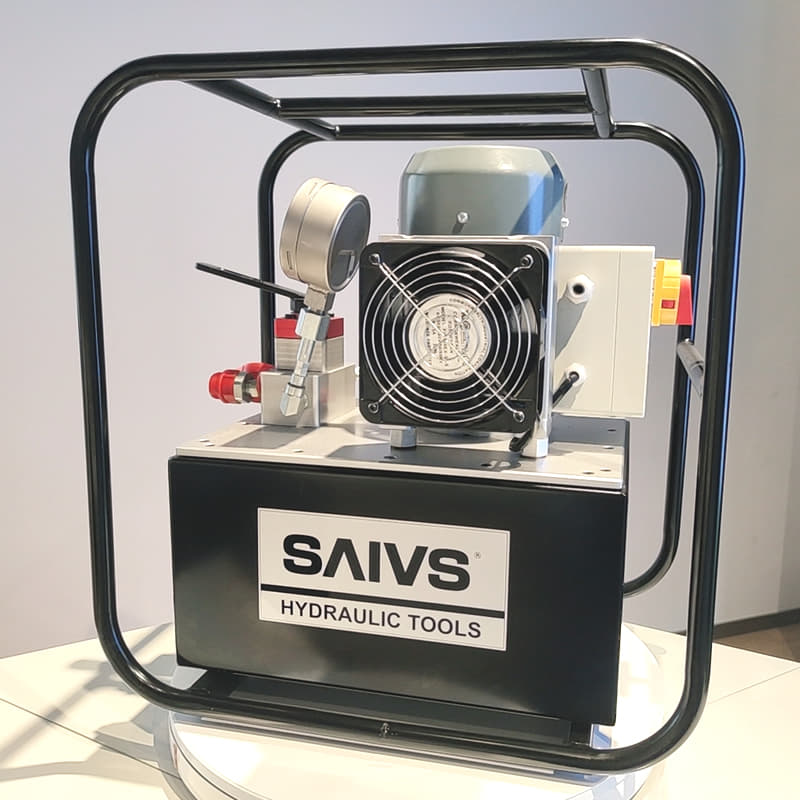

PE15 PE25 Series Oil Gear Electric Pump
-
Electric Hydraulic Plunger Pump
Reservoir Capacity: 40 L
Flow At Rated Pressure: 1.5-2.2 L/min
Motor Size: 2.2-3 KW
Max.Operating Pressure: 700 bar / 10000psi
Weight: 56 KG
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Applications:Systems matches large hydraulic cylinders and other
hydraulic tools of single and double action.
Sample:Contact us for free samples
- PE4 Series Portable Electric Hydraulic Pump PE10 Series Electric Hydraulic Pump
Description
Product Line: Industrial Tools
Customizable with special requirement
Electric Pump motor with light weight aluminum reservoir, and integrated heat sink for easy cooling .
Two-speed design reduces cycle times for improved productivity.
Built-in safety valve to prevent overloading.
Externally adjustable relief valve allows control of operating pressure without opening the pump .
Different flow control valve and cooler fit harsh industrial environment.
Protection circuit is designed to avoid current overload, prevent the damage to pump motor.
High Strength molded shroud protects the electrical componentsclass motor from contamination and damage. Easy to carry and lift.
Equipped with liquid level temperature display.
Perfect compatible with middle power and big size (doubleacting & Single-Acting) cylinders or other hydraulic tools .
Electric Pump Systems matches large Hydraulic Cylinders and other hydraulic tools of single and double action.
Ordering Example:
Model: PE25 - T380/50 - 40VM43M - K
S220/50 = Single Phase, 220V: 50HZ
T380/60 = Three Phase, 380V: 60HZ
The Power choice depend on the difference working situation.
Represents P series of electric hydraulic pumps, whose input power is single phase 380V/50HZ; reservoir capacity is 40L, With VM43M by-pass three-four-way manual reversing valve and cooler.
Please check the ordering instructions of P series pumps for details.
SAIVS's P series pump is new super higher pressure pump pack, it use advanced manufacturing techniques, with longer working life and smooth pressure. It suitable for all kinds of hydraulic tools, provides hydraulic power, as per the working situation.

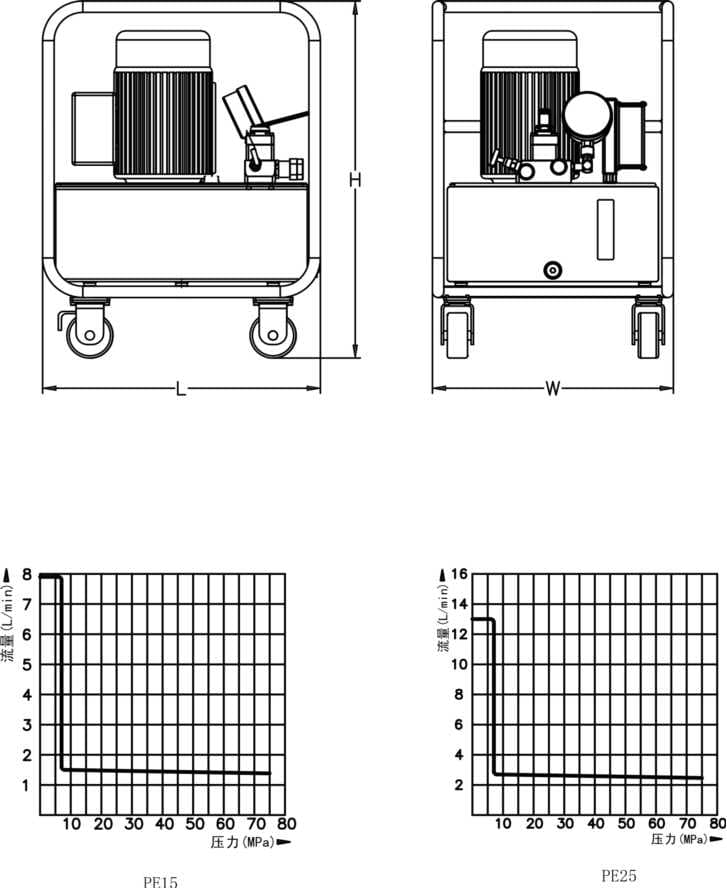

Dimensions
| Model Number | Oil Flow (L/min) | Pressure (bar) | Power | Usable Oil Capacity | Input Power* | Weight | Dimensions | ||
| High Pressure | Low Pressure | High Pressure | Low Pressure | (KW) | (L) | (kg) | LXWXH(mm) | ||
| PE15 | 1.5 | 8 | 700 | 70 | 2.2 | 40 | 200V-575V 3Ph 50HZ/60HZ | 65 | 605*525*790 |
| PE25 | 2.2 | 9.3 | 700 | 70 | 3 | 40 | 200V-575V 3Ph 50HZ/60HZ | 66 | 605*525*790 |
Video
FAQs
what is an oil gear electric pump?
answer: an oil gear electric pump is a type of hydraulic pump designed to provide fluid power to hydraulic equipment. it uses an electric motor to drive the gears or pistons that move the hydraulic fluid through the system.
how do i choose the right oil gear electric pump for my application?
answer: choosing the right oil gear electric pump will depend on several factors, including the required flow rate, pressure rating, and motor specifications. it's important to consult with the manufacturer or a hydraulic systems expert to ensure that the pump meets the specific needs of your application.
do oil gear electric pumps require regular maintenance?
answer: yes, regular maintenance is required for optimal performance and extended lifespan of oil gear electric pumps. maintenance tasks may include checking and replacing filters, cleaning, and lubricating the moving parts.
are oil gear electric pumps noisy?
answer: the noise level of an oil gear electric pump can depend on the model and manufacturer. while they can sometimes produce noise levels above acceptable limits, many manufacturers offer noise-reducing options such as sound enclosures or vibration isolators.
can oil gear electric pumps be used with any type of hydraulic fluid?
answer: oil gear electric pumps are generally compatible with a variety of hydraulic fluids, including mineral oils, synthetic oils, and biodegradable oils. however, it's important to ensure that the hydraulic fluid being used is compatible with the materials used in the construction of the pump to avoid damage or failure.
