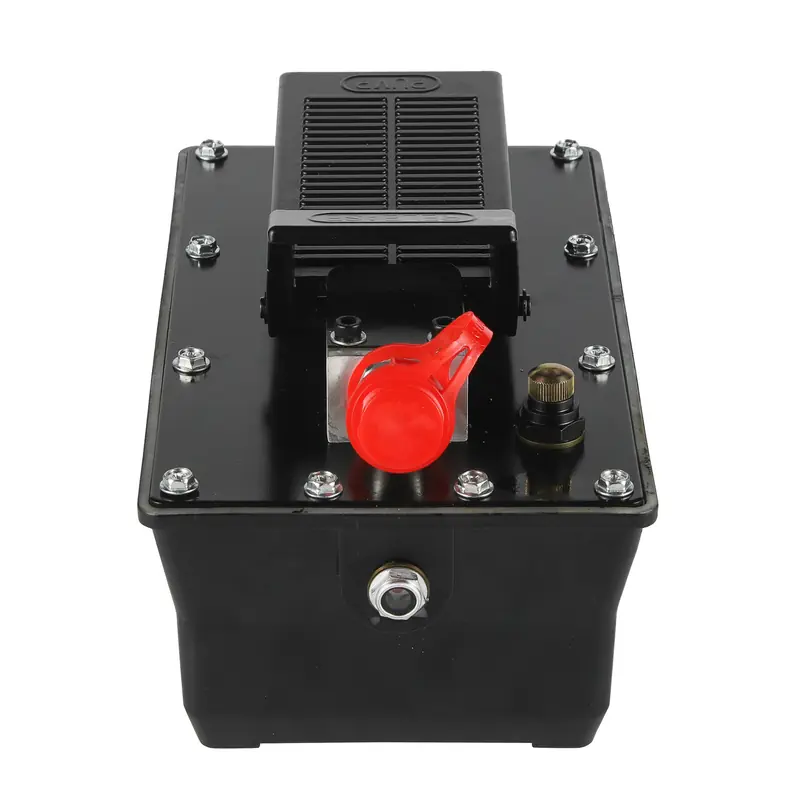

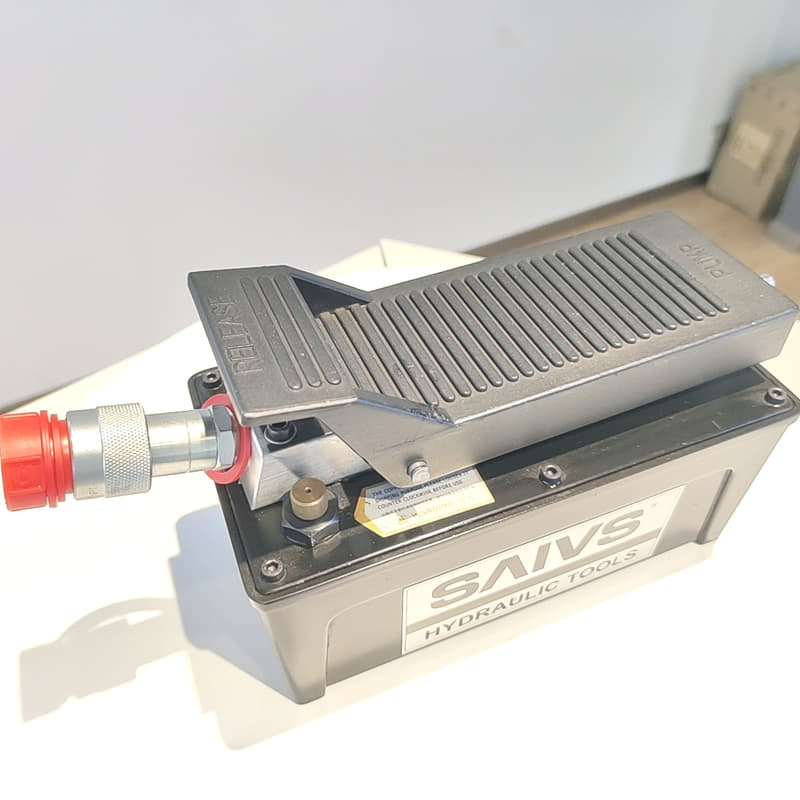

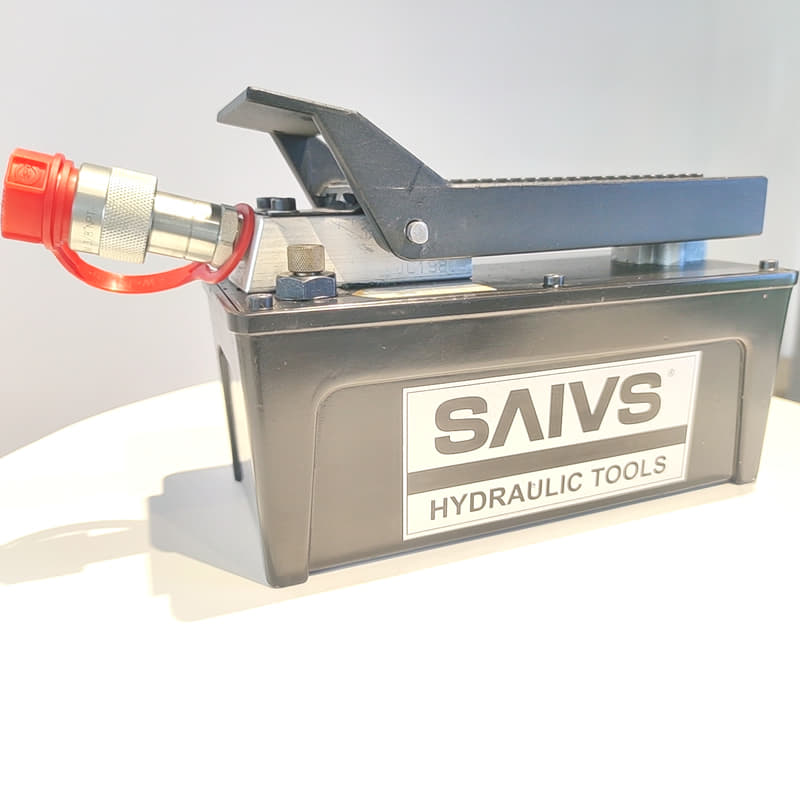

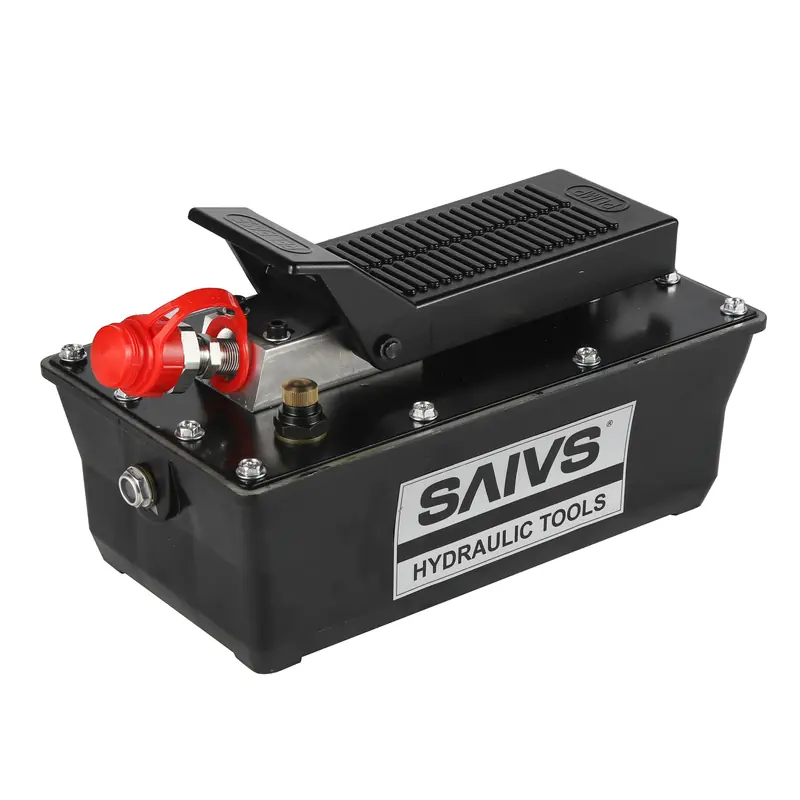

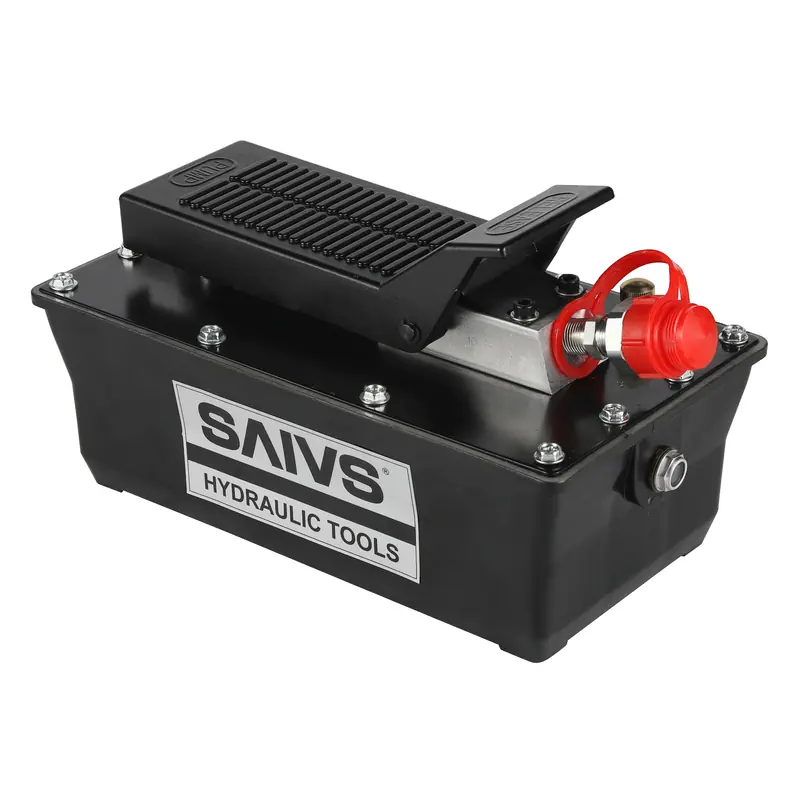

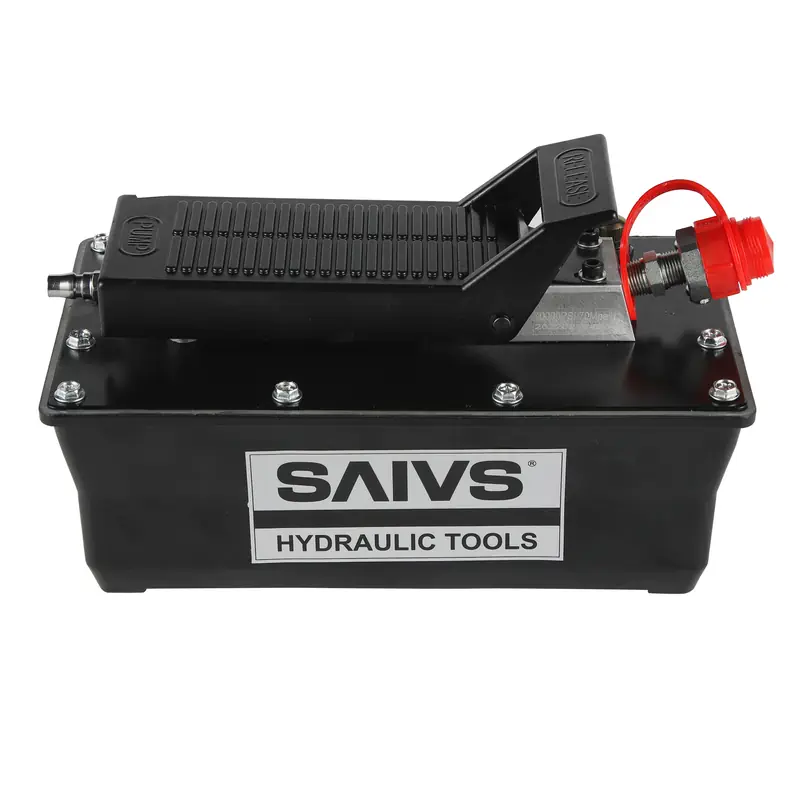

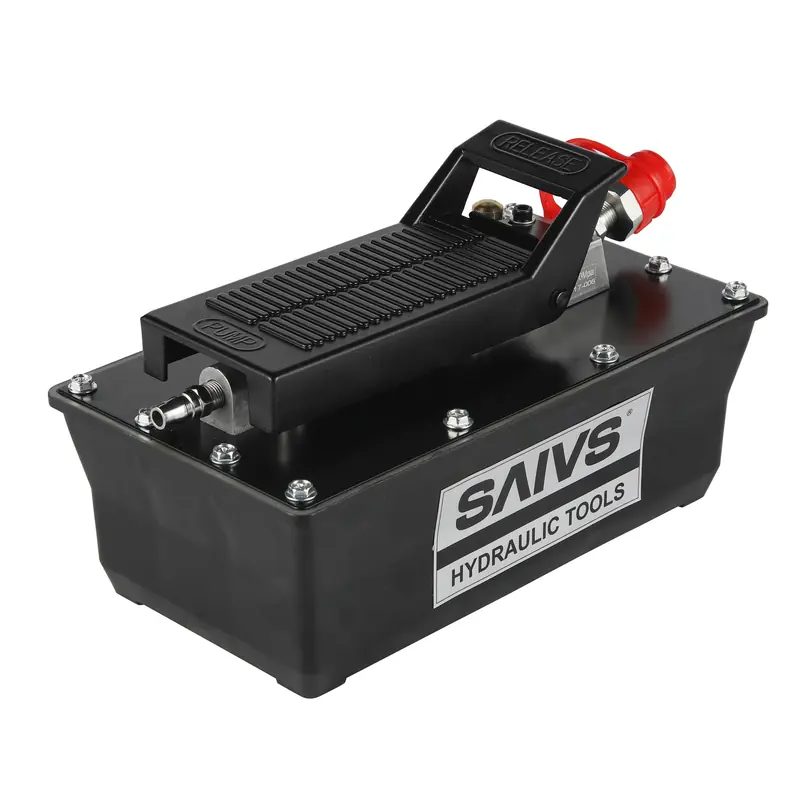

PAT Series Foot Air Hydraulic Pumps
-
Reservoir Capacity: 1.6 - 4.5L

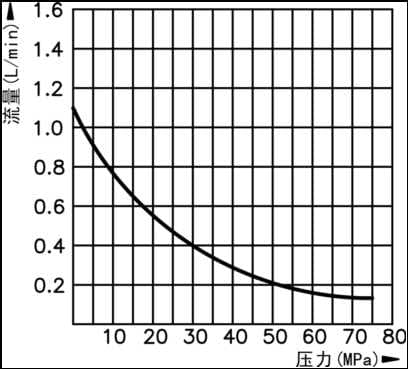

Flow at Rate Pressure: 0.16L / min
Maximun Operating Pressure: 700bar
Air Pressure Range:0.4-1 bar
Weight: 11.8- KG
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Applications:Suitable for nut splitters, flange spreaders, single and double acting small hydraulic cylinders and other hydraulic tools.
- PA4 Series Portable Air Hydraulic Pumps
Description
Product Line: Industrial Tools
Customizable with special requirement
Sturdy structure built for long life and low maintenance.
Internal pressure relief valve provides overload protection.

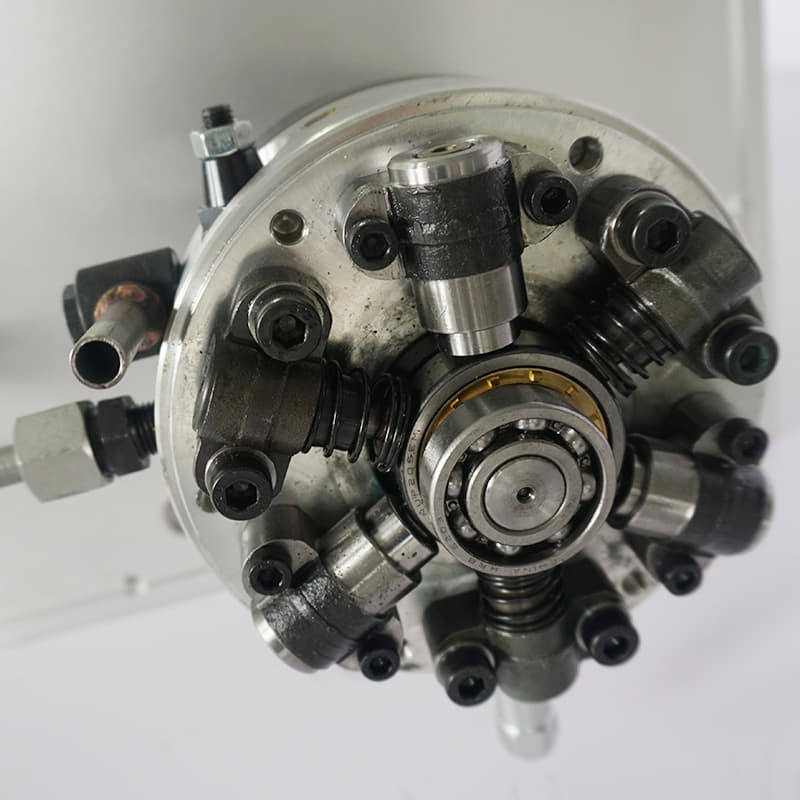

New generation air saver piston with integratedly rugged design reduces air consumption and operating costs.
Reinforced heavy-duty lightweight reservoir for applications in tough and harsh environments.
Quiete operation reduces noise level to 76dBA.
Simple and convenient operating by foot or hand.
The working air pressure 1-4 bar, so the pump can be start at very low air pressure
It is compact design, light and handy and is easy to carry. The single-speed pump is for driving Single Acting cylinder.
It has durable and anodized Al-Ti alloy shell with hard surface.
It has low air consumption and operation cost.
The internal overflow valve provides overload protection.

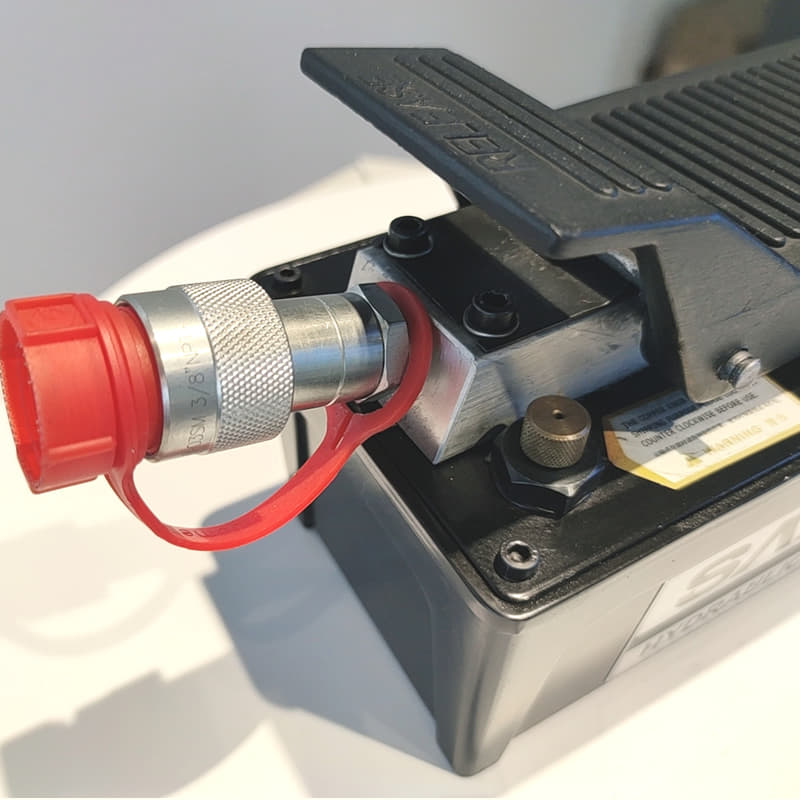

The unique needle valve leads pressure relief, which is easier for the pedal operation.
The Al-Ti alloy oil tank can protect the pump from severe working environments.
The air and oil filter can protect the pump from dirt, avoid damages.
The unique oil tank design can satisfy all position operation and storage.

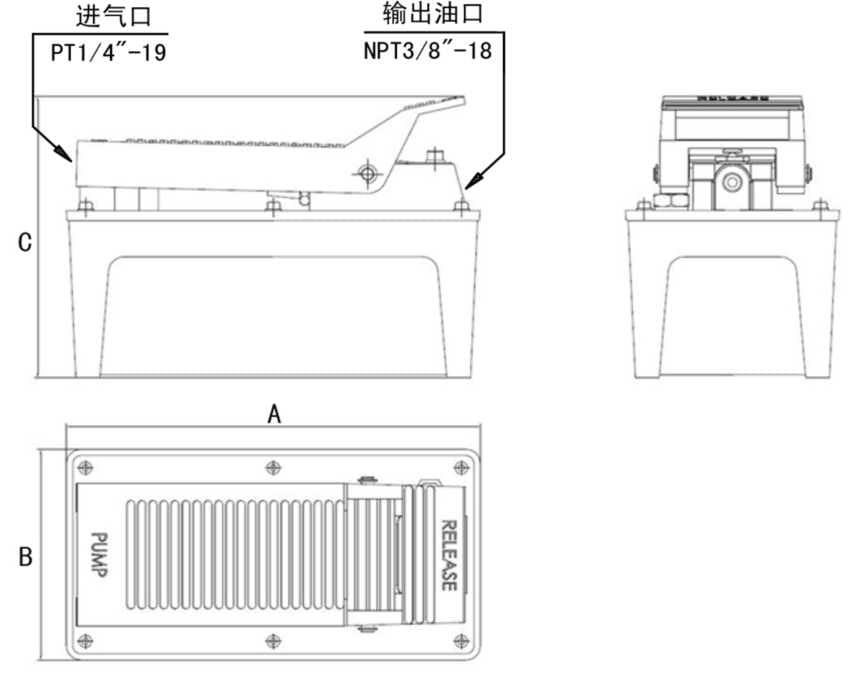

Dimensions
| Model Number | Used with Cylinder | Usable Oil Volume | Maximun Pressure | Air Pressure Range | Output Flow Rate（L/min） | Valve Operation | Output Oil Thread | Dimensions(mm) | Reservoir Material | |||
| (cm3) | (bar) | (bar) | No Load | Load | A | B | C | |||||
| PAT-001 | Single-Acting | 2300 | 700 | 4.0-10 | 1.15 | 0.16 | Treadle 2W2P | NPT3/8-18 | 312 | 170 | 190 | Plastic |
| PAT-002 | 1600 | 1.15 | 0.16 | 263 | 136 | 185 | Aluminum | |||||
| PAT-003 | 4500 | 1.15 | 0.16 | 317 | 178 | 190 | steel | |||||
