P80 Two Speed,Single-acting Hydraulic Steel Hand Pump
-
Model:P80
Pump Type:Double Speed
Used with Cylinder:Single-Acting
Usable Oil Capacity: 2200cm³
Max.Operating Pressure: 700 bar
Pressure Rating 1st Stage: 25bar/348.1 psi
Pressure Rating 2nd Stage:700bar/10000 psi
Oil Displacement Per Stroke 1st Stage (cm³)16.22
Oil Displacement Per Stroke 2nd Stage (cm³)2.46
Weight:10.9 kg
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Description
SAIVS offers high-pressure, two-speed manual Hydraulic Hand Pumps in a robust,
lightweight steel design. Ideal for portability and demanding environments,
the pumps provide efficient operation with high flow for filling and high pressure for power.

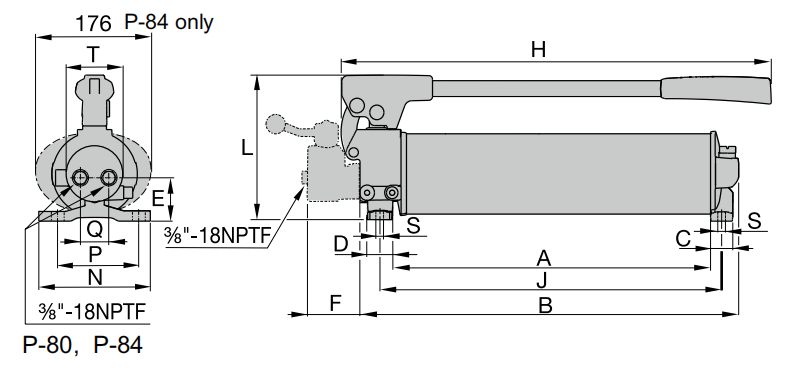

Dimensions
P80 Two Speed,Single-acting Hydraulic Steel Hand Pump
| Model Number | A | B | C | D | E | F | H | J | L | M | N | P | Q | R | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P80 | 425 | 539 | 25 | 44 | 54 | - | 527 | 29 | 174 | 19 | 146 | 121 | - | 21 | 8 | 67 |
| Model Number | Pump Type | Usable Oil Capacity (cm3) | Pressure Rating (bar) | Oil Displacement per Stroke (cm3) | Max. Handle Effort (kg) | Piston Stroke (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| P80 | Two Speed | 2200 | 1st stage: 25 2nd stage: 700 | 1st stage: 16.22 2nd stage: 2.46 | 47 | 25.4 | 10.9 |
| Model Number | Pump Type | Usable Oil Capacity (cm3) | Pressure Rating (bar) | Oil Displacement per Stroke (cm3) | Max. Handle Effort (kg) | Piston Stroke (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| P392 | Double speed | 655 | 1st stage: 25 2nd stage: 700 | 1st stage: 15 2nd stage: 2.62 | 50 | 20.6 | 5.9 |
| P80 | 2200 | 1st stage: 25 2nd stage: 700 | 1st stage: 16.22 2nd stage: 2.46 | 47 | 25.4 | 10.9 | |
| P84 | 2200 | 1st stage: 25 2nd stage: 700 | 1st stage: 16.22 2nd stage: 2.46 | 49 | 25.4 | 13.2 | |
| P462 | 7423 | 1st stage: 14 2nd stage: 700 | 1st stage: 26.20 2nd stage: 4.75 | 49 | 38.1 | 27 | |
| P464 | 7423 | 1st stage: 14 2nd stage: 700 | 1st stage: 26.20 2nd stage: 4.75 | 49 | 38.1 | 27.7 |
