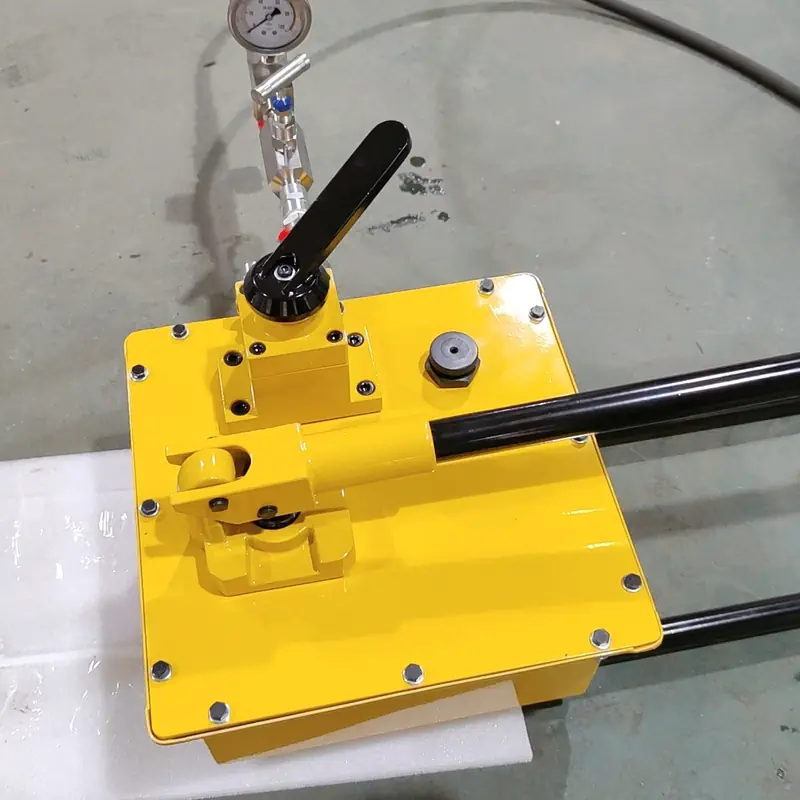

P462 Two Speed, Steel Hydraulic Hand Pump
-
Model:P462
Pump Type:Double Speed
Used with Cylinder:Single-Acting
Usable Oil Capacity: 7423cm³
Max.Operating Pressure: 700 bar
Pressure Rating 1st Stage: 25bar/348.1 psi
Pressure Rating 2nd Stage:700bar/10000 psi
Oil Displacement Per Stroke 1st Stage (cm³)126.2
Oil Displacement Per Stroke 2nd Stage (cm³)4.75
Weight:27 kg
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Description
Two-speed operation,can reduce the intensity of the operator.
P-84 and P-464 are equipped with 4-way valve,they can be used to operate the
double action cylinders.
Other models are equipped with external unloading valve,they can be
used to operate the single action cylinders.
The inemal safety valve is equipped to protect the pump while overloading.
The capacity of oil tank is big enough to match a wide range of cylinders and tools.
Two-speed is to be used in the situation of hydraulic pommel should reach the
heavy object quickly or need a great quantity fuel.For example,driving two or more
Hydraulic Cylinders is recommended to use it.
Dimensions
| Model Number | A | B | C | D | E | F | H | J | L | M | N | P | Q | R | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P392 | 393 | 520 | 35 | 38 | 32 | - | 464 | 30 | 119 | 65 | 133 | - | - | - | - | - |
| P80 | 425 | 539 | 25 | 44 | 54 | - | 527 | 29 | 174 | 19 | 146 | 121 | - | 21 | 8 | 67 |
| P84 | 425 | 510 | 25 | 44 | - | 64 | 527 | 29 | 174 | 19 | 146 | 121 | 38 | 43 | 8 | 67 |
| P462 | 210 | 308 | 163 | 320 | 195 | - | 671 | 25 | 270 | 175 | 650 | 92 | - | - | - | - |
| P464 | 210 | 308 | 163 | 320 | 195 | - | 671 | 25 | 270 | 175 | 650 | 92 | 89 | 68 | 80 | - |
| Model Number | Pump Type | Usable Oil Capacity (cm3) | Pressure Rating (bar) | Oil Displacement per Stroke (cm3) | Max. Handle Effort (kg) | Piston Stroke (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| P392 | Double speed | 655 | 1st stage: 25 2nd stage: 700 | 1st stage: 15 2nd stage: 2.62 | 50 | 20.6 | 5.9 |
| P80 | 2200 | 1st stage: 25 2nd stage: 700 | 1st stage: 16.22 2nd stage: 2.46 | 47 | 25.4 | 10.9 | |
| P84 | 2200 | 1st stage: 25 2nd stage: 700 | 1st stage: 16.22 2nd stage: 2.46 | 49 | 25.4 | 13.2 | |
| P462 | 7423 | 1st stage: 14 2nd stage: 700 | 1st stage: 26.20 2nd stage: 4.75 | 49 | 38.1 | 27 | |
| P464 | 7423 | 1st stage: 14 2nd stage: 700 | 1st stage: 26.20 2nd stage: 4.75 | 49 | 38.1 | 27.7 |
