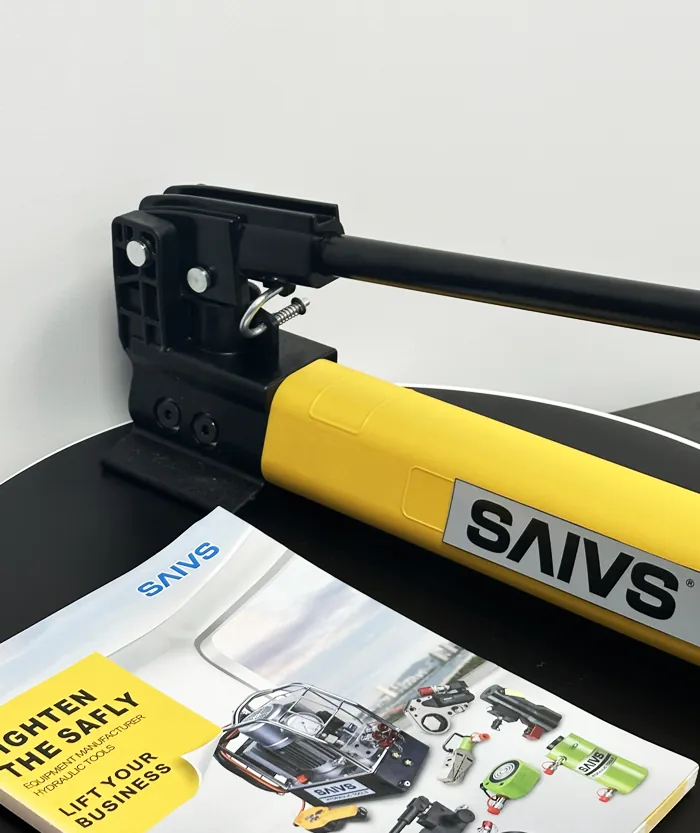

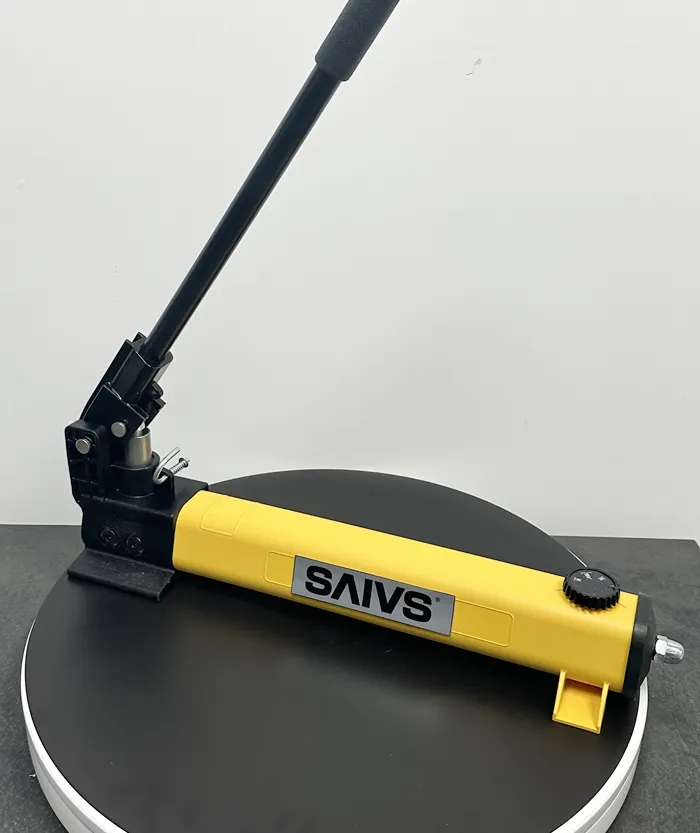

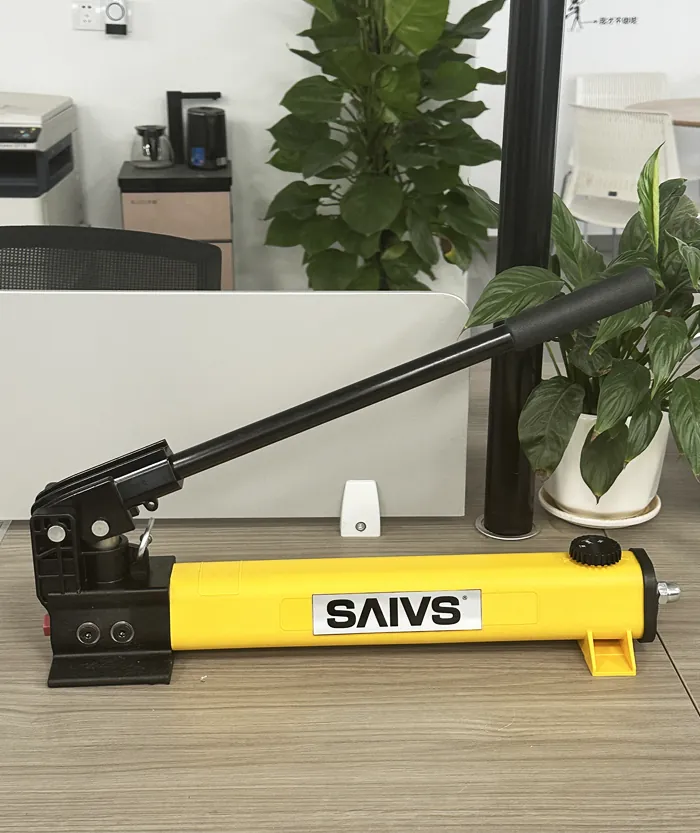

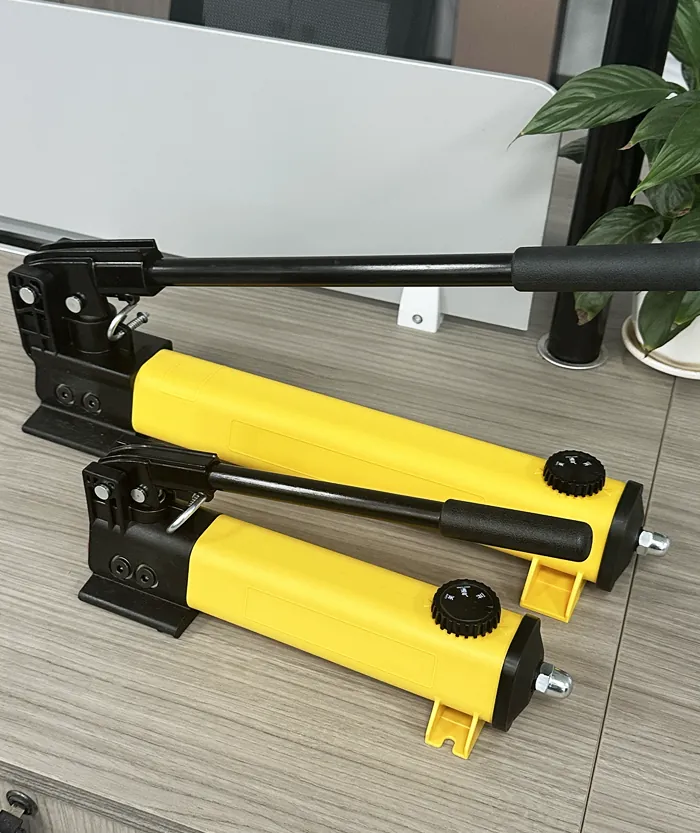

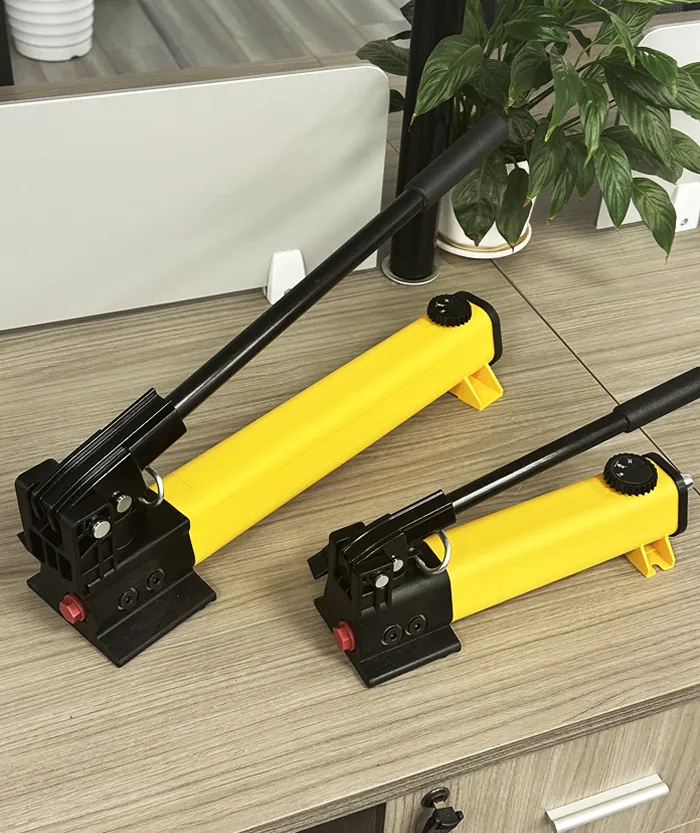

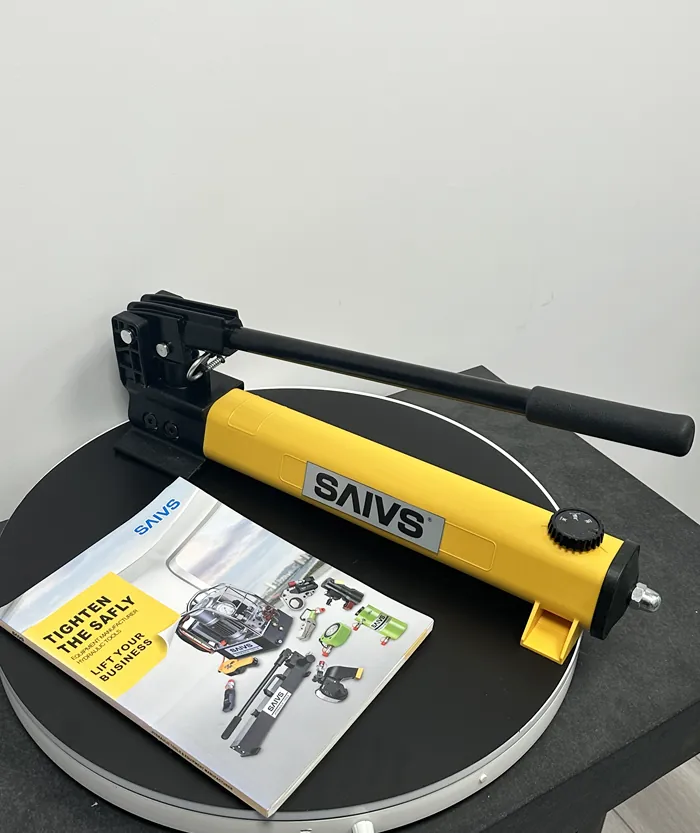

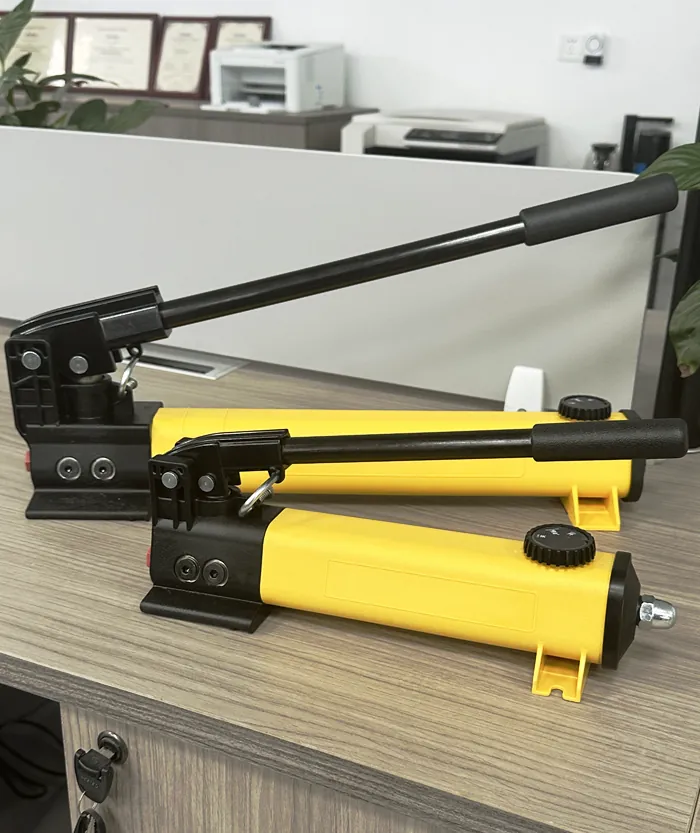

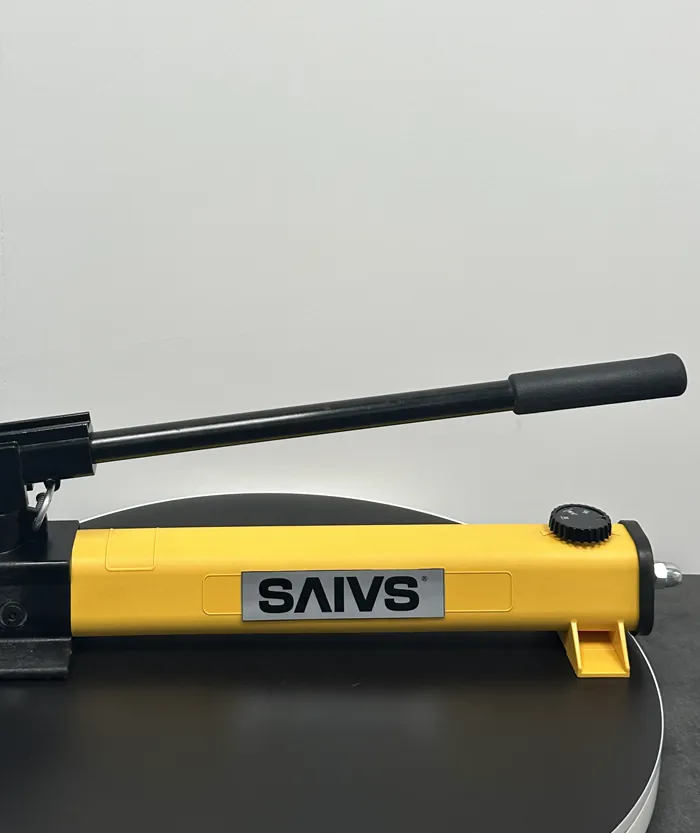

P392, Two Speed, Lightweight Hydraulic Hand Pump

5out of5 based on3 reviews | Write a review

Description

Model:P392

Product Line: Industrial Tools

Customizable with special requirement

  • Glass-filled nylon reservoir and nylon-encapsulated aluminum pump base offer strength, light weight, and corrosion resistance.

  • Lightweight and compact design.

  • Two-speed models reduce handle strokes by up to 78%, ideal for advancing tools like cylinders to load contact points.

  • High flow delivered when needed most, before switching to low flow high-pressure stage.

  • Oil capacities up to 453 in³ (7423 cm³), suitable for multiple cylinder hook-ups.

  • Lower handle effort minimizes operator fatigue.

  • Handle lock and lightweight construction for easy carrying.

  • Large oil capacities for powering various cylinders or tools.

  • Non-conductive fiberglass handle ensures operator safety.

  • Internal pressure relief valve for overload protection.

Image Gallery

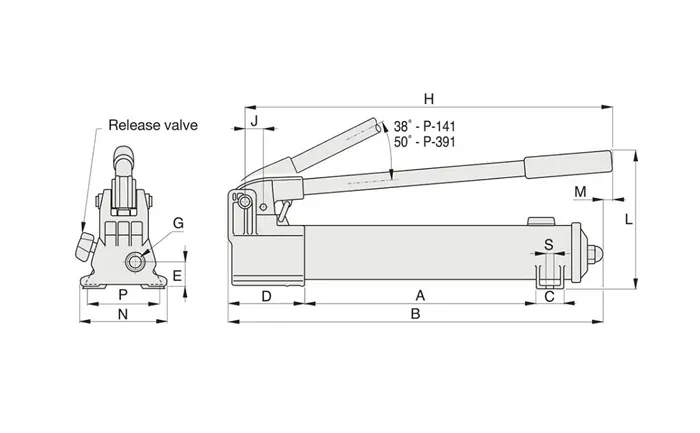

Dimensions

Dimension A (mm)13.56
Dimension B (mm)21
Dimension C (mm)1.44
Dimension D (mm)3.93
Dimension E (mm)1.31
Dimension G (in)

3/8" - 18 NPT

Dimension H (mm)20.56
Dimension J (mm)1.19
Dimension L (mm)7
Dimension M (mm)0.63

Series Comparison

Model NumberPump TypeUsable Oil Capacity (cm3)Pressure Rating 1st Stage (bar)Pressure Rating 2nd Stage (bar)Oil Displacement Per Stroke 1st Stage (cm3)Oil Displacement Per Stroke 2nd Stage (cm3)Max. Handle Effort (kg)Piston Stroke (mm)Weight (kg)
P392Two speed65525700152.625020.6 | 0.81 in5.9 | 13.0 lbs
P80Two speed22002570016.222.464725.4 | 1 in 10.9 | 24.0 lbs
P84Two speed22002570016.222.464925.4 | 1 in 13.2 | 29.1 lbs
P462Two speed74231470026.24.754938.1 | 1.5 in
27 | 59.5 lbs
P464Two speed74231470026.24.754938.1 | 1.5 in
27.7 | 61.1 lbs
P142Two speed327137003.620.935.412.7 | 0.5 in 2.15 | 4.7 lbs
P392Two speed9011370011.262.4742.225.4 | 1 in 3.9 | 8.6 lbs
P141Single speed327700/0.9/32.712.7 | 0.5 in 2.15 | 4.7 lbs
P391Single speed901700/2.47/38.625.4 | 1 in 3.9 | 8.6 lbs

Video

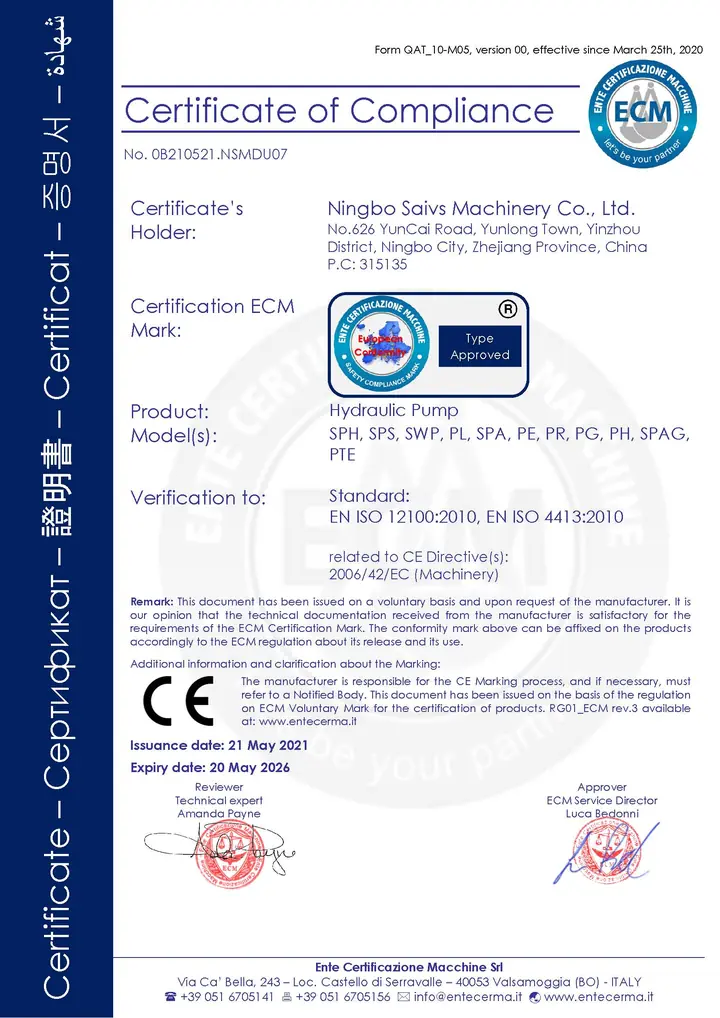

Certificate of Compliance
