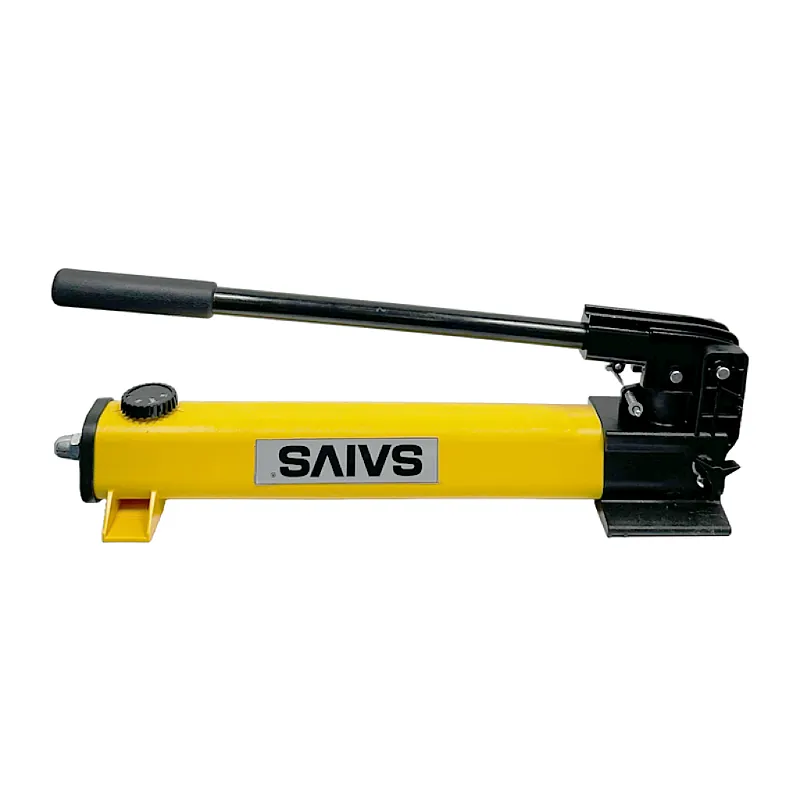

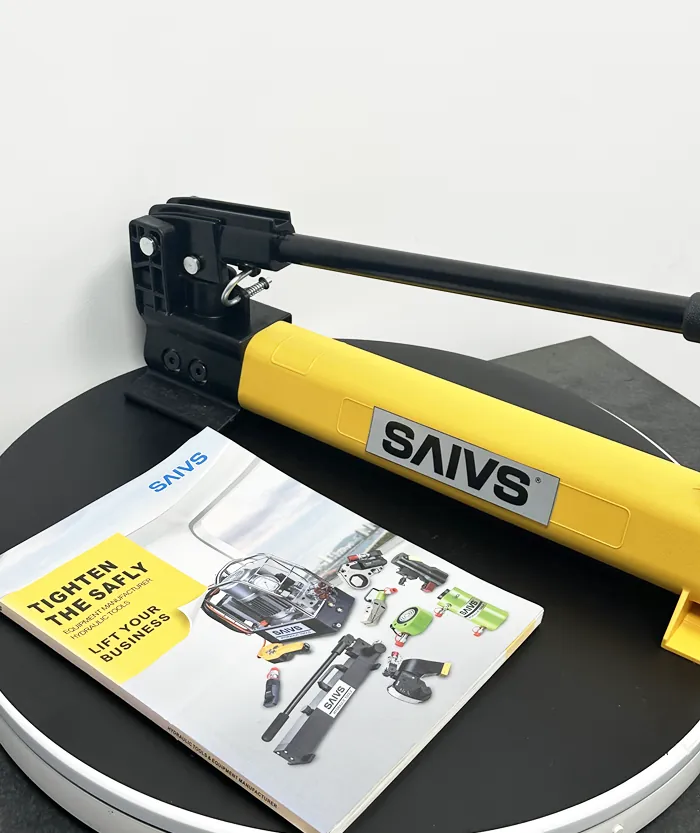

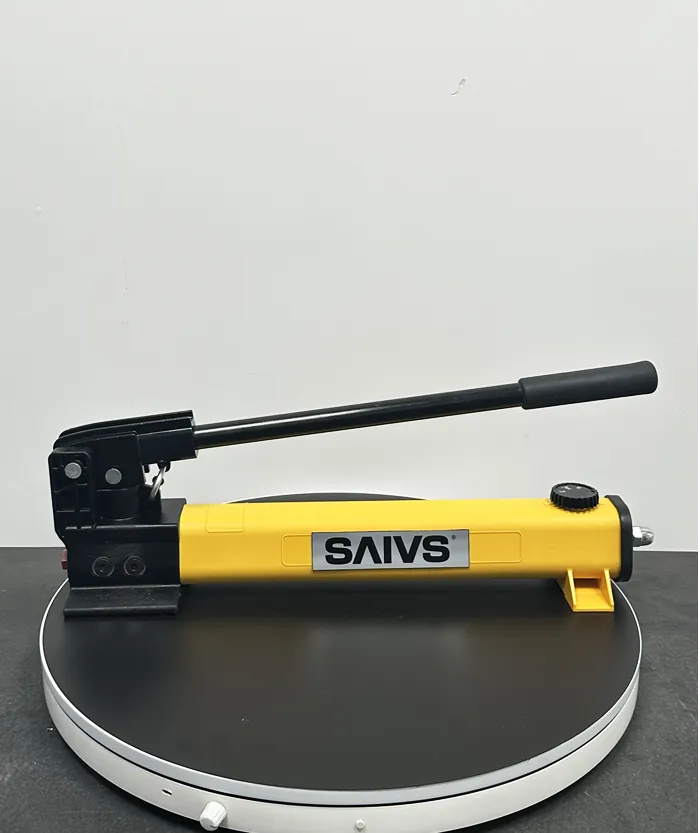

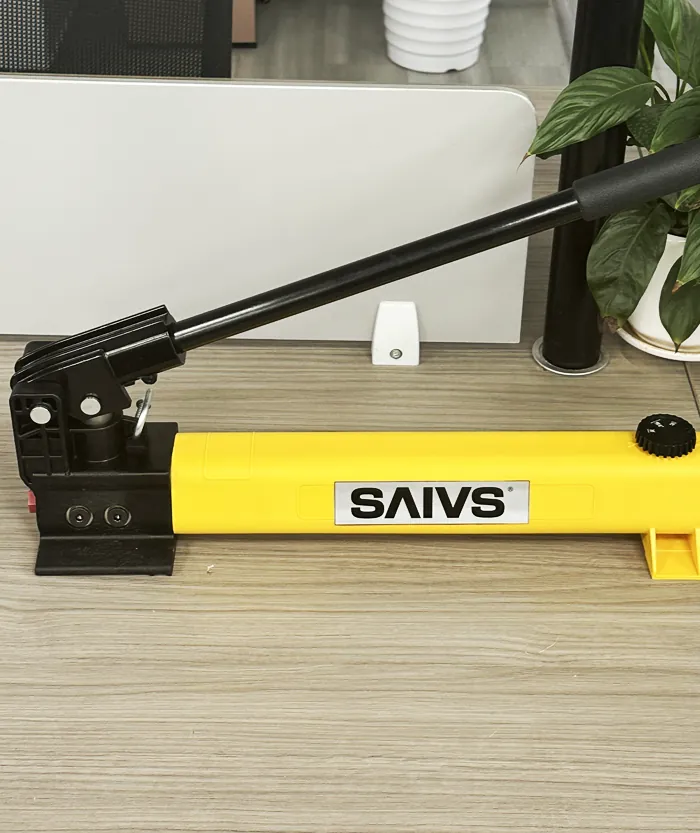

P391, Single Speed, Lightweight Hydraulic Hand Pump
-
Model:P391
Pump Type:Single Speed
Cylinder Compatability:Single-acting
Piston Stroke: 25.4 mm | 1 in
Weight: 3.9 kg | 8.6 lbs
Usable Oil Capacity (cm3): 901
Pressure Rating 1st Stage: 700 bar/10000 PSI
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1 Piece
Brand Name:Replacement Enerpac's P391
- P392, Two Speed, Lightweight Hydraulic Hand Pump P142, Two Speed, Lightweight Hydraulic Hand Pump P141, Single Speed, Lightweight Hydraulic Hand Pump Single,Two Speed,23206 PSI,Lightweight Hydraulic Hand Pump Single,Two Speed,10000 PSI,Lightweight Hydraulic Hand Pump SPS Series Hydraulic Lightweight Hand Pumps
Description
Model:P391
Product Line: Industrial Tools
Customizable with special requirement
Lightweight and compact design
Maximum corrosion resistance
Two-speed operation reduces handle strokes by up to 78%
Lower handle effort to reduce operator fatigue
Handle lock and lightweight construction for easy transport
Large oil capacities for various cylinders or tools
Non-conductive fiberglass handle for safety
Internal pressure relief valve for overload protection
Image Gallery
Dimensions
| Dimension A (mm) | 344 |
| Dimension B (mm) | 533 |
| Dimension C (mm) | 36 |
| Dimension D (mm) | 99 |
| Dimension E (mm) | 33 |
| Dimension G (in) | 3/8" - 18 NPTF |
| Dimension H (mm) | 522 |
| Dimension J (mm) | 30 |
| Dimension L (mm) | 177 |
| Dimension M (mm) | 16 |
| Dimension N (mm) | 120 |
Series Comparison
| Model Number | Pump Type | Usable Oil Capacity (cm3) | Pressure Rating 1st Stage (bar) | Pressure Rating 2nd Stage (bar) | Oil Displacement Per Stroke 1st Stage (cm3) | Oil Displacement Per Stroke 2nd Stage (cm3) | Max. Handle Effort (kg) | Piston Stroke (mm) | Weight (kg) |
| P392 | Two speed | 655 | 25 | 700 | 15 | 2.62 | 50 | 20.6 | 0.81 in | 5.9 | 13.0 lbs |
| P80 | Two speed | 2200 | 25 | 700 | 16.22 | 2.46 | 47 | 25.4 | 1 in | 10.9 | 24.0 lbs |
| P84 | Two speed | 2200 | 25 | 700 | 16.22 | 2.46 | 49 | 25.4 | 1 in | 13.2 | 29.1 lbs |
| P462 | Two speed | 7423 | 14 | 700 | 26.2 | 4.75 | 49 | 38.1 | 1.5 in | 27 | 59.5 lbs |
| P464 | Two speed | 7423 | 14 | 700 | 26.2 | 4.75 | 49 | 38.1 | 1.5 in | 27.7 | 61.1 lbs |
| P142 | Two speed | 327 | 13 | 700 | 3.62 | 0.9 | 35.4 | 12.7 | 0.5 in | 2.15 | 4.7 lbs |
| P392 | Two speed | 901 | 13 | 700 | 11.26 | 2.47 | 42.2 | 25.4 | 1 in | 3.9 | 8.6 lbs |
| P141 | Single speed | 327 | 700 | / | 0.9 | / | 32.7 | 12.7 | 0.5 in | 2.15 | 4.7 lbs |
| P391 | Single speed | 901 | 700 | / | 2.47 | / | 38.6 | 25.4 | 1 in | 3.9 | 8.6 lbs |
