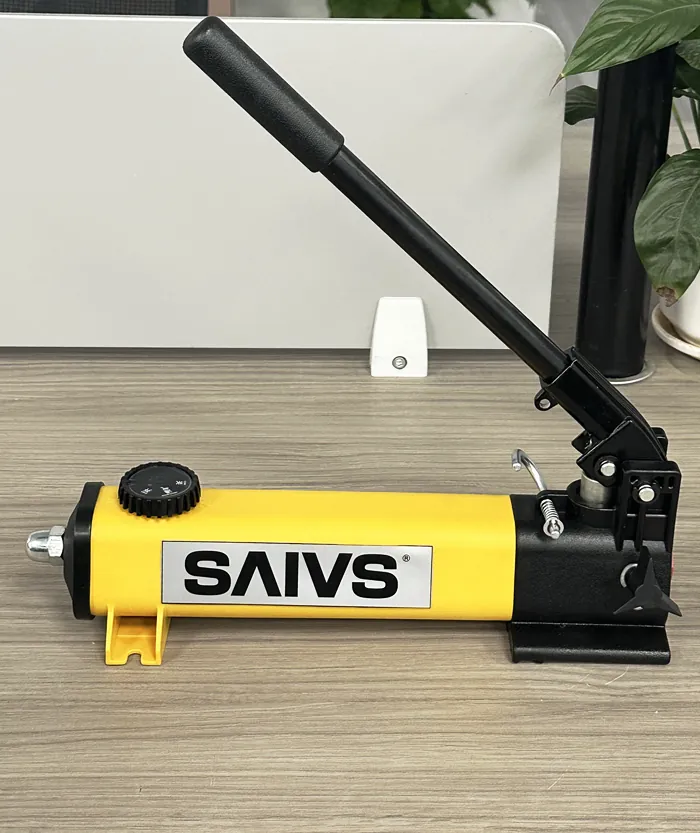

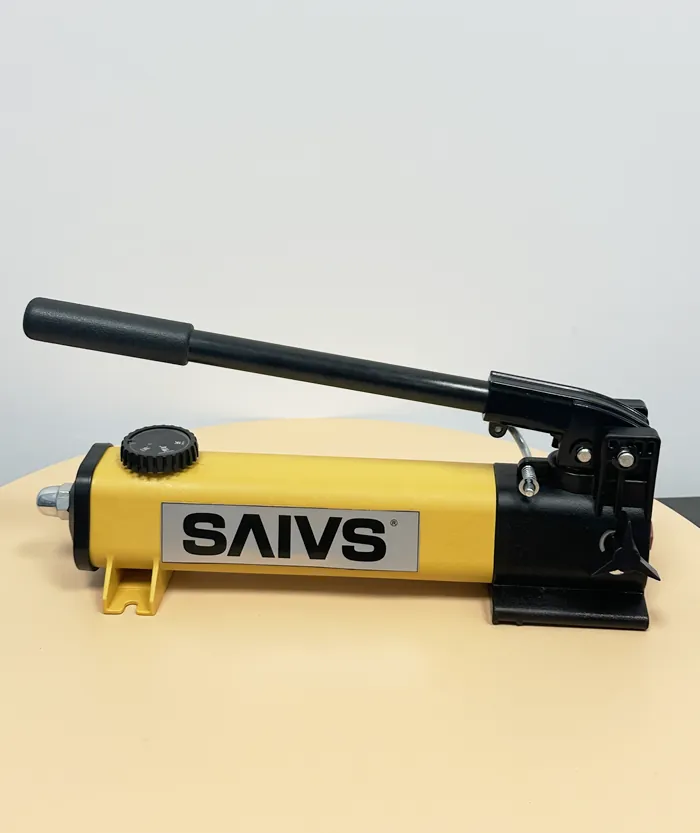

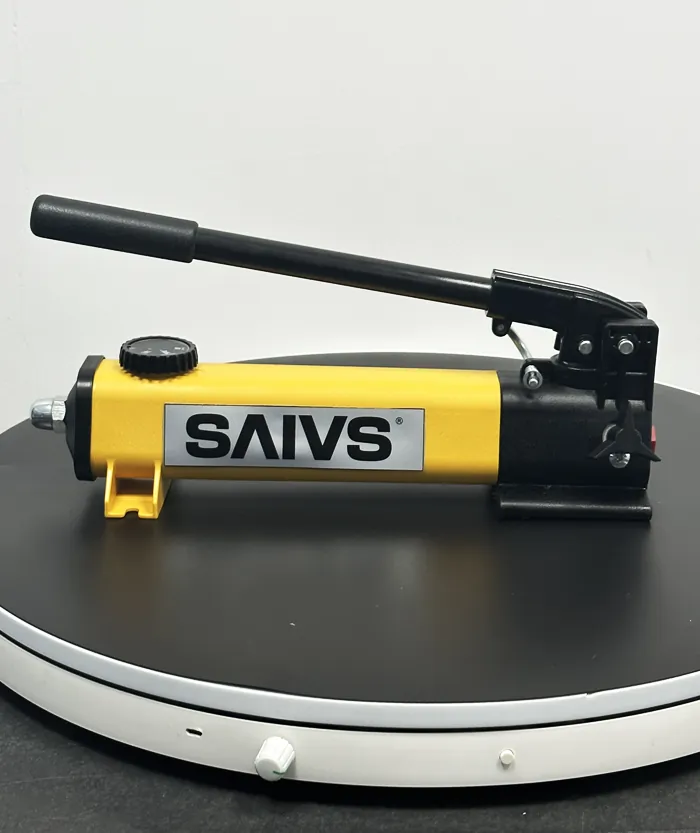

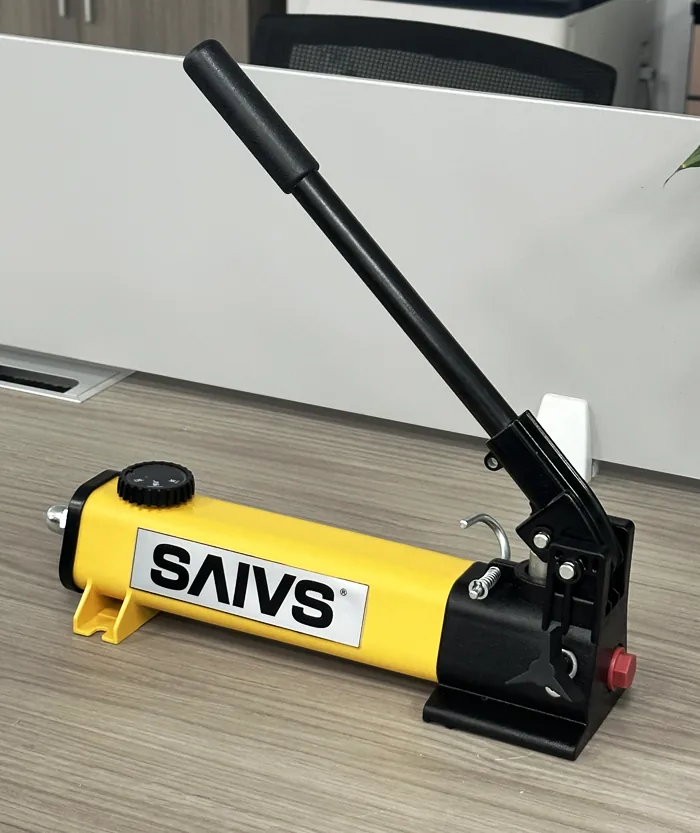

P142, Two Speed, Lightweight Hydraulic Hand Pump

Description

Model:P142

Product Line: Industrial Tools

Customizable with special requirement

Glass-filled nylon reservoir and nylon-encapsulated aluminum pump base offer strength, light weight, and corrosion resistance.
Lightweight and compact design.
Two-speed models reduce handle strokes by up to 78%, ideal for advancing tools like cylinders to load contact points.
High flow delivered when needed most, before switching to low flow high-pressure stage.
Oil capacities up to 453 in³ (7423 cm³), suitable for multiple cylinder hook-ups.
Lower handle effort minimizes operator fatigue.
Handle lock and lightweight construction for easy carrying.
Large oil capacities for powering various cylinders or tools.
Non-conductive fiberglass handle ensures operator safety.
Internal pressure relief valve for overload protection.

Model Number	Pump Type	Usable Oil Capacity (cm3)	Pressure Rating 1st Stage (bar)	Pressure Rating 2nd Stage (bar)	Oil Displacement Per Stroke 1st Stage (cm3)	Oil Displacement Per Stroke 2nd Stage (cm3)	Max. Handle Effort (kg)	Piston Stroke (mm)	Weight (kg)
P392	Two speed	655	25	700	15	2.62	50	20.6 \| 0.81 in	5.9 \| 13.0 lbs

P80	Two speed	2200	25	700	16.22	2.46	47	25.4 \| 1 in	10.9 \| 24.0 lbs

P84	Two speed	2200	25	700	16.22	2.46	49	25.4 \| 1 in	13.2 \| 29.1 lbs

P462	Two speed	7423	14	700	26.2	4.75	49	38.1 \| 1.5 in	27 \| 59.5 lbs

P464	Two speed	7423	14	700	26.2	4.75	49	38.1 \| 1.5 in	27.7 \| 61.1 lbs

P142	Two speed	327	13	700	3.62	0.9	35.4	12.7 \| 0.5 in	2.15 \| 4.7 lbs

P392	Two speed	901	13	700	11.26	2.47	42.2	25.4 \| 1 in	3.9 \| 8.6 lbs
P141	Single speed	327	700	/	0.9	/	32.7	12.7 \| 0.5 in	2.15 \| 4.7 lbs
P391	Single speed	901	700	/	2.47	/	38.6	25.4 \| 1 in	3.9 \| 8.6 lbs
