LW16,Lifting Stoke 21mm,16 Ton, Hydraulic Vertical Lifting Wedge
-
Model: LW16
Brand Name:Enerpac LW16 Replacement
Product Line: Industrial Tools, Bolting Tools
Maximum Lifting Force: 16 ton (157kN)
Lifting Stoke: 21mm(0.83in)
Tip Clearance/Maximum Spread*: 10mm/81.5mm
Maximum Operating Pressure: 700bar /10000 psi
Weight: 9 KG / 19.84 lbs
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
- FSM8, 8 Ton 3.16 inch/80 mm Hydraulic Industrial Spreader FSH14,14 Ton 3.16 inch/80 mm Hydraulic Industrial Spreader
Description
Product Line: Industrial Tools
Customizable with special requirement
Requires verys mall access gap of only 10mm
Lifting force 16 Ton at 700 bar Hydraulic Pressure
Each step can spread under full load
Straight vertical lifting
Unique interlocking wedge design:no first
step bending and risk of slipping out
Single-Acting,Spring Return cylinder
Lifting wedge LW-16 includes safety block SB-2
Use optional stepped block LWB-1 to increase wedge lifting height by 30 mm.
* Using LWB-1.
For lifting heavy equipment with minimum floor clearance the LW16 is the ideal tool.

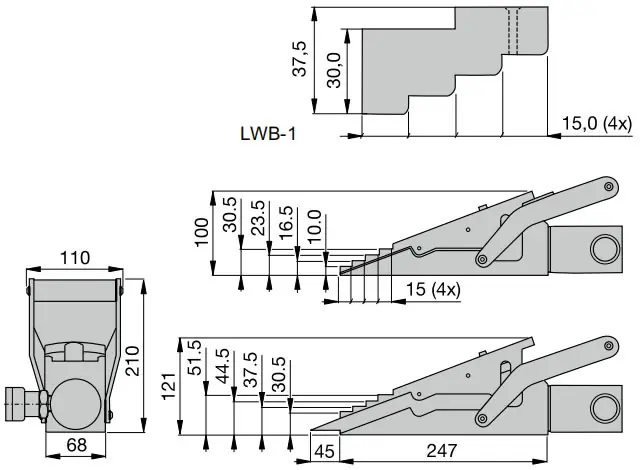

Dimensions
LW16,Lifting Stoke 21mm,16 Ton, Hydraulic Vertical Lifting Wedge
| Maximum Lifting Force (ton (kN)) | Maximum Lifting Stroke (mm) | Model Number | Tip Clearance (mm) | Operating Pressure (bar) | Oil Capacity (cm³) |
|---|---|---|---|---|---|
| 16 (157) | 21 | LW-16 | 10 | 700 | 78 |
An essential tool for low clearance lifts - the LW16 features a minimum clearance gap of .39" (10 mm) and 16 tons (157 kN) of lifting force.
Literature
