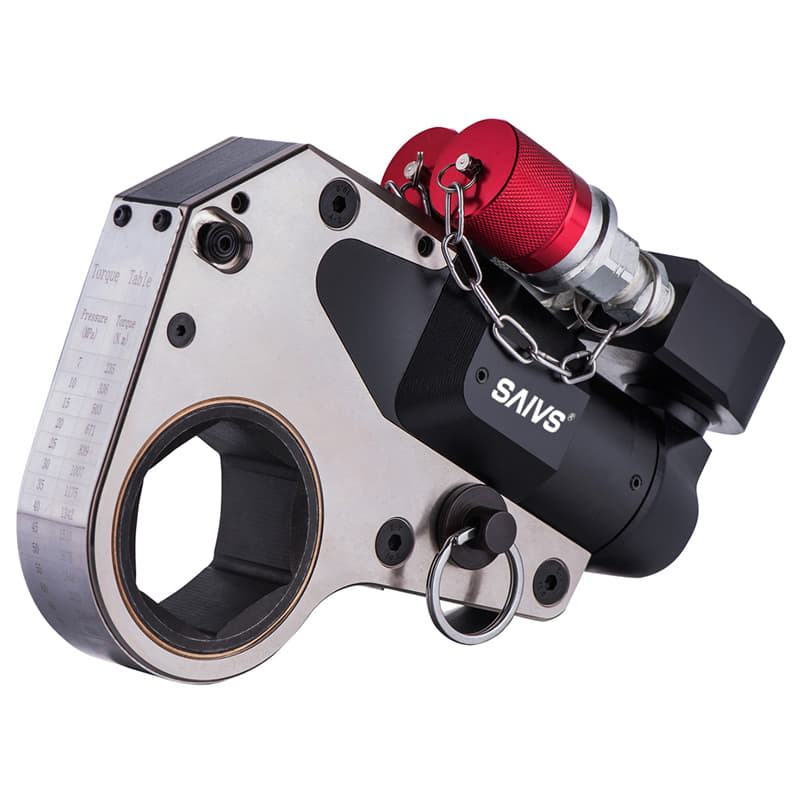

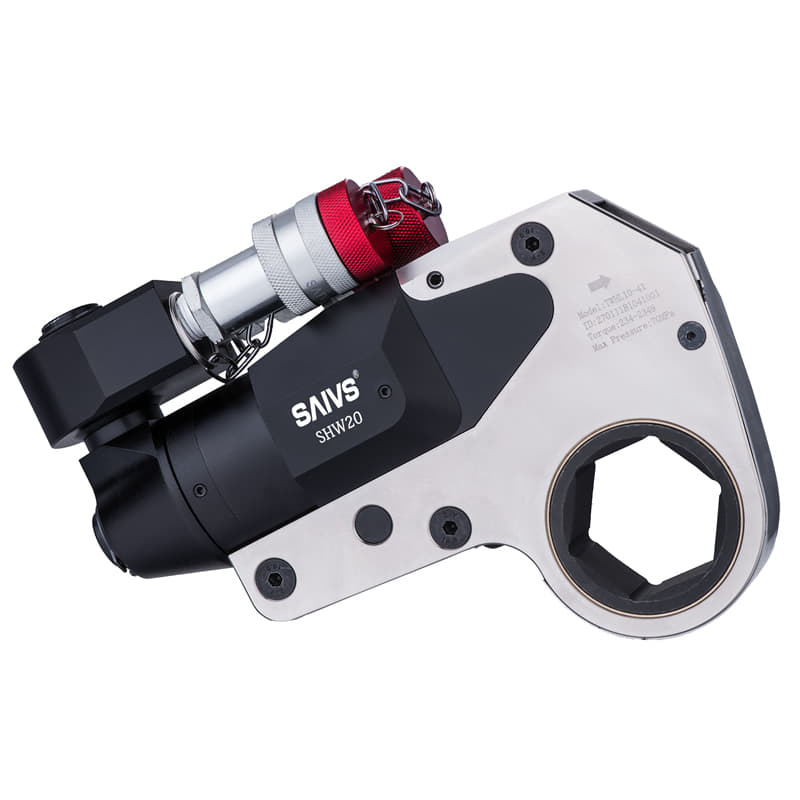

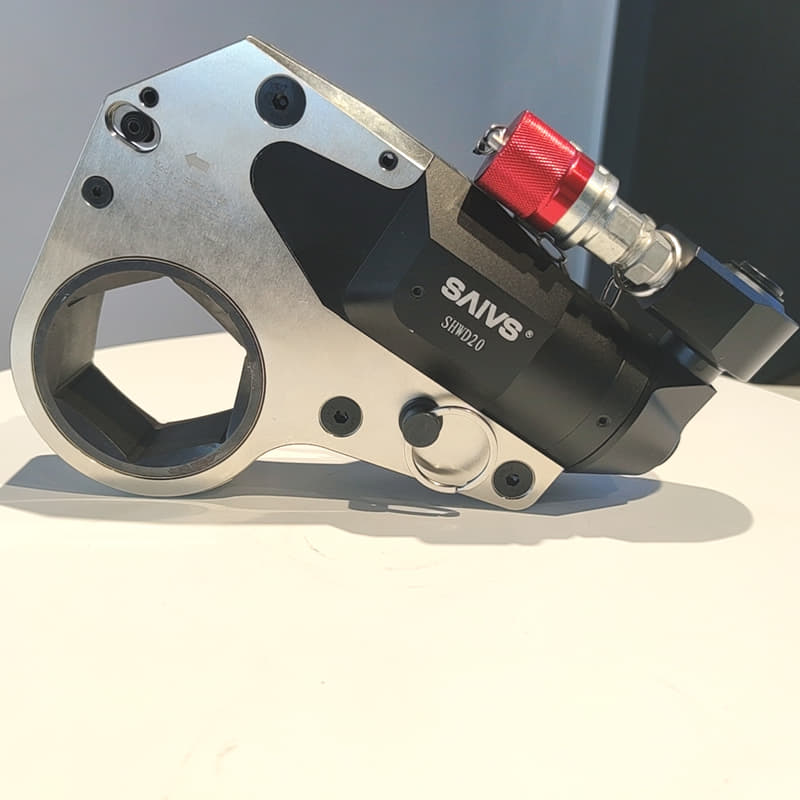

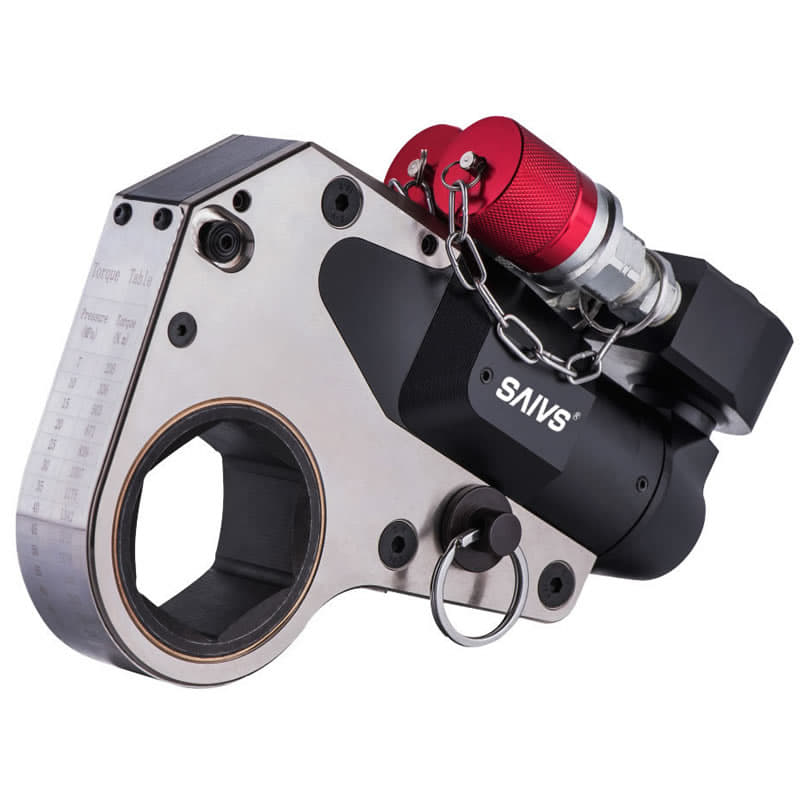

Low Profile Hexagon Hydraulic Torque Wrenches SHW Series

5out of5 based on8 reviews | Write a review

Maximum Torque: 38463 Nm
Hexagon Range: 19-155 mm
Nose Radius: 29.6-117.6 mm
Maximum Operating Pressure: 700 bar / 10000PSI
Weight: 0.7 - 10.6 KG
Country of Origin:China
Minimum Order:1Piece
38463Nm,Low Profile Hydraulic Torque Wrench,SHWD60 21960Nm,Low Profile Hydraulic Torque Wrench,SHWD50 15565Nm,Low Profile Hydraulic Torque Wrench,SHWD40 9423Nm,Low Profile Hollow Hydraulic Torque Wrench,SHWD30 5054Nm,Low Profile Hollow Hydraulic Torque Wrench,SHWD20 2349Nm,Low Profile Hollow Hydraulic Torque Wrench,SHWD10

VIEW CATALOGUE

Description

Product Line: Industrial Tools

Customizable with special requirement

SAIVS's SHWD series Low Profile Hydraulic Torque Wrench are almost the same as Enerpac’s W series,WREN's LOW Series,HYTORC’s XLCT series, TORCUP’s TX series, HI FORCE’s TWH-N series,SPX's TWSL SERIES and other wrenches in terms of function, quality, and applicable working conditions.

At the same time, SAIVS provides a one-year warranty, more favorable prices, and customized services for special working conditions.

Welcome to Get Latest Price now

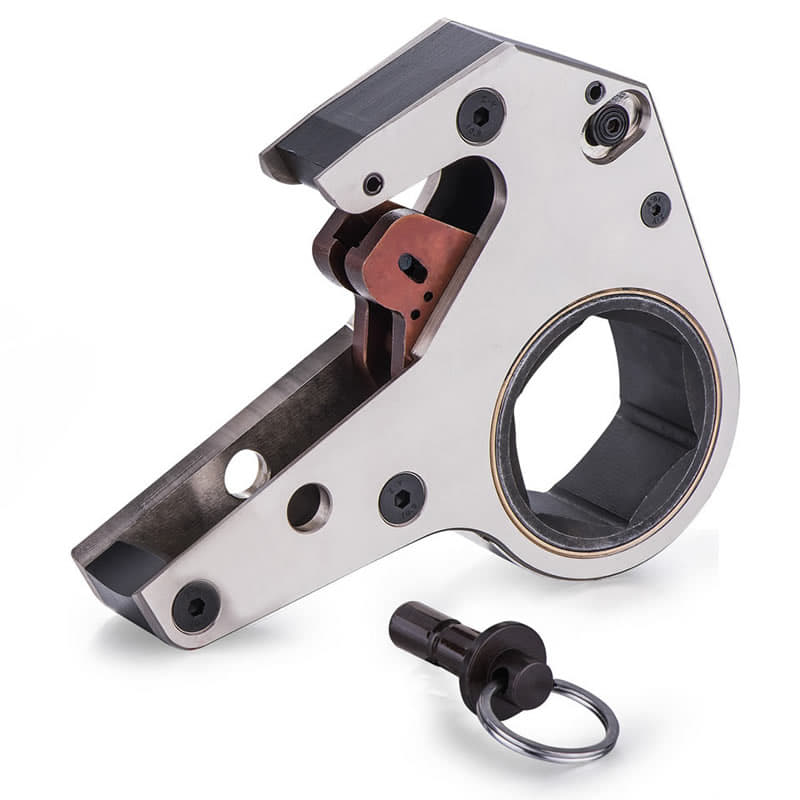

The low profile cassettes are made in compact and ultra slim structure to fit into tight spaces.

Rigid steel design ensure the durability, reliability and safety of the tools.

Maximum flexibility with full range Interchangeable hexagon cassettes and reducing inserts, no tools necessary .

Compact nose radius allows the tool to perform easily in tighter spaces.

Constant torque output provides accuracy up-to ±3%.

Multi direction high flow swivel manifold ( 360°X-axis * 180°Y-axis ).

Fast operation cycle, fine tooth ratchet, corrosion resistance, low weight, High Strength design. Air and electric Torque Wrench pumps that are idea for use with hydraulic torque wrenches.

High-power hydraulic torque wrench generally refers to a Bolt Fastening tool capable of outputting and setting torque. It is a high-pressure hydraulic tool widely used in equipment repair and installation in many heavy chemical industries.

How to Choose a Low Profile Hexagon Wrench ?

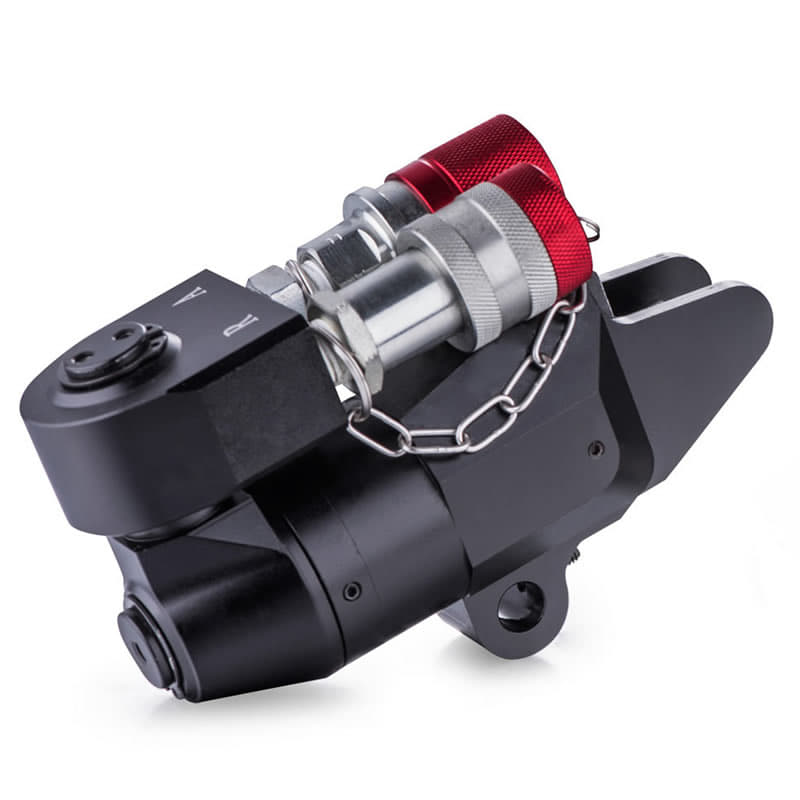

Please order drive unit and cassette separately and pay attention to the same size, for example SHWD20 and SHWG20-65.Choose the appropriate SHWD20 Drive unit.

Select SHWG20-65 driving head according to the bolt size required for application.

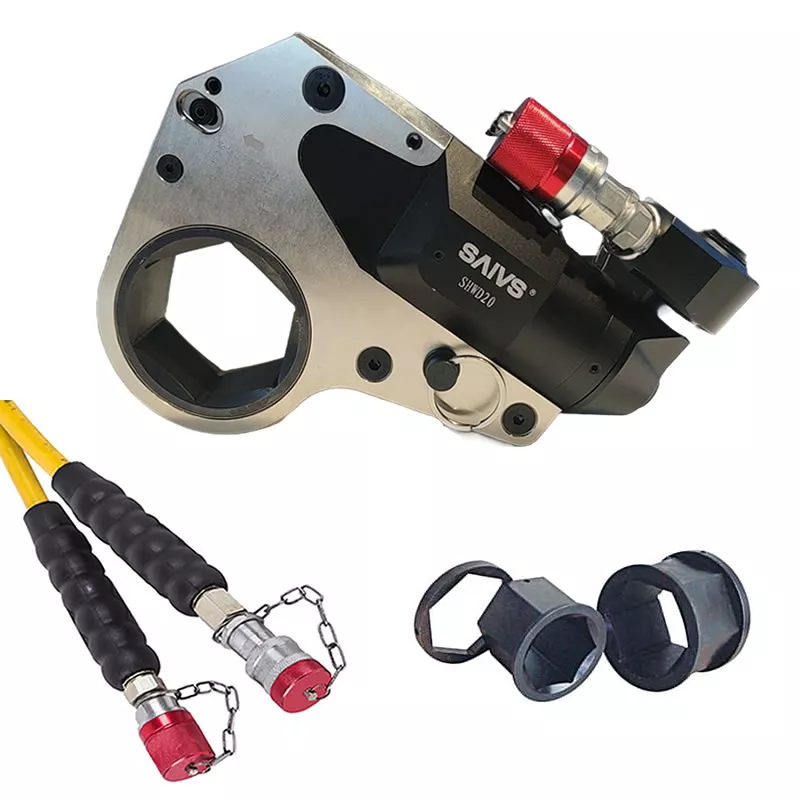

Add reducers for additional nut sizes, the combinations of use of different cassettes and reducers provide the maximum capability to achieve diverse jobs .

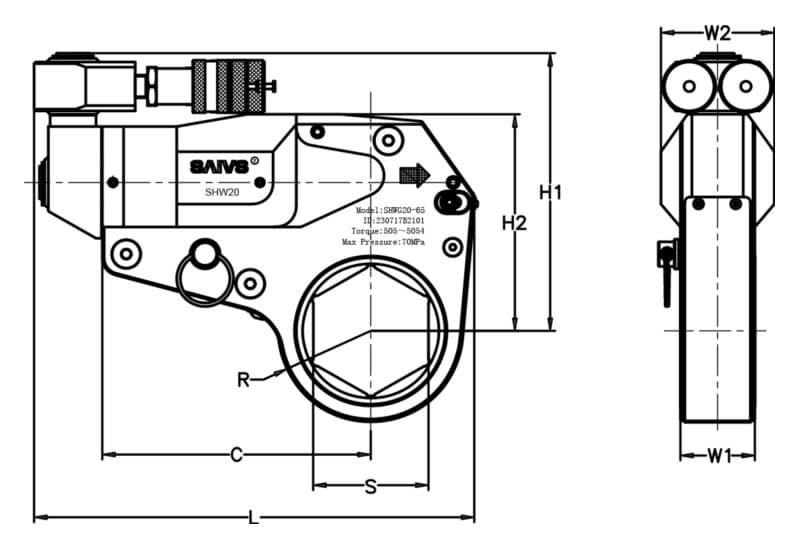

Dimensions

Drive Unit Model Number	Torque Range		Hexagon Range	Drive Unit Weight	Dimensions
	Torque Range		Hexagon Range	Drive Unit Weight	L	C	H1	H2	W1	W2
	N.m	Ft.lbs	mm	kg	mm
SHWD10	235-2349	173-1733	19-50	0.7	203	116	131	96	32	50
SHWD20	505-5054	373-3728	34-75	1.7	249	151.5	160	124	42	64
SHWD30	942-9423	695-6950	41-90	3.1	305	188.5	196	160	53	75
SHWD40	1556-15565	1148-11481	65-115	4.3	332	234	242	191.5	64	87
SHWD50	2196-21960	1620-16198	75-135	6	382	270	265	215	73	97
SHWD60	3846-38463	2837-28370	80-155	10.6	449	317.5	305	255	85	120

Impact Socket Specification

Drive Unit Model Number	Hexagon Head Model Number	Hexagon Size	Hexagon Reducers Model Number						Reducer Lock Model
Drive Unit Model Number	Hexagon Head Model Number	(mm)	Model Number	A/B(mm)	Model Number	A/B(mm)	Model Number	A/B(mm)	Reducer Lock Model
SHW10	SHWG10-50	50	2SH5041	50/41	2SH5036	50/36	2SH5032	50/32	H-50
	SHWG10-46	46	2SH4636	46/36	2SH4632	46/32	2SH4630	46/30	H-46
	SHWG10-41	41	2SH4132	41/32	2SH4130	41/30	2SH4127	41/27	H-41
	SHWG10-36	36	2SH3630	36/30	2SH3627	36/27			H-36
	SHWG10-32	32	2SH3227	32/27					H-32
SHW20	SHWG20-75	75	4SH7565	75/65	4SH7560	75/60	4SH7555	75/55	H-75
	SHWG20-70	70	4SH7060	70/60	4SH7055	70/55	4SH7050	70/50	H-70
	SHWG20-65	65	4SH6555	65/55	4SH6550	65/50	4SH6546	65/46	H-65
	SHWG20-60	60	4SH6050	60/50	4SH6046	60/46	4SH6041	60/41	H-60
	SHWG20-55	55	4SH5546	55/46	4SH5541	55/41	4SH5536	55/36	H-55
	SHWG20-50	50	4SH5041	50/41	4SH5036	50/36	4SH5032	50/32	H-50
	SHWG20-46	46	4SH4636	46/36	4SH4632	46/32	4SH4630	46/30	H-46
	SHWG20-41	41	4SH4132	41/32	4SH4130	41/30	4SH4127	41/27	H-41
	SHWG20-36	36	4SH3630	36/30	4SH3627	36/27			H-36
	SHWG20-32	32	4SH3227	32/27					H-32
SHW30	SHWG30-90	90	8SH9080	90/80	8SH9075	90/75	8SH9070	90/70	H-90
	SHWG30-85	85	8SH8575	85/75	8SH8570	85/70	8SH8565	85/65	H-85
	SHWG30-80	80	8SH8070	80/70	8SH8065	80/65	8SH8060	80/60	H-80
	SHWG30-75	75	8SH7565	75/65	8SH7560	75/60	8SH7555	75/55	H-75
	SHWG30-70	70	8SH7060	70/60	8SH7055	70/55	8SH7050	70/50	H-70
	SHWG30-65	65	8SH6555	65/55	8SH6550	65/50	8SH6546	65/46	H-65
	SHWG30-60	60	8SH6050	60/50	8SH6046	60/46			H-60
	SHWG30-55	55	8SH5546	55/46	8SH5541	55/41			H-55
SHW40	SHWG40-115	115	14SH115105	115/105	14SH115100	115/100	14SH11595	115/95	H-115
	SHWG40-110	110	14SH110100	110/100	14SH11095	110/95	14SH11090	110/90	H-110
	SHWG40-105	105	14SH10595	105/95	14SH10590	105/90	14SH10585	105/85	H-105
	SHWG40-100	100	14SH10090	100/90	14SH10085	100/85	14SH10080	100/80	H-100
	SHWG40-95	95	14SH9585	95/85	14SH9580	95/80	14SH9575	95/75	H-95
	SHWG40-90	90	14SH9080	90/80	14SH9075	90/75	14SH9070	90/70	H-90
	SHWG40-85	85	14SH8575	85/75	14SH8570	85/70	14SH8565	85/65	H-85
	SHWG40-80	80	14SH8070	80/70	14SH8065	80/65			H-80
	SHWG40-75	75	14SH7565	75/65					H-75
SHW50	SHWG50-135	135	18SH135125	135/125	18SH135120	135/120	18SH135115	135/115	H-135
	SHWG50-130	130	18SH130120	130/120	18SH130115	130/115	18SH130110	130/110	H-130
	SHWG50-120	120	18SH120110	120/110	18SH120105	120/105	18SH120100	120/100	H-120
	SHWG50-115	115	18SH115105	115/105	18SH115100	115/100	18SH11595	115/95	H-115
	SHWG50-110	110	18SH110100	110/100	18SH11095	110/95	18SH11090	110/90	H-110
	SHWG50-105	105	18SH10595	105/95	18SH10590	105/90	18SH10585	105/85	H-105
	SHWG50-100	100	18SH10090	100/90	18SH10085	100/85	18SH10080	100/80	H-100
	SHWG50-95	95	18SH9585	95/85	18SH9580	95/80	18SH9575	95/75	H-95
	SHWG50-90	90	18SH9080	90/80	18SH9075	90/75			H-90
	SHWG50-85	85	18SH8575						H-85
SHW60	SHWG60-155	155	30SH155145	155/145	30SH155130	155/130	30SH155120	155/120	H-155
	SHWG60-145	145	30SH145130	145/130	30SH145120	145/120	30SH145115	145/115	H-145
	SHWG60-130	130	30SH130120	130/120	30SH130115	130/115	30SH130110	130/110	H-130
	SHWG60-120	120	30SH120110	120/110	30SH120105	120/105	30SH120100	120/100	H-120
	SHWG60-115	115	30SH115105	115/105	30SH115100	115/100	30SH11595	115/95	H-115
	SHWG60-110	110	30SH110100	110/100	30SH11095	110/95	30SH11090	110/90	H-110
	SHWG60-105	105	30SH10595	105/95	30SH10590	105/90	30SH10585	105/85	H-105
	SHWG60-100	100	30SH10090	100/90	30SH10085	100/85	30SH10080	100/80	H-100
	SHWG60-95	95	30SH9585	95/85	30SH9580	95/80			H-95
	SHWG60-90	90	30SH9080	90/80					H-90

Video

FAQs

What is a low profile hexagon hydraulic torque wrench?

A low profile hexagon hydraulic torque wrench is a hydraulic tool designed to fit in tight spaces and provide precise and accurate torque control while tightening or loosening bolts and fasteners. It has a slim profile and hexagonal head to fit into narrow or restricted areas.

How does a low profile hexagon hydraulic torque wrench work?

Low profile hexagon hydraulic torque wrenches use hydraulic pressure to generate the required torque for tightening or loosening bolts or fasteners. They have a slim design and can fit into tight or restricted areas, providing accurate torque control.

Why use a low profile hexagon hydraulic torque wrench?

A low profile hexagon hydraulic torque wrench is particularly useful when working in confined spaces, such as on machinery or equipment with limited access. They are designed to provide precise torque control and prevent over- or under-tightening of fasteners, improving safety and efficiency.

What are the benefits of using a low profile hexagon hydraulic torque wrench?

Using a low profile hexagon hydraulic torque wrench offers several benefits, including improved accessibility in confined spaces, precise and accurate torque control, reduced risk of over- or under-tightening, and improved safety and productivity for workers.

What sizes of low profile hexagon hydraulic torque wrenches are available?

Low profile hexagon hydraulic torque wrenches are available in various sizes to accommodate different bolt or fastener sizes, typically ranging from 3/4 inch up to 2 1/2 inches. The size needed depends on the size of the nuts or bolts being tightened or loosened and the level of torque required.
