Line Boring Machine for Boring Diameter 55-1600mm
-
Model: 50-300
Boring Diameter: 55-1600 mm（2.17-63 inches）
Rotation Speed: 0-118 r/min
Feed Stoke: 400-600 mm
Single Side Feed Volume: 0-3 mm
Drive Power: Electric, Hydraulic, Servo
Precision: High Precision
Roughness: Ra 1.6-3.2
Accuracy: ±0.1-0.5mm
Installation Method: Welding
Line Boring Bar Length: 2m (standard)
Country of Origin: China
Description
Product Line: Industrial Tools
Customizable with special requirement

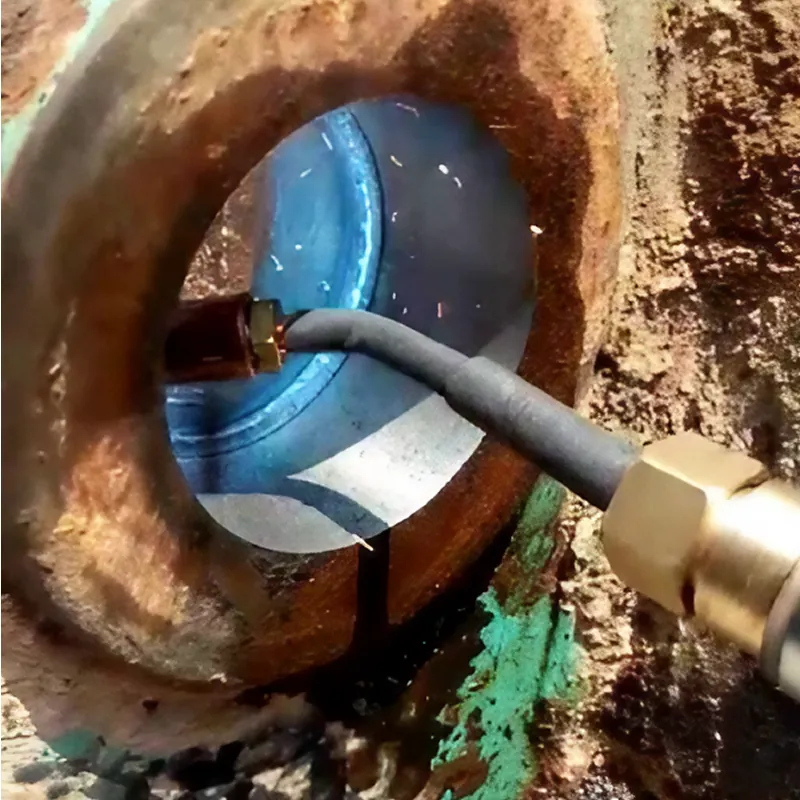

Our Line Boring Machines support boring diameters from 2.17 to 63 inches (55 to 1600 mm), with the precision and speed of stationary machines.With the option to add various accessories, it handles end-face processing and surfacing effectively. Additionally, the automatic hole repair welding machine combines boring and welding in one integrated system.
Feature:
Alloy Steel Body, Compact structure, Light weight, easy to carry out.
Small working radius, it can be adapted to variety of the narrow space, high-altitude complex processing needs.
Boring bar is made of high-intensity alloy steel, High Strength.
Can selected different connect head, can achieve different processing. Such as pipe face processing, flanges face processing, bore weld etc.

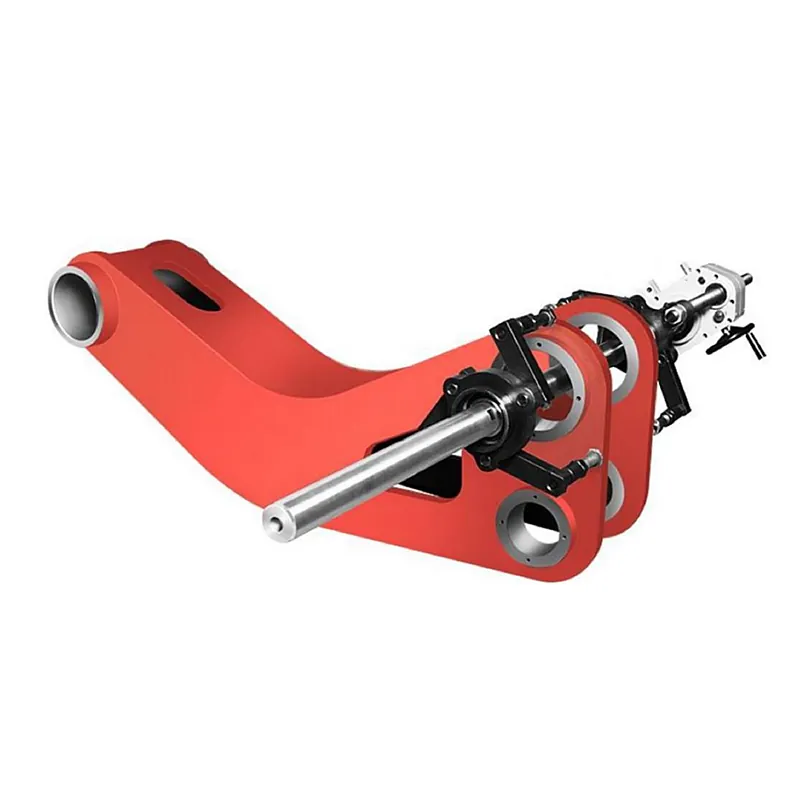

Machine is widely used in the processing and repair of excavators, loaders, crawler cranes and large marine cranes.

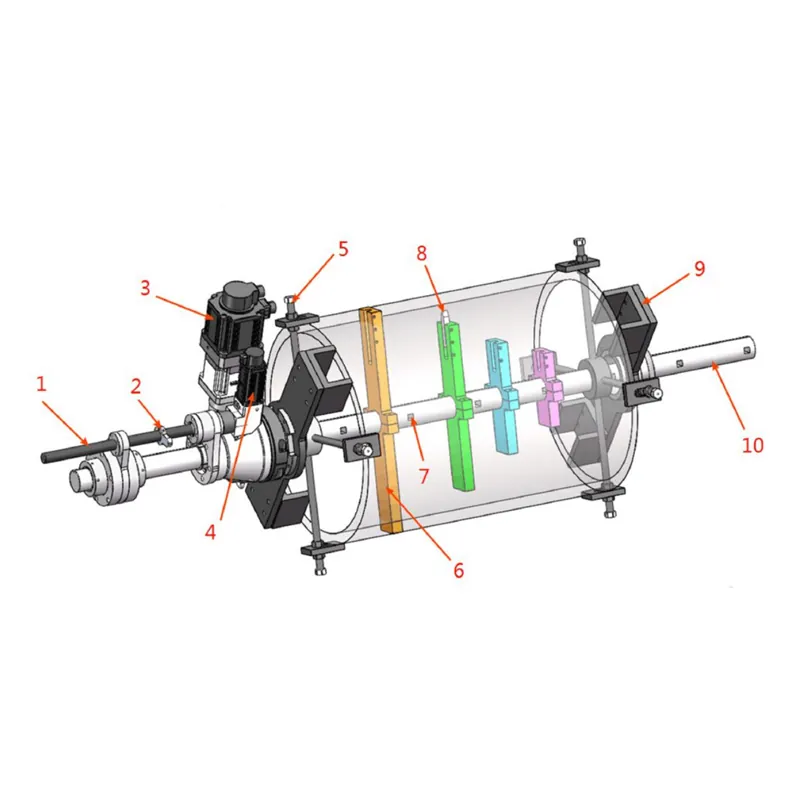

| Number | Parts Name | Number | Parts Name |
| 1 | Feed Screw Rod | 6 | Tool Holder |
| 2 | Feed Limit Block | 7 | Cutter Hole |
| 3 | Machine Driven Motor | 8 | Boring Bar Cutter |
| 4 | Feed Motor | 9 | Support Base |
| 5 | Center Device | 10 | Boring Bar |
According to the size of the inner hole of the workpiece, choose a suitable tool holder (No.6)

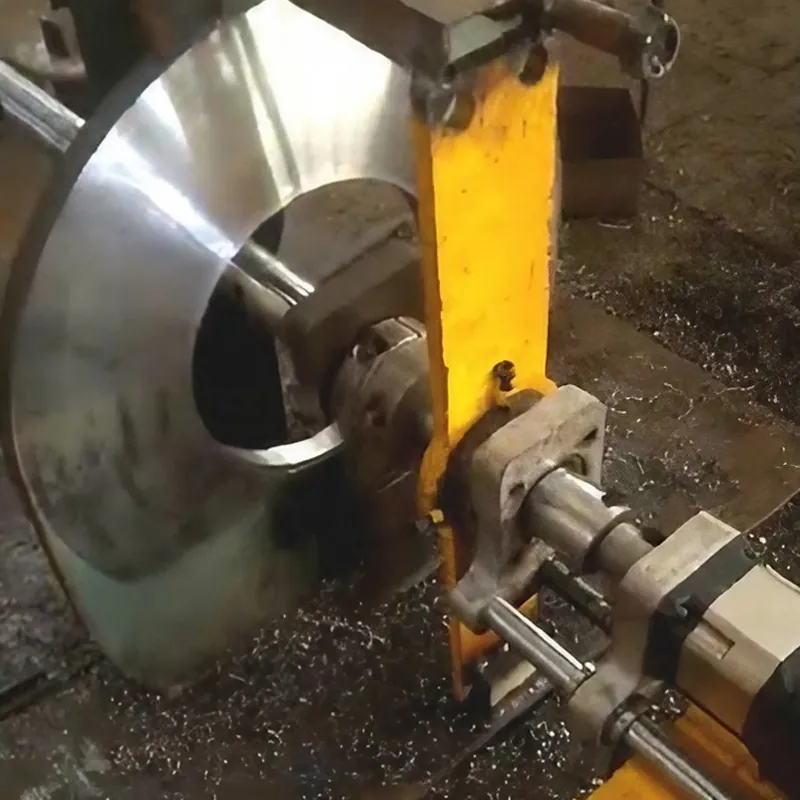

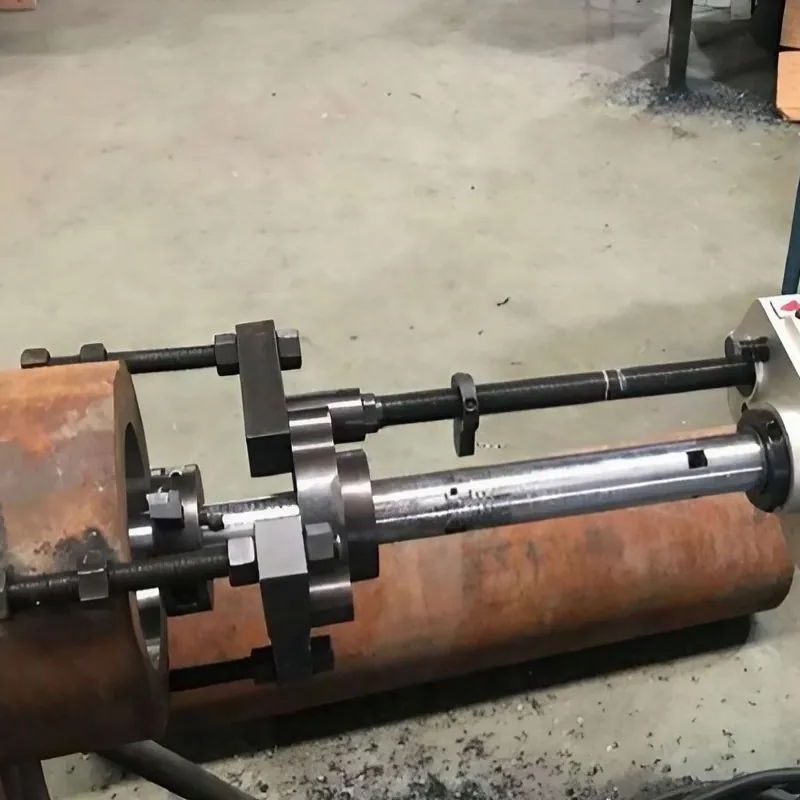

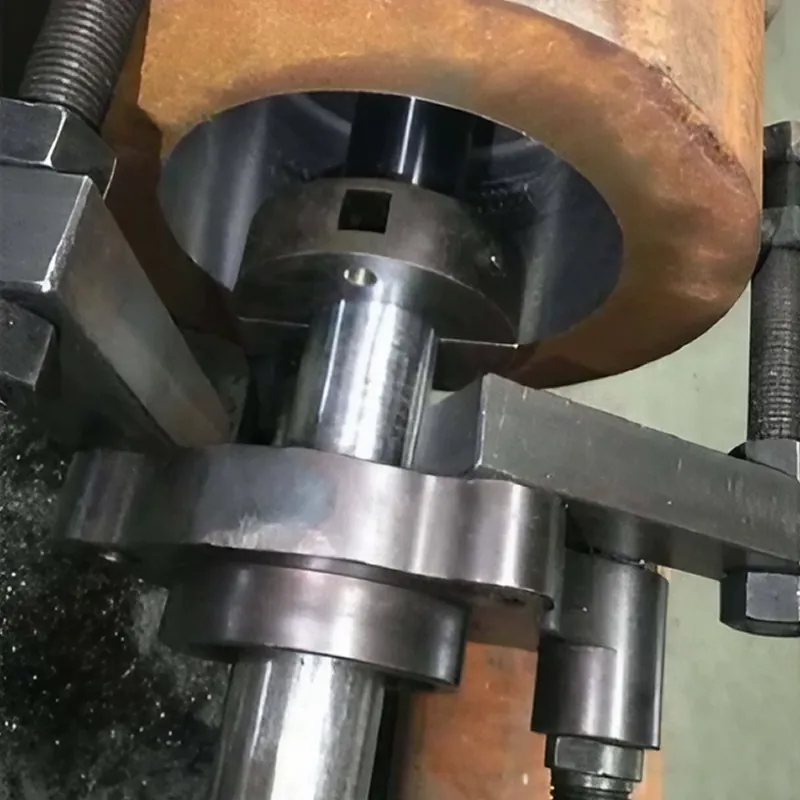

Image Gallery
Series Comparison
| Model | Boring Diameter | Rotation Speed | Feed Stoke | Single Side Feed Volume |
| mm | r/min | mm | mm | |
| 50 | 55-300 | 0-118 | 400 | 0-2 |
| 60 | 65-600 | 0-118 | 500 | 0-2.5 |
| 90 | 100-800 | 0-78 | 600 | 0-3 |
| 110 | 180-900 | 0-62 | According to boring bar length | 0-3 |
| 150 | 220-1000 | 0-55 | 0-3 | |
| 200 | 380-1200 | 0-38 | 0-3 | |
| 300 | 460-1600 | 0-28 | 0-3 |
Driven: SBS (Servo Motor-Electric ), SBH (Hydraulic )
Note: other boring diameter, other driven and bar length can be customized.
