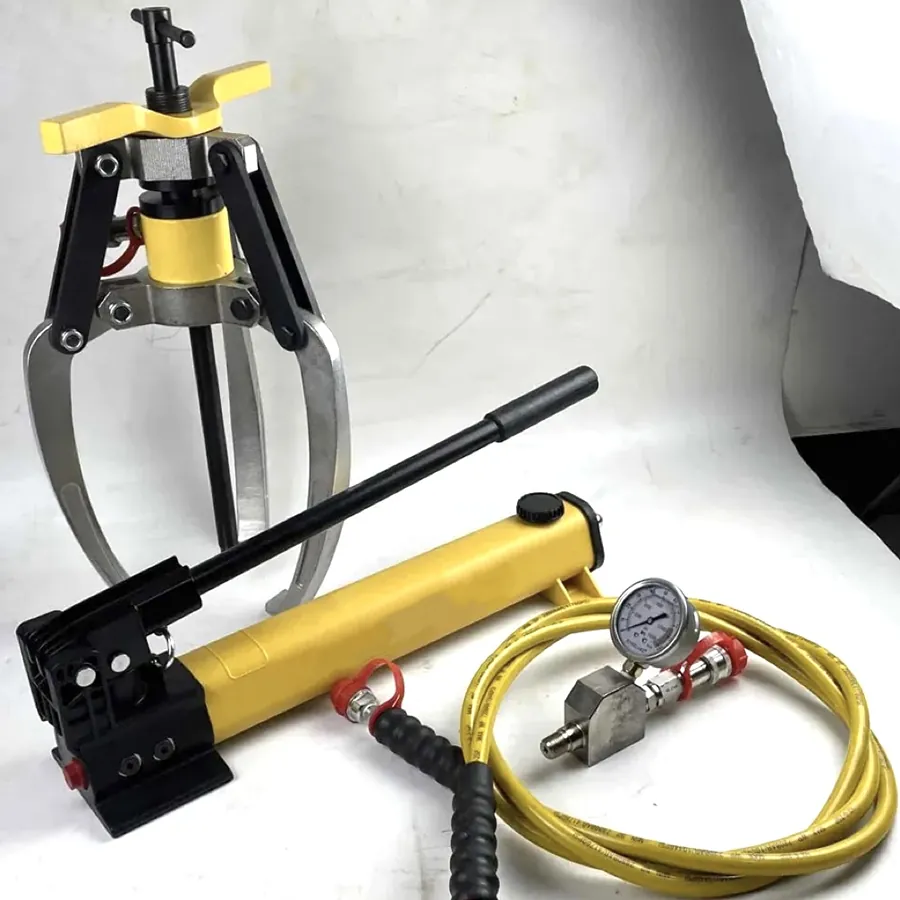

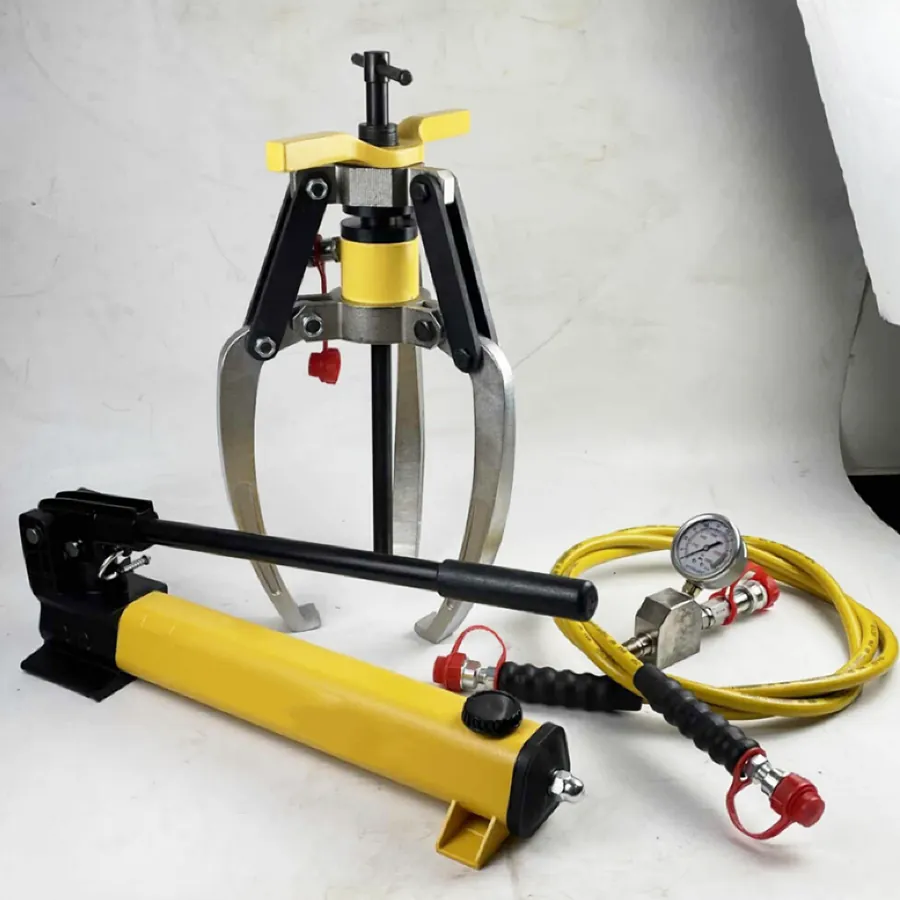

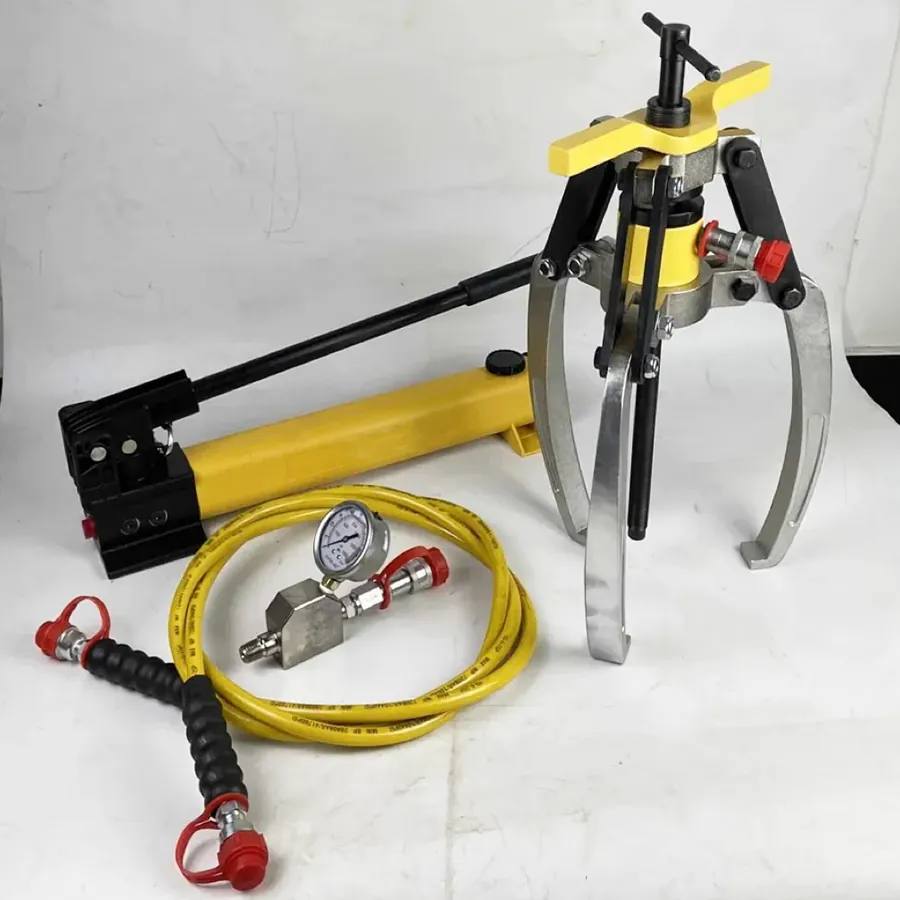

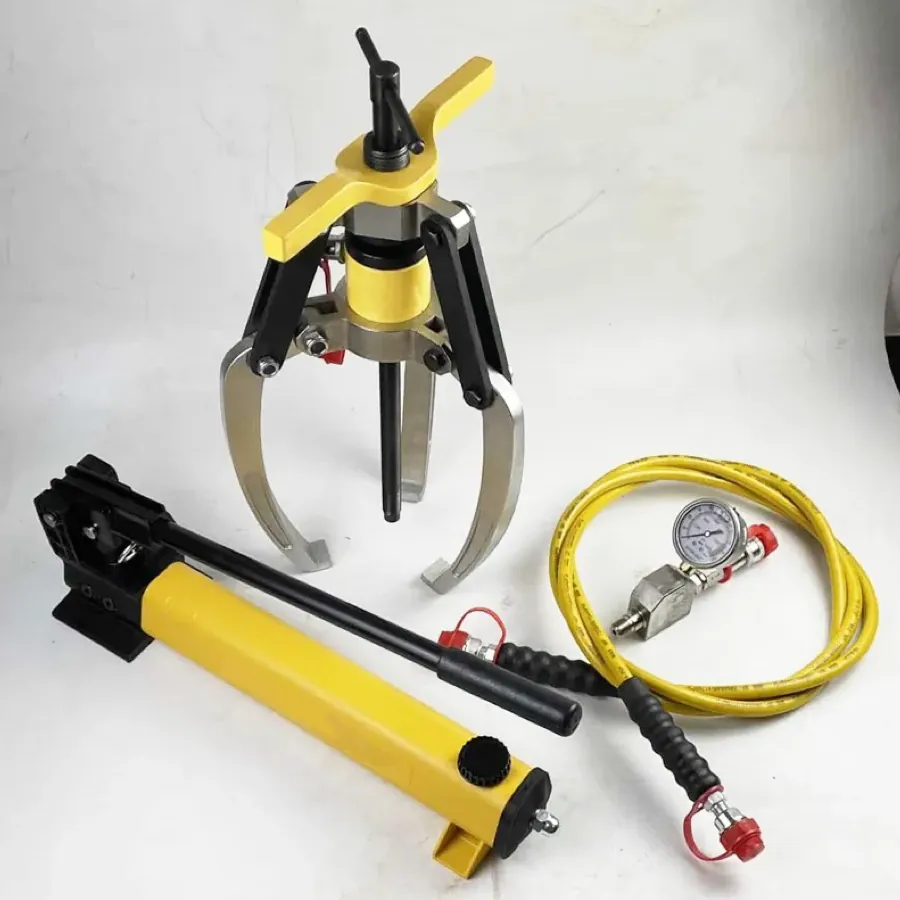

LGHS324H 24 Ton 3-Jaw Hydraulic Lock-Grip Puller Set with Hand Pump
-
Model:LGHS324H
Capacity: 24 ton | 235.4 kN
Power Source: Hand Pump
Max. Spread(mm): 480
Min. Spread(mm): 165
Max. Reach(mm): 336
Number Of Jaws: 3
Weight: 47 kg | 103.6 lbs
Maximum Operating Pressure: 700bar/10000PSI
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
Brand Name:Replacement Enerpac's LGHS324H
- LGHS364H 64 Ton 3-Jaw Hydraulic Lock-Grip Puller Set with Hand Pump LGHS324H 24 Ton 3-Jaw Hydraulic Lock-Grip Puller Set with Hand Pump LGHS314H 14 Ton 3-Jaw Hydraulic Lock-Grip Puller Set with Hand Pump LGHS310H 10 Ton 3-Jaw Hydraulic Lock-Grip Puller Set with Hand Pump
Description
Model:LGHS324H
Product Line: Industrial Tools
Customizable with special requirement
LGH-Series Pullers provide safety and ease of use with a 10150 psi Hydraulic Cylinder. Key features include:
Quick and easy mounting on a wide range of applications.
Turning the handle locks the jaws onto the application, allowing the object to be pulled free when the spindle is turned.
Hydraulically applied pulling force increases capacity and reduces operator fatigue.
Lock-on jaws offer a secure grip for safe and easy operation.
Synchronous jaw movement enables the entire job to be performed by a single operator.
*Note: Always use a point protector if the shaft end lacks a drilled center hole. A point protector is included with every puller. Wear safety goggles and gloves while using pullers.
Image Gallery

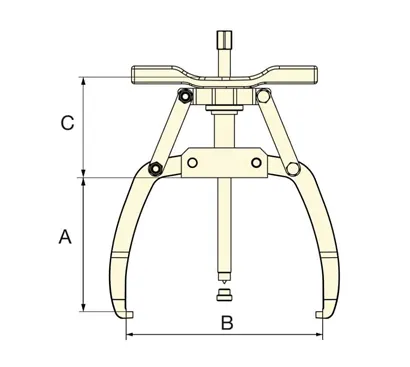

Dimensions
| Dimension A (mm) | 336 |
| Dimension C (mm) | 325 |
Series Comparison
| Model | Capacity(Ton) | Power Source | Max. Spread(mm) | Min. Spread(mm) | Max. Reach(mm) | Number Of Jaws | Weight(Kg) |
| LGHS310H | 10 ton | 98.1 kN | Hand Pump | 300 | 84 | 215 | 3 | 13 kg | 28.7 lbs |
| LGHS314H | 14 ton | 137.3 kN | Hand Pump | 380 | 125 | 260 | 3 | 18 kg | 39.7 lbs |
| LGHS324H | 24 ton | 235.4 kN | Hand Pump | 480 | 165 | 336 | 3 | 47 kg | 103.6 lbs |
| LGHS364H | 64 ton | 627.4 kN | Hand Pump | 660 | 230 | 408 | 3 | 139 kg | 306.4 lbs |
Certificate of Compliance
Literature
