IPE1215, 10 Ton H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder
-
Model:IPE1215
Capacity: 10ton | 101KN
Stroke: 254mm | 10in
Weight: 135KG | 298lbs
Maximum Operating Pressure (bar): 700/10000 PSI
Maximum Daylight×Width: 1016×473 mm
Power Source Type: Electric
Cylinder Model Number: RC1010
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1 Piece
Brand Name:Replacement Enerpac's IPE1215
- IPE20056, 200 Ton H-Frame Hydraulic Press with RR20013 Double-Acting CylinderIPE15065, 150 Ton H-Frame Hydraulic Press with RR15013 Double-Acting CylinderIPH10080, 100 Ton H-Frame Hydraulic Press with RR1006 Double-Acting Cylinder and P464 Hand PumpIPE10060, 100 Ton H-Frame Hydraulic Press with RR10013 Double-Acting CylinderIPH10030, 100 Ton H-Frame Hydraulic Press with RC10010 Single-Acting Cylinder and P462 Hand PumpIPE10010, 100 Ton H-Frame Hydraulic Press with RC10010 Single-Acting CylinderIPH5080, 50 Ton H-Frame Hydraulic Press with RR5013 Double-Acting Cylinder and P464 Hand PumpIPE5060, 50 Ton H-Frame Hydraulic Press with RR5013 Double-Acting CylinderIPE5005, 50 Ton H-Frame Hydraulic Press with RC506 Single-Acting CylinderIPH5031, 50 Ton H-Frame Hydraulic Press with RC506 Single-Acting Cylinder and P80 Hand PumpIPH5030, 50 Ton H-Frame Hydraulic Press with RC506 Single-Acting Cylinder and P462 Hand PumpIPE5010, 50 Ton H-Frame Hydraulic Press with RC5013 Single-Acting CylinderIPH3080, 30 Ton H-Frame Hydraulic Press with RR3014 Double-Acting Cylinder and P84 Hand PumpIPE3060, 30 Ton H-Frame Hydraulic Press with RR3014 Double-Acting CylinderIPH2531, 25 Ton H-Frame Hydraulic Press with RC2514 Single-Acting Cylinder and P80 Hand PumpIPE2510, 25 Ton H-Frame Hydraulic Press with RC2514 Single-Acting CylinderIPE2505, 25 Ton H-Frame Hydraulic Press with RC256 Single-Acting CylinderIPH1234, 10 Ton H-Frame Hydraulic Press with RR1010 Double-Acting Cylinder and P84 Hand PumpIPH1240, 10 Ton H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder and P392 Hand PumpIPE1215, 10 Ton H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder
Description
Model:IPE1215
Product Line: Industrial Tools
Customizable with special requirement
Capacity for work:10-100tons
Maximum plate space & width:42.0&41.5mm
Maximum work pressure:700bar
The heavy welded frame is equipped to reinforce the strength and durability
The power supply and hydraulic pump of standard"SAIVS" assures the operations high property and trouble-free.
All pressure beds are equipped with heavy-duty rubber hoses of 900 series to be durable.
25,50 and 100 tons pressure beds have a device to lift the vortex and turbine to easily adjust the plate space safely.
Type of Hydraulic Cylinder
- Single-Acting,spring return cylinder
- Double Acting, hydraulic return

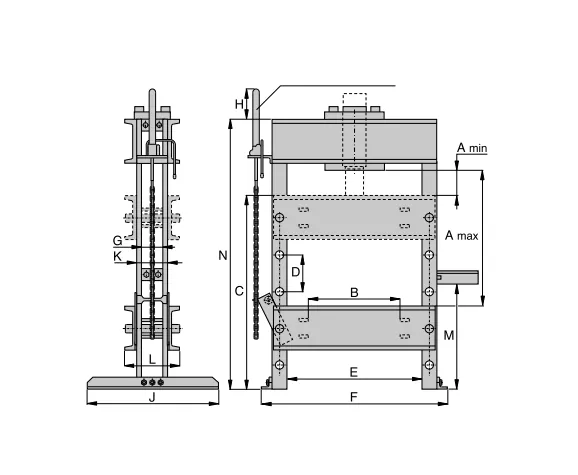

Dimensions
| A(Max) | 1016 |
| A(Min.) | 62 |
| B | * |
| C | 1187 |
| D | 127 |
| E | 473 |
| F | 632 |
| G | * |
| H | * |
| J | 755 |
| K | 108 |
| L | 189 |
| M | 889 |
| N | 1320 |
Series Comparison
| Model | Capacity/Ton | Pump | Hydraulic Cylinder Model | Cylinder Stroke/mm | Tool Feed Speed(mm/sec) | Punching Speed(mm/sec) | A(Max.) | A(Min.) | B | C | D | E | F | G | H | J | K | L | M | N | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IPE1215 | 10 | IPE220 | RC1010 | 254 | 28 | 3.8 | 1016 | 62 | * | 1187 | 127 | 473 | 632 | * | * | 755 | 108 | 189 | 889 | 1320 | 135 |
| IPH1240 | 10 | P392 | RC1010 | 254 | 7.8 | 1.7 | 1016 | 62 | * | 1187 | 127 | 473 | 632 | * | * | 755 | 108 | 189 | 889 | 1320 | 71 |
| IPH1234 | 10 | P84 | RR1010 | 254 | 11 | 1.7 | 1016 | 62 | * | 1187 | 127 | 473 | 632 | * | * | 755 | 108 | 189 | 889 | 1320 | 85 |
| IPE2505 | 25 | IPE220 | RC256 | 152 | 16 | 1.6 | 1384 | 177 | * | 1447 | 301 | 736 | 1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 274 |
| IPE2510 | 25 | IPE220 | RC2514 | 355 | 23 | 3.6 | 1384 | 177 | * | 1447 | 301 | 736 | 1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 313 |
| IPH2531 | 25 | P80 | RC2514 | 355 | 4.9 | 0.7 | 1384 | 177 | * | 1447 | 301 | 736 | 1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 281 |
| IPE3060 | 30 | IPE220 | RR-3014 | 355 | 18 | 2.8 | 1384 | 177 | * | 1447 | 301 | 736 | 1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 325 |
| IPH3080 | 30 | P84 | RR-3014 | 355 | 3.6 | 0.7 | 1384 | 177 | * | 1447 | 301 | 736 | 1028 | 101 | 336 | 762 | 133 | 271 | 673 | 1930 | 301 |
| IPE5010 | 50 | IPE220 | RC5013 | 330 | 20 | 1.9 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 495 |
| IPH5030 | 50 | P462 | RC506 | 152 | 19 | 0.7 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 439 |
| IPH5031 | 50 | P80 | RC506 | 152 | 2.3 | 0.3 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 420 |
| IPE5005 | 50 | IPE220 | RC506 | 152 | 7.7 | 0.8 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 421 |
| IPE5060 | 50 | IPE220 | RR5013 | 330 | 20 | 1.9 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 499 |
| IPH5080 | 50 | P464 | RR5013 | 330 | 19 | 0.7 | 1233 | 179 | 476 | 1371 | 263 | 730 | 1085 | 127 | 222 | 914 | 184 | 333 | 781 | 1930 | 455 |
| IPE10010 | 100 | IPE220 | RC10010 | 254 | 14 | 1 | 1079 | 177 | 508 | 1295 | 296 | 889 | 1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 776 |
| IPH10030 | 100 | P462 | RC10010 | 254 | 10 | 0.4 | 1079 | 177 | 508 | 1295 | 296 | 889 | 1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 751 |
| IPE10060 | 100 | IPE220 | RR10013 | 330 | 11 | 1 | 1079 | 177 | 508 | 1295 | 296 | 889 | 1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 816 |
| IPH10080 | 100 | P464 | RR1006 | 152 | 10 | 0.4 | 1079 | 177 | 508 | 1295 | 296 | 889 | 1295 | 171 | 222 | 914 | 222 | 395 | 841 | 1930 | 755 |
| IPE15065 | 150 | IPE220 | RR15013 | 330 | 9 | 1.4 | 1231 | 317 | 711 | 1384 | 254 | 1219 | 1706 | 231 | 333 | 1117 | 333 | 555 | 1212 | 2286 | 1794 |
| IPE20056 | 200 | IPE220 | RR20013 | 330 | 6.7 | 1 | 1231 | 317 | 711 | 1384 | 254 | 1219 | 1706 | 231 | 333 | 1117 | 333 | 555 | 1212 | 2286 | 1794 |
