700 bar Hydraulic Pump With Electric Motor

5out of5 based on5 reviews | Write a review

Electric Hydraulic Plunger Pump
Reservoir Capacity: 40 L
Flow At Rated Pressure: 1.5-2.2 L/min
Motor Size: 2.2-3 KW
Max.Operating Pressure: 700 bar / 10000psi
Weight: 56 KG
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Applications:Systems matches large
hydraulic cylinders and other
hydraulic tools of single and
double action.
10000PSI Hydraulic Power Pack 110 / 220 Volt Electric Hydraulic Pump For Small Hydraulic Tools 700 bar/10000PSI Electric Hydraulic Pump

PDF DOWNLOAD

Description

Product Line: Industrial Tools

Customizable with special requirement

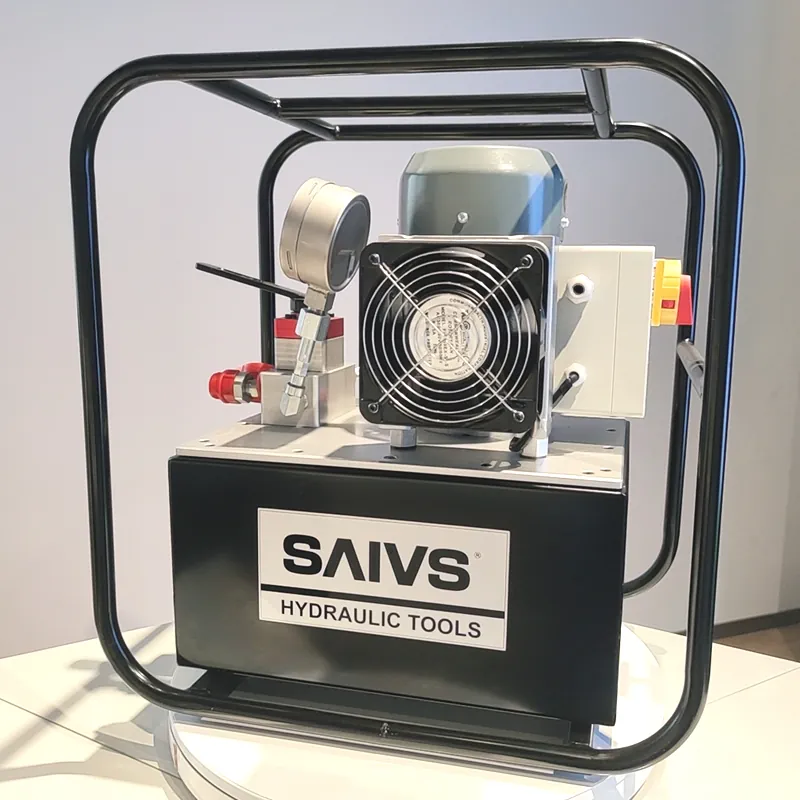

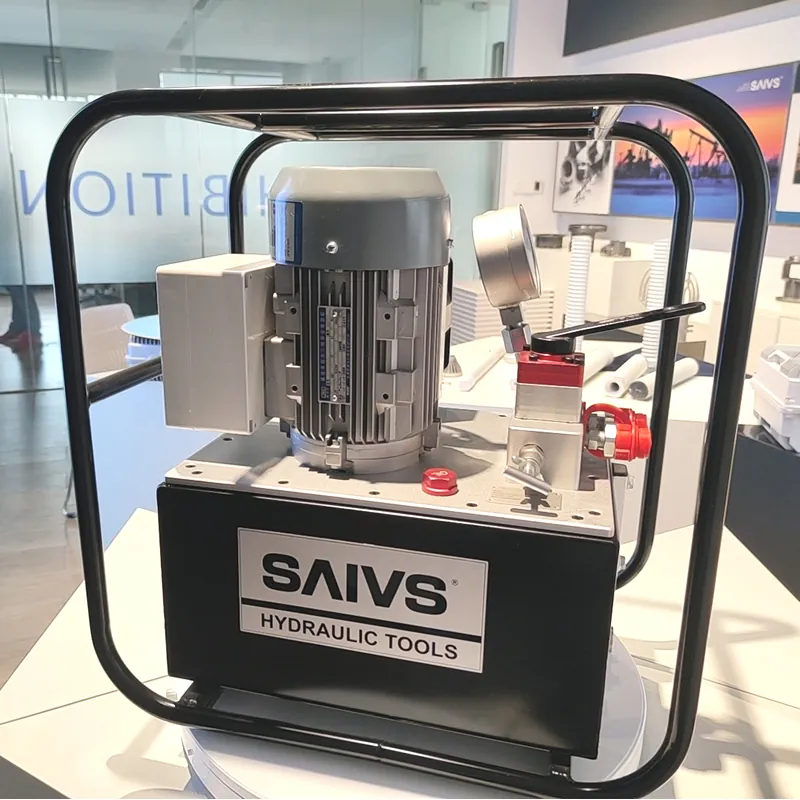

Electric Pump motor with light weight aluminum reservoir, and integrated heat sink for easy cooling .

Two-speed design reduces cycle times for improved productivity.

Built-in safety valve to prevent overloading.

Externally adjustable relief valve allows control of operating pressure without opening the pump .

Different flow control valve and cooler fit harsh industrial environment.

Protection circuit is designed to avoid current overload, prevent the damage to pump motor.

High Strength molded shroud protects the electrical componentsclass motor from contamination and damage. Easy to carry and lift.

Equipped with liquid level temperature display.

Perfect compatible with middle power and big size (doubleacting & Single-Acting) cylinders or other hydraulic tools .

Electric Pump Systems matches large Hydraulic Cylinders and other hydraulic tools of single and double action.

Ordering Example:

Model: PE25 - T380/50 - 40VM43M - K

S220/50 = Single Phase, 220V: 50HZ

T380/60 = Three Phase, 380V: 60HZ

The Power choice depend on the difference working situation.

Represents P series of electric hydraulic pumps, whose input power is single phase 380V/50HZ; reservoir capacity is 40L, With VM43M by-pass three-four-way manual reversing valve and cooler.

Please check the ordering instructions of P series pumps for details.

SAIVS's P series pump is new super higher pressure pump pack, it use advanced manufacturing techniques, with longer working life and smooth pressure. It suitable for all kinds of hydraulic tools, provides hydraulic power, as per the working situation.

Dimensions

PE15 PE25 Series Electric Pump 3.jpg

Model Number	Oil Flow (L/min)		Pressure (bar)		Power	Usable Oil Capacity	Input Power*	Weight	Dimensions
Model Number	High Pressure	Low Pressure	High Pressure	Low Pressure	(KW)	(L)	Input Power*	(kg)	LXWXH(mm)
PE15	1.5	8	700	70	2.2	40	200V-575V 3Ph 50HZ/60HZ	65	605525790
PE25	2.2	9.3	700	70	3	40	200V-575V 3Ph 50HZ/60HZ	66	605525790

Video

FAQs

What is an oil gear electric pump?

An oil gear electric pump is a type of hydraulic pump designed to provide fluid power to hydraulic equipment. it uses an electric motor to drive the gears or pistons that move the hydraulic fluid through the system.

How do i choose the right oil gear electric pump for my application?

Choosing the right oil gear electric pump will depend on several factors, including the required flow rate, pressure rating, and motor specifications. it's important to consult with the manufacturer or a hydraulic systems expert to ensure that the pump meets the specific needs of your application.

Do oil gear electric pumps require regular maintenance?

Yes, regular maintenance is required for optimal performance and extended lifespan of oil gear electric pumps. maintenance tasks may include checking and replacing filters, cleaning, and lubricating the moving parts.

Are oil gear electric pumps noisy?

The noise level of an oil gear electric pump can depend on the model and manufacturer. while they can sometimes produce noise levels above acceptable limits, many manufacturers offer noise-reducing options such as sound enclosures or vibration isolators.

Can oil gear electric pumps be used with any type of hydraulic fluid?

Oil gear electric pumps are generally compatible with a variety of hydraulic fluids, including mineral oils, synthetic oils, and biodegradable oils. however, it's important to ensure that the hydraulic fluid being used is compatible with the materials used in the construction of the pump to avoid damage or failure.
