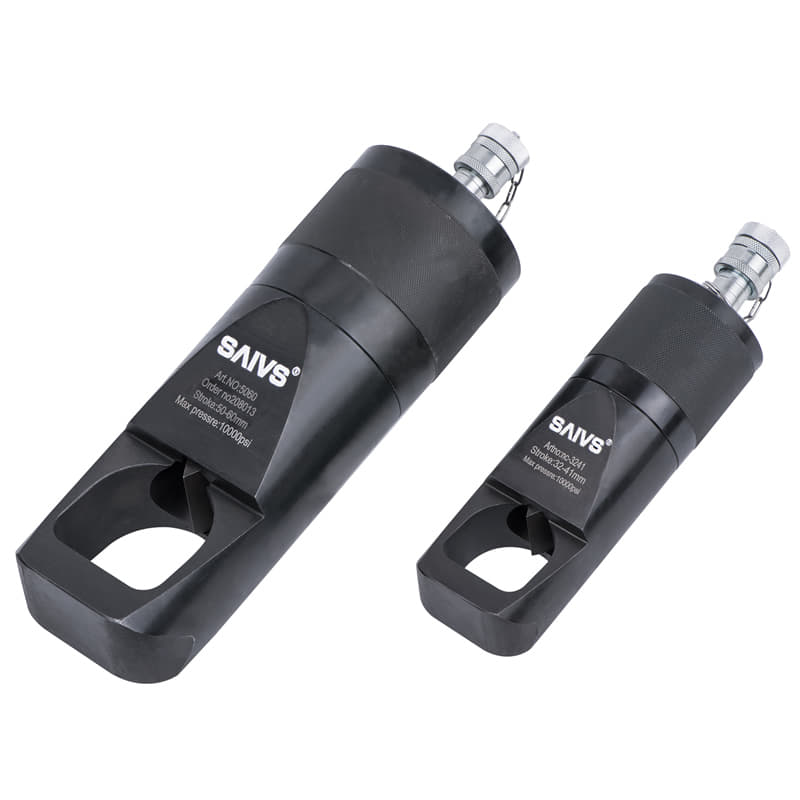

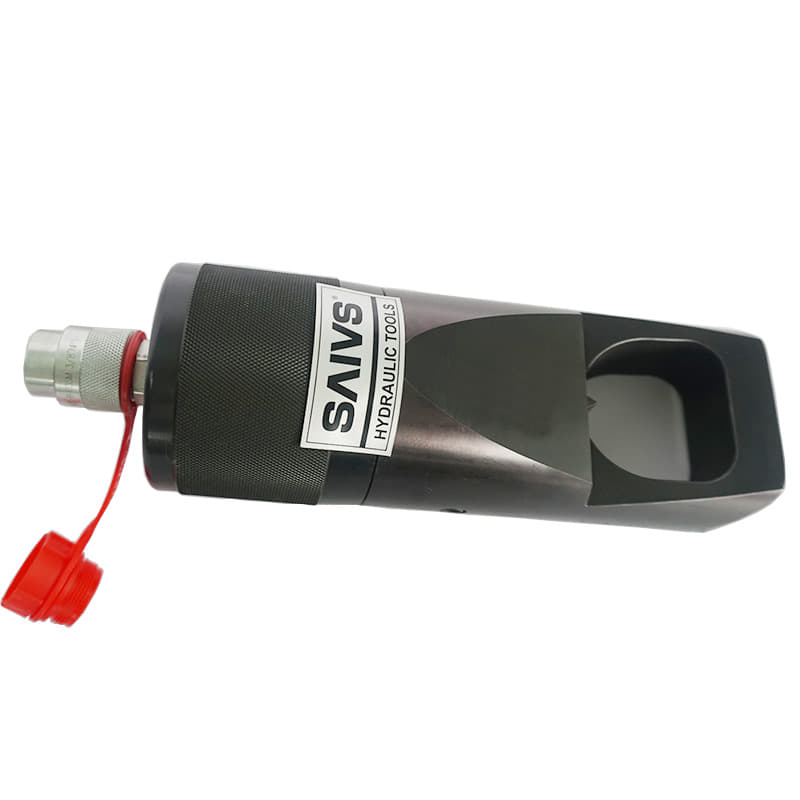

Hydraulic Nut Cutter Hydraulic Bolt Cutter SNS Series
-
Hydraulic Nut Splitters from 103 to 193 Ton for cutting nuts
Capacity: 103 ton- 193ton
Bolt Range: M45 - M90
Maximum Operating Pressure: 700bar / 10000psi
Weight: 37-71.5KG
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
- SNC Series Hydraulic Nut Splitters SFSH SFSM Series Hydraulic Flange Spreaders
Description
Product Line: Industrial Tools
Customizable with special requirement
Uniquely designed to suit standard ANSI B16.5/ BS1560 flanges.
Single-Acting, Spring Return cylinder.

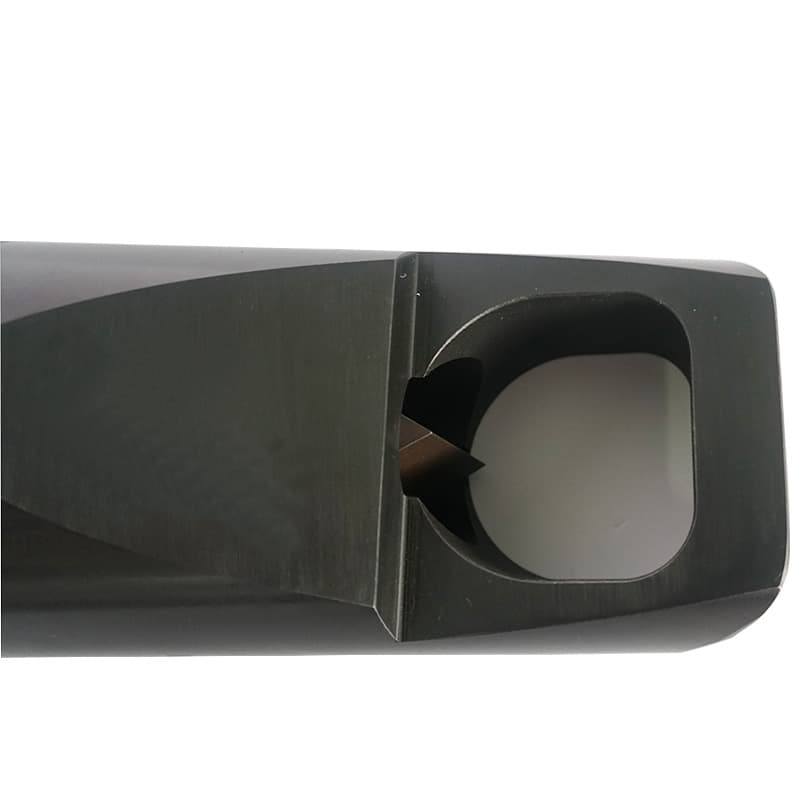

Tri-blade technology provides three cutting surfaces on a single blade.
Interchangeable heads provide maximum nut range flexibility.
Preset scale allows controlled blade extension ,which avoids damage to bolt threads.
Grip tape and handle included for more secure manoeuvring.
Nickel-plated cylinder body for excellent corrosion protection and improved durability in harsh environments.
Internal Pressure Relief Valve for overload protection.
The SNS series includes cylinder and working head. The cylinder is compatible with different size of the working head for the adaptability of different job requirement.
To order additional work head, cylinder or spare tool head, or to order in sets, see the following table.It can be connected manual pump, portable electric tool pump, portable air tool pumps.
Optional Pumps: SPS Series Manual Pump, PE4 Small Electric Pump and PA4 Small Air hydraulic pump.

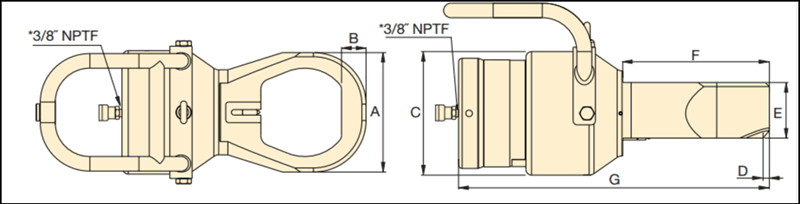

Dimensions
| Bolt Range | Hexagon Nut Range | Capacity | Oil Capacity | Model Number | Dimensions(mm) | Weight | Cylinder | Cutting Head | Replacement Chisel Model Number | ||||||
| (mm) | (mm) | ton(kN) | (cm³) | A | B | C | D | F | H | J | (kg) | ||||
| M45-M52 | 70-80 | 103(917) | 377 | SNS-7080 | 132 | 28 | 180 | 8 | 81 | 186 | 412 | 37.0 | SNSC-70 | SNSH-7080 | SNSB-70 |
| M45-M56 | 70-85 | 103(917) | 377 | SNS-7085 | 145 | 30 | 180 | 8 | 81 | 196 | 422 | 37.5 | SNSC-70 | SNSH-7085 | SNSB-70 |
| M45-M64 | 70-95 | 103(917) | 377 | SNS-7095 | 160 | 32 | 180 | 8 | 81 | 201 | 432 | 38.5 | SNSC-70 | SNSH-7095 | SNSB-70 |
| M45-M72 | 70-105 | 103(917) | 377 | SNS-70105 | 174 | 35 | 180 | 9 | 81 | 209 | 443 | 39.5 | SNSC-70 | SNSH-70105 | SNSB-70 |
| M76-M80 | 110-115 | 193(1711) | 819 | SNS-110115 | 189 | 36 | 234 | 3.7 | 111 | 234 | 471 | 68.8 | SNSC-110 | SNSH-110115 | SNSB-110 |
| M76-M90 | 110-130 | 193(1711) | 819 | SNS-110130 | 219 | 41 | 234 | 2.5 | 111 | 242 | 493 | 71.5 | SNSC-110 | SNSH-110130 | SNSB-110 |
