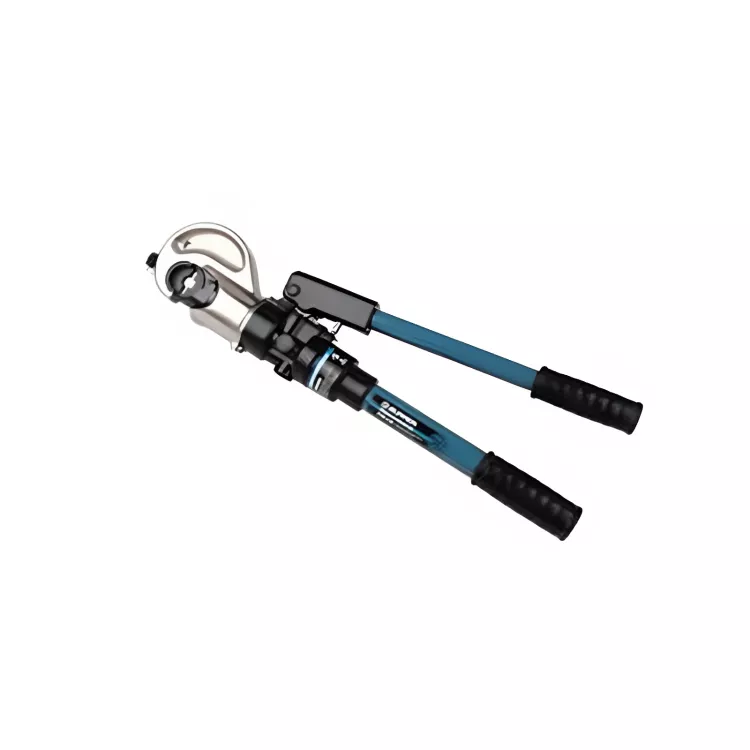

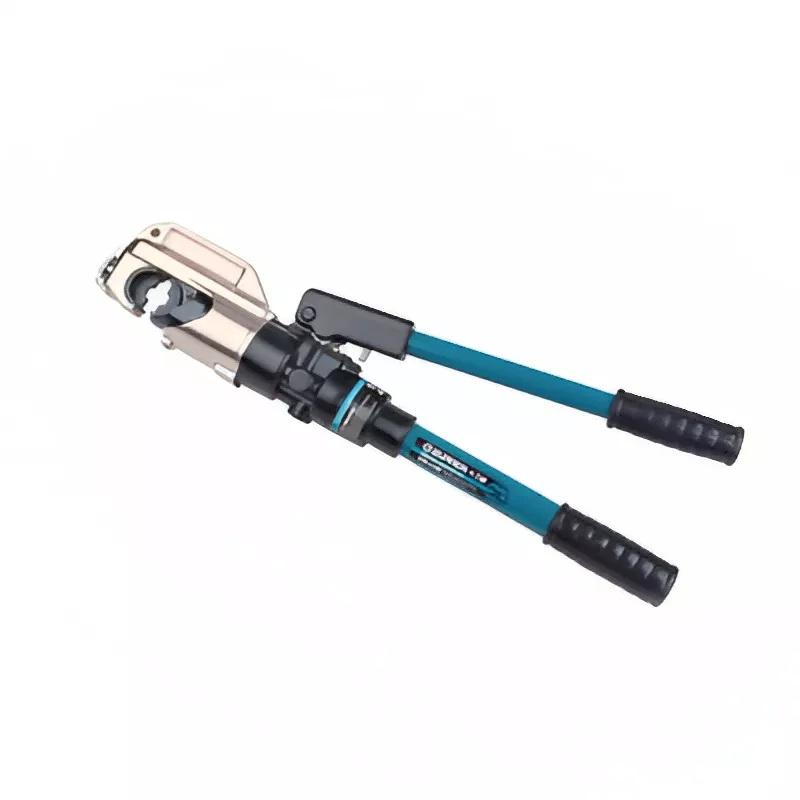

Hydraulic Crimp Tools CYO-410/CYO-430/CYO-510

5out of5 based on11 reviews | Write a review

Model:CYO-410/CYO-430/CYO-510
Crimping force:116kN/126kn
Crimping range:Cu50-400mm²
Stroke:30mm
Oil capacity:145cc
Weight:7kg-8KG
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Packing:Steel case/Plastic box
CYO-510,Hydraulic Crimp Tools CYO-430,Hydraulic Crimp Tools CYO-410,Hydraulic Crimp Tools

PDF DOWNLOAD

Description

Product Line: Industrial Tools

Customizable with special requirement

Technical Specification：

Hydraulic Crimp Tools CYO-410

Model:CYO-410

Crimping force:116kN

Crimping range:Cu50-400mm²

Stroke:30mm

Oil capacity:145cc

Weight:7kg

Packing:Steel case/Plastic box

Features:

1.Design to accommodate hexagonal dies for applying compression lugs to copper, aluminum conductors.

2.Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.

3.Manual retraction when the max pressure reached by twisting the handle.

4.The glass fiber operation insulates the stick can bear the electric voltage 200Kv, keeping on the minute.

5.180 rotatable head.

6.The pressure outside the body adjusts to press the valve,don't need the whole structure to lie down.

Technical Specification:

Hydraulic Crimp Tools CYO-430

Model:CYO-430

Crimping force:116kN

Crimping range:Cu50-400mm²

Stroke:30mm

Oil capacity:145cc

Weight:7kg

Packing:Steel case/Plastic box

Accessories:50,70,95,120,150,185,240,300,400

Technical Specification ：

Hydraulic Crimp Tools CYO-510

Model:CYO-510

Crimping force:126kN

Crimping range:Cu50-400mm²

Stroke:38mm

Oil capacity:145cc

Weight:8kg

Packing:Steel case/Plastic box

Accessories:50,70,95,120,150,185,240,300,400

Features:

1.Design to accommodate hexagonal dies for applying compression lugs to copper, aluminum conductors.

2.Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.

3.Manual retraction when the max pressure reached by twisting the handle.

4.The glass fiber operation insulates the stick can bear the electric voltage 200kv, keeping on the minute.180°rotatable head.

5.The pressure outside the body adjusts to press the valve, don't need the whole structure to lie down.

Dimensions

Technical Specification	CYO-410	CYO-430	CYO-510
Model	CYO-410	CYO-430	CYO-510
Crimping force	116kN	116kN	126kN
Crimping range	Cu50-400mm²	Cu50-400mm²	Cu50-400mm²
Stroke	30mm	30mm	38mm
Oil capacity	145cc	145cc	145cc
Weight	7kg	7kg	8kg
Packing	Steel case/Plastic box	Steel case/Plastic box	Steel case/Plastic box
Accessories	N/A	50,70,95,120,150,185,240,300,400	50,70,95,120,150,185,240,300,400

FAQs

What is the best way to find affordable hydraulic crimp tools?

One of the most effective ways to find affordable hydraulic crimp tools is by comparing prices from different suppliers and manufacturers. Additionally, you can also explore online marketplaces and auction sites where sellers offer competitive pricing, and you can look for promotions and discounts that could further bring down the cost.

How do I choose a reliable hydraulic crimp tool supplier or manufacturer?

When choosing a hydraulic crimp tool supplier or manufacturer, consider factors such as their reputation in the industry, customer reviews, warranties and guarantees offered, experience in manufacturing hydraulic crimp tools, and quality of customer services provided. Additionally, checking if the company has certifications, such as ISO or CE, can help confirm their commitment to meeting quality standards.

What are some key features to look for when buying hydraulic crimp tools?

Some essential features to look for when purchasing a hydraulic crimp tool include things like durability, precision, power, portability, range of wires it can handle, and the type of crimps it can create. Additionally, you may want to look for models that come with additional features such as interchangeable dies, adjustable pressure settings, rapid advance technology, and easy-to-use controls.
