Hydraulic Compressor Crimping force 60 100 200ton
-
Model:SCH-60/SCH-60A/SCH-100/SCH-200
Crimping force:60Ton - 200Ton
Stroke:22mm-40mm
Rated Pressure:700bar/10000PSI
Crimping range:≤Φ60mm(Copper/Al tube),≤Φ26mm(Steel tube)
Oil cylinder typeDouble acting type
Weight:220kg -85kg
Package:Steel box
Description
Product Line: Industrial Tools
Customizable with special requirement

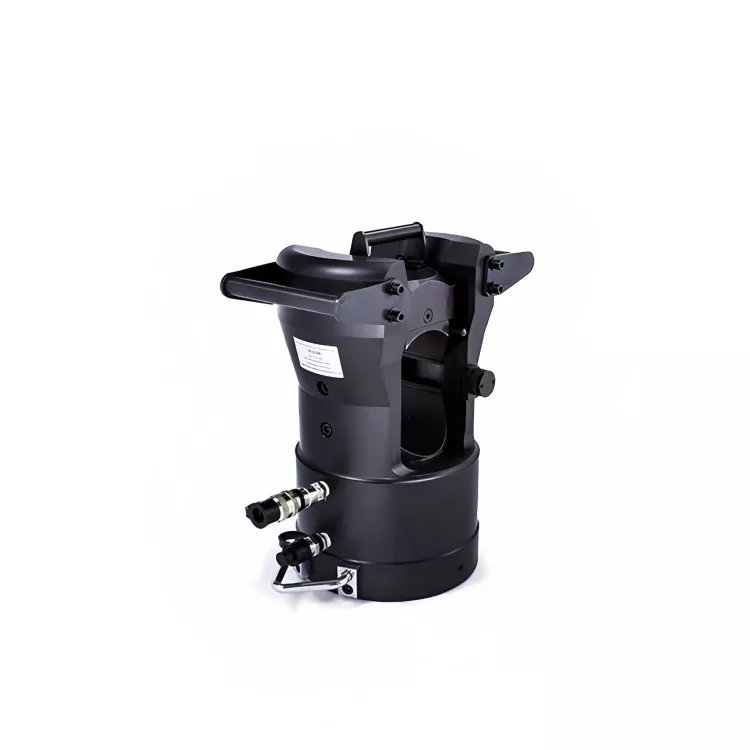

Hydraulic Compressor SCH-60A
Technical Specification
Model:SCH-60A
Crimping force:60Ton
Stroke:38.5mm
Rated Pressure:700bar
Crimping range:≤Φ60mm(Copper/Al tube),≤Φ26mm(Steel tube)
Weight:20kg
Package:steel box
Features:
5.Suitable for crimping the splicing sleeve and strain clamps of overhead ACSR and steel stranded wire for 110kV to 220kV transmission lines.
6.The head is a fixed seat for the upper mold which can be rotated and quickly opened to crimp the conductor easily.
7.The base can be disassembled and the crimp head can be transported upside down for aerial work
8.Equipped with quick couplings for easy disassembly
9.Connecting with Single Acting hydraulic pump

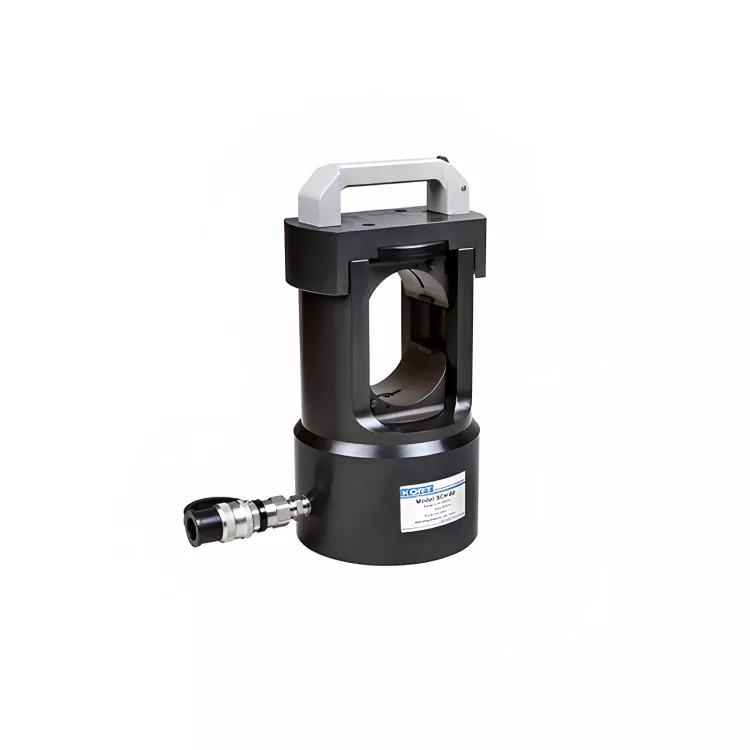

Hydraulic Compressor SCH-100
Technical Specification
Model:SCH-100
Crimping force:100Ton
Stroke:22mm
Rated Pressure:700bar
Crimping range:≤Φ76mm(Copper/Al tube),≤Φ36mm(Steel tube)
Oil cylinder type: Double Acting type
Weight:31kg
Package:steel box
Features:
1.Suitable for crimping of conductors and ground wires below ACSR720
2.Connect the double acting hydraulic pump station and the double acting Hydraulic Cylinder can shorten the piston resetting time.
3.Double acting hydraulic cylinder can avoid the problem of spring fatigue and slow return.
4.Equipped with quick couplings for easy disassembly
5.Connecting with double acting hydraulic pump

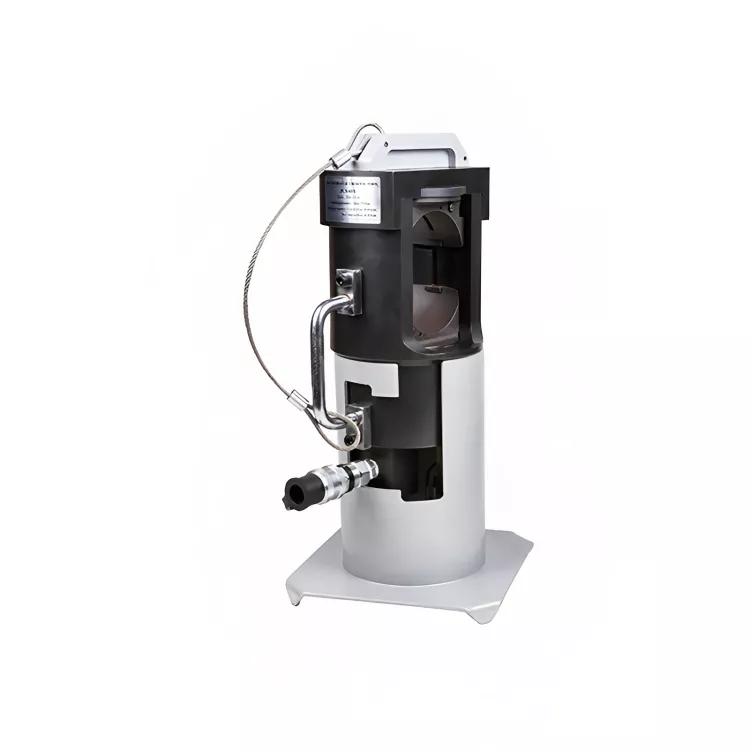

Hydraulic Compressor SCH-200
Technical Specification
Model:SCH-200
Crimping force:200Ton
Stroke:40mm
Rated Pressure:700bar
Crimping range:≤Φ100mm(Copper/Al tube),≤Φ50mm(Steel tube)
Oil cylinder type: double acting type
Weight:85kg
Package:steel box
Features:
10.Suitable for crimping of conductors and ground wires below ACSR1440
11.Connect the double acting hydraulic pump station and the double acting hydraulic cylinder can shorten the piston resetting time.
12.Double acting hydraulic cylinder can avoid the problem of spring fatigue and slow return.
13.Equipped with quick couplings for easy disassembly
14.Connecting with double acting hydraulic pump
Dimensions
| Technical Specification | SCH-60 | SCH-60A | SCH-100 | SCH-200 |
|---|---|---|---|---|
| Model | SCH-60 | SCH-60A | SCH-100 | SCH-200 |
| Crimping force | 60T | 60T | 100T | 200T |
| Stroke | 38mm | 38.5mm | 22mm | 40mm |
| Rated Pressure | 700bar/10000PSI | 700bar/10000PSI | 700bar/10000PSI | 700bar/10000PSI |
| Crimping range | ≤Φ60mm (Copper/Al tube), ≤Φ26mm (Steel tube) | ≤Φ60mm (Copper/Al tube), ≤Φ26mm (Steel tube) | ≤Φ76mm (Copper/Al tube), ≤Φ36mm (Steel tube) | ≤Φ100mm (Copper/Al tube), ≤Φ50mm (Steel tube) |
| Oil cylinder type | Double acting type | Double acting type | Double acting type | Double acting type |
| Weight | 25kg | 20kg | 31kg | 85kg |
| Package | Steel box | Steel box | Steel box | Steel box |
FAQs
How do I choose the right hydraulic compressor for my needs?
Answer: Before buying a hydraulic compressor, it's essential to consider factors such as the crimping force, stroke length, rated pressure, crimping range, oil cylinder type, weight, and package. It's also crucial to ensure that the hydraulic compressor you choose can handle your particular application and work environment.
Where can I find a hydraulic compressor factory or manufacturer with affordable prices?
Answer: Many hydraulic compressor factories or manufacturers offer competitive prices, but it's important to research and compare prices from multiple sources to get the best deal. Some popular online platforms where you can find and compare prices for hydraulic compressors include Alibaba, Made-in-China, and Global Sources. Additionally, you can contact manufacturers directly to inquire about their pricing options.
