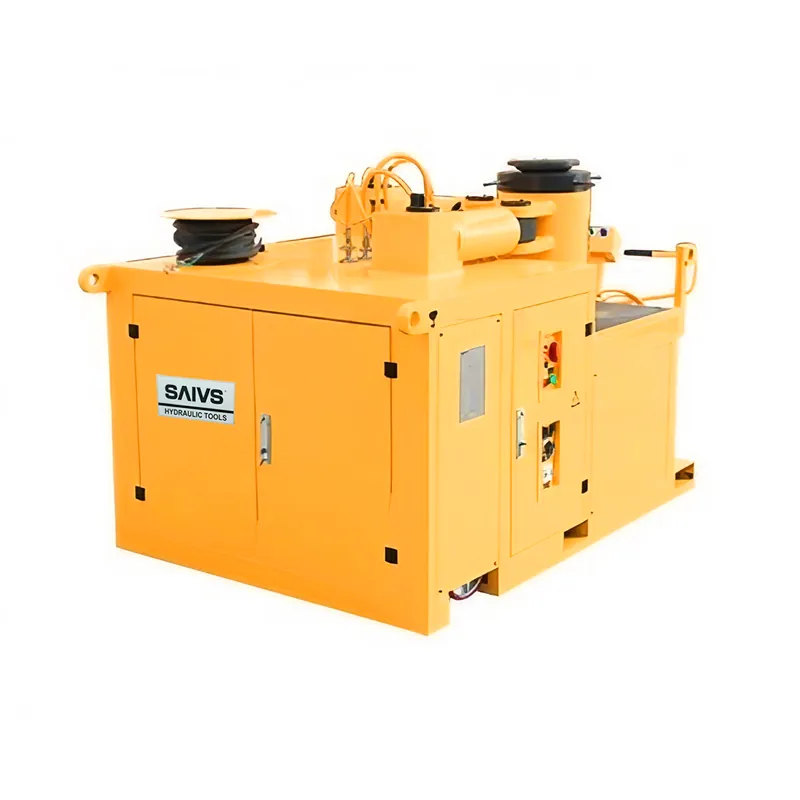

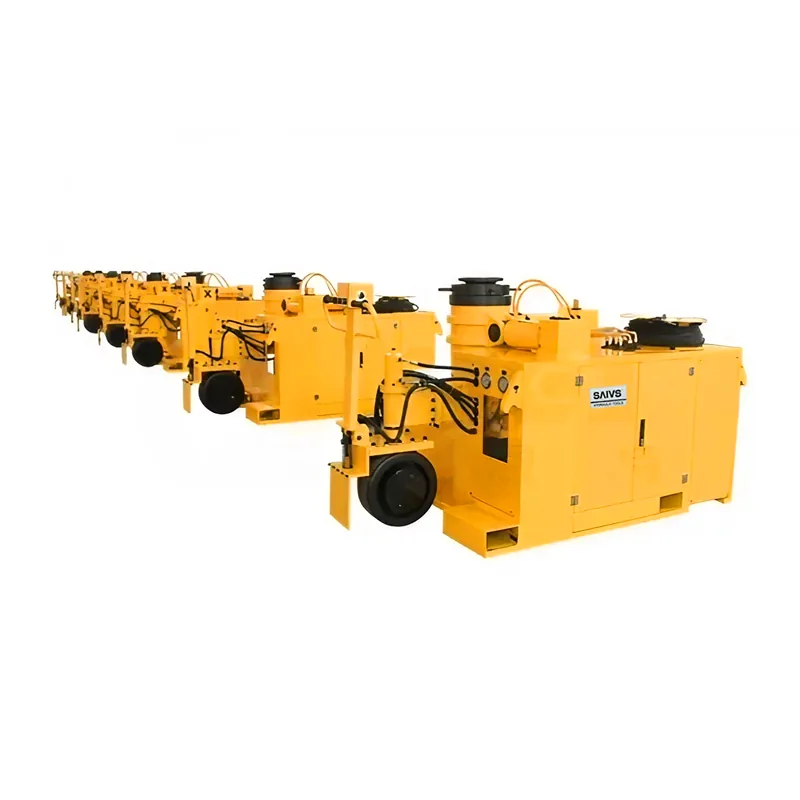

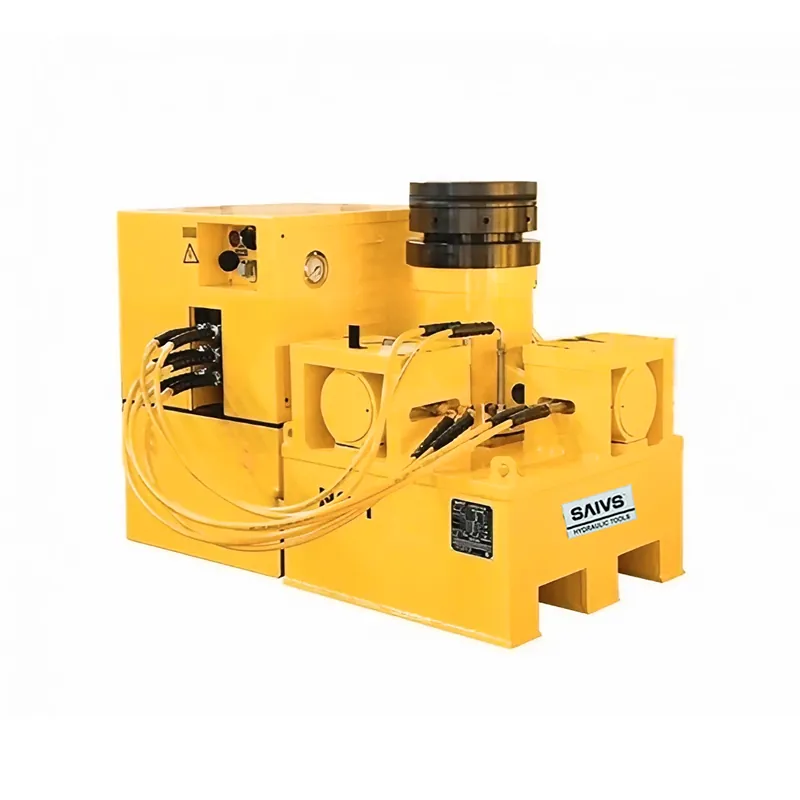

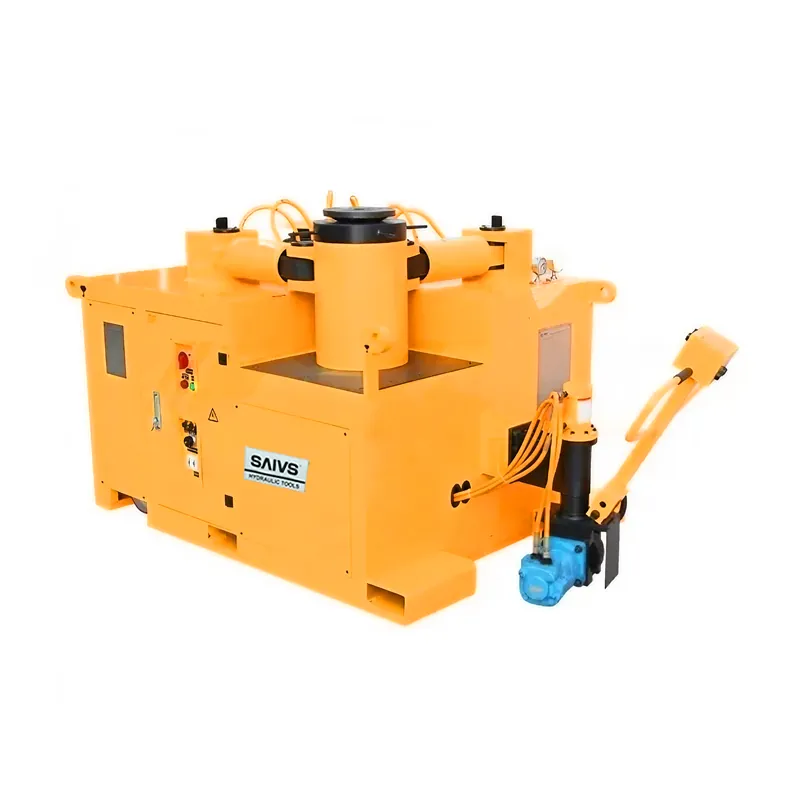

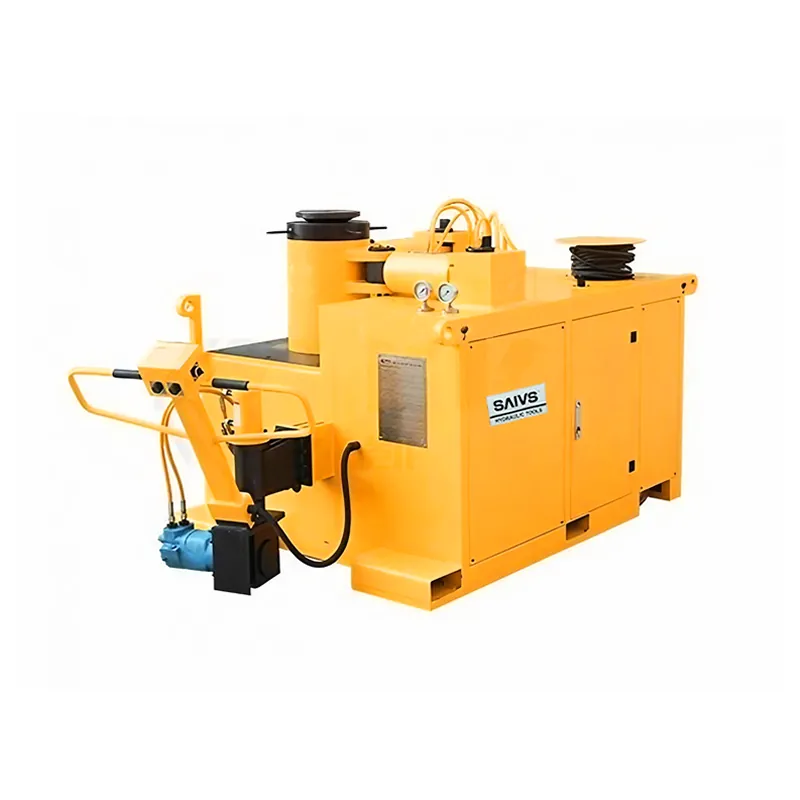

HPC, 100-600 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System
-
Model: HPC-100|HPC-200|HPC-300|HPC-400|HPC-500|HPC-600
Capacity: 100-600 ton
Working Pressure: 16/20/63/65 MPa
Stroke: 150-250 mm
Oil Tank Capacity: 120/130 L
Moving Speed: 6 m/min
Power: AC 380V/50Hz
Acting Way: Double Acting
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
- HPD, 100-200 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPC, 100-600 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPB, 50-1000 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPA, 60-110 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System
Description
Product Line: Industrial Tools
Customizable with special requirement
The equipment adopts a 70MPa high-pressure Hydraulic System with a compact structure and light weight. Mechanical-electrical-hydraulic integration design, flexible operation. Standard with line control handle can realize segmental adjustment, continuous or point operation, also can be equipped with linkage master console to improve work efficiency. Hydraulic lock, lifting valve group, mechanical lock triple security to ensure the safety of equipment and personnel. Hydraulic motor-driven traveling, easy to position, the top 5 ° can be tilted saddle to adapt to uneven working conditions. Modularized design is convenient for maintenance and upgrading.

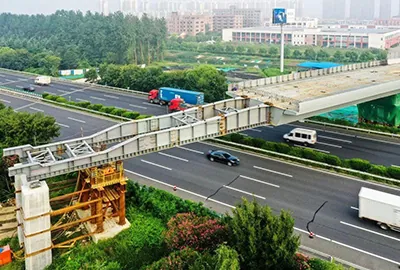

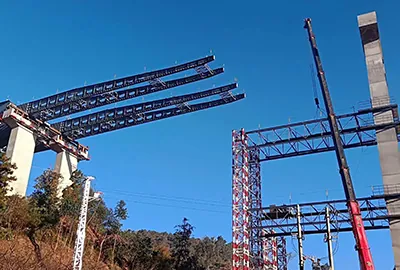

Applications
|
|
Series Comparison
| Model | Vertical Direction Z | Horizontal Direction X / Y | Working Pressure (MPa) | Working Pressure (MPa) | Moving Speed (m/min) | Flow(L/min) | Flow(L/min) | Power | Oil Tank Capacity (L) | Dimensions(mm) | Weight (Kg) | |||
| Lifting T | Stroke(mm) | Pushing T | Pulling T | Stroke(mm) | ||||||||||
| HPC-100 | 100 | 250 | 63 | 33.3 | 150 | 63MPa | 20MPa | 6 | 2 | 4 | AC 380V/50Hz | \ | 2220x1240x1300 | \ |
| HPC-200 | 200 | 250 | 63 | 33.3 | 170 | 63MPa | 20MPa | 6 | 2 | 4 | AC 380V/50Hz | 130 | 2220x1250x1300 | 2945 |
| HPC-300 | 300 | 250 | 60 | 60 | 150 | 65MPa | 16MPa | 6 | 2 | 6 | AC 380V/50Hz | 120 | 2180x1500x1540 | 4560 |
| HPC-400 | 400 | 250 | 60 | 60 | 150 | 65MPa | 16MPa | 6 | 2 | 6 | AC 380V/50Hz | 120 | \ | \ |
| HPC-500 | 500 | 250 | 60 | 60 | 150 | 65MPa | 16MPa | 6 | 2 | 6 | AC 380V/50Hz | \ | \ | \ |
| HPC-600 | 600 | 250 | 60 | 60 | 150 | 65MPa | 16MPa | 6 | 2 | 6 | AC 380V/50Hz | \ | \ | \ |
