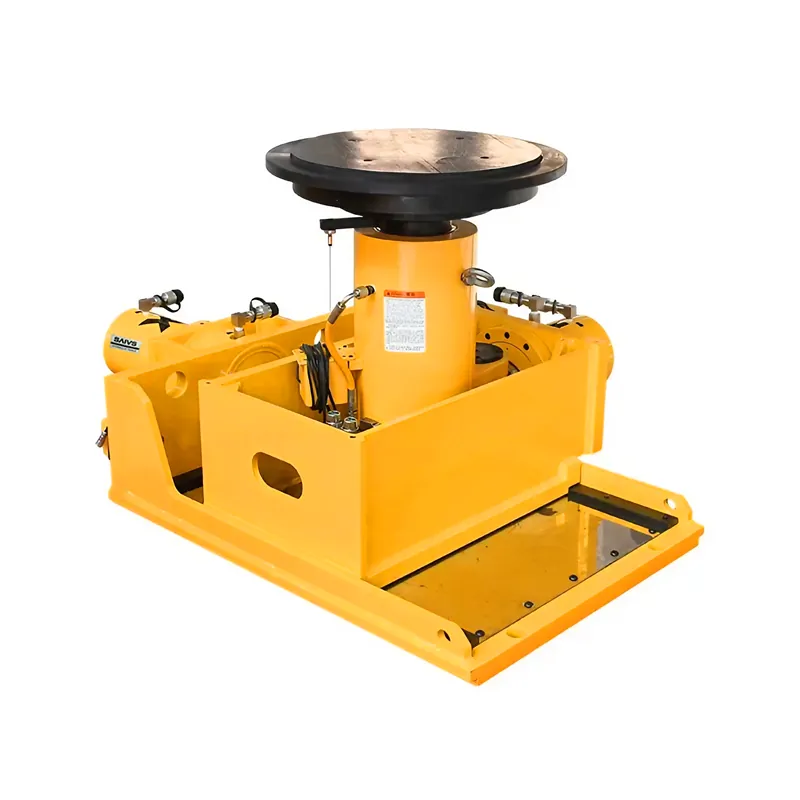

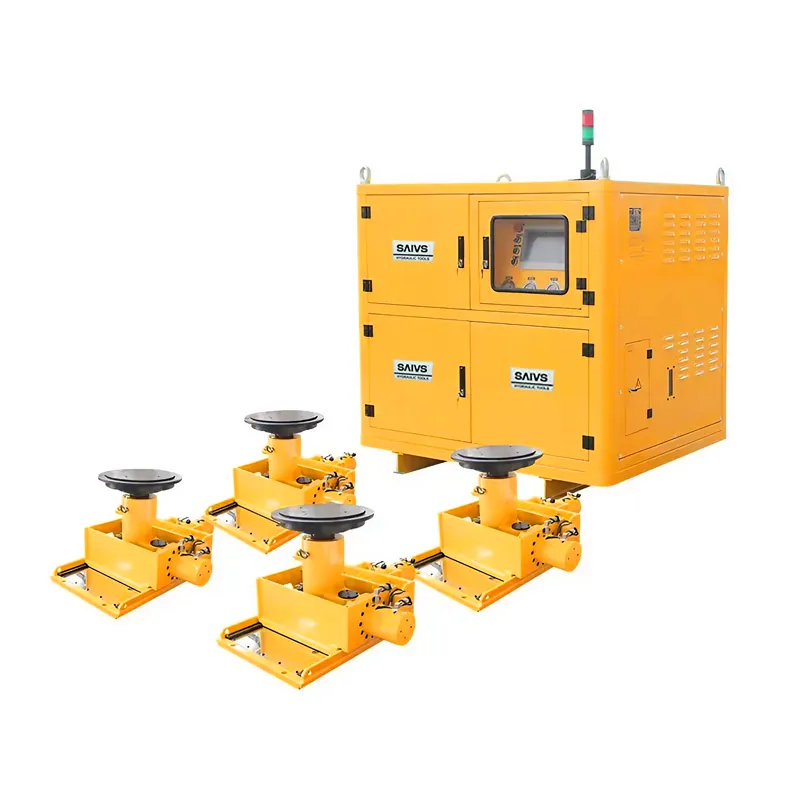

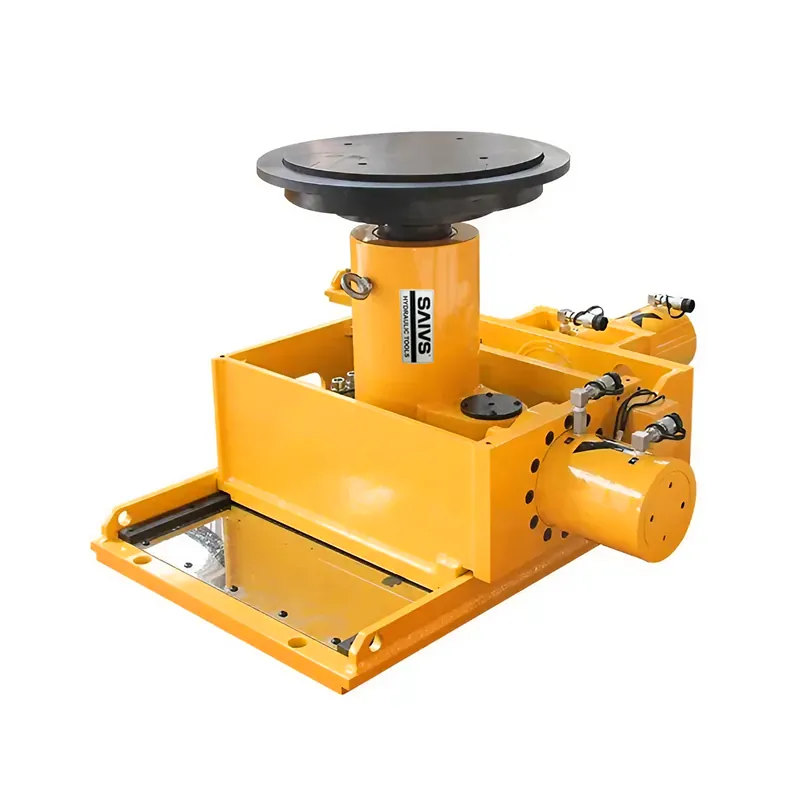

HPB, 50-1000 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System
-
Model: HPB-250 | HPB-400 | HPB-600 | HPB-1000
Capacity: 50-1000 ton
Working Pressure: 700 bar/10000 PSI
Stroke: 150/200/400/500 mm
Cylinder Area: 78.5-1250 cm²
Structure: Piston Type
Acting Way: Double Acting
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
- HPD, 100-200 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPC, 100-600 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPB, 50-1000 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPA, 60-110 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System
Description
Product Line: Industrial Tools
Customizable with special requirement
The innovative walking type synchronous pushing Hydraulic Equipment offers advanced features, including high-speed, stable pushing, ultra-high pressure hydraulic technology, and precise speed control. Its ability to adjust the vertical supporting force and bridge attitude ensures safe and reliable construction of composite structure bridges. The equipment's integrated design and versatile functions make it well-suited for pushing various types of steel structures, meeting the demands of modern bridge construction.

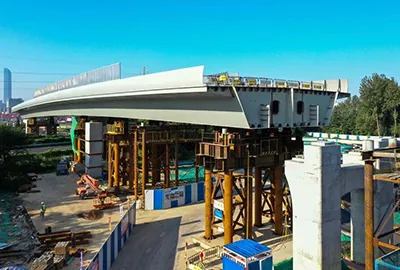

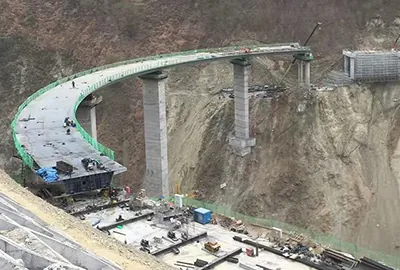

Applications
|
|
Series Comparison
| Model | Capacity(T) | Stroke(mm) | Working Pressure(bar) | Cylinder Area(cm2) | |
| HPB-250 | Vertical(Z) | 250 | 200 | 700 | 363 |
| Horizontal(X) | 50 | 150 | 700 | 78.5 | |
| Longitudinal(Y) | 50 | 500 | 700 | 78.5 | |
| HPB-400 | Vertical(Z) | 400 | 200 | 700 | 572.3 |
| Horizontal(X) | 60 | 150 | 700 | 95 | |
| Longitudinal(Y) | 60 | 400 | 700 | 95 | |
| HPB-600 | Vertical(Z) | 600 | 200 | 700 | 855 |
| Horizontal(X) | 100 | 150 | 700 | 133 | |
| Longitudinal(Y) | 100 | 400 | 700 | 133 | |
| HPB-1000 | Vertical(Z) | 1000 | 200 | 700 | 1250 |
| Horizontal(X) | 200 | 150 | 700 | 283 | |
| Longitudinal(Y) | 200 | 400 | 700 | 283 | |
