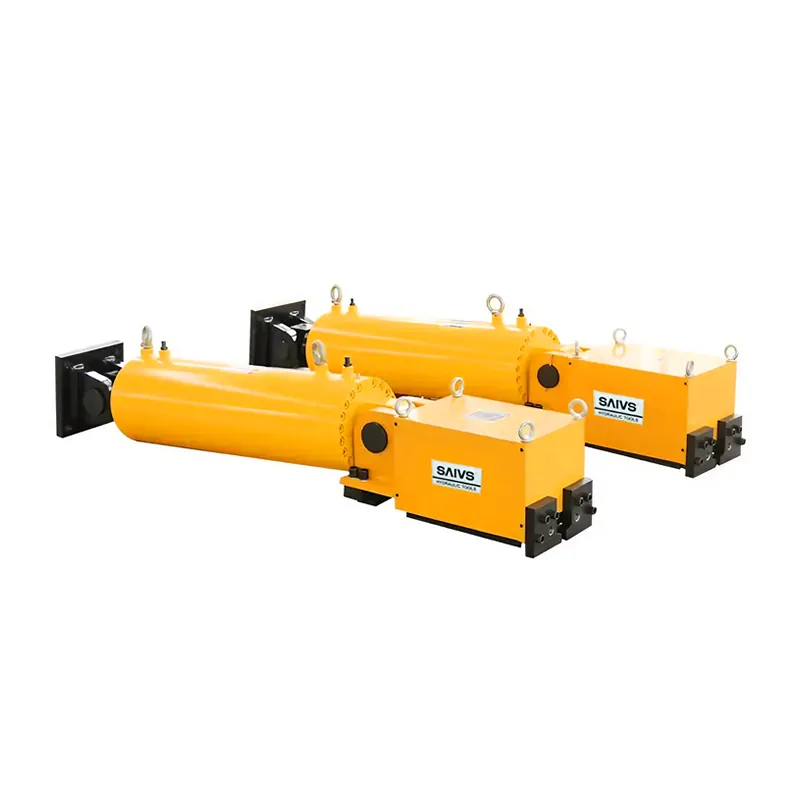

HPA, 60-110 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System
-
Model: HPA-60 | HPA-120
Capacity: 60-110 ton
Working Pressure: 315 bar
Stroke: 300/600 mm
Applicable Track: P43、QU70、QU80、QU100、QU120
Pushing Speed: 8-20 m/h
Structure: Piston Type
Acting Way: Double Acting
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
- HPD, 100-200 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPC, 100-600 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPB, 50-1000 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPA, 60-110 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System
Description
Product Line: Industrial Tools
Customizable with special requirement

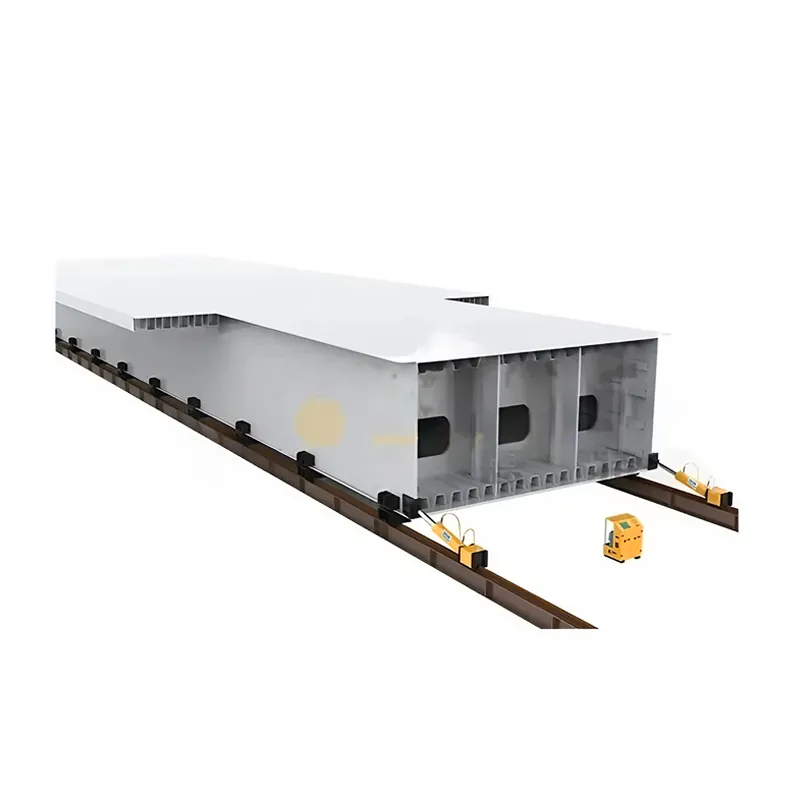

Purpose: Used for synchronous push-slide construction of large components.

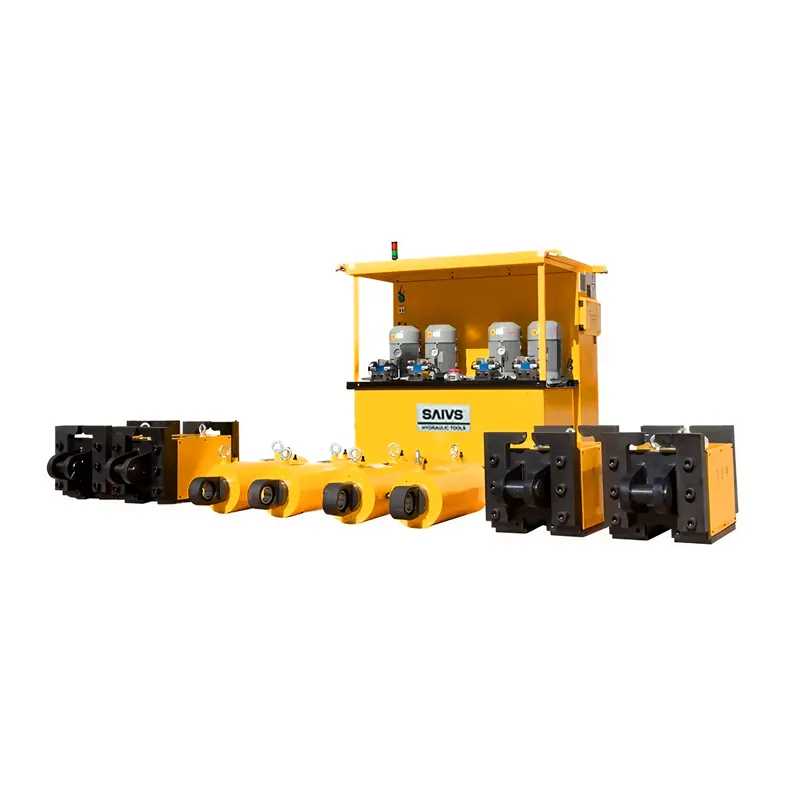

The innovative hydraulic push-slide construction system offers superior control and efficiency compared to traditional methods. It utilizes a hydraulic pushing pump station, cylinder, self-locking crawler, wedge block, and sliding shoe to ensure precise synchronization and stability during the construction of large components. Key advantages include self-locking clamping, high synchronization control, multi-point pushing, adaptability, easy installation, stable operation, and real-time monitoring.

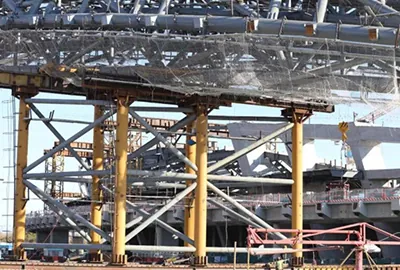

Applications
|
|
Series Comparison
| Model | Capacity （T） | Working Pressure （bar） | Stroke （mm） | Applicable Track | Pushing Speed（m/h） |
| HPA-60 | 60 | 315 | 300/600 | P43、QU70、QU80、QU100、QU120 | 8-20 |
| HPA-120 | 110 | 315 | 300/600 | P43、QU70、QU80、QU100、QU120 | 8-20 |
