HP1000DMIN, Two Speed 67.7 in³ Usable Oil,Hydraulic Sealed Hand Pump
-
Model:HP1000DMIN
Power Source：Manual
Usable Oil Capacity: 1110 | 67.7 in³
Piston Stroke：18 mm | 0.71 in
Weight: 9.3 kg | 20.5 lbs
Maximum Operating Pressure: 690 bar | 10000 PSI
Maximum Operating Pressure 1st/2nd Stage: 13.8/700 bar
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1 Piece
Brand Name:Replacement Enerpac's HP1000DMIN
- HP1000SMIN, Two Speed 67.7 in³ Usable Oil,Hydraulic Sealed Hand Pump HP550DMIN, Two Speed 35.4 in³ Usable Oil,Hydraulic Sealed Hand Pump HP550SMIN, Two Speed 35.4 in³ Usable Oil,Hydraulic Sealed Hand Pump HP350DMIN, Two Speed 18.3 in³ Usable Oil,Hydraulic Sealed Hand Pump HP350SMIN, Two Speed 18.3 in³ Usable Oil,Hydraulic Sealed Hand Pump
Description
Model:HP1000DMIN
Product Line: Industrial Tools
Customizable with special requirement
Single Port Hand Pumps are designed to operate a Single-Acting cylinder. The HP1000D pump prioritizes hazard reduction, safety, and user-friendliness. It is suitable for operating any Hydraulic Equipment rated at 10000 psi (700 bar) with an oil capacity of 61 in³ (1000 cm³) or less. Like other Equalizer pumps, it can be used in any orientation and is suitable for both onshore and offshore applications.
The HP1000DMIN Set includes:
1 x HP1000D Pump Unit
2 x 10000 psi (700 bar) Gauge
2 x 3/8” Port Gauge Adaptor
1 x Instruction Manual
1 x Cardboard Packaging

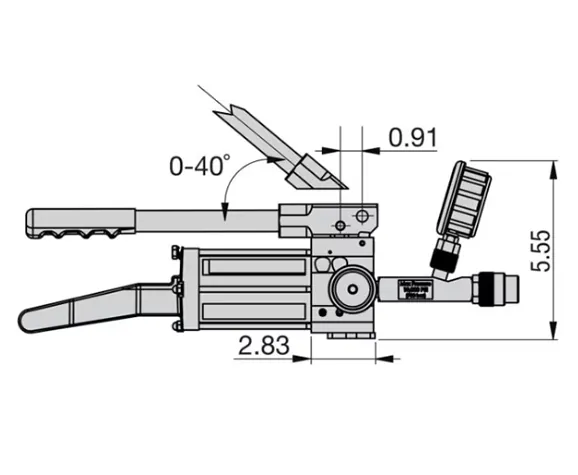

Dimensions
| Model | HP1000DMIN |
| Availability | Available – In Stock |
| Maximum Operating Pressure (bar) | 690 | 10000 PSI |
| Maximum Operating Pressure 1st Stage (bar) | 13.8 |
| Maximum Operating Pressure 2nd Stage (bar) | 700 |
| Reservoir Capacity (cm3) | 1110 |
| Usable Oil Capacity (cm3) | 1110 | 67.7 in³ |
| Nominal Oil Capacity (cm3) | 1000 |
| Maximum Flow at Rated Pressure | 0.77 cm3/stroke |
| Oil Volume Per Stroke 1st Stage (cm3) | 3.62 |
| Oil Volume Per Stroke 2nd Stage (cm3) | 0.77 |
| Maximum Handle Effort (kg) | 21 |
| Piston Stroke (mm) | 18 | 0.71 in |
| Power Source | Manual |
| Packaging Dimensions (mm) | 250 x 180 x 900 |
| Overall Length (mm) | 893 |
| Handle Length (mm) | 537 |
| Weight (kg) | 9.3 | 20.5 lbs |
Series Comparison
| Model | Availability | Maximum Operating Pressure (bar) | Maximum Operating Pressure 1st Stage (bar) | Maximum Operating Pressure 2nd Stage (bar) | Reservoir Capacity (cm3) | Usable Oil Capacity (cm3) | Nominal Oil Capacity (cm3) | Maximum Flow at Rated Pressure | Oil Volume Per Stroke 1st Stage (cm3) | Oil Volume Per Stroke 2nd Stage (cm3) | Maximum Handle Effort (kg) | Piston Stroke (mm) | Power Source | Packaging Dimensions (mm) | Overall Length (mm) | Handle Length (mm) | Weight (kg) |
| HP350SMIN | Available for Backorder | 690 | 10000 PSI | 13.8 | 700 | 300 | 300 | 18.3 in³ | 350 | 0.77 cm3/stroke | 3.62 | 0.77 | 33 | 18 | 0.71 in | Manual | 250 x 180 x 600 | 554 | 360 | 4.9 | 10.8 lbs |
| HP350DMIN | Available for Backorder | 690 | 10000 PSI | 13.8 | 700 | 300 | 300 | 18.3 in³ | 350 | 0.77 cm3/stroke | 3.62 | 0.77 | 33 | 18 | 0.71 in | Manual | 250 x 180 x 600 | 580 | 360 | 7.2 | 15.9 lbs |
| HP550SMIN | Available for Backorder | 690 | 10000 PSI | 13.8 | 700 | 580 | 580 | 35.4 in³ | 550 | 0.77 cm3/stroke | 3.62 | 0.77 | 25 | 18 | 0.71 in | Manual | 250 x 180 x 700 | 643 | 490 | 5.9 | 13 lbs |
| HP550DMIN | Available for Backorder | 690 | 10000 PSI | 13.8 | 700 | 580 | 580 | 35.4 in³ | 550 | 0.77 cm3/stroke | 3.62 | 0.77 | 25 | 18 | 0.71 in | Manual | 250 x 180 x 700 | 669 | 490 | 8.1 | 17.9 lbs |
| HP1000SMIN | Available for Backorder | 690 | 10000 PSI | 13.8 | 700 | 1110 | 1110 | 67.7 in³ | 1000 | 0.77 cm3/stroke | 3.62 | 0.77 | 21 | 18 | 0.71 in | Manual | 250 x 180 x 900 | 867 | 537 | 7.1 | 15.7 lbs |
| HP1000DMIN | Available – In Stock | 690 | 10000 PSI | 13.8 | 700 | 1110 | 1110 | 67.7 in³ | 1000 | 0.77 cm3/stroke | 3.62 | 0.77 | 21 | 18 | 0.71 in | Manual | 250 x 180 x 900 | 893 | 537 | 9.3 | 20.5 lbs |
